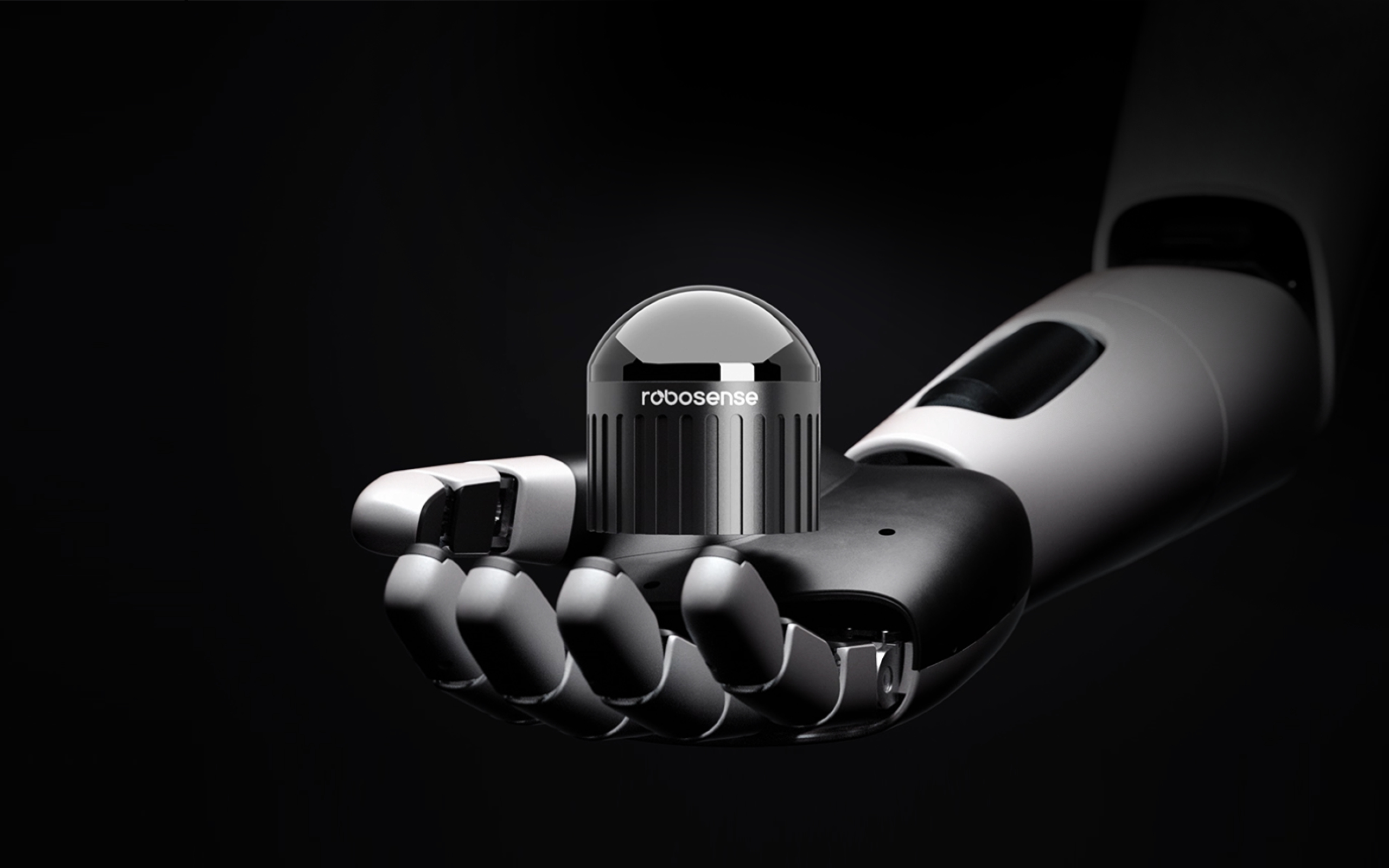

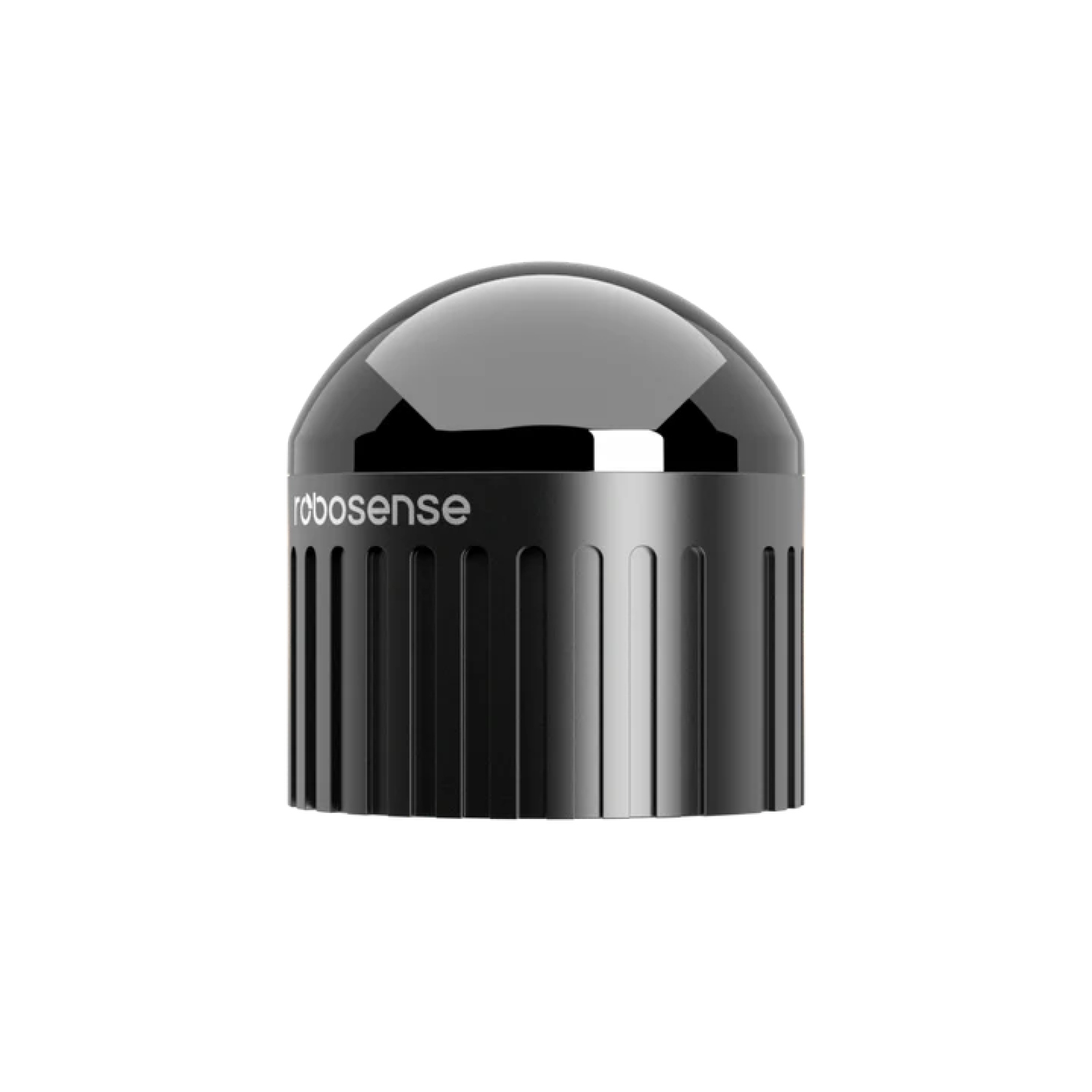

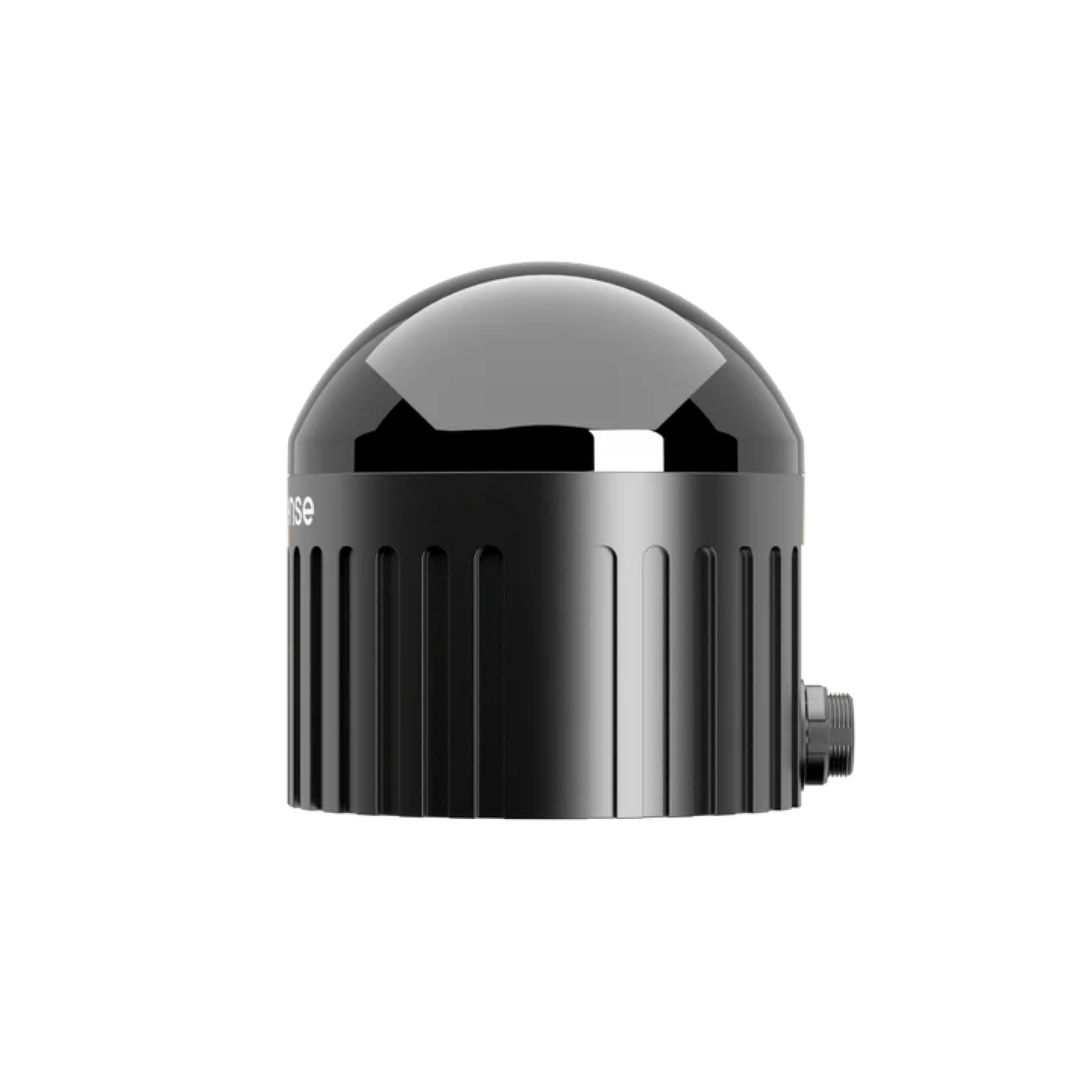

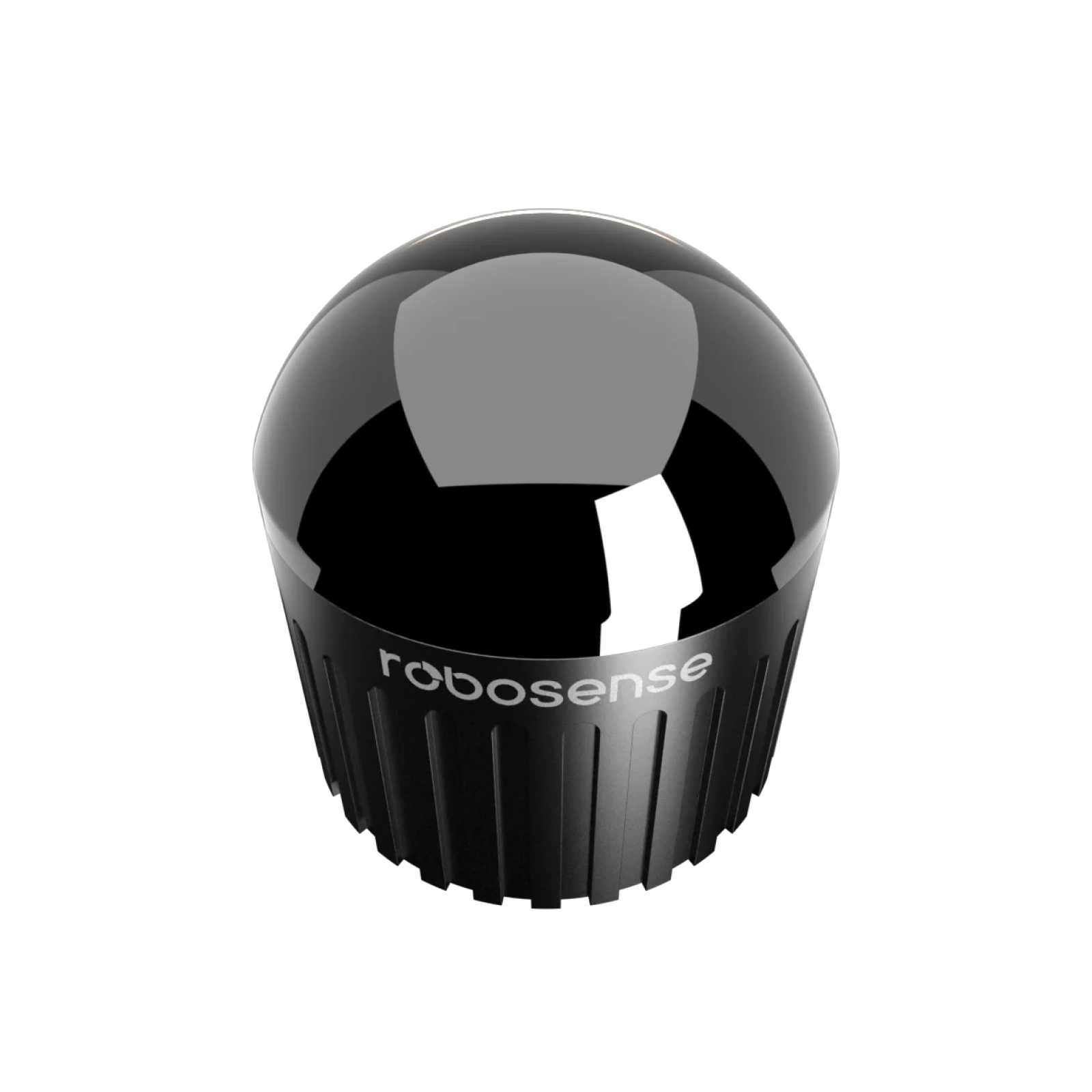

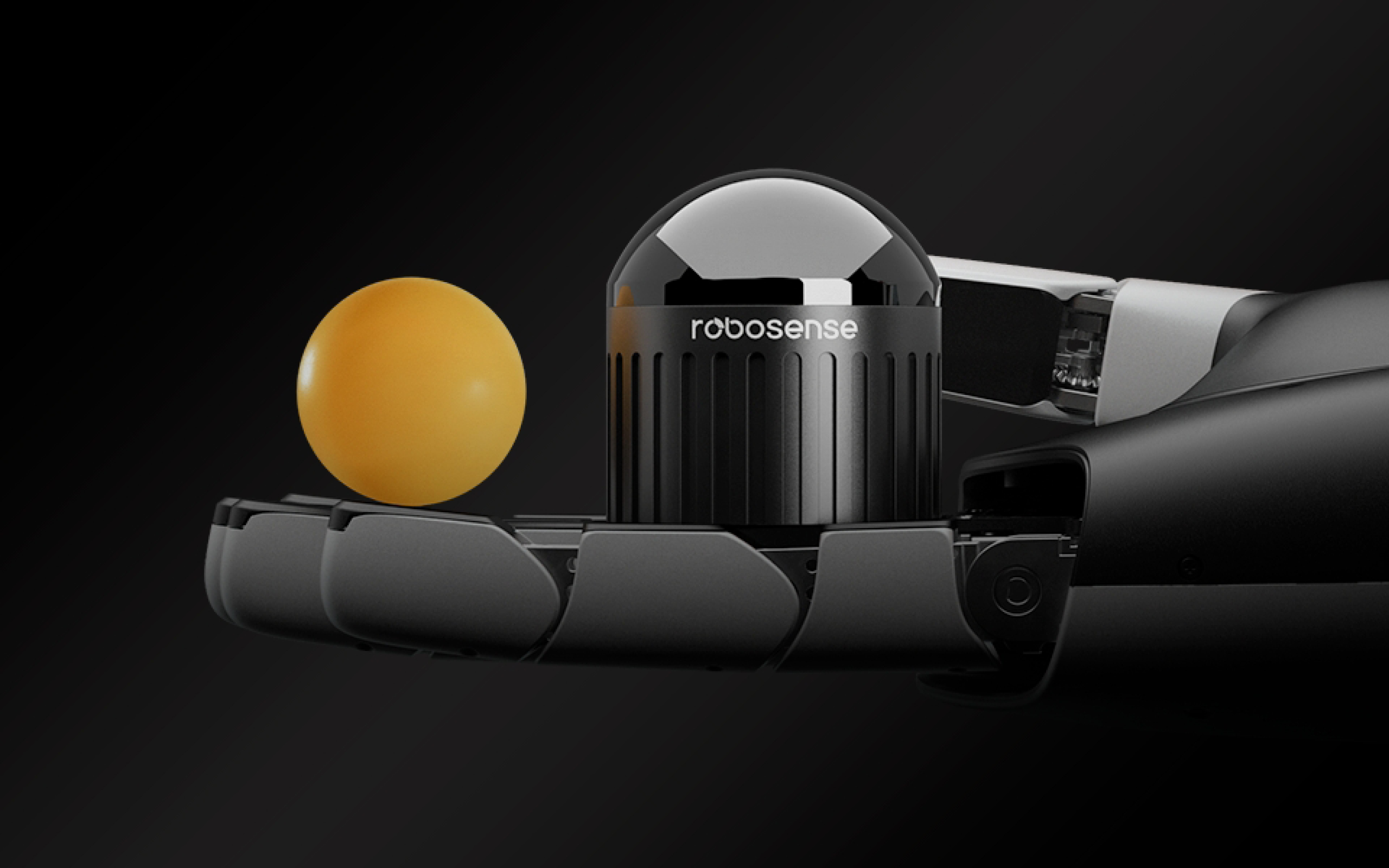

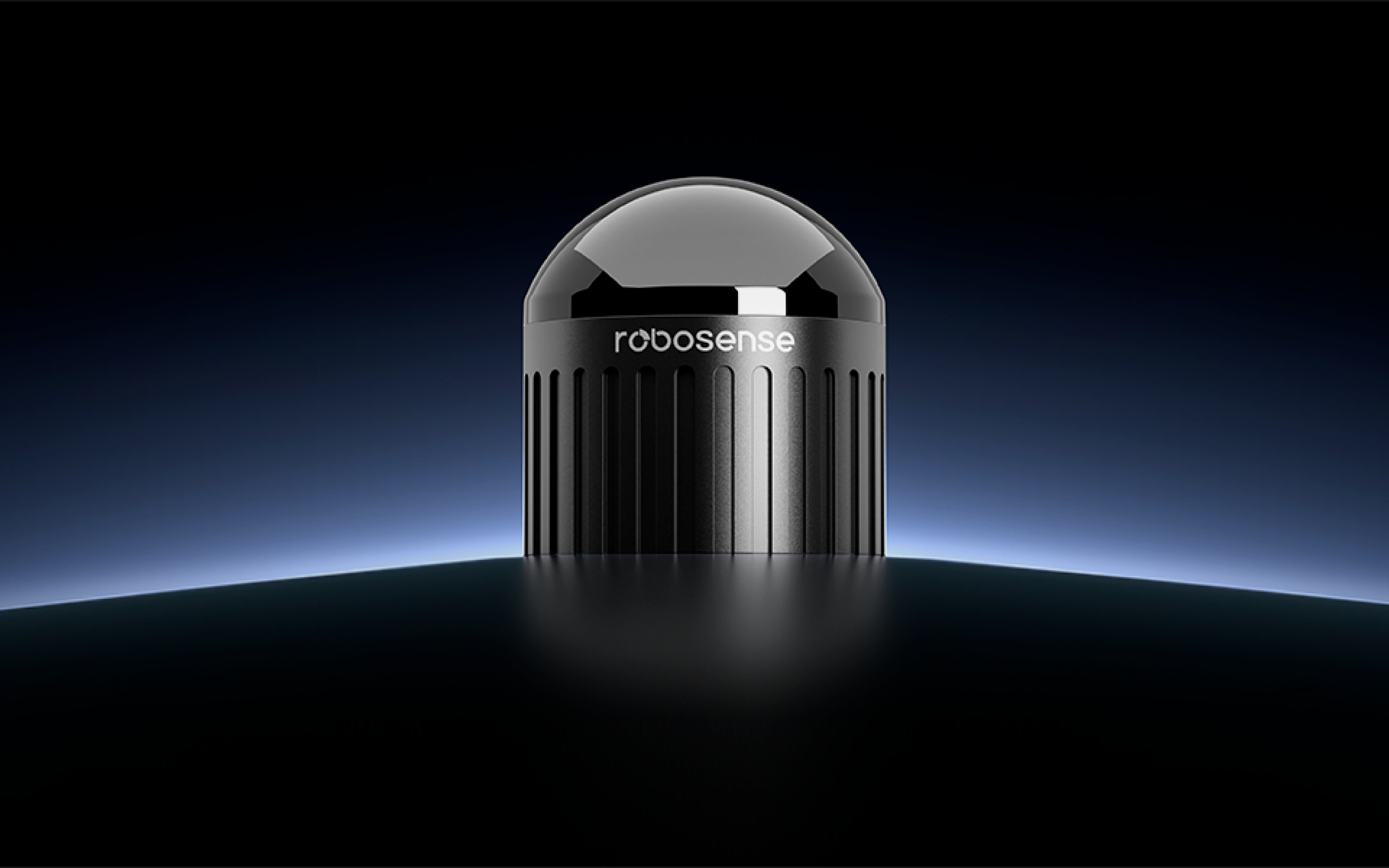

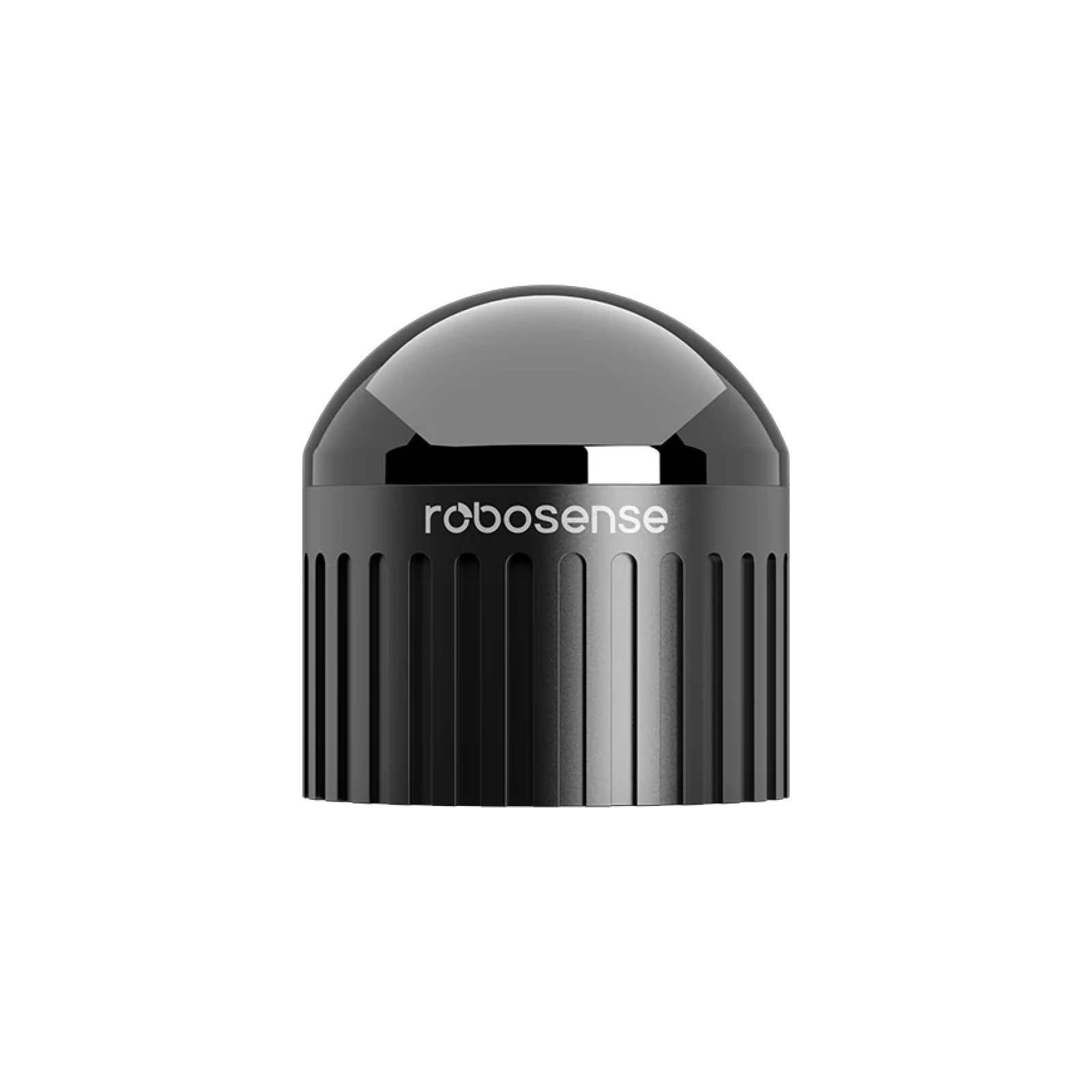

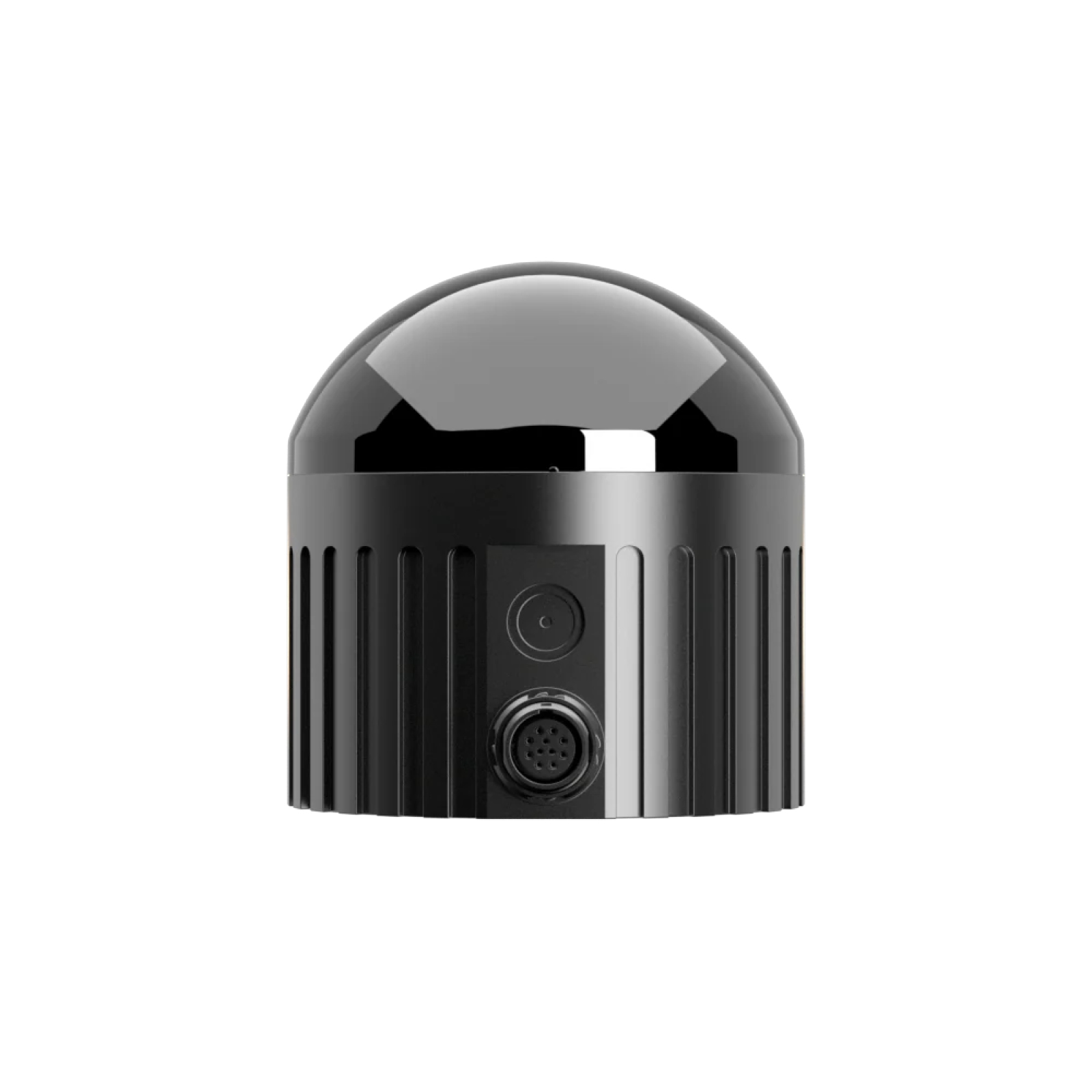

Airy is Robosense’s compact and lightweight hemispheric digital LiDAR, with a diameter of just 60mm, a height of 63mm and weighing less than 240g.
Despite its small size, it offers an ultra-wide field of view of 360° horizontally and 90° vertically, covering a range of 60 metres radius.
It generates up to 1.72 million points per second with a detection accuracy of ±1 cm, providing real-time structured point cloud images. Its low power consumption design, less than 8W, enables continuous and stable operations for robots in a variety of environments.
Main features
-
- Hemispheric range of vision.
- Compact and lightweight design.
- High definition detection.
- Low power consumption.
Applications
-
- Quadruped Robots.
- AGV/AMR.
- Delivery Robots.
- Humanoid Robots.
Manufacturer | Robosense |
Model Nº | Airy |
Temperature | -40°C ~ +60°C |
Size | Ø 60 mm |
Weight | 230 ± 20 g |
Voltage | 9 ~32 V |
Range | 60m (30m @10% NIST) |
Resolution angle | Horizontal: 0.4º | Vertical: 0.947º |
Enclosure class | IP67, IP6K9K |
Power Consumption | 8W (Typical) |
Ethernet | 100 MBps |
Field of view (horizontal) | 0~360° |
Field of view (vertical) | 0~90° |
Accuracy | 1.5 cm (1σ) |
