Showing all 8 results

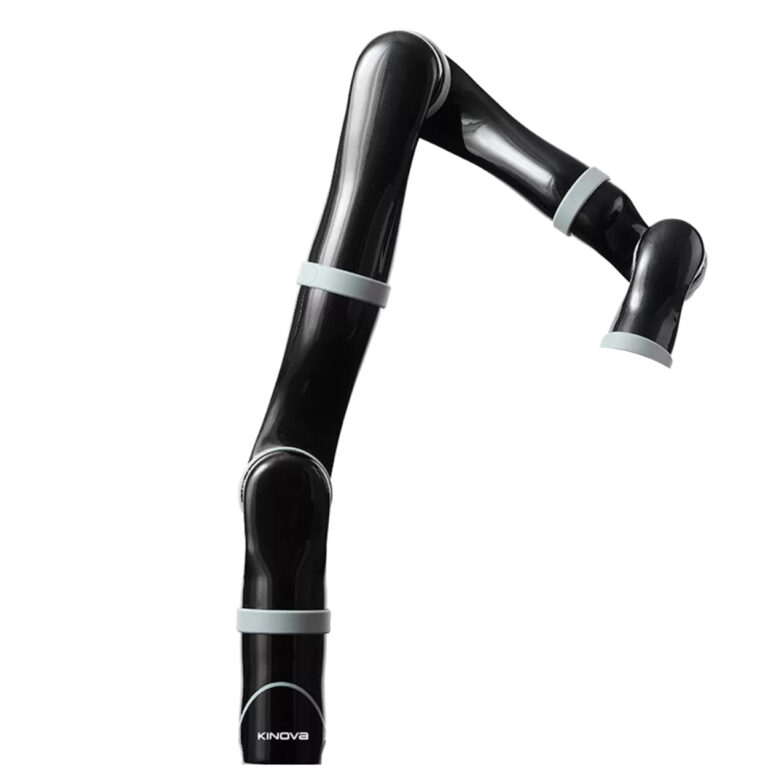

Gen2 6DOF – STOCK
In stock
| Weight | 25 kg |
|---|---|
| Dimensions | 45 × 65 × 35 cm |
| Manufacturer |
Kinova Robotics |
| Model Nº |
Gen2 6 DoF |
| Interface |
RS-485 |
| Weight |
4,4 kg |
| Voltage |
18 – 29 VDC |
| Payload |
2.6 Kg (mid-range continuous payload capabilities) / 2.2 Kg (full-reach peak/temporary payload capabilities) |
| Materials |
Carbon fiber (links), aluminum (actuators) |
| Joint range after start-up (Software limitation) |
+- 27,7 turns |
| Maximun linear arm speed |
20 cm/s |
| Average power |
25 W (5W in Standby) |
| Water resistance |
IPX2 |
Gen2 7DOF + KG2 gripper – STOCK
In stock
| Weight | 25 kg |
|---|---|
| Dimensions | 45 × 65 × 35 cm |
| Manufacturer |
Kinova Robotics |
| Model Nº |
Gen2 6 DoF |
| Interface |
RS-485 |
| Weight |
4,4 kg |
| Voltage |
18 – 29 VDC |
| Payload |
2.6 Kg (mid-range continuous payload capabilities) / 2.2 Kg (full-reach peak/temporary payload capabilities) |
| Materials |
Carbon fiber (links), aluminum (actuators) |
| Joint range after start-up (Software limitation) |
+- 27,7 turns |
| Maximun linear arm speed |
20 cm/s |
| Average power |
25 W (5W in Standby) |
| Water resistance |
IPX2 |
TF03
Available on backorder
| Weight | 2,000000 kg |
|---|---|
| Dimensions | 8,000000 × 20,000000 × 10,000000 cm |
| Manufacturer |
Benewake |
| Model Nº |
TF03 |
| Accuracy |
±10cm (within 10 m) / 1% (beyond 10 m) |
| Environment |
100k Lux |
| Repeatability |
3 cm |
| Reach |
180m@90% reflectivity , 70m@10% reflectivity |
| Frame Rate |
1Hz-1.000Hz (Default 100Hz) |
| Distance resolution |
1 cm |
| Wavelength |
905 nm |
| Field of View |
0,5º |
| Temperature |
-25ºC to +60ºC |
| Interface |
CAN ,UART |
| Voltage |
DC 5V (=200 mA) |
| Range |
100 m (max. 180 m) |
| Power Consumption |
0,9 W |
| Weight |
0,77 kg |
TFmini Plus
Available on backorder
| Weight | 2,000000 kg |
|---|---|
| Dimensions | 8,000000 × 20,000000 × 10,000000 cm |
| Manufacturer |
Benewake |
| Model Nº |
TFmini Plus |
| Accuracy |
±5 cm@(0,1-6 m) / ±1%@(6-12 m) |
| Interface |
UART/I2C |
| Weight |
11g |
| Voltage |
5 V |
| Environment |
70k Lux |
| Scan frecuency |
1~1000Hz |
| Spatial resolution (IFOV) |
3,6º |
| Detection Range |
0,1~12 m (Indoor) / 0,1~7 m (Outdoor) |
| Distance resolution |
5 mm |
| Temperature |
-20ºC to +60ºC |
| Enclosure class |
IP65 |
| Wavelength |
850 nm |
| Power Consumption |
≤110 mA |
UST-10LX – STOCK
In stock
| Weight | 0,500000 kg |
|---|---|
| Dimensions | 10,000000 × 12,000000 × 8,000000 cm |
| Manufacturer |
Hokuyo Automatic |
| Model Nº |
UST-10LX |
| Accuracy |
+-40 mm |
| Interface |
Ethernet |
| Ambient illuminance |
15.000 Lux |
| Temperature |
-10ºC to +50ºC |
| Weight |
130 g |
| Voltage |
10-30 V |
| Resolution angle |
0,25° |
| Range |
270º |
| Enclosure class |
IP65 |
| Environment |
Indoors |
| Distance |
0,06 – 10 m |
| Scan frecuency |
40 Hz |
UST-20LX – STOCK
In stock
| Weight | 0,500000 kg |
|---|---|
| Dimensions | 10,000000 × 12,000000 × 8,000000 cm |
| Manufacturer |
Hokuyo Automatic |
| Model Nº |
UST-20LX |
| Accuracy |
+-40 mm |
| Interface |
Ethernet |
| Ambient illuminance |
15.000 Lux |
| Temperature |
-10ºC to +50ºC |
| Weight |
130 g |
| Voltage |
10-30 V |
| Resolution angle |
0,25° |
| Range |
270º |
| Enclosure class |
IP65 |
| Environment |
Indoors |
| Distance |
0,06 – 20 m |
| Scan frecuency |
40 Hz |
UST-30LX – STOCK
In stock
| Weight | 0,500000 kg |
|---|---|
| Dimensions | 10,000000 × 13,000000 × 11,000000 cm |
| Manufacturer |
Hokuyo Automatic |
| Model Nº |
UST-30LX |
| Accuracy |
+-40 mm |
| Interface |
Ethernet 100BASE-TX |
| Ambient illuminance |
100.000 lux |
| Temperature |
-30°C to +50°C |
| Size |
50×50×70 mm (sensor) |
| Weight |
130g (Excluding cable) |
| Voltage |
30VDC 50mA MAX |
| Resolution angle |
0,25° |
| Range |
270º |
| Distance |
0,05 – 30 m |
| Environment |
Outdoors |
| Scan frecuency |
40 Hz |
| Enclosure class |
IP67 |
