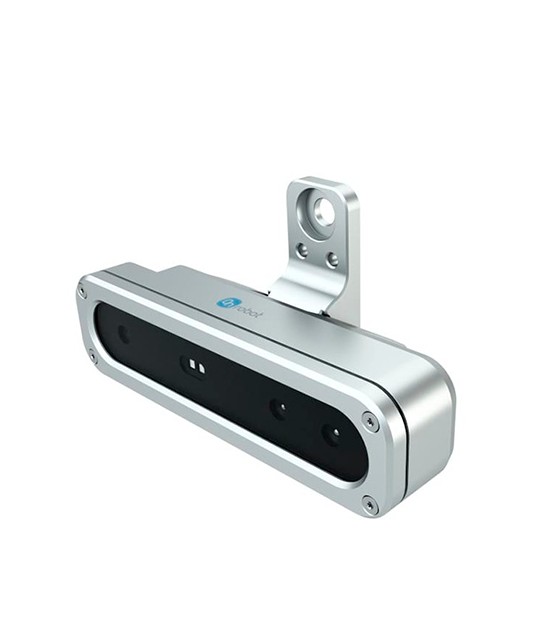

With a compact, easy-to-integrate design, OnRobot Eyes enables precise object identification, inspection and manipulation when mounted on a robotic arm. It also excels at adapting to a variety of tasks without the need for complex calibration.

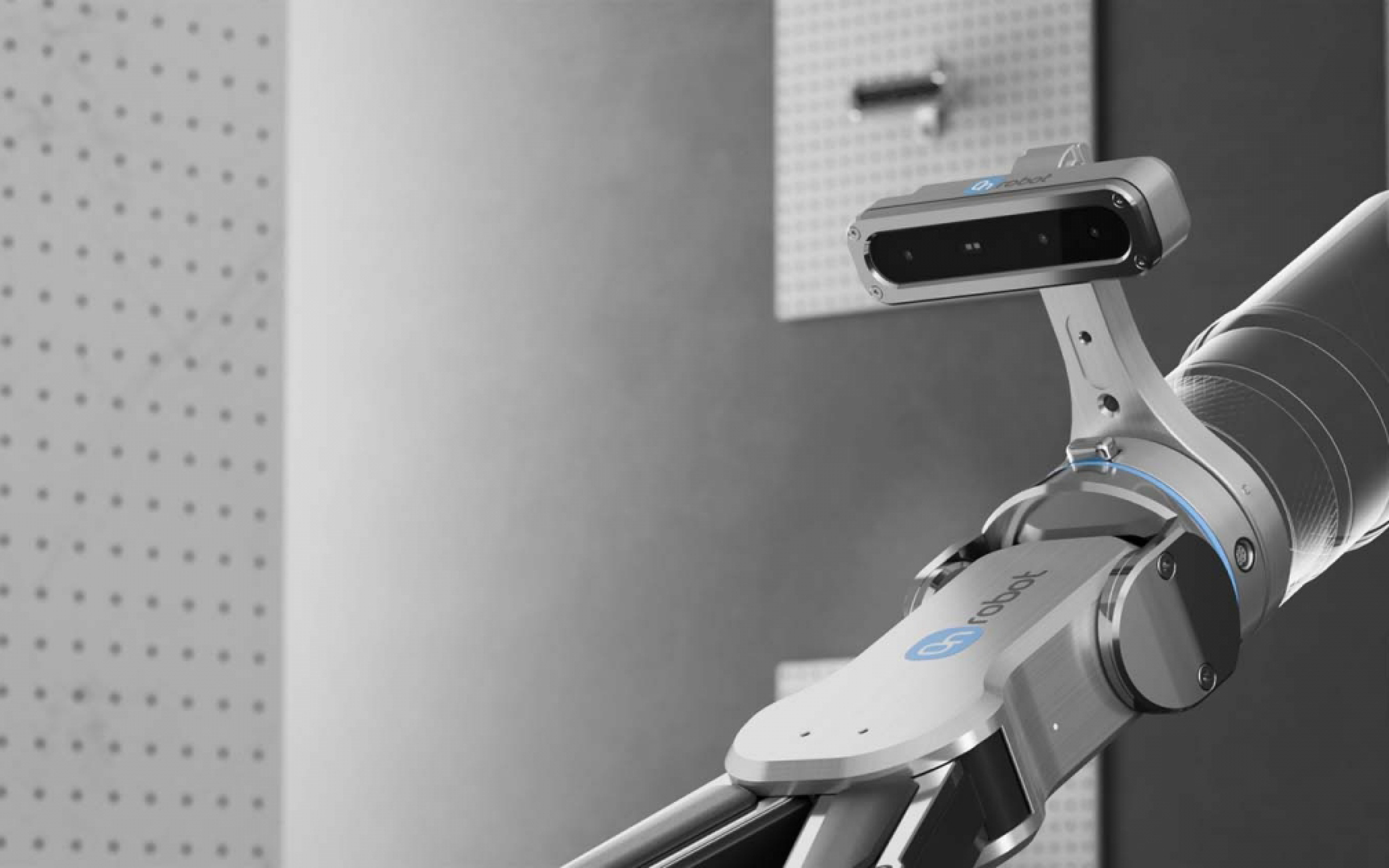

OnRobot Eyes can be mounted on the wrist of the robot or externally, with position adjustments to suit the application. Eyes can be integrated with the robot and gripper interface via the OnRobot Quick Changer.
Main features
-
- Intuitive programming.
- One-picture calibration and part recognition.
- Adjustable wrist or external mount.
- 2.5D vision featuring depth perception.
Applications
-
- Inspection object.
- Material handling.
- Assembly of parts on production lines.
Manufacturer | OnRobot |
Model Nº | OnRobot Eyes |
Interface | USB-C 3.x |
Voltage | 24V (6.25A) |
Weight | 0,260 kg |
Field of View | 69,4 x 42,5 x 77 (+/- 3) |
Vision | 2.5 D |
Image Sensor | Rolling Shutter |
Resolution | 1280x720 |
Temperature | 0ºC - 35ºC |
Enclosure class | IP54 |
