RS-Bpearl
Manufacturer: Robosense
3D LiDAR 360º sensor.
Estimated delivery time: 2-4 weeks.
2.436,00 €
Available on backorder
Available on backorder

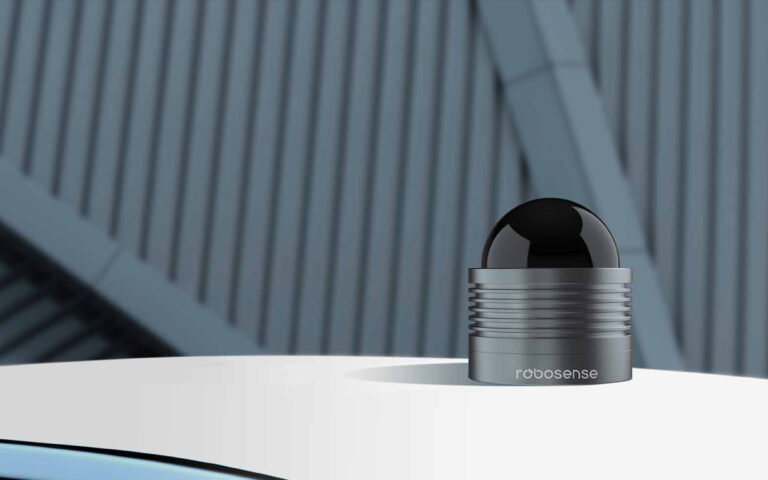

The RoboSense RS-Bpearl is a short-range LiDAR designed to detect blind spots on vehicles. With a 360° horizontal and 90° vertical field of view, it identifies nearby obstacles such as pets or children.
Its modular design reduces costs and allows for flexible integration. It operates in temperatures from -30°C to 60°C, with an accuracy of ±3 cm.
Its compact size (100 mm in height and 111 mm in diameter) and weight of 0,92 kg make it easy to install in a variety of vehicles.
Main features
- 360° x 90° wide field of view.
- Advanced technology for detection of close objects.
- Temperature resistant from -30° to 60°.
- Modular and flexible.
Applications
- Autonomous driving.
- Mobile robotics.
- Monitoring in logistics.
| Manufacturer | Robosense |
| Model Nº | RS-Bpearl |
| Temperature | -30 ° C a + 60 ° C |
| Accuracy | ± 3cm |
| Size | H: 100mm * φ: 111mm |
| Weight | 0,92 kg (without cabling) |
| Laser beam | 32 beams |
| Wavelength | 905 nm |
| Laser class | class 1 |
| Data rate | 576.000 pts/s |
| Data type | spatial coordinates/intensity |
| Field of view (horizontal) | 360º |
| Field of view (vertical) | 90º |
| Input voltage | 9-32VDC |
| RPM | 300 rpm a 1200 rpm (5Hz a 20Hz) |
Official ROS Packages:
Related products
A3
Available on backorder
SKU:
RB-HUM-AG-A3
| Manufacturer |
Agibot |
|---|---|
| Model Nº |
AgiBot A3 |
| Height |
173 cm |
| Maximum Endurance |
10 h |
| Power-to-Weight Ratio |
0.218 kW/kg |
| Power |
12 kW |
| Current |
150 A |
| Battery |
Dual battery packs · 1152 Wh · Full-tab cells |
| Positioning |
Standard UWB, single-unit accuracy < ±10 cm |
| Fleet Control |
Supports precise coordination of 100+ units |
| Network |
Dual-module 5G with dual-SIM support |
D1
Available on backorder
5.592,00 €
SKU:
RB-QUA-AG-D1
| Weight | 90 kg |
|---|---|
| Dimensions | 80 × 75 × 175 cm |
| Manufacturer |
Agibot |
| Model Nº |
D1 Edu / D1 Ultra / D1 Ultra-W / D1 Max / D1 MaxPro |
| Weight |
15.5 kg (Edu) / 16 kg (Ultra) / 22 kg (Ultra-W) / 41 kg (Max) / 68 kg (MaxPro) |
| Rated Payload |
5 kg (EDU, Ultra, Ultra-W) / 25 kg (Max) / 50 kg (Max Pro) |
| Load Endurance |
1-2 h (EDU) / 1 h (Ultra, Ultra-W) / 3.5 h (Max) / 2 h (Max Pro) |
| Speed |
40° (Edu, Ultra) / — (Ultra-W) / 45° (Max, MaxPro) |
| Max. climbing angle |
3.5 m/s (Edu) / 3.7 m/s (Ultra) / — (Ultra-W) / 8 m/s (Max) / 3 m/s (MaxPro) |
| Operating Range |
6 km (EDU, Ultra) / 9 km (Ultra-W) / 29 km unloaded / 18 km loaded (Max) / — (Max Pro) |
| Battery |
4.6 Ah 43.2V (Edu) / — (Ultra, Ultra-W) / 10 Ah × 2 (Max) / 2081 Wh (MaxPro) |
| Protection Rating |
— (EDU) / IP54 (Ultra, Ultra-W) / IP67 (Max, Max Pro) |

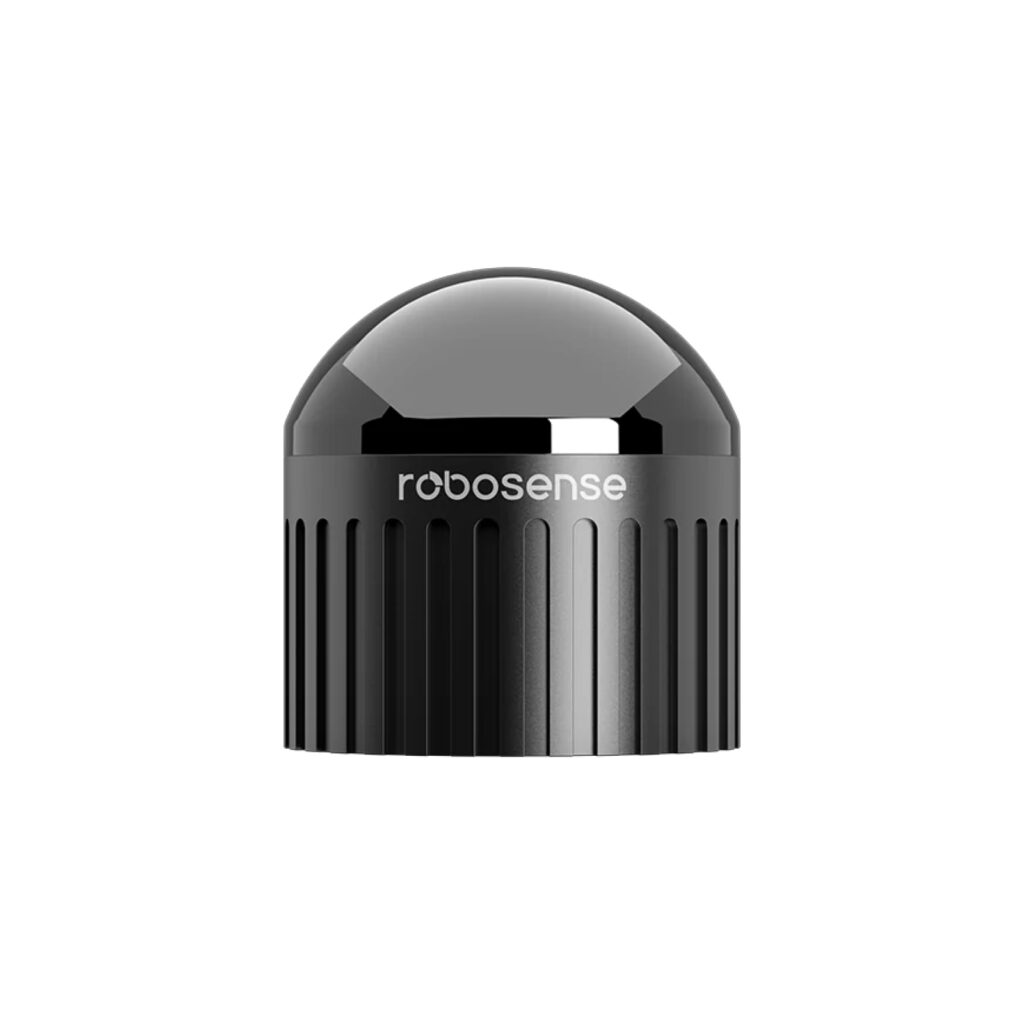

Airy Lite
