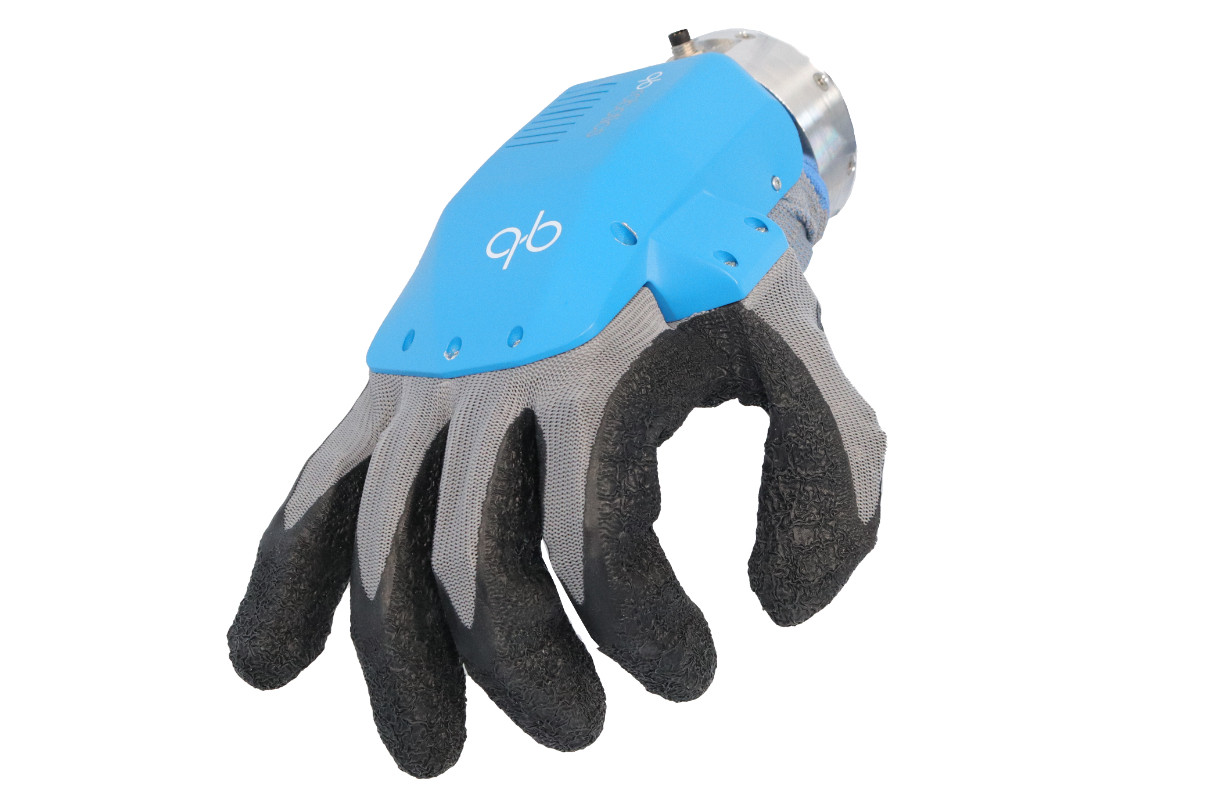

The qb SoftHand2 Research is the smarter and more versatile evolution of the qb SoftHand Research: an anthropomorphic robotic hand with 19 self-repairing and divisible finger joints.

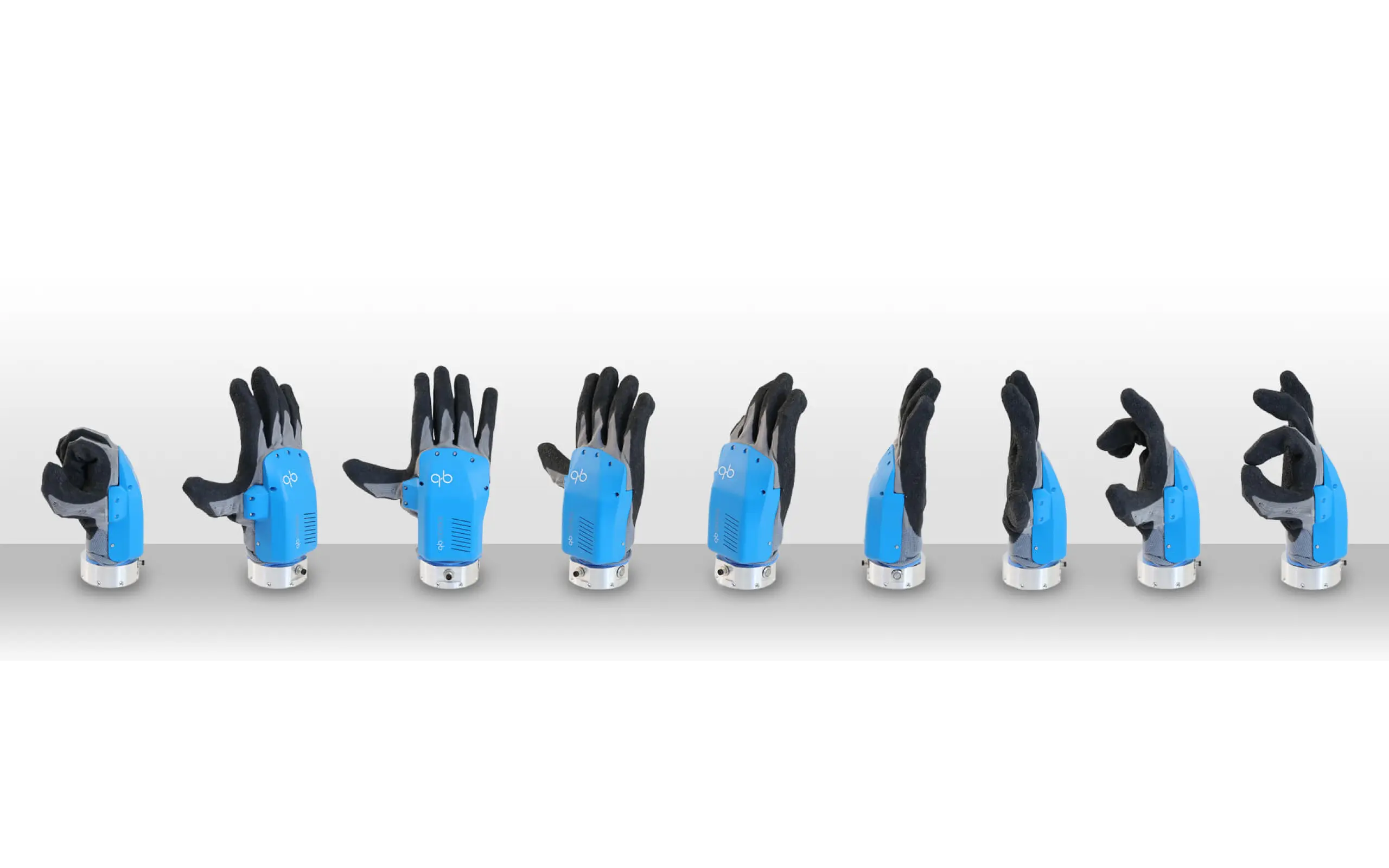

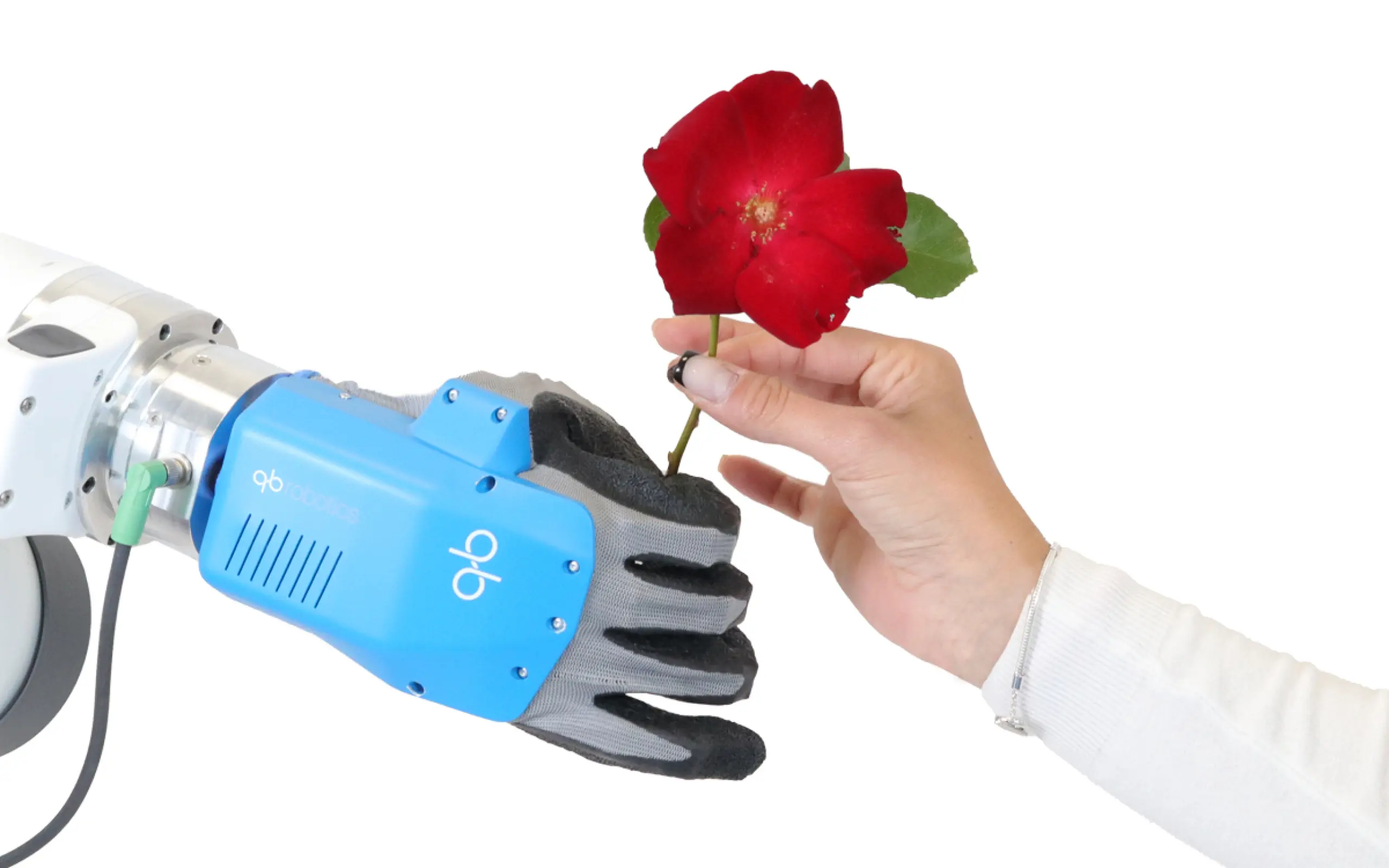

This hand features an improved degree of complexity and dexterity, making it useful for a wider range of applications in R&D, testing and human interaction fields, performing both precision and power grips, in a stable manner and without having to change wrist orientation.

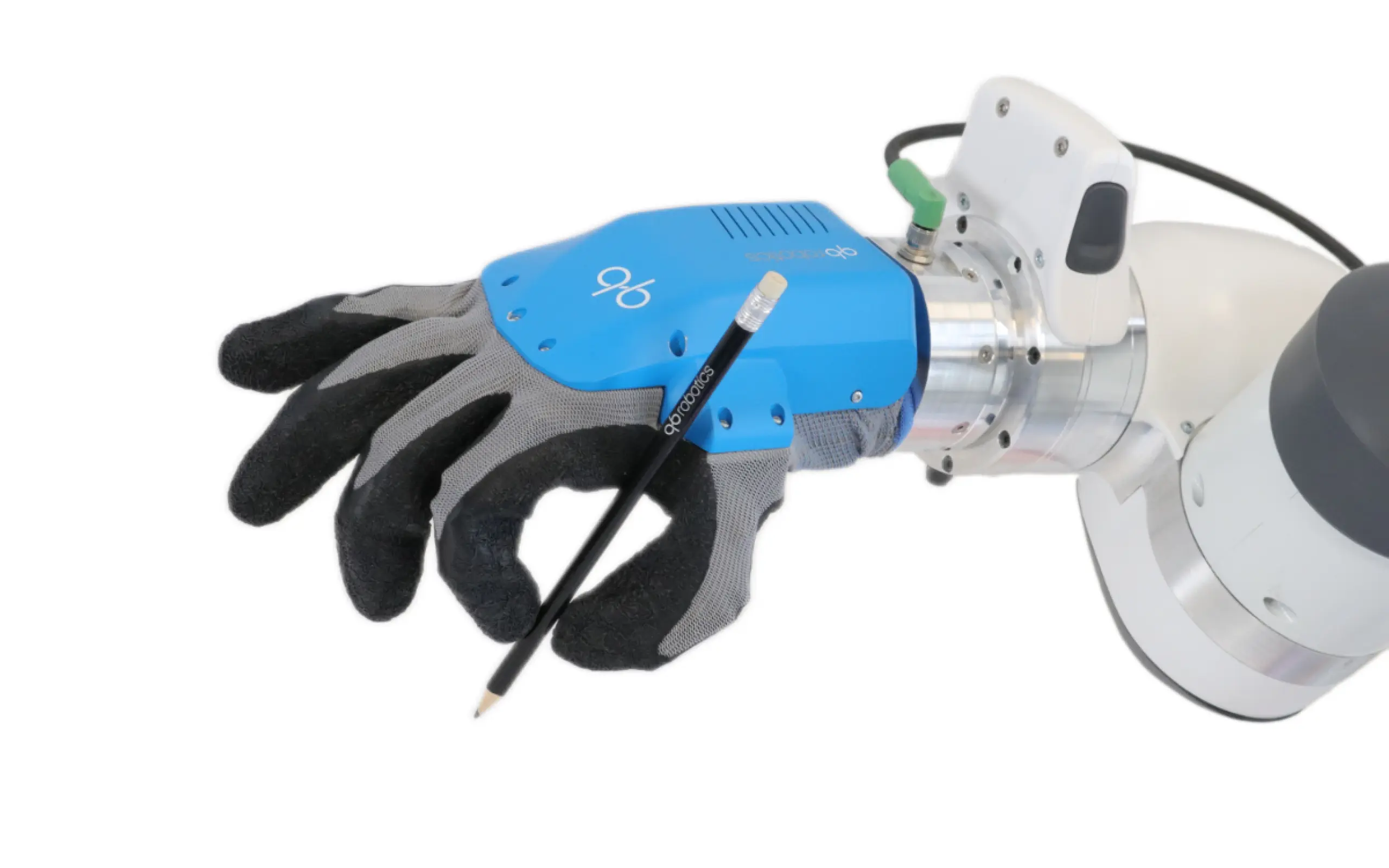

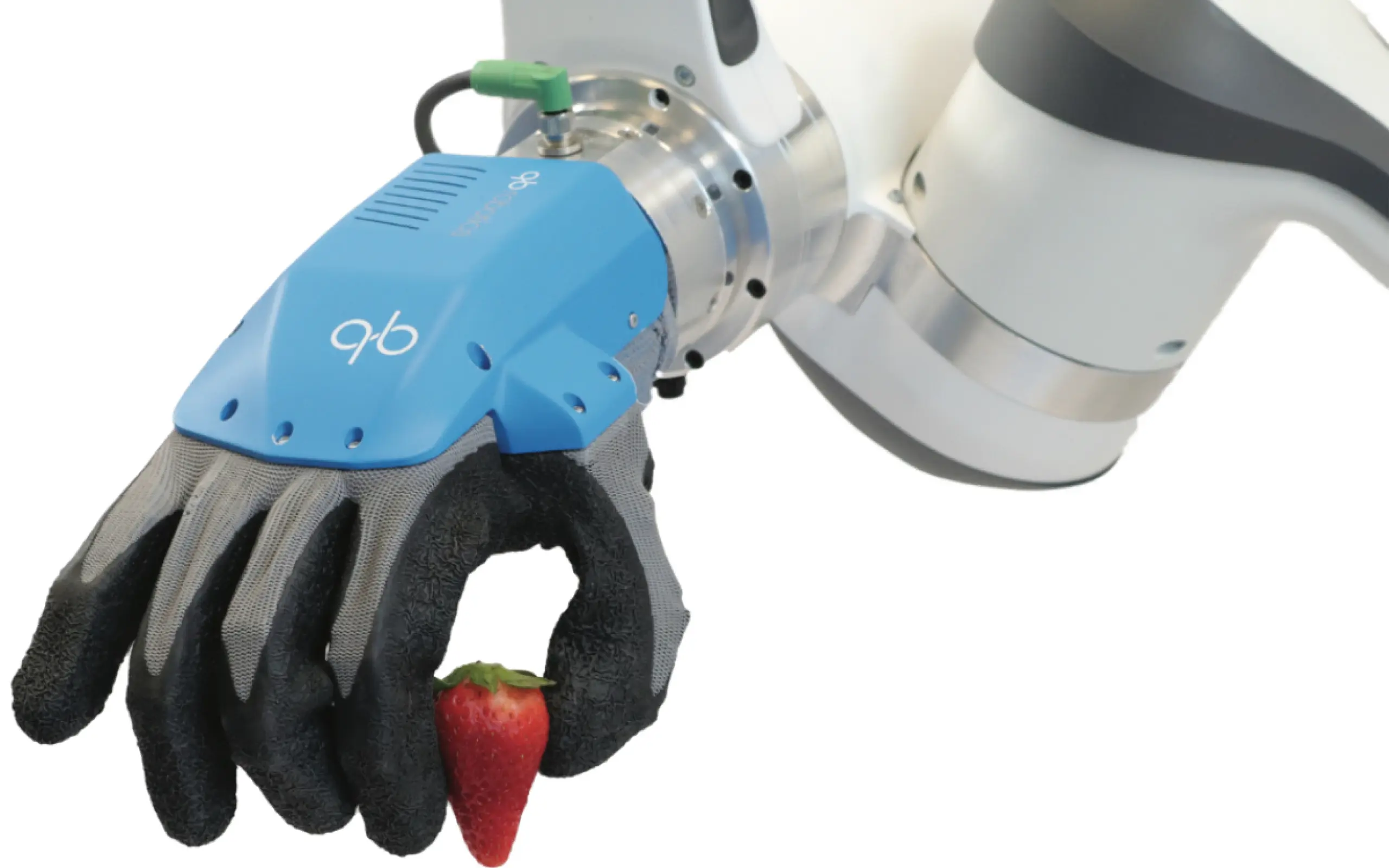

With improved accuracy, qb SoftHand2 Research can perform a more precise grip for interacting with small objects.
Main features
-
- 19 joints.
- Self-repairing and detachable fingers.
- Adaptable and flexible.
- Easy to use.
Applications
-
- R&D, educational.
- Medical and rehabilitation.
- Service robotics.
Manufacturer | qb Robotics |
Model Nº | qb SoftHand2 Research |
Communication Protocol | RS485 |
Gripping time | From wide open to clenched fist in 1.1 s |
Interface | USB & RS485 |
Max. gripping force | 62 N |
Payload | 2 kg (pinch configuration) / 3 kg (grasp configuration) |
