RS-HELIOS 5515
Manufacturer: Robosense
3D LiDAR 360º sensor.
Estimated delivery time: 4 – 6 weeks.
3.699,00 €
Available on backorder
Available on backorder
The RS-Helios 5515 adopts a design that arranges the lasers more densely in the centre of its FOV and more sparsely at the edges, resulting in a more accurate 3D point cloud of the environment in front of the vehicle.

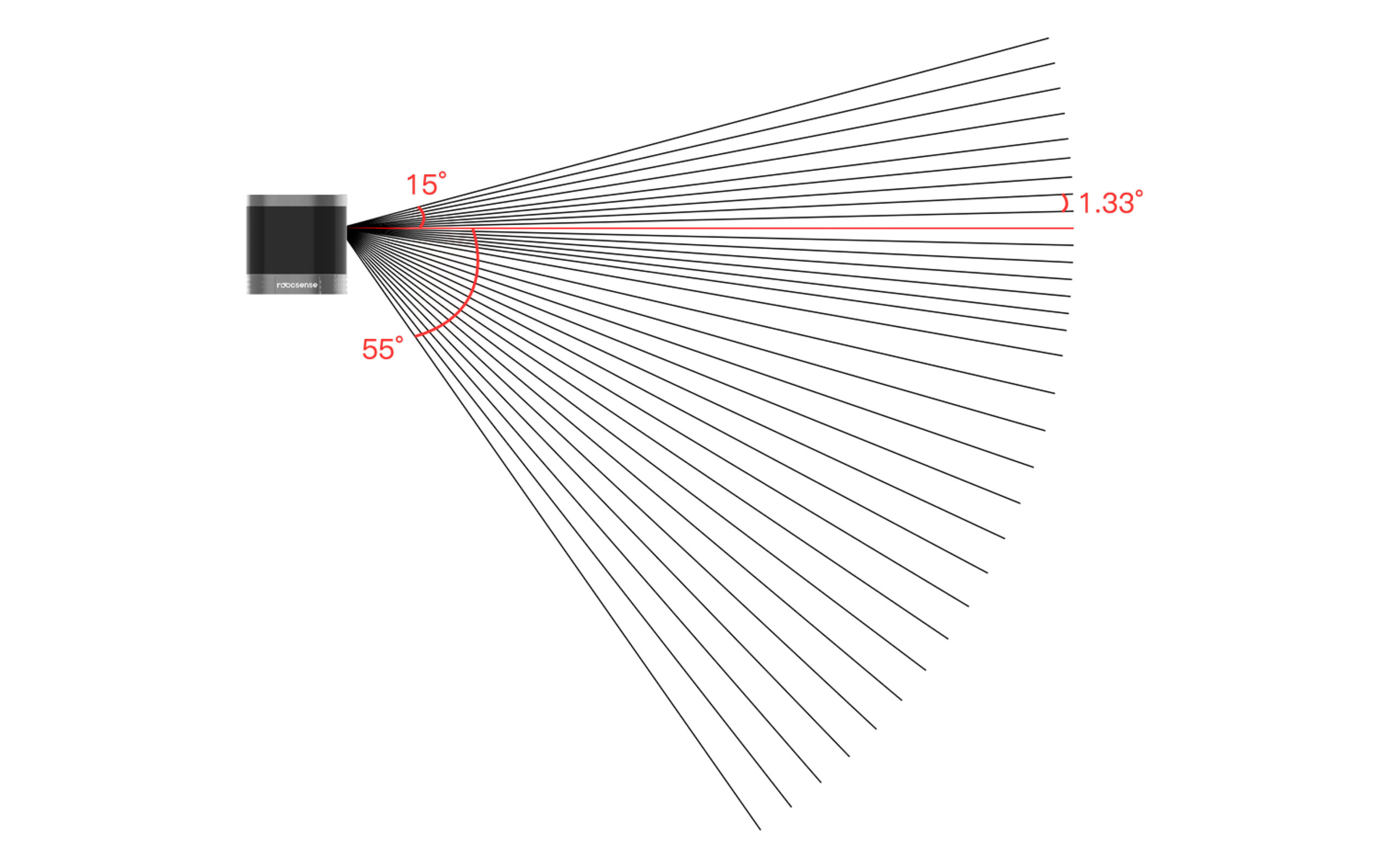

Combined with a custom 70° ultra-wide vertical FOV with a 55° downward tilt below the horizon, it greatly reduces near-field blind spots and enables both long-range perception and blind spot detection at the same time.
This design greatly facilitates vehicle sensor configuration.
Main features
- Supports web configuration and monitoring.
- Multiple operation modes: high-performance, standby.
- -30°C temperature resistance.
Applications
- Autonomous driving.
- Mobile robotics.
- Monitoring in logistics.
| Manufacturer | Robosense |
| Model Nº | RS-HELIOS 5515 |
| Temperature | -30°C to 60°C |
| Accuracy | ±2cm (1m to 100m), ±3cm (0.1m to 1m), ±3cm (100m to 150m) |
| Weight | ~1 kg |
| Voltage | 9 ~32 V |
| Enclosure class | IP67 |
| Data rate | 576.000 pts/s (single return) / 1.152.000 pts/s(dual return) |
| Field of view (horizontal) | 360º |
| Field of view (vertical) | 70° (-55° to +15°) |
| Front camera | Up to 1,33º |
| Laser beam | 32 beams |
| Laser class | class1 |
| RPM | 600 / 1200 rpm |
| Wavelength | 905 nm |
| Size | φ: 100 mm * H100 mm |
Official ROS package:
