Airy Lite
Manufacturer: Robosense
3D LiDAR 360º sensor.
Estimated delivery time: 4-6 weeks.
496,13 €
Available on backorder
Available on backorder

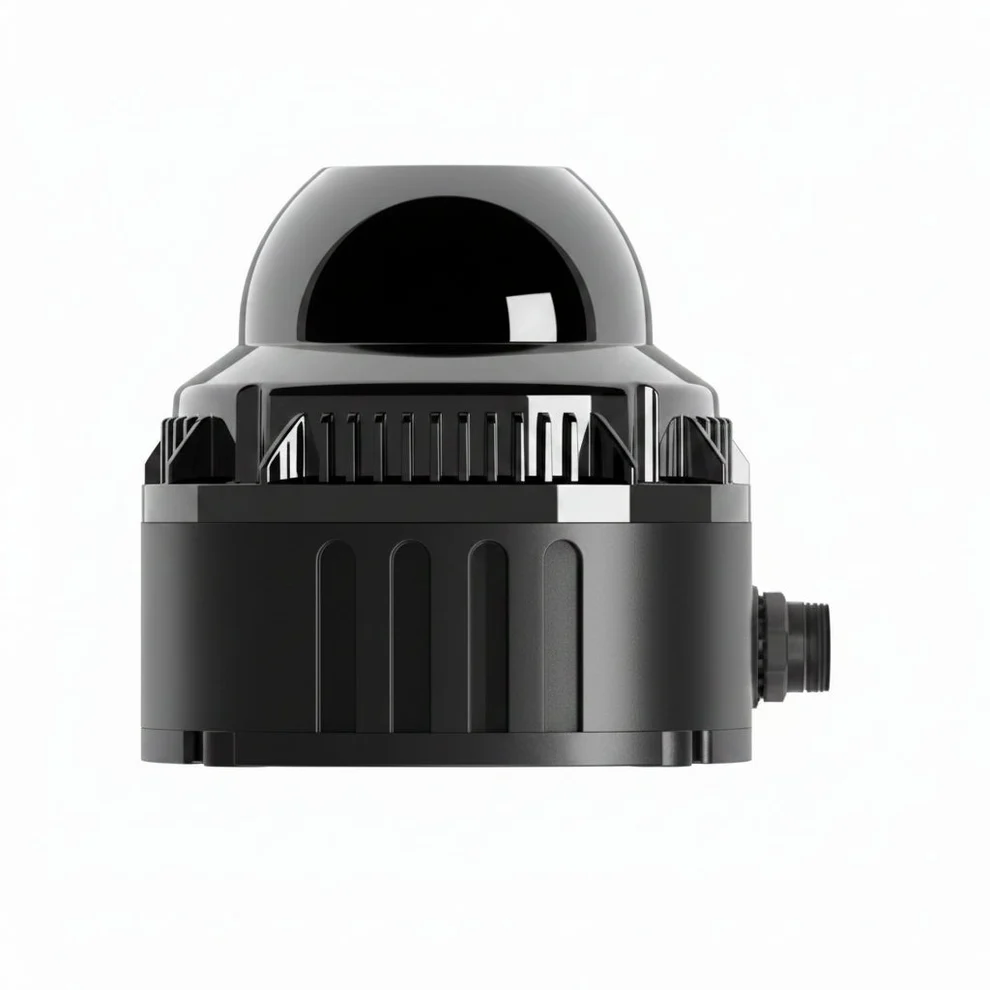

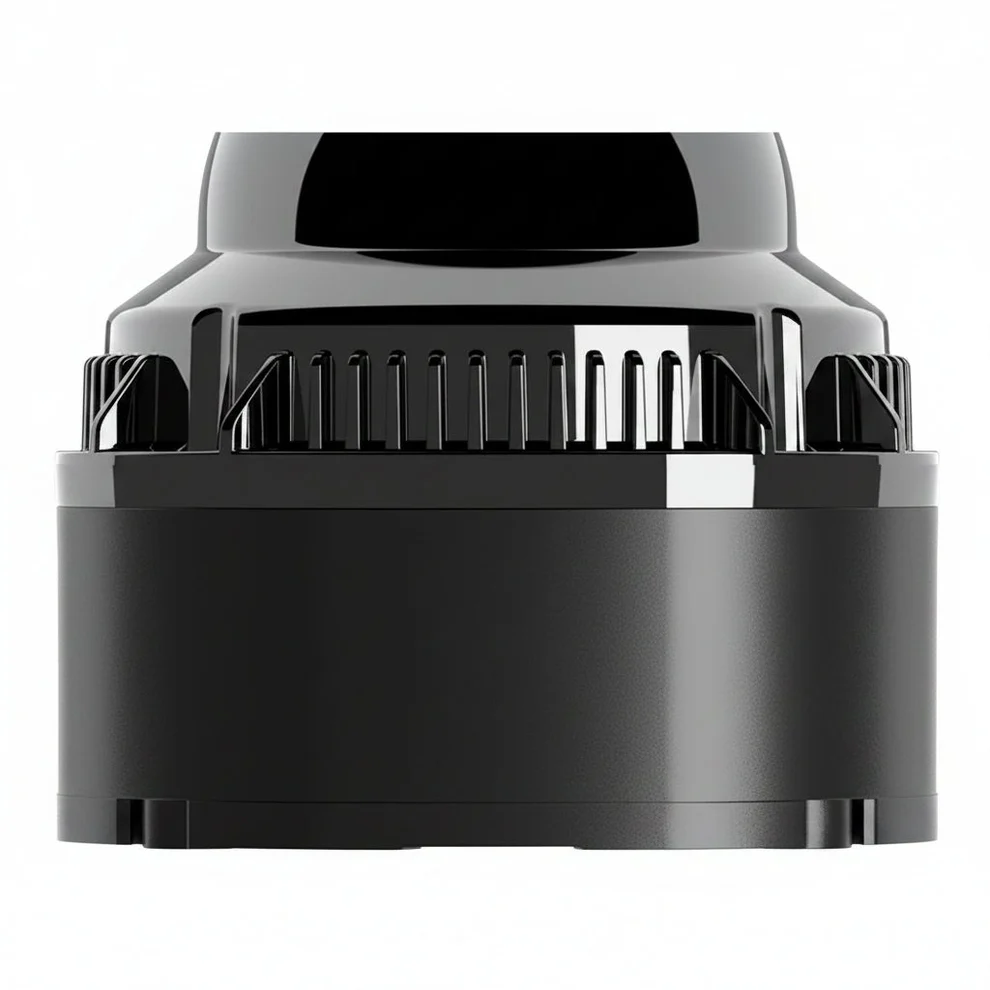

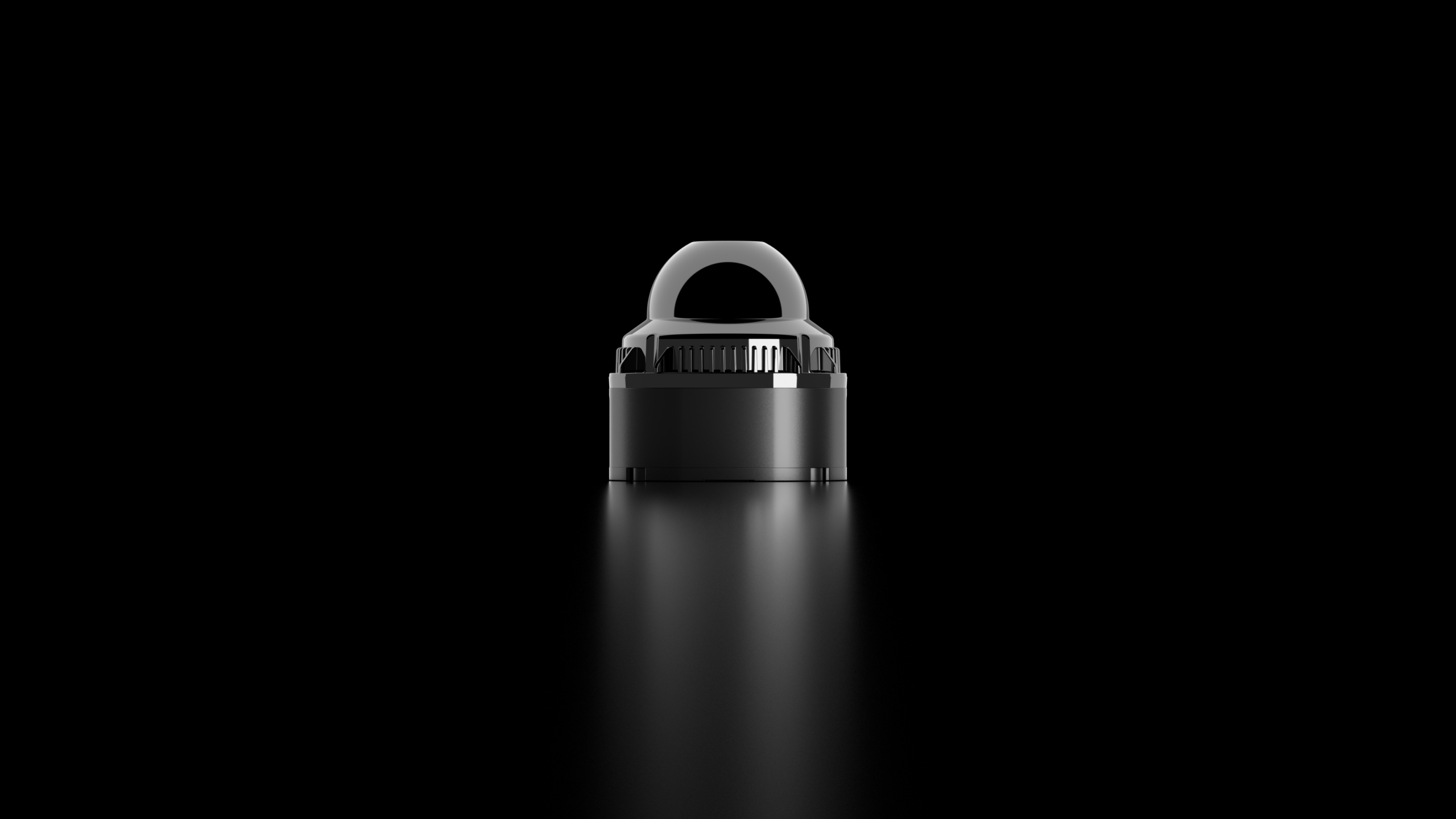

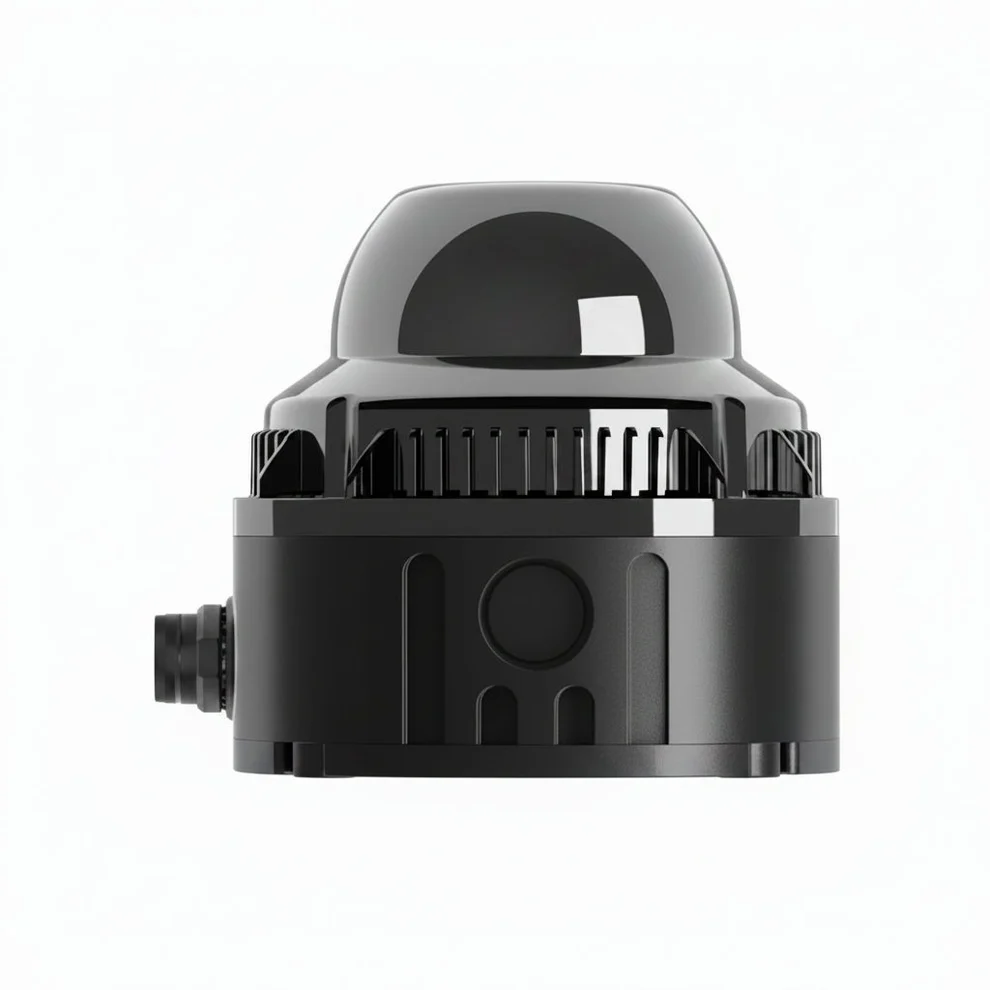

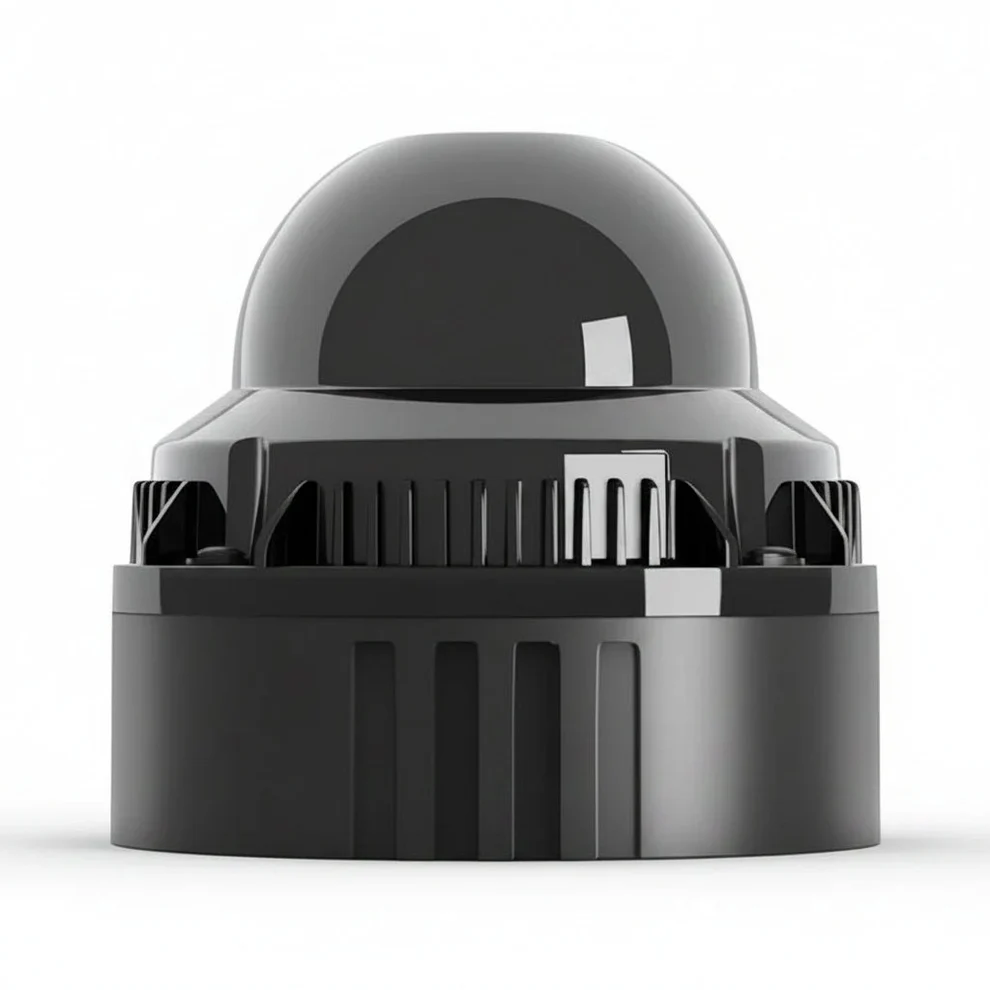

The RoboSense Airy Lite is an ultra-compact, lightweight digital LiDAR sensor designed to provide robotic systems with precise 3D perception.
Powered by an integrated SPAD-SOC and VCSEL digital chip architecture, it offers 360° × 45° omnidirectional coverage with a point cloud density of up to 144,000 points per second.
Featuring an ultra-compact 20 mm window format and an integrated IMU, it stands out for its low power consumption, quiet operation, and maximum robustness against severe vibrations and extreme temperature ranges (-20°C to +60°C).
Main features
-
- High resistance to vibrations, shocks, or collisions
- High 1 cm (1σ) digital precision
- Hemispherical field of view, omnidirectional perception (360° × 45°)
- Compact design and easy deployment
Applications
-
- Mobile Service Robotics
- Quadruped Robots
- Autonomous Forklifts and AGVs
- Outdoor Robotics
| Manufacturer | Robosense |
| Model Nº | Airy Lite |
| Temperature | -40°C ~ +60°C |
| Size | Ø 60 mm |
| Weight | 230 ± 20 g |
| Voltage | 9 ~32 V |
| Range | 60m (30m @10% NIST) |
| Resolution angle | Horizontal: 0.4º | Vertical: 0.947º |
| Enclosure class | IP67, IP6K9K |
| Power Consumption | 8W (Typical) |
| Ethernet | 100 MBps |
| Accuracy | 1.5 cm (1σ) |
