RS-HELIOS-16P
Manufacturer: Robosense
3D LiDAR 360º sensor.
Estimated delivery time: 4-6 weeks.
1.566,00 €
Available on backorder
Available on backorder

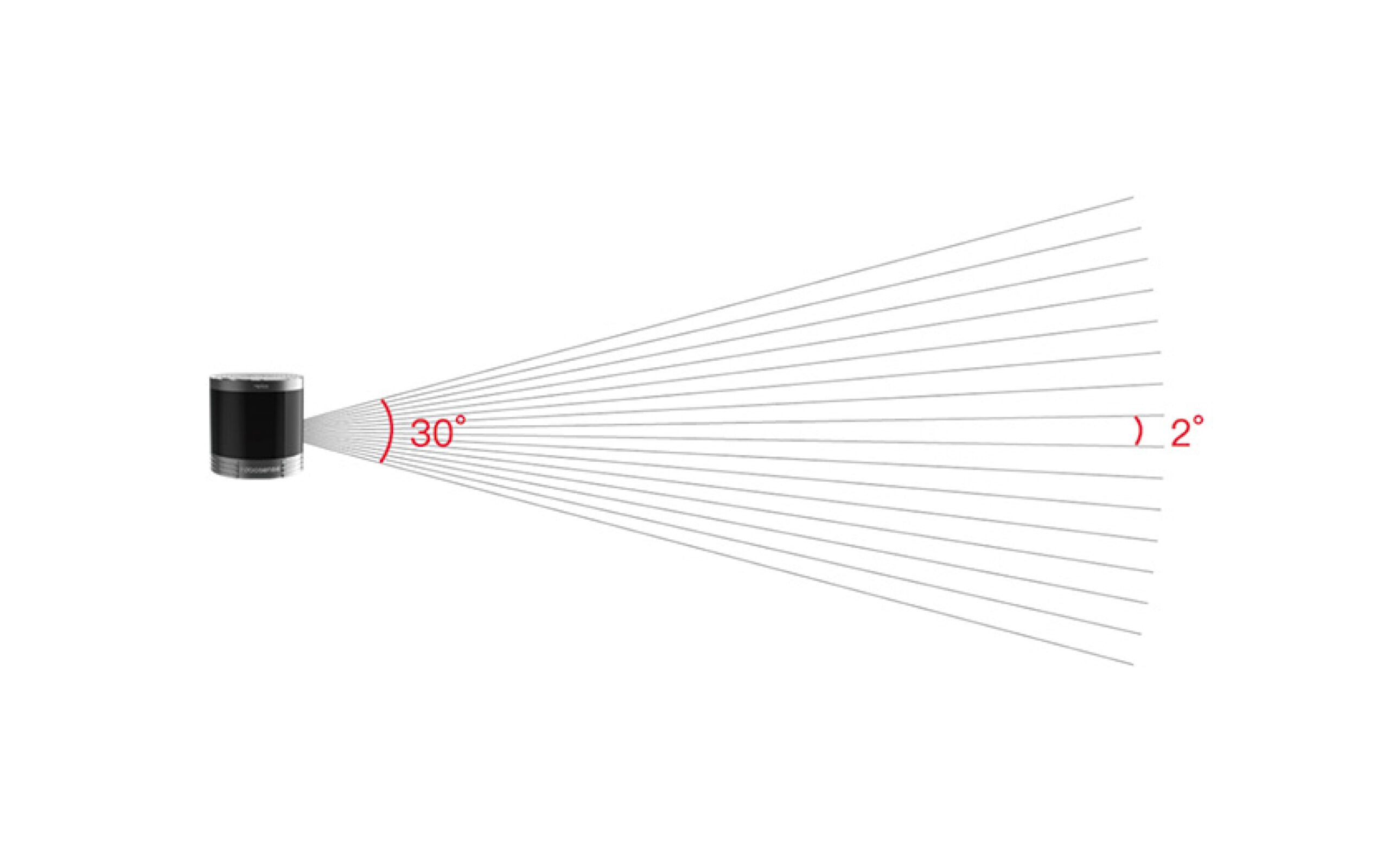

The RS-Helios-16P is a 16-beam LiDAR offering a 30° vertical field of view and 360° horizontal field of view, making it an ideal solution for applications in robotics and intelligent vehicles.
It is equipped with a high-performance automotive Ethernet connection that provides optimal data rates for advanced autonomous navigation or 3D mapping applications. This high-bandwidth connection ensures efficient and reliable data transmission.
RS-Helios-16P improves detection range and minimises blind spots, ensuring superior performance.
Main features
- Powerful Ethernet technology.
- Stability for in-vehicle operation.
- Multiple operating modes: high performance, low power consumption.
- -40°C temperature resistance.
Applications
- Assisted driving.
- Intelligent safety systems.
- Mobile Robotics.
| Manufacturer | Robosense |
| Model Nº | RS-HELIOS-16P |
| Accuracy | ±2cm(typical) |
| Temperature | -40°C ~ +60°C |
| Size | φ97.5mm * H100mm |
| Weight | 1.000 g ± 50 g |
| Voltage | 9 ~32 V |
| Range | 150 m (110 m @10% NIST) |
| Enclosure class | IP67 |
| Power Consumption | 11W |
| Laser beam | 16 beams |
| Laser class | class 1 |
| Wavelength | 905 nm |
| Data rate | ~288.000 pts/s (single return) / 576.000 pts/s (dual return) |
| Field of view (horizontal) | 360º |
| Field of view (vertical) | 30° (-15° ~+15°) |
Official ROS package:
