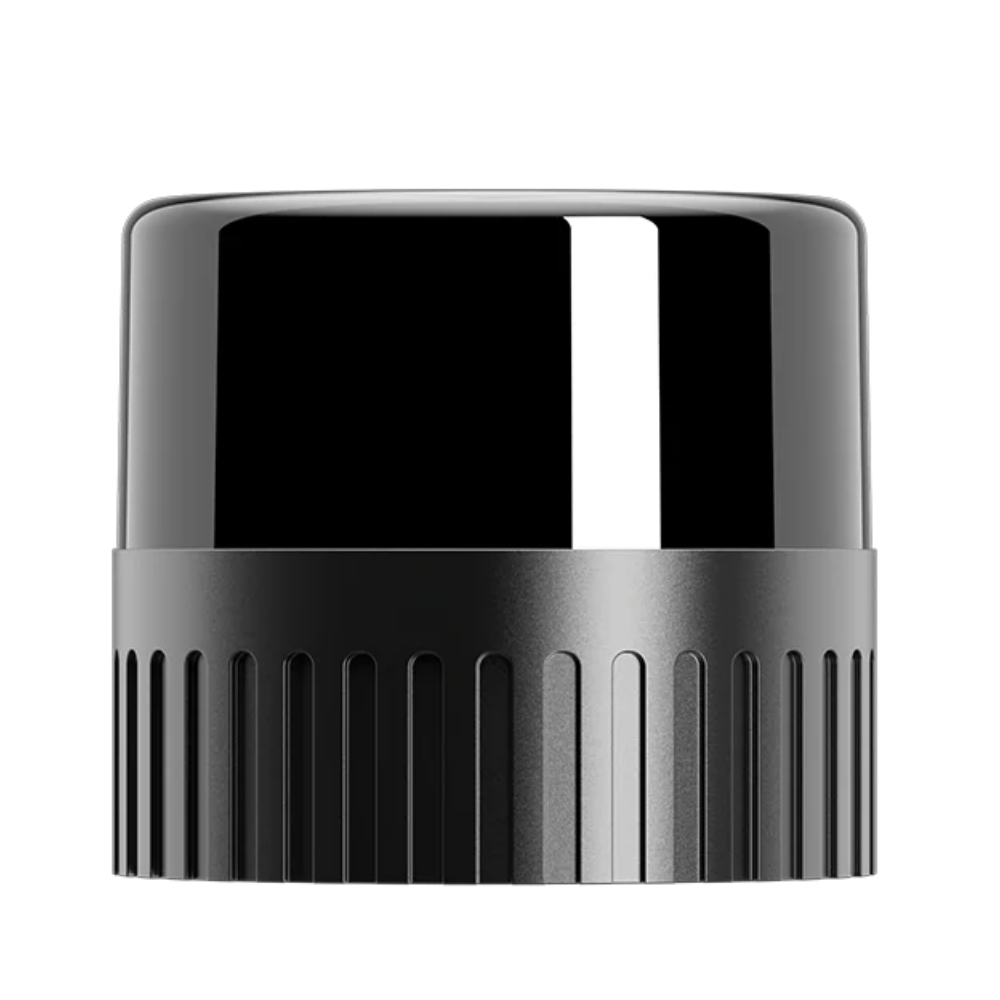

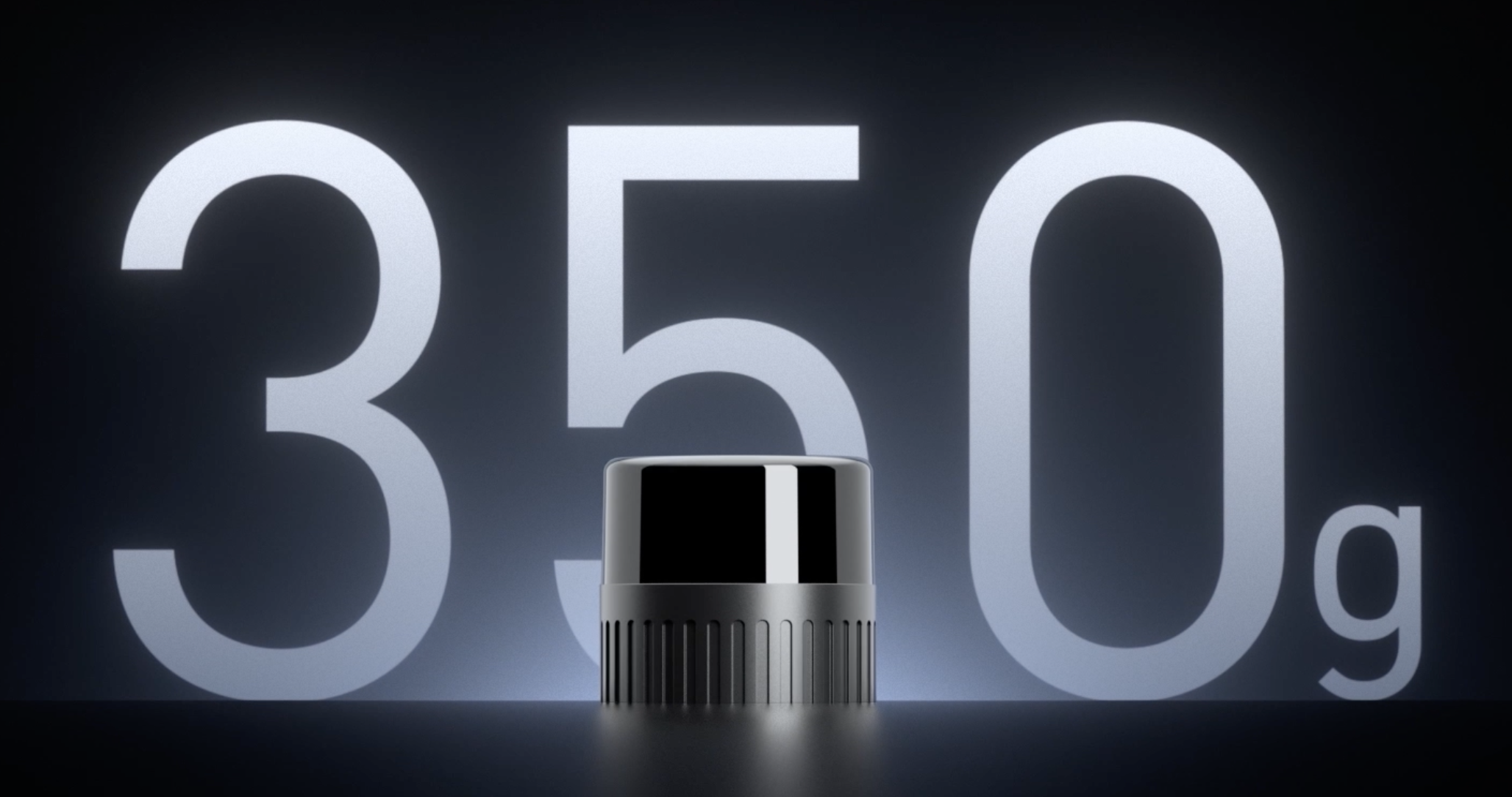

Fairy is RoboSense’s digital LiDAR designed for high-precision measurements in robotics through 3D perception. Thanks to its innovative chip-based transceiver and fully digital architecture, it offers an extremely compact and lightweight design weighing under 350 grams.
This sensor stands out for its 0.5 cm millimetric precision, a 360°×32° field of view (FOV), and a detection range of up to 150 meters. Through its active illumination technology, it operates stably regardless of ambient light conditions, providing structured point clouds ideal for 3D mapping, autonomous navigation, and obstacle avoidance in complex environments.
Main features
-
- High millimetric precision
- Compact and lightweight design
- Total light immunity
- Digital chip-based architecture
Applications
-
- 3D Mapping
- Autonomous navigation
- Localization and SLAM
- Service robotics
| Manufacturer | Robosense |
| Model Nº | Fairy |
| Temperature | -40°C ~ +60°C |
| Size | φ75mm × H70mm |
| Weight | < 350g |
| Voltage | 9 ~32 V |
| Range | 60m (30m @10% NIST) |
| Enclosure class | IP67, IP6K9K |
| Power Consumption | 10 W |
| Ethernet | 100 MBps |
| Field of view (horizontal) | 0~360° |
| Field of view (vertical) | 32° |
| Accuracy | 0.5cm (1σ) |
Official ROS package:
