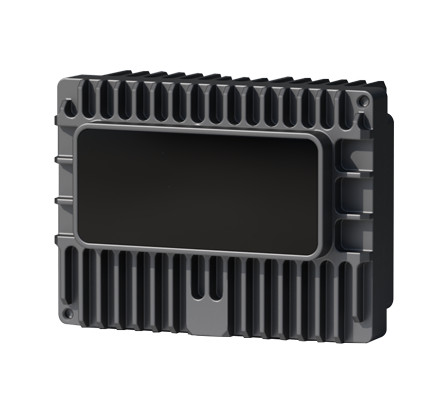

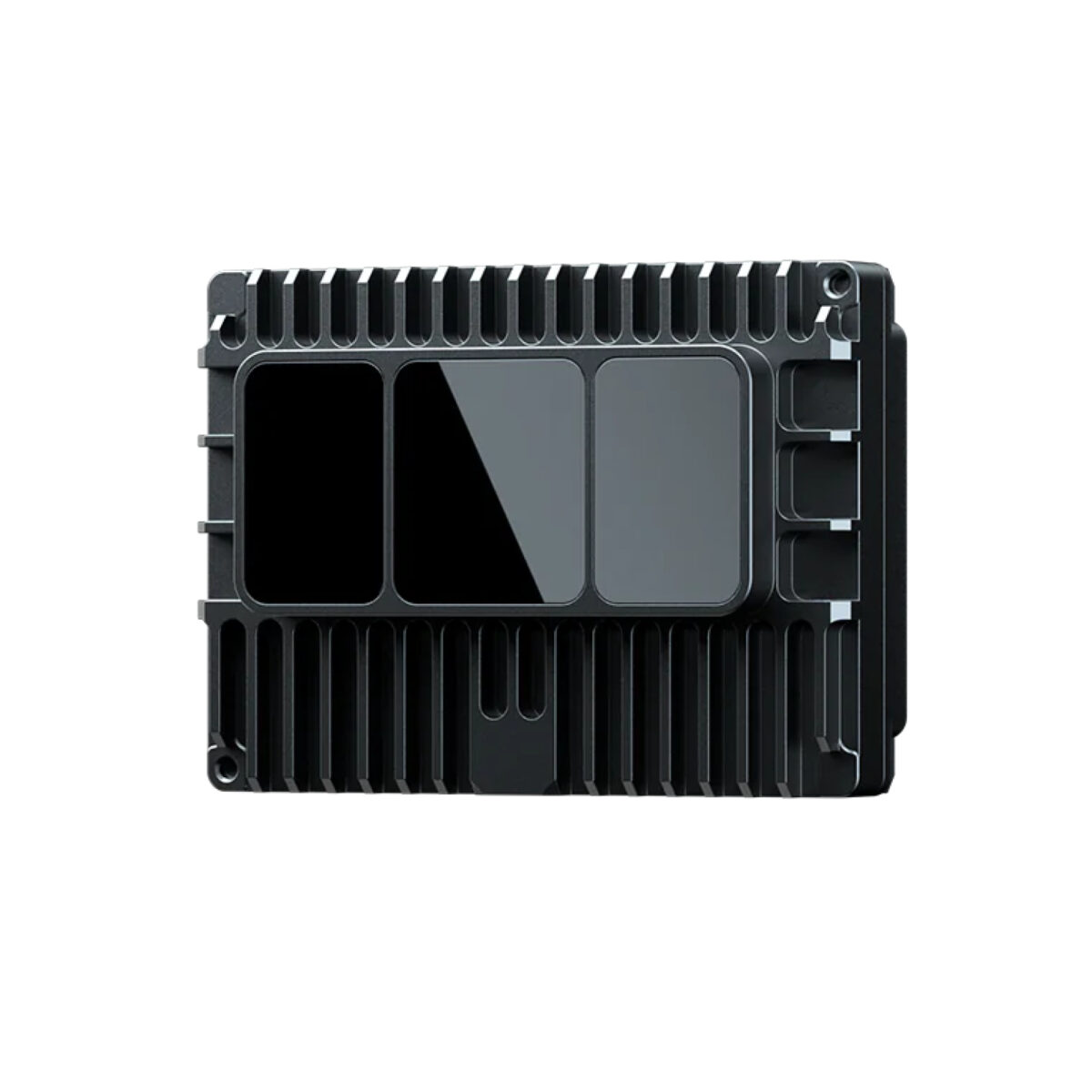

RoboSense E1R is a solid-state LiDAR designed for automotive applications, especially for blind spot detection.

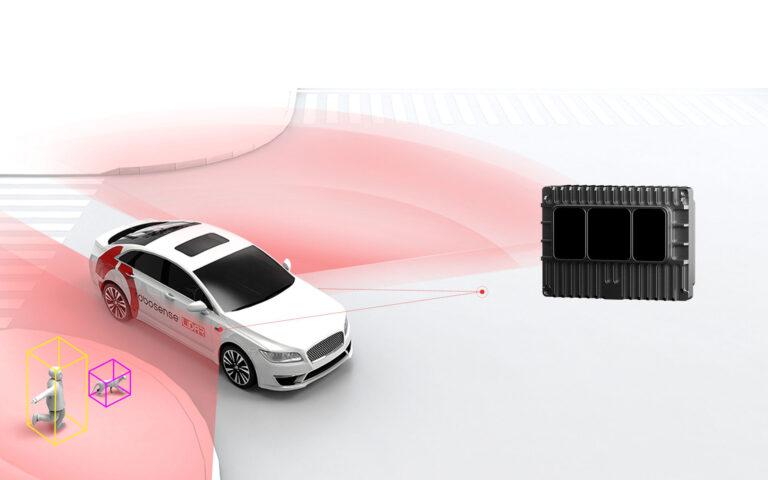

It offers a wide 120° horizontal and 90° vertical field of view, balancing ground blind area reduction and wide-range lateral perception. Its detection capability reaches up to 30 metres for objects with 10% reflectivity, facilitating early identification of high-speed vehicles coming from the side or rear, providing sufficient time for a safe response.
Designed especially for industrial series production, the E1R stands out for its high range detection capability, safety and reliability, key features for autonomous driving.
Main features
-
- Detection range capability: 30 m at 10 %.
- Blind area reduction.
- Panoramic perception.
- Ultra-high frame rate.
Applications
-
- Autonomous driving.
- Advanced driver assistance systems (ADAS).
- Mapping and monitoring of urban environments.
| Manufacturer | Robosense |
| Model Nº | E1R LIDAR |
| Temperature | -40º C - +85ºC |
| Size | 69,5 x 95x 43 mm |
| Weight | 330 g |
| Voltage | 9 ~16 V |
| Speed | Dual return mode: [540.000 pts/s (10 Hz) | 1.080.000 pts/s (20 Hz) | 1.620.000 pts/s (30 Hz)], Single return mode: [270.000 pts/s (10 Hz) | 540.000 pts/s (20 Hz) | 810.000 pts/s (30 Hz)] |
| Range | 75m (30m@10%) |
| Resolution angle | 0,625º |
| Enclosure class | IP67, IP6K9K |
| Wavelength | 940 nm |
