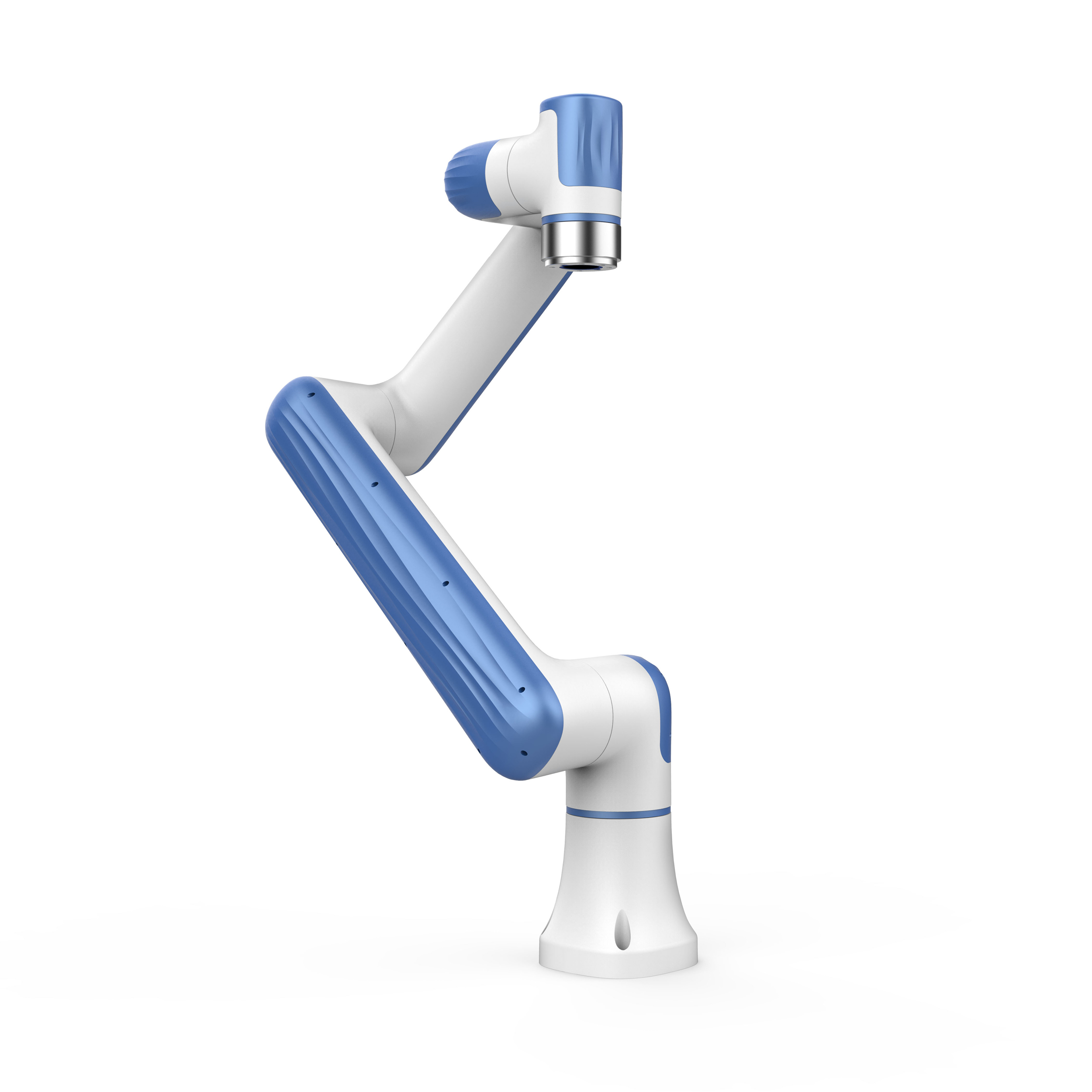

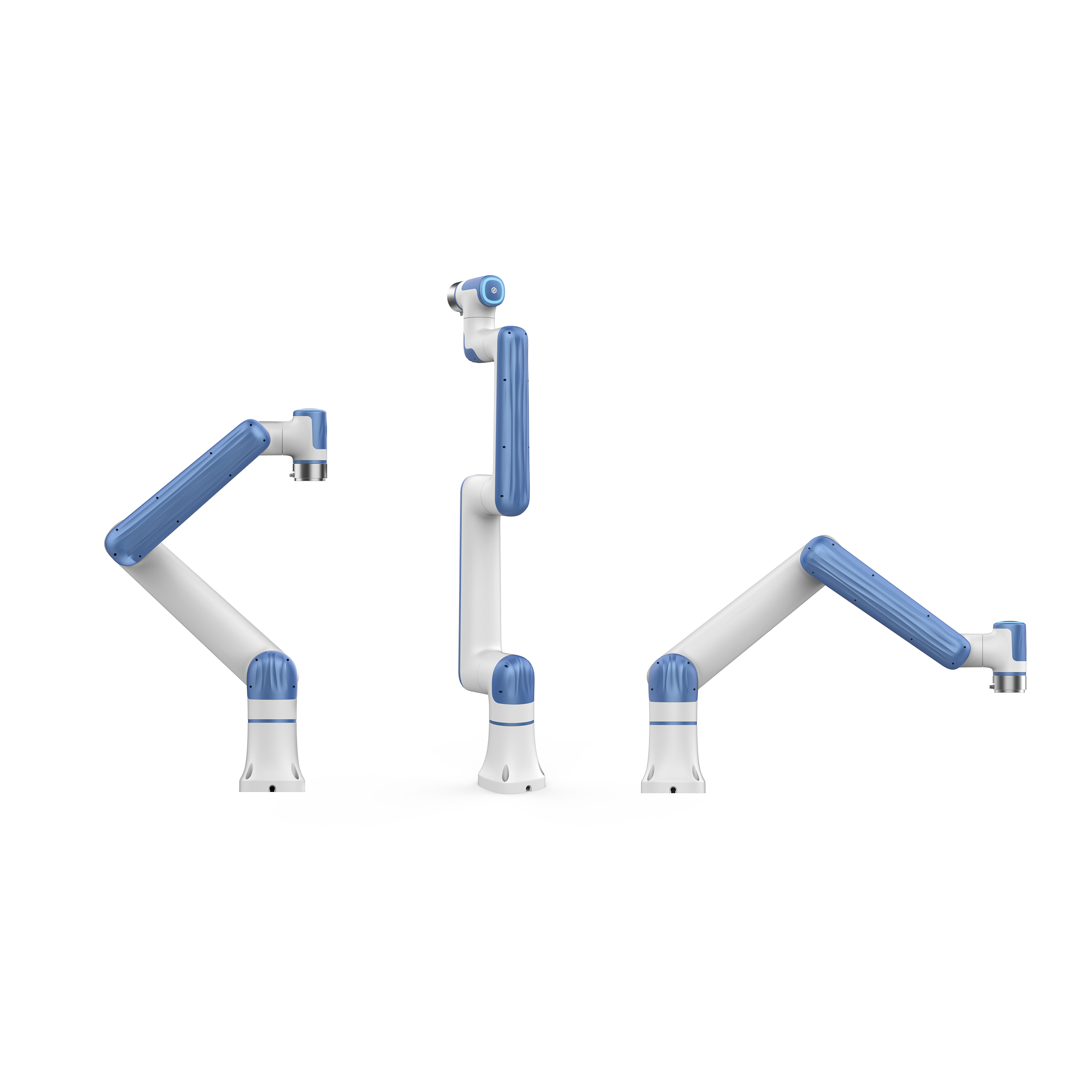

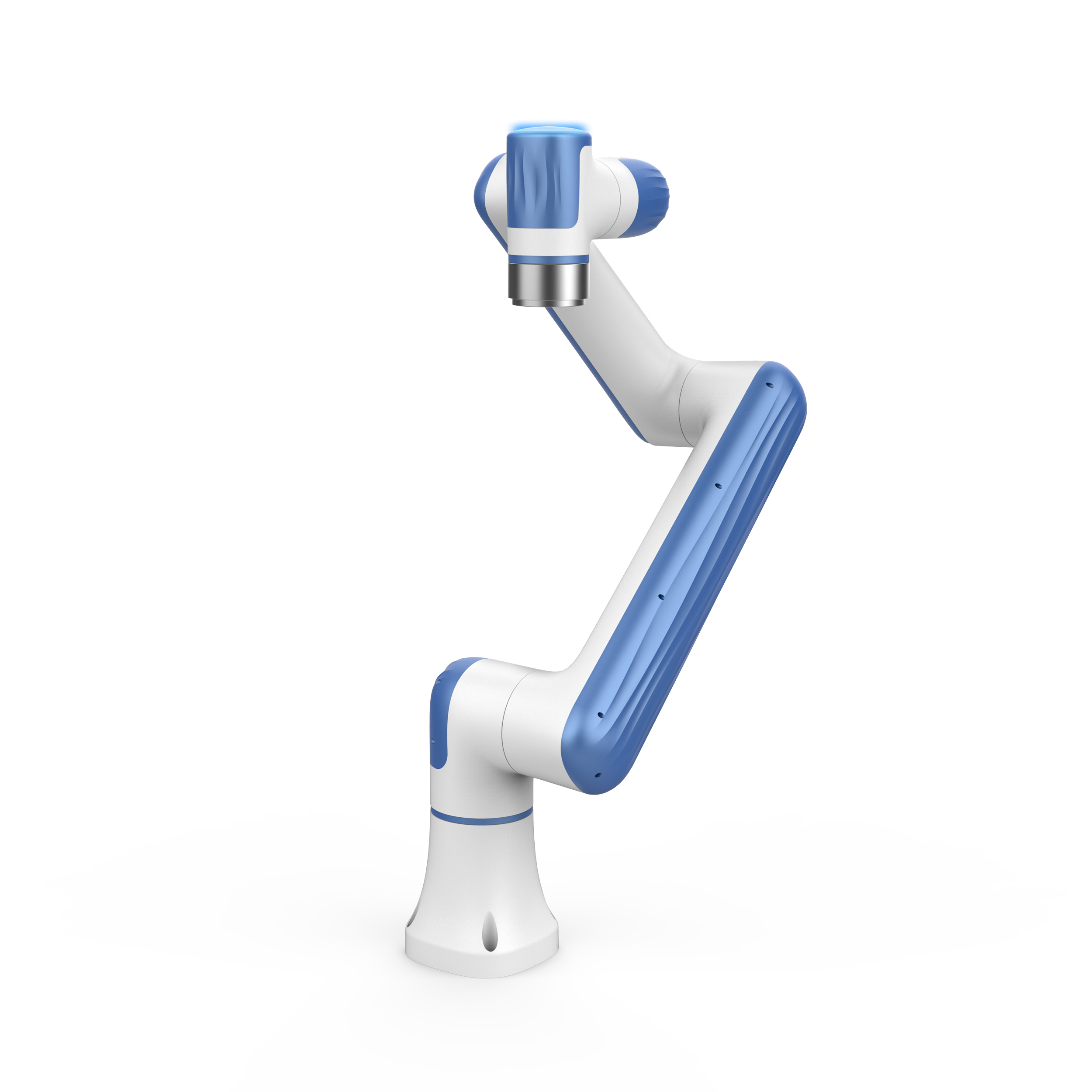

The DOBOT Nova 5 is a modern cobot with a payload of 5 kg, a reach of 800 mm, and a repeatability of 0.05 mm, designed for precise collaborative tasks.
It was specifically developed for areas such as massage and physiotherapy, capable of performing massages or ultrasounds. Thanks to its interchangeable covers, it can visually adapt to different store or clinic concepts.
Its compact and lightweight design, combined with intuitive programming and built-in safety, allows easy integration into professional environments, offering efficiency, versatility, and safe human‑robot collaboration.
Main features
-
- 850 mm working radius
- 5 kg maximum payload
- 6-axis collaborative architecture
- Proprietary precision pressure-control algorithm
Applications
-
- Retail, hospitality, and commercial automation
- Material handling, assembly, and light industrial processes
- Physiotherapy and healthcare use
- Education, laboratories, and robotics research
| Manufacturer | Dobot |
| Model Nº | Nova 5 |
| Temperature | 0º to +50ºC |
| Weight | 14 kg |
| Enclosure class | IP54 |
| Payload | 5 kg |
| Reach | 850 mm |
| Speed | 100º/s |
| Repeatability | ± 0,05 mm |
| Power Consumption | Max: 770W, Typical: 230W |
| Power input | 30 to 60V DC |
| Power | 24V | Max 2A |
