2FGP20
Manufacturer: OnRobot
Electric gripper.
Estimated delivery time: 1 week.
Recommended product for UR arms. For another arm model, please, consult us.
The ROS drivers of this product aren’t available yet, but it can be integrated with all major robot brands very easily.
8.095,00 €
Available on backorder
Available on backorder

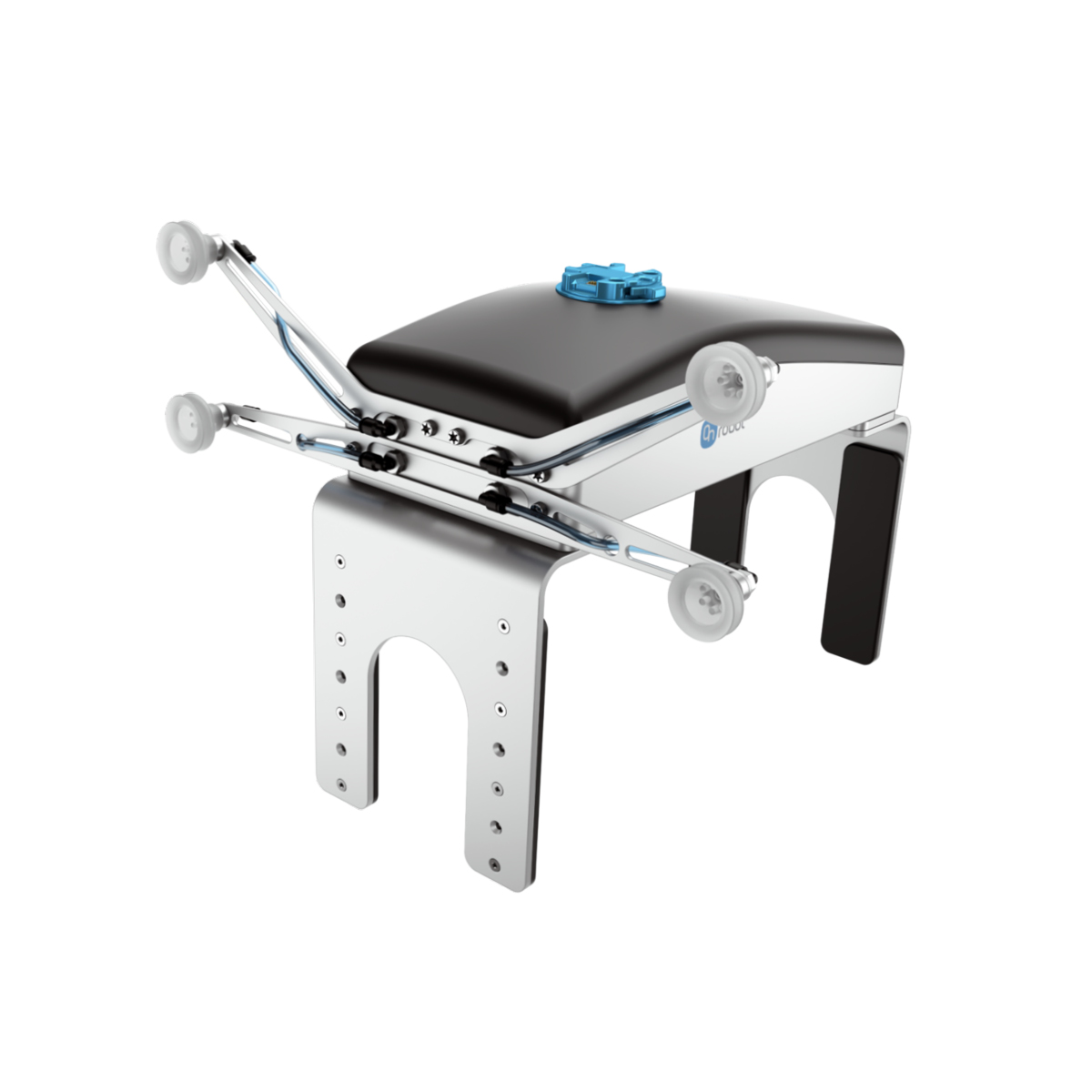

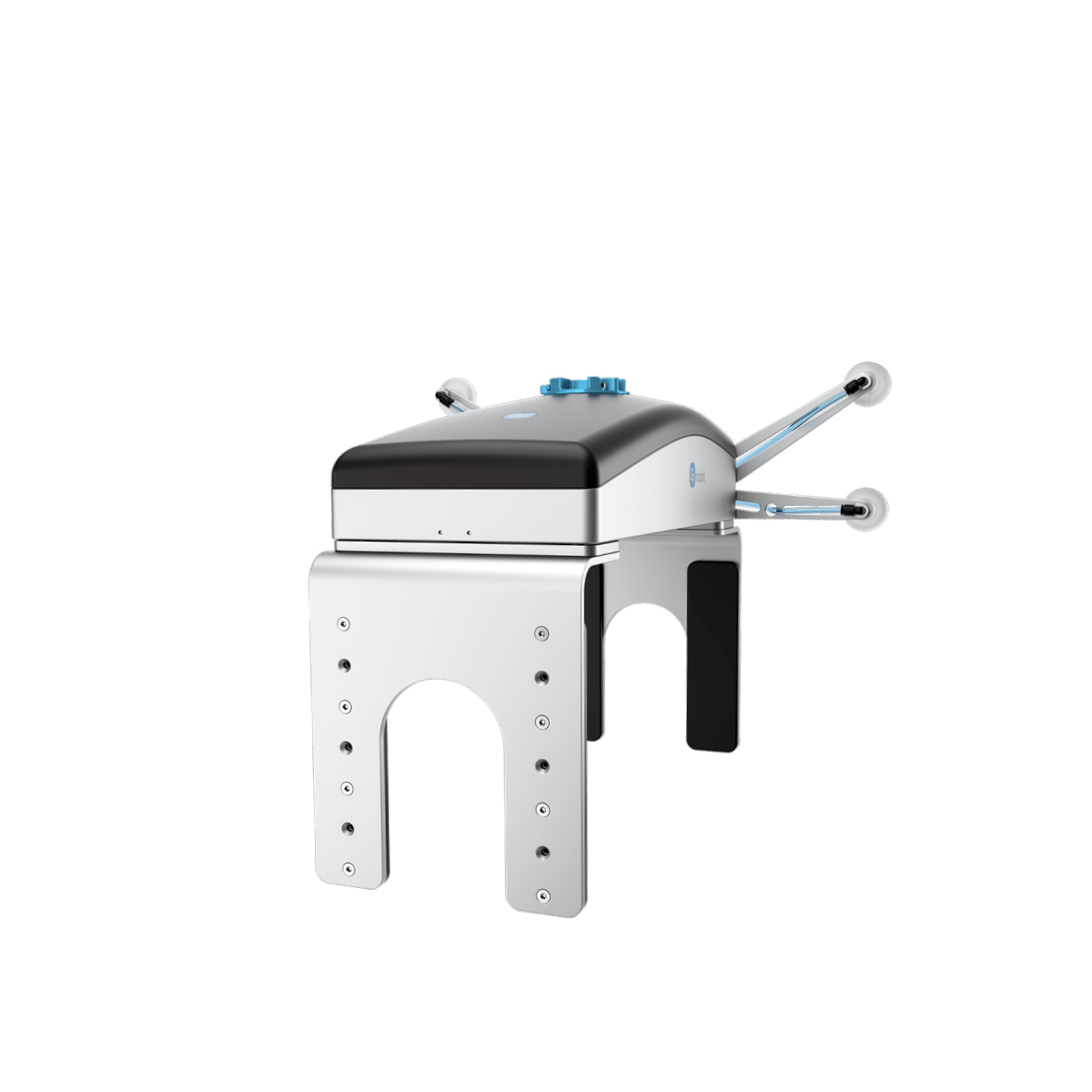

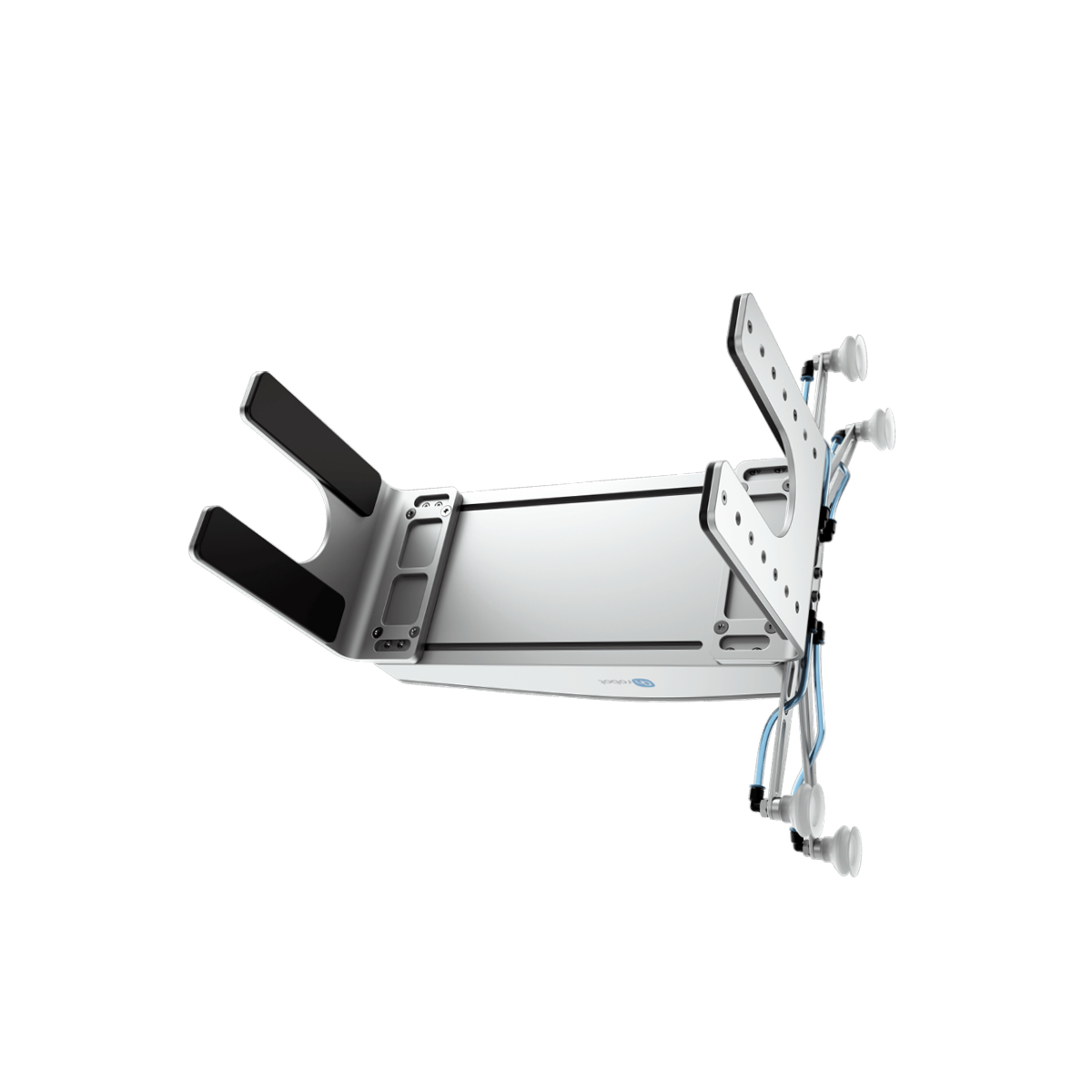

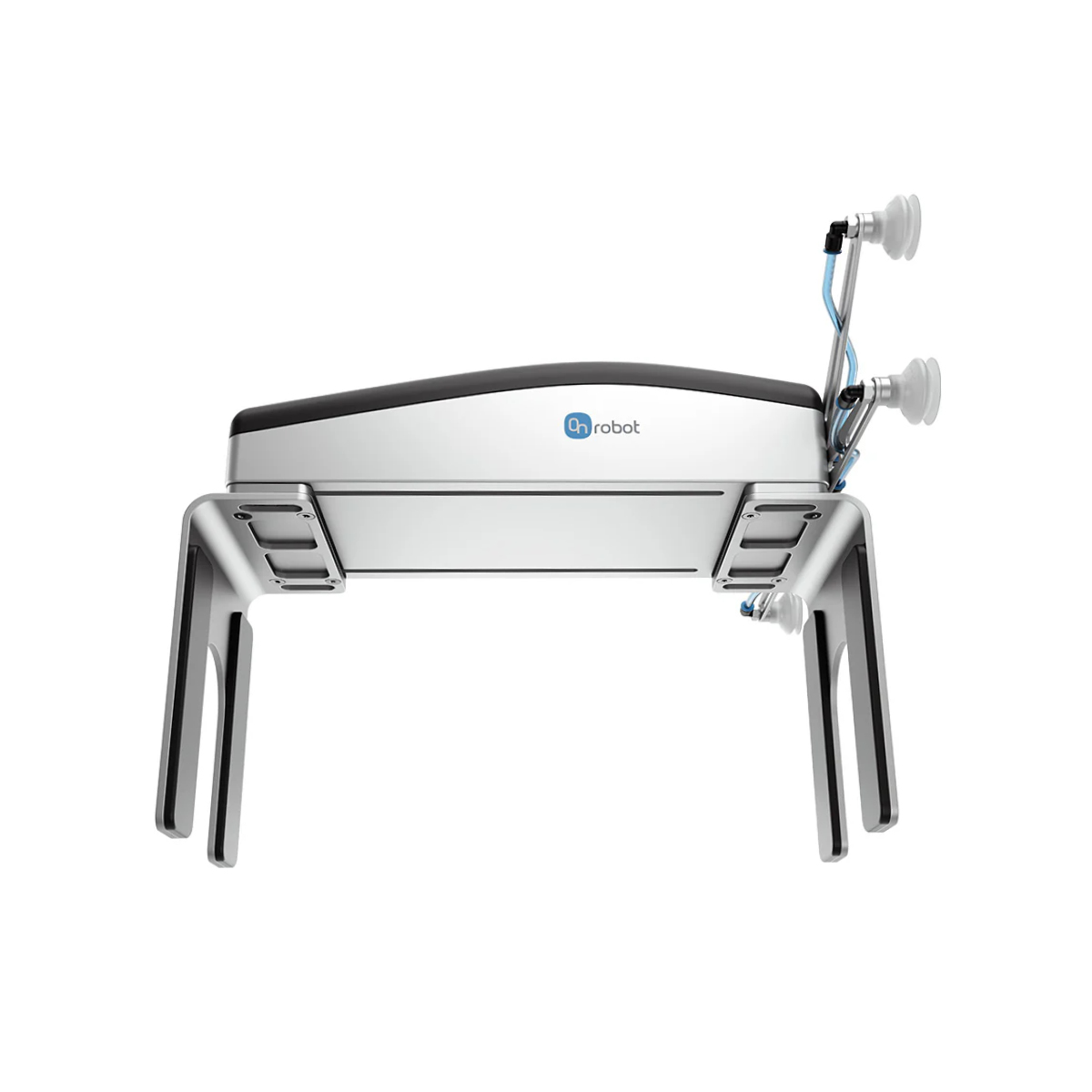

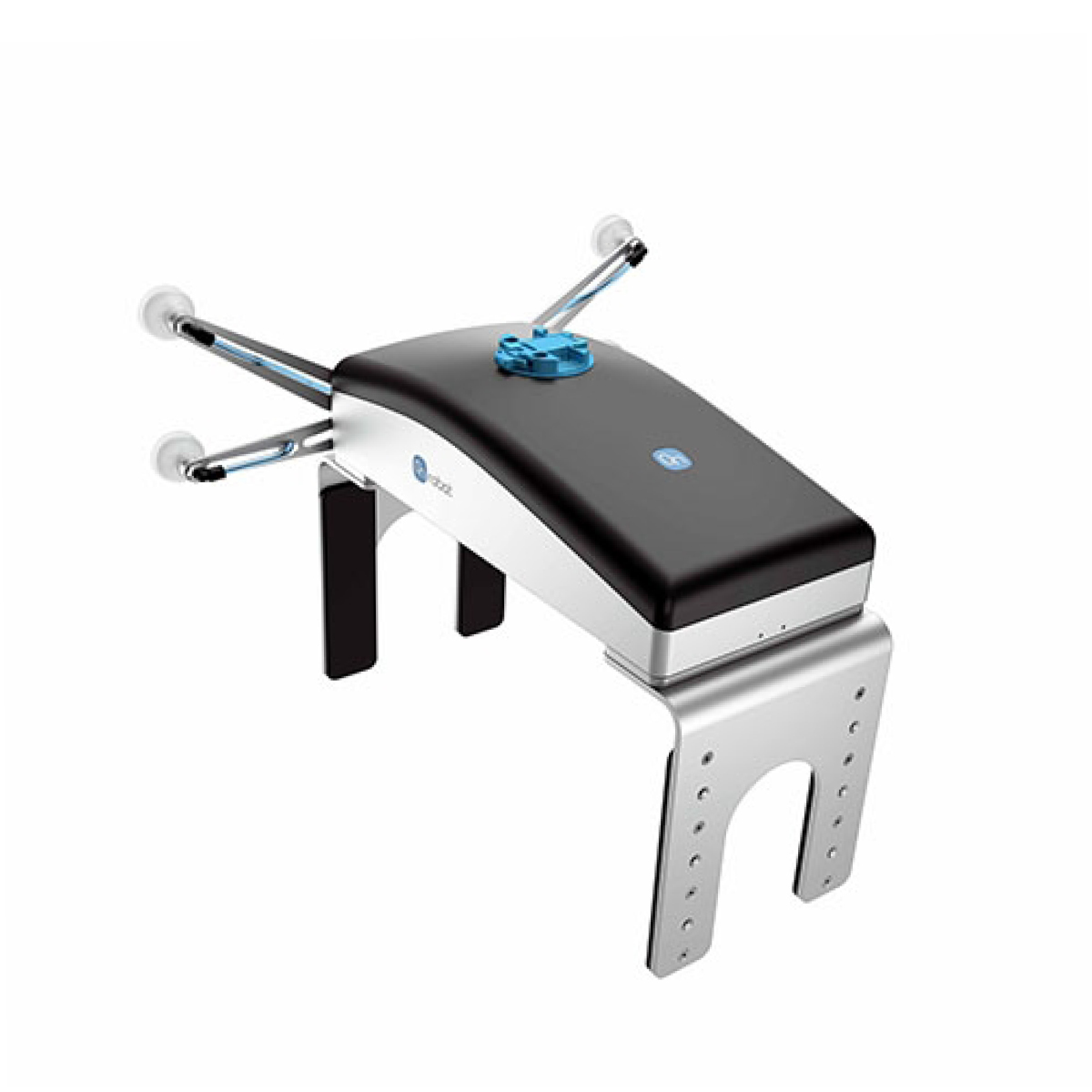

2FGP20 is OnRobot’s electric gripper designed for palletising and box manipulation applications.
With a payload capacity of up to 20 kg, it can handle a wide variety of objects, including cartons and products with porous surfaces. Its versatile, adjustable design makes it easy to adapt to different product sizes and shapes.
The 2FGP20 gripper is easy to integrate with collaborative robots and offers an efficient solution for automating end-of-line processes.
In addition, its electric operation eliminates the need for pneumatic systems, reducing costs and maintenance.
Main features
-
- Quick installation.
- Flexible solution.
- Integrated vacuum.
- Versatility.
Applications
-

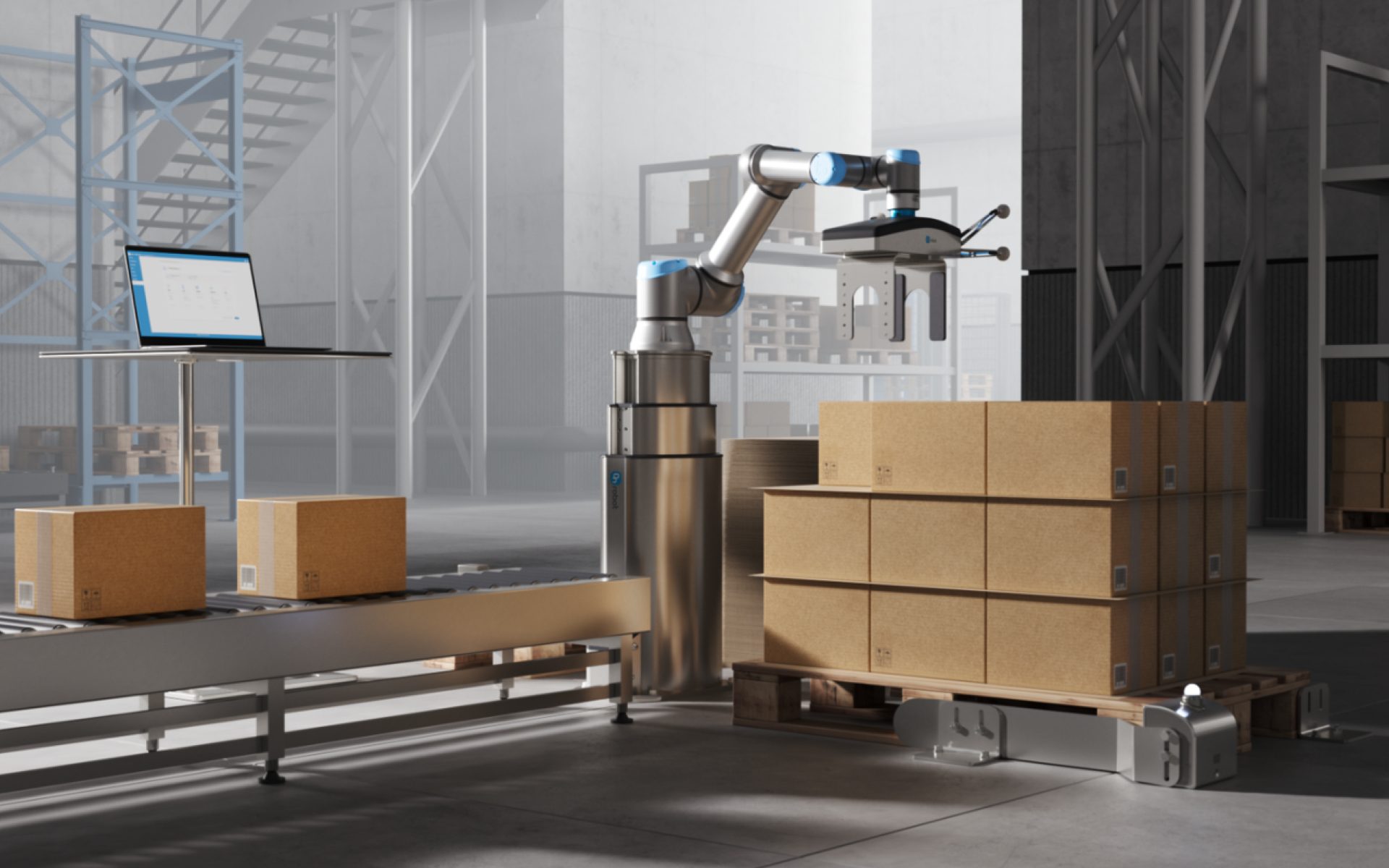

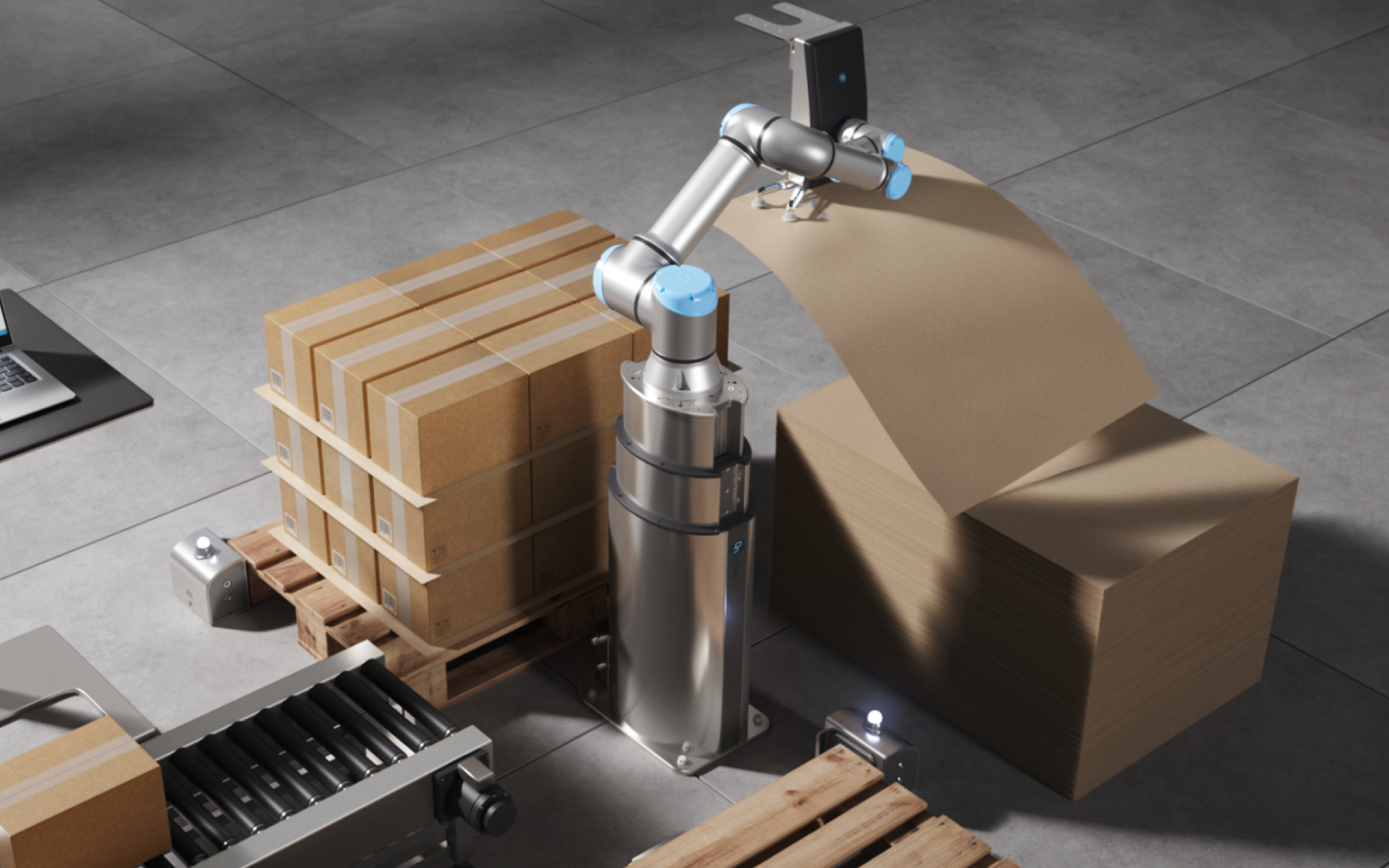

- Palletising.
- Box handling.
- Material handling.
Manufacturer | OnRobot |
Size | 400 x 121.6 x 188 mm |
Weight | 3,7 kg |
Payload | 20 kg |
Enclosure class | IP54 |
Temperature | 0ºC - 60ºC |
Drives | Integrated, electric BLDC |
Vacuum | 5 % - 80 % Vacuum -0.05 - -0.810 Bar 1.5 - 24 inHg |
Power supply | Min 20.4 V / Typical 24 V / Max 28.8 V |
Gripping time | 0,25 s |
Releasing time | 0,4 s |
