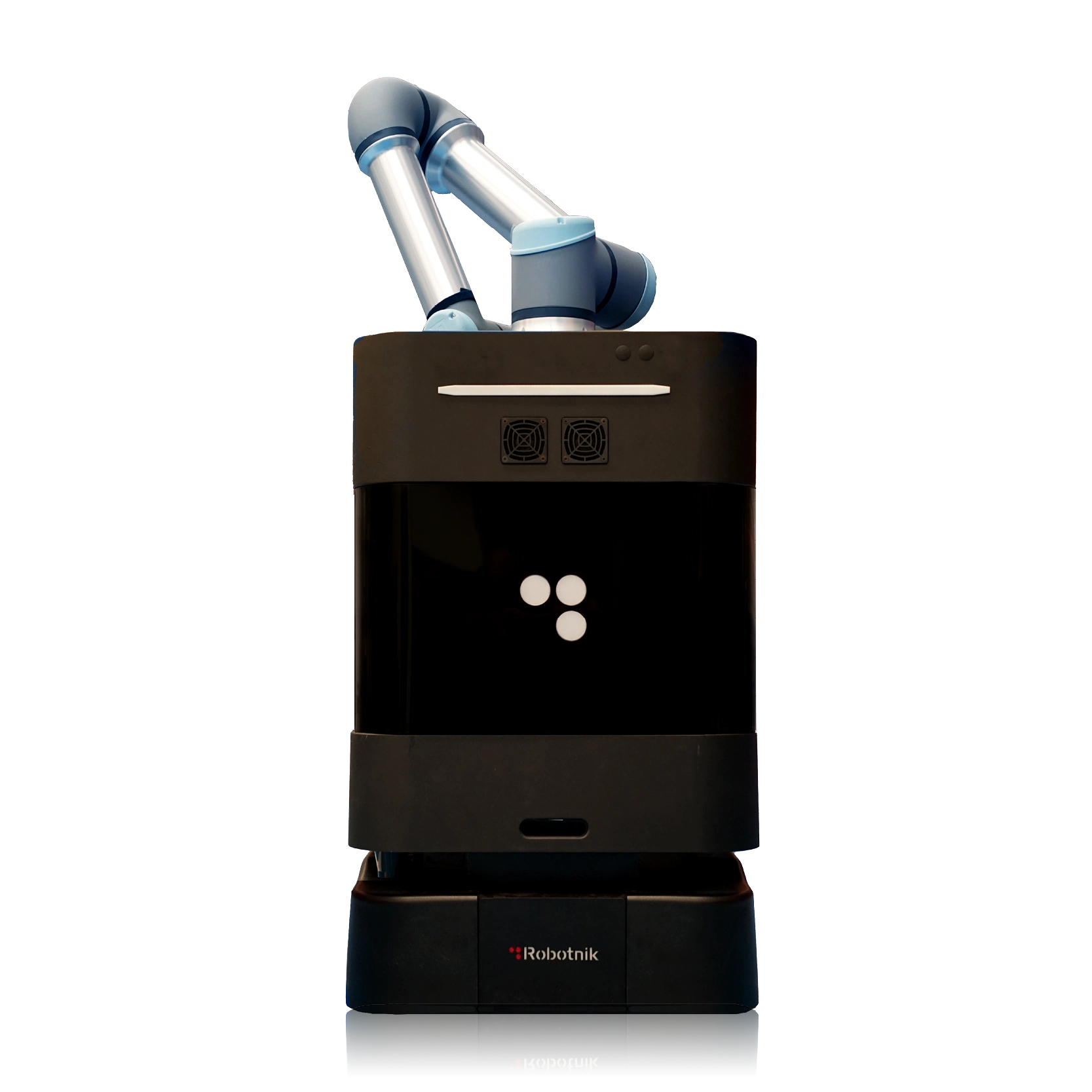

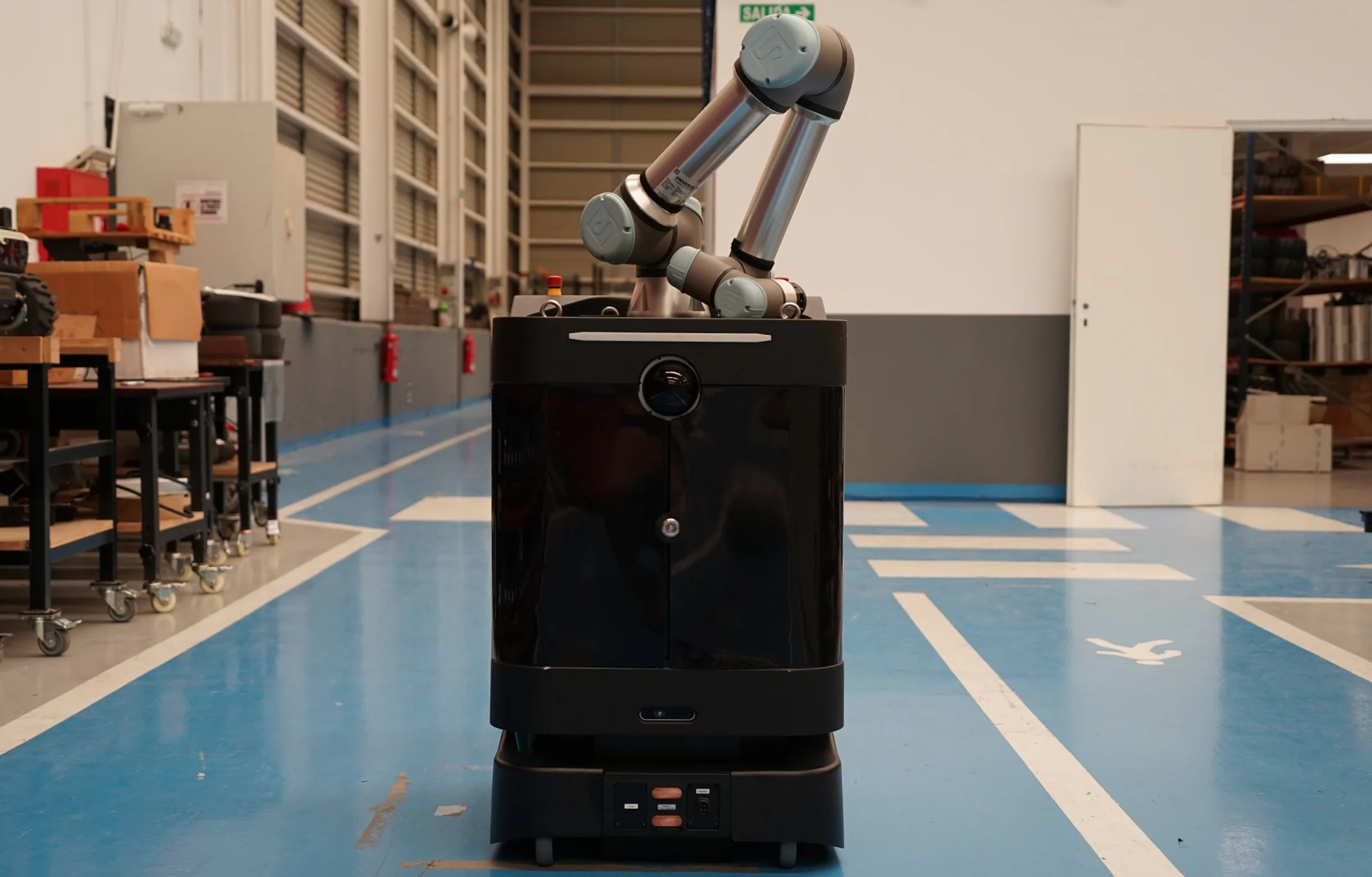

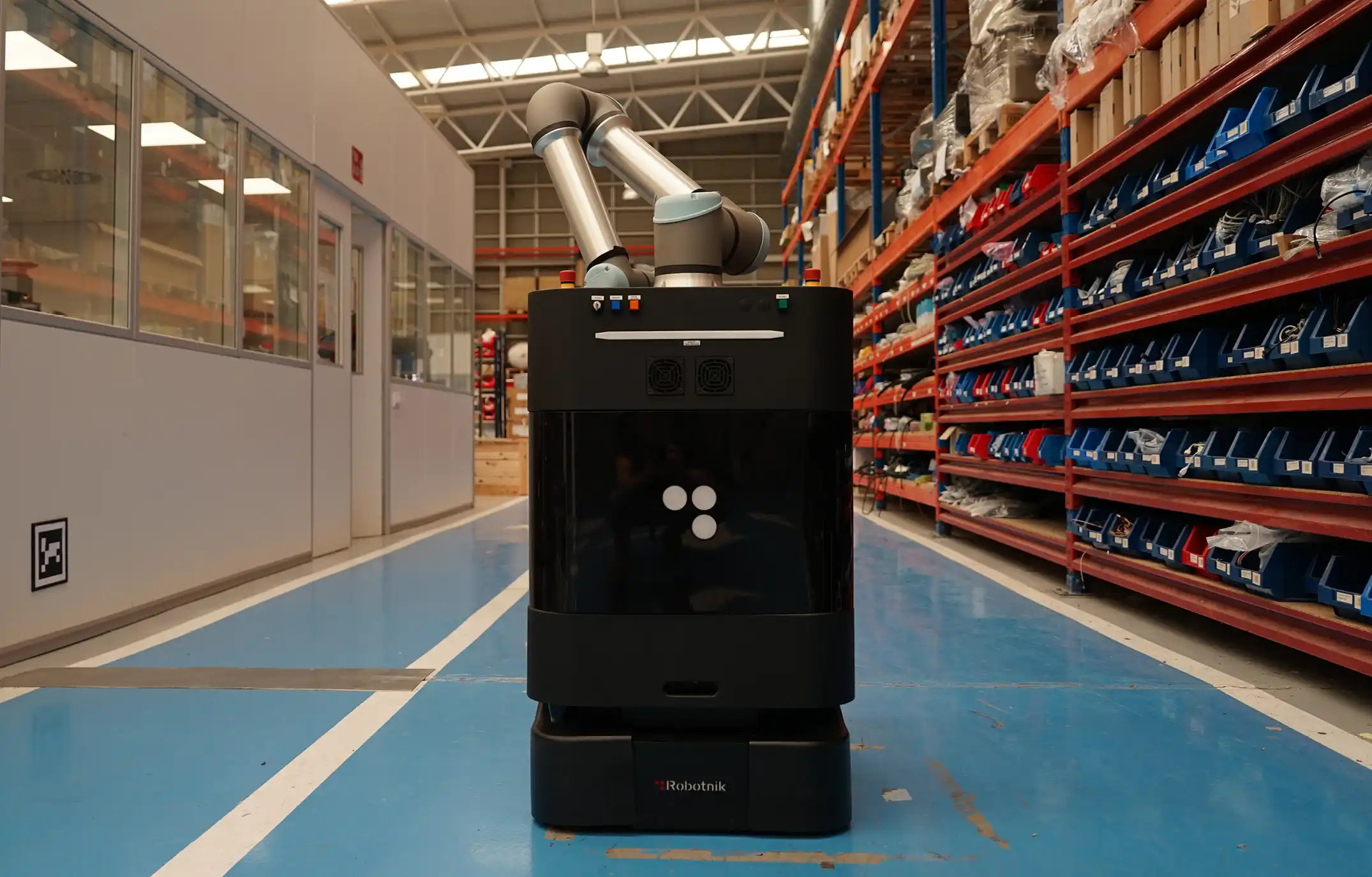

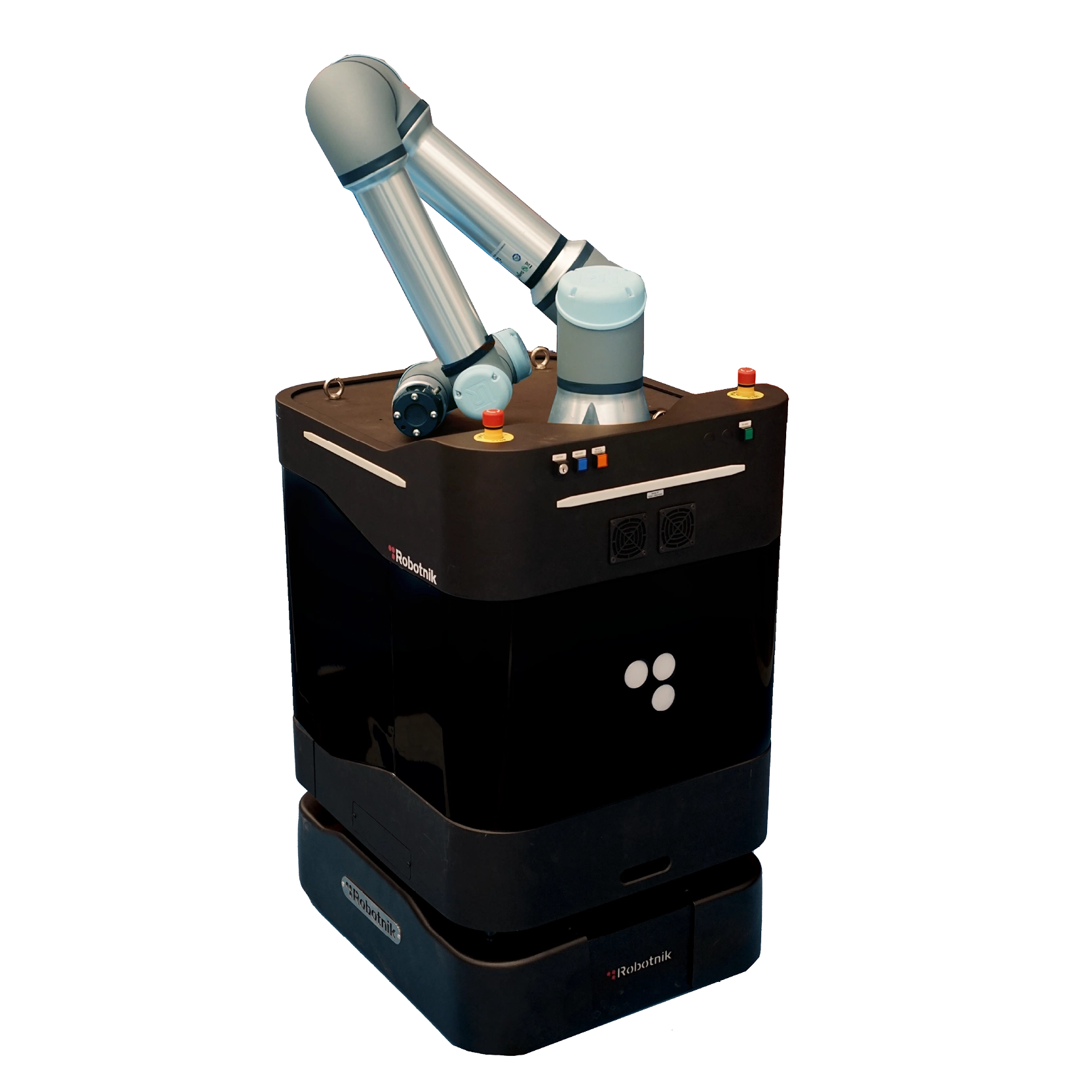

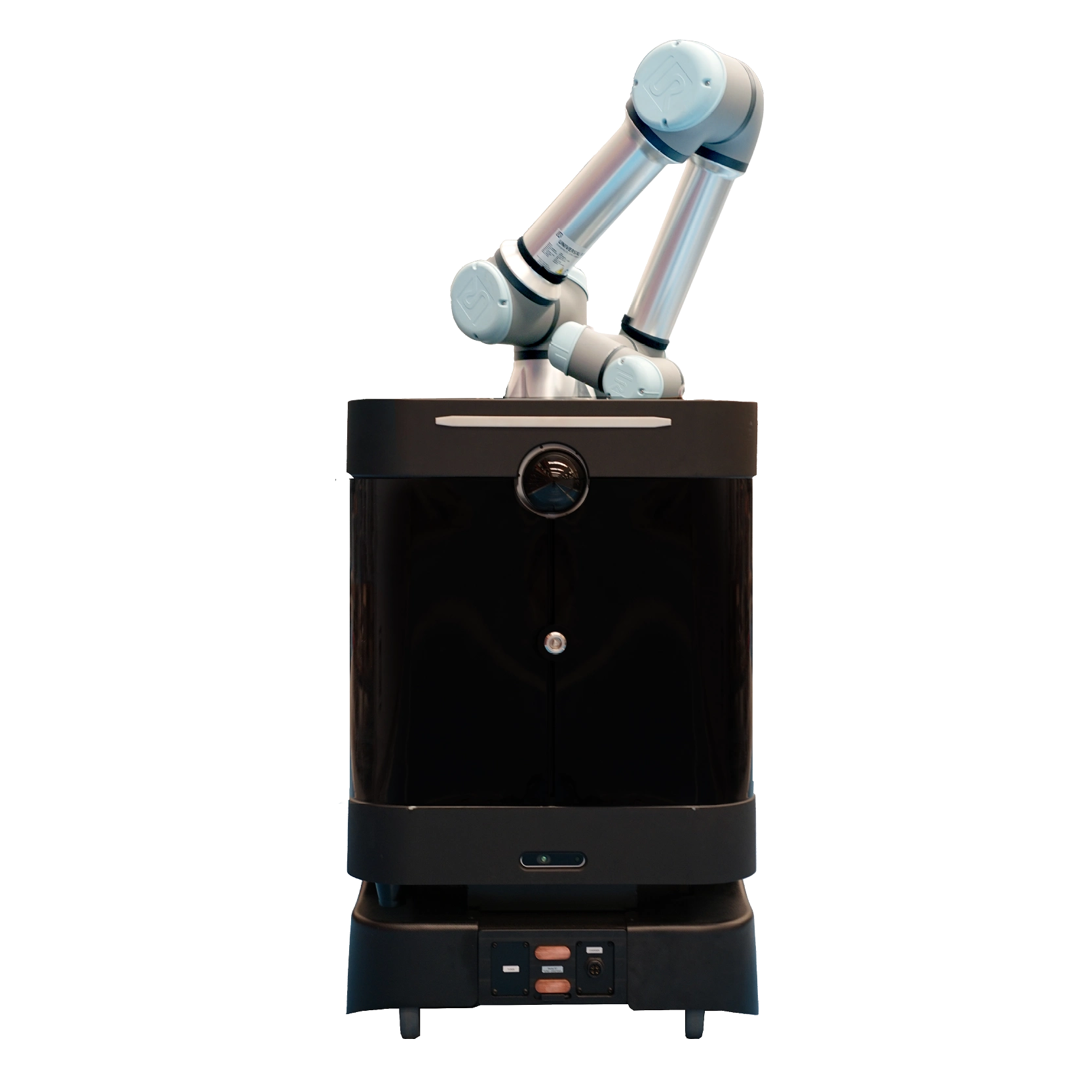

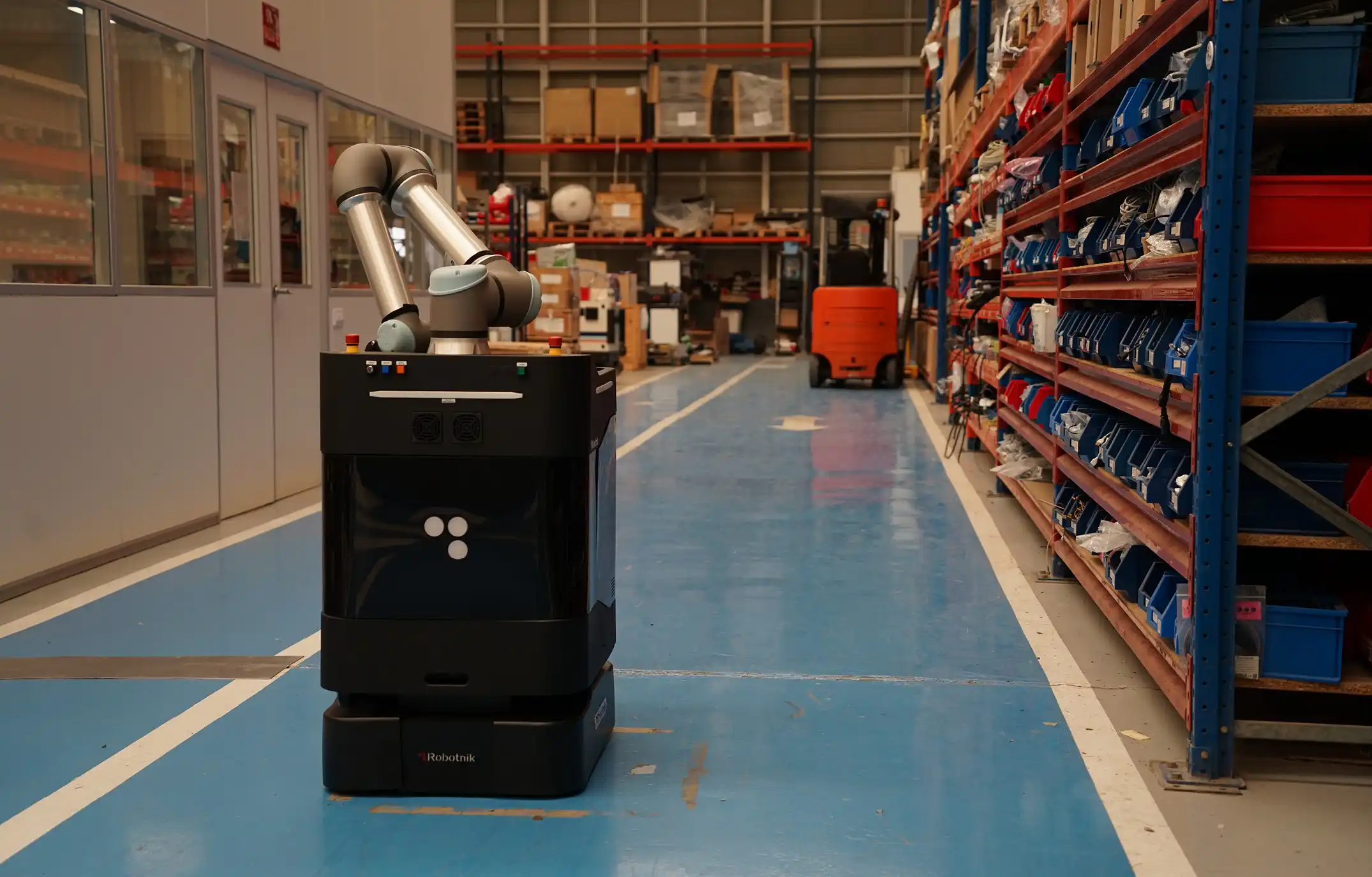

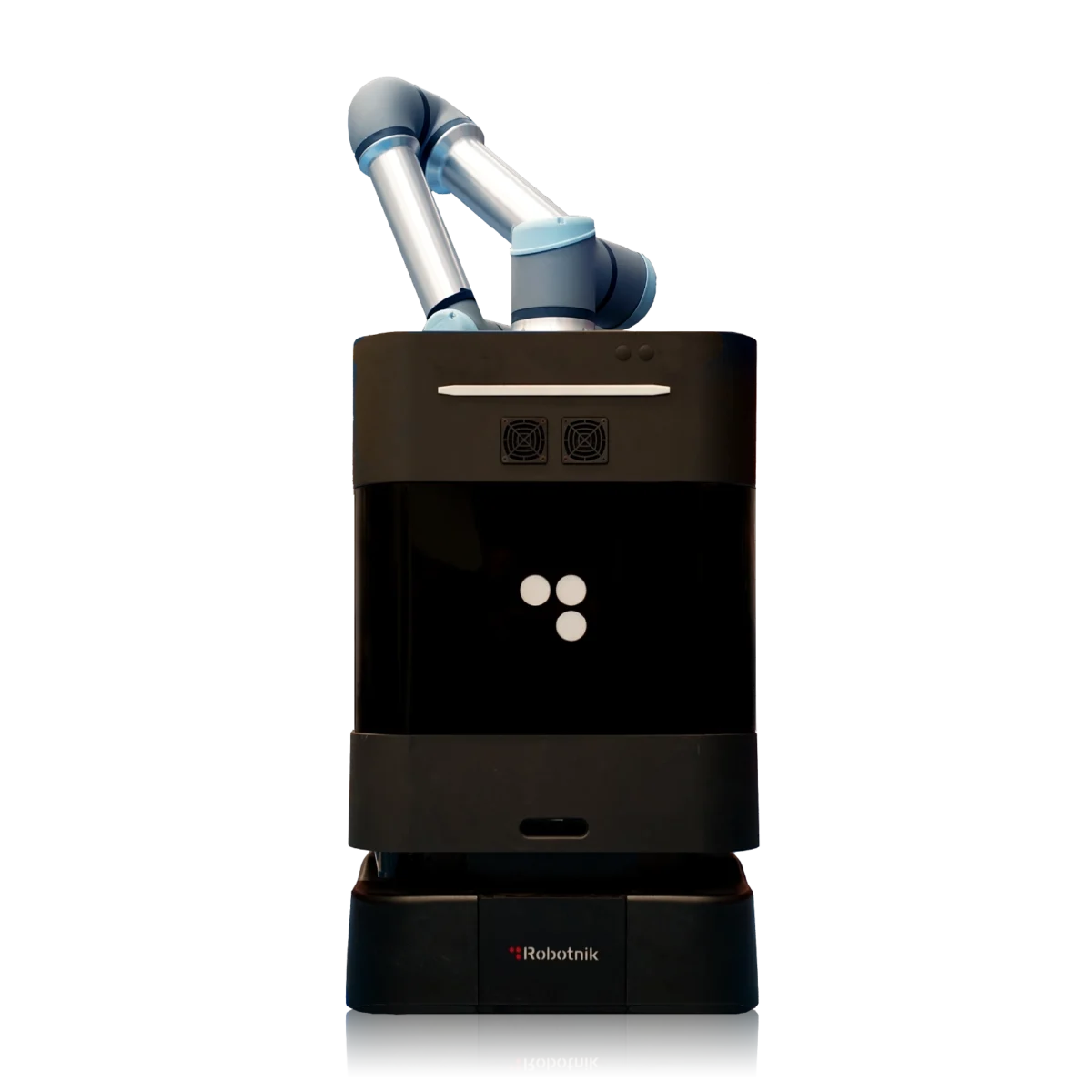

RB-THERON+
Manufacturer: Robotnik Automation
Autonomous Mobile Manipulator.
Available on backorder
Available on backorder
The RB-THERON+ is a compact and versatile mobile manipulator, ideal for indoor pick & place operations in confined spaces such as narrow hallways in industries, laboratories, and warehouses.
It is unique in the market for offering two mobile base options: differential and omnidirectional, depending on maneuverability and distance requirements.
Fully compatible with Universal Robots’ arms, it enables easy integration and efficient autonomous tasks. Its modular battery extends autonomy and ensures continuous operation.
The modular software includes over 400 customizable ROS packages. It complies with ISO safety standards and features integrated safety systems such as collision avoidance and an emergency stop.
Main features
-
- 2 mobile base options: differential and omnidirectional
- Maximum modularity in base, battery and ROS architecture.
- Compact and versatile design.
Applications
-
- Pick & Place.
- Laboratory assistance.
- Industrial handling.
Components included
-
- CPU Intel i7.
- Safety Pack:
- 2D safety scanner x2.
- Safety PLC.
- RGBD camera.
- 5G Router.
- IMU.
- Robotic arm: UR 5e
- Payload: 5 kg
- Reach: 850 mm
- Battery:
- 48VDC@21Ah
- Charging station.
| Model Nº | RB-THERON+ |
| Manufacturer | Robotnik Automation |
| Size | 1.072 x 552 x 655 mm |
| Speed | 1,25 m/s |
| Autonomy | Up to 6 h |
| Payload | Arm: 5 kg, Platform: 100 kg |
| Environment | Indoors |
| Enclosure class | IP30 |
| Traction motors | 2 x 250 W with brake |
| Kinematic | Differential drive |
| Localization system | SLAM |
| Temperature | 0ºC - 40ºC |
| Maximum slope | 6% |
| Communication | Bluetooth 4.0, WiFi 802.11 b/g/n/ac |
| Connectivity | DC Power Output, Ethernet x2, HDMI x1, USB x3 |
| Weight | Arm: 25 kg, Platform: 160 kg |
Supported versions:
-
- Noetic.
