Showing 13–24 of 26 results
RS-Bpearl
Available on backorder
| Weight | 8,000000 kg |
|---|---|
| Dimensions | 34,000000 × 39,000000 × 39,000000 cm |
| Manufacturer |
Robosense |
| Model Nº |
RS-Bpearl |
| Temperature |
-30 ° C a + 60 ° C |
| Accuracy |
± 3cm |
| Size |
H: 100mm * φ: 111mm |
| Weight |
0,92 kg (without cabling) |
| Laser beam |
32 beams |
| Wavelength |
905 nm |
| Laser class |
class 1 |
| Data rate |
576.000 pts/s |
| Data type |
spatial coordinates/intensity |
| Field of view (horizontal) |
360º |
| Field of view (vertical) |
90º |
| Input voltage |
9-32VDC |
| RPM |
300 rpm a 1200 rpm (5Hz a 20Hz) |

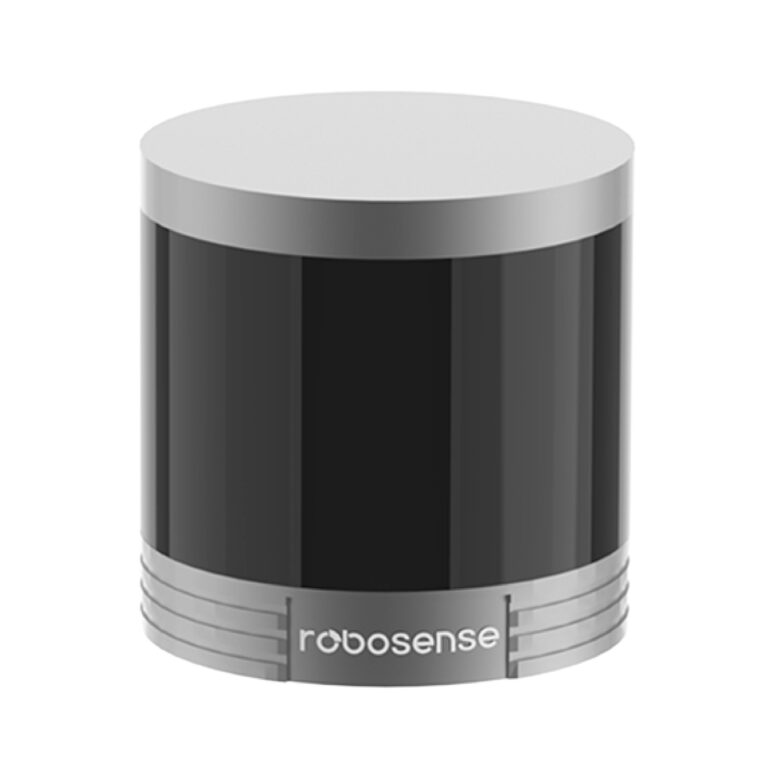

RS-HELIOS 1610
Available on backorder
| Weight | 8,000000 kg |
|---|---|
| Dimensions | 34,000000 × 39,000000 × 39,000000 cm |
| Manufacturer |
Robosense |
| Model Nº |
RS-HELIOS 1610 |
| Accuracy |
±2cm (1m to 100m), ±3cm (0.1m to 1m), ±3cm (100m to 150m) |
| Temperature |
-30°C to 60°C |
| Data rate |
576.000 pts/s (single return) / 1.152.000 pts/s(dual return) |
| Field of view (horizontal) |
360º |
| Field of view (vertical) |
26° (-16° to +10°) |
| Front camera |
1º |
| Laser beam |
32 beams |
| Laser class |
class1 |
| RPM |
600 / 1200 rpm |
| Voltage |
9 ~32 V |
| Wavelength |
905nm |
| Weight |
~1 kg |
| Size |
φ: 100 mm * H100 mm |
| Enclosure class |
IP67 |
RS-HELIOS 5515
Available on backorder
| Weight | 8,000000 kg |
|---|---|
| Dimensions | 34,000000 × 39,000000 × 39,000000 cm |
| Manufacturer |
Robosense |
| Model Nº |
RS-HELIOS 5515 |
| Temperature |
-30°C to 60°C |
| Accuracy |
±2cm (1m to 100m), ±3cm (0.1m to 1m), ±3cm (100m to 150m) |
| Weight |
~1 kg |
| Voltage |
9 ~32 V |
| Enclosure class |
IP67 |
| Data rate |
576.000 pts/s (single return) / 1.152.000 pts/s(dual return) |
| Field of view (horizontal) |
360º |
| Field of view (vertical) |
70° (-55° to +15°) |
| Front camera |
Up to 1,33º |
| Laser beam |
32 beams |
| Laser class |
class1 |
| RPM |
600 / 1200 rpm |
| Wavelength |
905 nm |
| Size |
φ: 100 mm * H100 mm |
RS-HELIOS-16P
Available on backorder
| Weight | 8,000000 kg |
|---|---|
| Dimensions | 34,000000 × 39,000000 × 39,000000 cm |
| Manufacturer |
Robosense |
| Model Nº |
RS-HELIOS-16P |
| Accuracy |
±2cm(typical) |
| Temperature |
-40°C ~ +60°C |
| Size |
φ97.5mm * H100mm |
| Weight |
1.000 g ± 50 g |
| Voltage |
9 ~32 V |
| Range |
150 m (110 m @10% NIST) |
| Enclosure class |
IP67 |
| Power Consumption |
11W |
| Laser beam |
16 beams |
| Laser class |
class 1 |
| Wavelength |
905 nm |
| Data rate |
~288.000 pts/s (single return) / 576.000 pts/s (dual return) |
| Field of view (horizontal) |
360º |
| Field of view (vertical) |
30° (-15° ~+15°) |
RS-Ruby Plus
Available on backorder
| Weight | 8,000000 kg |
|---|---|
| Dimensions | 34,000000 × 39,000000 × 39,000000 cm |
| Manufacturer |
Robosense |
| Model Nº |
RS-RUBY PLUS |
| Data rate |
2.304.000 pts/s (single return) |
| Data type |
Spatial Coordinates, Intensity, Timestamp |
| Field of view (horizontal) |
360º |
| Field of view (vertical) |
40 ° |
| Input voltage |
9-32V |
| Laser beam |
128 beams |
| Laser class |
class 1 |
| RPM |
600/1200 rpm (10Hz/20Hz) |
| Wavelength |
905 nm |
| Weight |
1,85 kg (without cabling) |
| Size |
φ: 125mm* H128mm |
TF03
Available on backorder
| Weight | 2,000000 kg |
|---|---|
| Dimensions | 8,000000 × 20,000000 × 10,000000 cm |
| Manufacturer |
Benewake |
| Model Nº |
TF03 |
| Accuracy |
±10cm (within 10 m) / 1% (beyond 10 m) |
| Environment |
100k Lux |
| Repeatability |
3 cm |
| Reach |
180m@90% reflectivity , 70m@10% reflectivity |
| Frame Rate |
1Hz-1.000Hz (Default 100Hz) |
| Distance resolution |
1 cm |
| Wavelength |
905 nm |
| Field of View |
0,5º |
| Temperature |
-25ºC to +60ºC |
| Interface |
CAN ,UART |
| Voltage |
DC 5V (=200 mA) |
| Range |
100 m (max. 180 m) |
| Power Consumption |
0,9 W |
| Weight |
0,77 kg |
TFmini Plus
Available on backorder
| Weight | 2,000000 kg |
|---|---|
| Dimensions | 8,000000 × 20,000000 × 10,000000 cm |
| Manufacturer |
Benewake |
| Model Nº |
TFmini Plus |
| Accuracy |
±5 cm@(0,1-6 m) / ±1%@(6-12 m) |
| Interface |
UART/I2C |
| Weight |
11g |
| Voltage |
5 V |
| Environment |
70k Lux |
| Scan frecuency |
1~1000Hz |
| Spatial resolution (IFOV) |
3,6º |
| Detection Range |
0,1~12 m (Indoor) / 0,1~7 m (Outdoor) |
| Distance resolution |
5 mm |
| Temperature |
-20ºC to +60ºC |
| Enclosure class |
IP65 |
| Wavelength |
850 nm |
| Power Consumption |
≤110 mA |
TIM310
Available on backorder
| Weight | 0,500000 kg |
|---|---|
| Dimensions | 10,000000 × 18,000000 × 18,000000 cm |
| Manufacturer |
SICK |
| Model Nº |
TIM310 |
| Interface |
USB micro |
| Accuracy |
+-40 mm |
| Temperature |
-10ºC to +50ºC |
| Size |
60 x 60 x 79 mm |
| Weight |
150 g |
| Voltage |
9 – 28 VDC |
| Resolution angle |
1º |
| Range |
0,05 – 4 m |
| Scan Angle |
270° |
| Scan frecuency |
15 Hz |
| Enclosure class |
IP65 |
| Power Consumption |
4 W |
TIM551
Available on backorder
| Weight | 0,500000 kg |
|---|---|
| Dimensions | 10,000000 × 18,000000 × 18,000000 cm |
| Manufacturer |
SICK |
| Model Nº |
TIM551 |
| Accuracy |
+-20 mm |
| Interface |
Ethernet |
| Size |
60 x 60 x 86 mm |
| Ambient illuminance |
80.000 lux |
| Temperature |
-10ºC to +50ºC |
| Distance |
0,05 – 10 m |
| Voltage |
9 – 28 VDC |
| Resolution angle |
1º |
| Range |
270º |
| Enclosure class |
IP67 |
| Environment |
Indoors/Outdoors |
| Scan frecuency |
15 Hz |
| Power Consumption |
3 W |
TIM561
Available on backorder
| Weight | 0,500000 kg |
|---|---|
| Dimensions | 10,000000 × 18,000000 × 18,000000 cm |
| Manufacturer |
SICK |
| Model Nº |
TIM561 |
| Accuracy |
+-20 mm |
| Interface |
Ethernet |
| Ambient illuminance |
80.000 lux |
| Temperature |
-10ºC to +50ºC |
| Voltage |
9 – 28 VDC |
| Resolution angle |
0,33º |
| Range |
270º |
| Enclosure class |
IP67 |
| Distance |
0,05 – 10 m |
| Environment |
Indoors/Outdoors |
| Scan frecuency |
15 Hz |
| Size |
60 x 60 x 86 mm |
TIM571
Available on backorder
| Weight | 0,500000 kg |
|---|---|
| Dimensions | 10,000000 × 18,000000 × 18,000000 cm |
| Manufacturer |
SICK |
| Model Nº |
TIM571 |
| Accuracy |
+-20 mm |
| Interface |
Ethernet |
| Ambient illuminance |
80.000 lux |
| Temperature |
-25º to +50º |
| Voltage |
9 – 28 VDC |
| Resolution angle |
0,33º |
| Range |
270º |
| Enclosure class |
IP67 |
| Environment |
Indoors/Outdoors |
| Distance |
0,05 – 25 m |
| Scan frecuency |
15 Hz |
UST-10LX
Available on backorder
| Weight | 0,500000 kg |
|---|---|
| Dimensions | 10,000000 × 12,000000 × 8,000000 cm |
| Manufacturer |
Hokuyo Automatic |
| Model Nº |
UST-10LX |
| Accuracy |
+-40 mm |
| Interface |
Ethernet |
| Ambient illuminance |
15.000 Lux |
| Temperature |
-10ºC to +50ºC |
| Weight |
130 g |
| Voltage |
10-30 V |
| Resolution angle |
0,25° |
| Range |
270º |
| Enclosure class |
IP65 |
| Environment |
Indoors |
| Distance |
0,06 – 10 m |
| Scan frecuency |
40 Hz |
