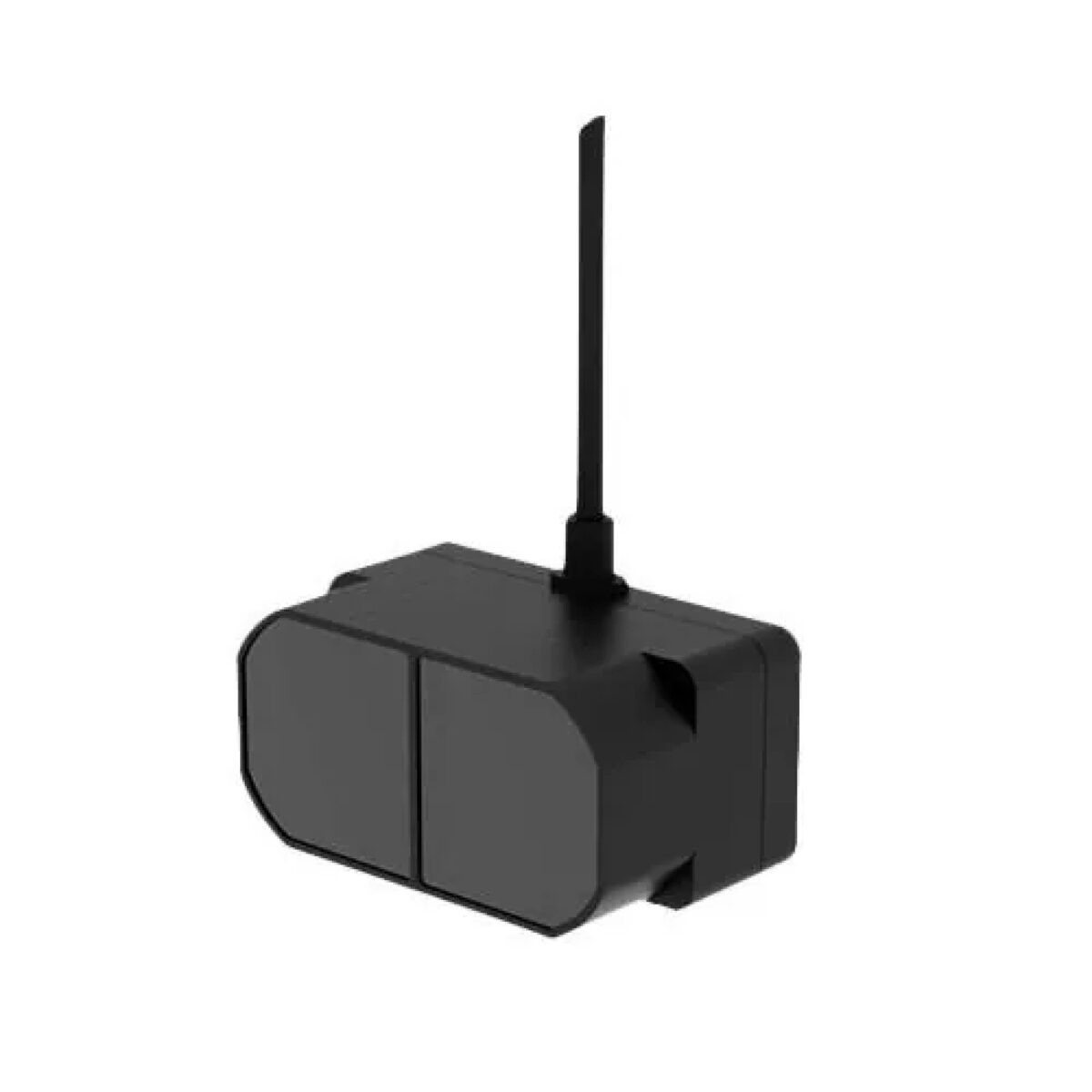

Benewake’s TF Mini Plus is a compact and accurate LiDAR sensor offering a range of up to 12 metres with a resolution of 1 cm. This makes it ideal for applications where space is limited. Its small size and low power consumption make it perfect for integration into small devices without compromising on accuracy.
Unlike the open structure of the TFmini, this new LiDAR module is IP65-rated to protect it from dust and water and has passed stringent drone-level vibration tests.
Main features
- Range up to 12 metres.
- Resolución de 1 cm.
- Compact and lightweight design.
Applications
- Autonomous robots.
- Small-scale drones.
- Measurement systems in small environments.
| Manufacturer | |
| Model Nº | TFmini Plus |
| Accuracy | ±5 cm@(0,1-6 m) / ±1%@(6-12 m) |
| Interface | UART/I2C |
| Weight | 11g |
| Voltage | 5 V |
| Environment | 70k Lux |
| Scan frecuency | 1~1000Hz |
| Spatial resolution (IFOV) | 3,6º |
| Detection Range | 0,1~12 m (Indoor) / 0,1~7 m (Outdoor) |
| Distance resolution | 5 mm |
| Temperature | -20ºC to +60ºC |
| Enclosure class | IP65 |
| Wavelength | 850 nm |
| Power Consumption | ≤110 mA |
