TF03
Manufacturer: Benewake
1D LiDAR sensor.
Estimated delivery time: Send immediately.
222,00 €
Available on backorder
Available on backorder

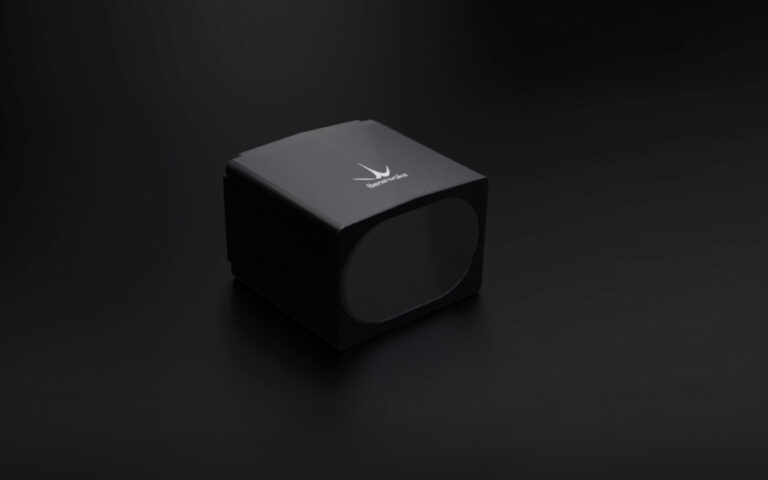

Benewake’s TF03 is a high-precision LiDAR sensor designed to measure distances of over one hundred meters with a resolution of up to 1 cm.
The sensor allows accurate data to be obtained even in low visibility conditions, highlighting its long distance performance and versatility in different environments.
The TF03 features a unique optical system and signal processing circuit design, which improves range performance while maintaining a compact size. In addition, it features an aluminum alloy housing and infrared bandpass glass for improved overall ruggedness and long-term reliability under various conditions.
Main features
- Long range 180 m.
- Multi-interface compatibility, able to be used in many fields.
- IP67 high-strength waterproof enclosure and high reliability.
- Small size and easy to be integrated.
- High-speed measuring up to 100~1000Hz, high repeated accuracy.
- Excellent highlight interference, able to be used outdoor.
Applications
- Cars/Vehicles.
- Obstacle avoidance.
- UAV Anti-collision.
- UAV Precision landing.
- UAV Height fixing / Distance keeping.
- UAV Terrain following.
- Level Measurement.
- Intelligent parking.
- Crane safety operations.
- Vehicle position sensing.
- Traffic flow statistics.
| Manufacturer | Benewake |
| Model Nº | TF03 |
| Accuracy | ±10cm (within 10 m) / 1% (beyond 10 m) |
| Environment | 100k Lux |
| Repeatability | 3 cm |
| Reach | 180m@90% reflectivity , 70m@10% reflectivity |
| Frame Rate | 1Hz-1.000Hz (Default 100Hz) |
| Distance resolution | 1 cm |
| Wavelength | 905 nm |
| Field of View | 0,5º |
| Temperature | -25ºC to +60ºC |
| Interface | CAN, UART |
| Voltage | DC 5V (=200 mA) |
| Range | 100 m (max. 180 m) |
| Power Consumption | 0,9 W |
| Weight | 0,77 kg |
