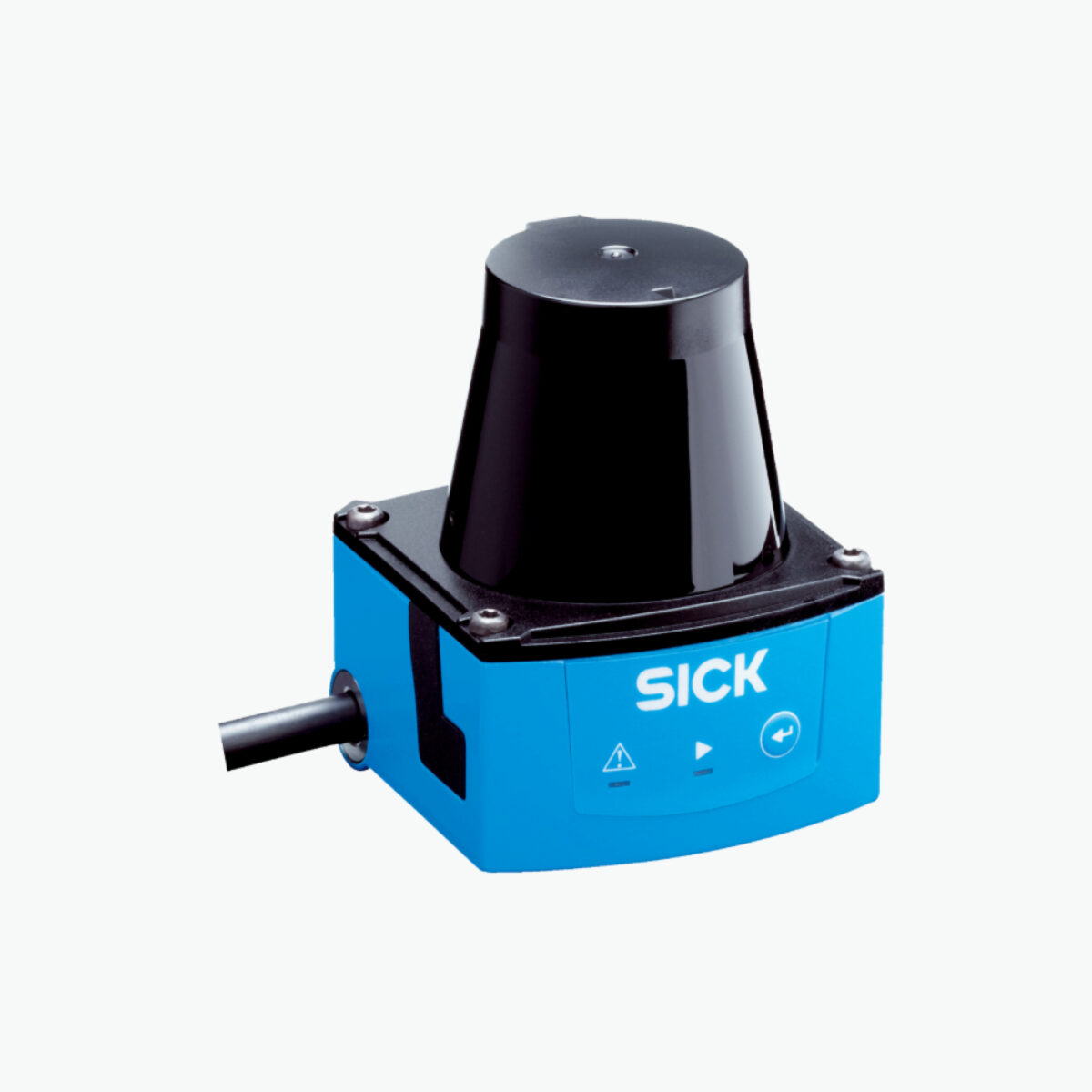

TIM310 from SICK is a compact, high-performance LIDAR sensor ideal for automation and robotics applications.
With a range of up to 25 meters and a scan angle of 270°, it offers high resolution and accuracy.
Its 10 Hz scanning makes it suitable for dynamic and demanding environments, while its rugged design ensures reliability in industrial conditions. Its small size facilitates integration into mobile devices and robots.
Main features
- Range up to 25 metres.
- 270° scanning angle.
- 10 Hz scanning for high accuracy.
- Compact and easy to integrate.
Applications
- Navigation of mobile robots.
- Obstacle detection and avoidance.
- Automation of industrial processes.
Manufacturer | SICK |
Model Nº | TIM310 |
Interface | USB micro |
Accuracy | +-40 mm |
Temperature | -10ºC to +50ºC |
Size | 60 x 60 x 79 mm |
Weight | 150 g |
Voltage | 9 - 28 VDC |
Resolution angle | 1º |
Range | 0,05 - 4 m |
Scan Angle | 270° |
Scan frecuency | 15 Hz |
Enclosure class | IP65 |
Power Consumption | 4 W |
Official ROS package:
- http://wiki.ros.org/sick_tim
- Sources: https://github.com/uos/sick_tim
- Supported versions: Groovy, Hydro, Indigo, Jade, Kinetic
Related products
LMS100
Available on backorder
Weight | 2,500000 kg |
---|---|
Dimensions | 23,000000 × 23,000000 × 20,000000 cm |
Manufacturer |
SICK |
Model Nº |
LMS100 |
Accuracy |
+- 30 mm |
Interface |
Ethernet, Serial, CAN-Bus |
Temperature |
0º to +50ºC |
Size |
152 x 102 x 105 mm |
Weight |
1,1 Kg |
Voltage |
10,8 – 30 VDC |
Resolution angle |
0,25 / 0,5 |
Range |
0,5 – 20 m |
Scan Angle |
270° |
Enclosure class |
IP65 |
Scan frecuency |
25 Hz /50 Hz |
Power Consumption |
10 W |
LMS151
Available on backorder
Weight | 2,500000 kg |
---|---|
Dimensions | 23,000000 × 23,000000 × 20,000000 cm |
Manufacturer |
SICK |
Model Nº |
LMS151 |
Accuracy |
+- 30 mm |
Interface |
Ethernet, Serial, CAN-Bus |
Temperature |
-30°C to +50°C |
Size |
105 x 102 x 162 mm |
Weight |
1,1 Kg |
Voltage |
10,8 – 30 VDC |
Resolution angle |
0,25 / 0,5 |
Range |
0,5 – 50 m |
Scan Angle |
270° |
Enclosure class |
IP67 |
Scan frecuency |
25 Hz /50 Hz |
Power Consumption |
10 W |
TIM551
Available on backorder
Weight | 0,500000 kg |
---|---|
Dimensions | 10,000000 × 18,000000 × 18,000000 cm |
Manufacturer |
SICK |
Model Nº |
TIM551 |
Accuracy |
+-20 mm |
Interface |
Ethernet |
Size |
60 x 60 x 86 mm |
Ambient illuminance |
80.000 lux |
Temperature |
-10ºC to +50ºC |
Distance |
0,05 – 10 m |
Voltage |
9 – 28 VDC |
Resolution angle |
1º |
Range |
270º |
Enclosure class |
IP67 |
Environment |
Indoors/Outdoors |
Scan frecuency |
15 Hz |
Power Consumption |
3 W |
TIM561
Available on backorder
Weight | 0,500000 kg |
---|---|
Dimensions | 10,000000 × 18,000000 × 18,000000 cm |
Manufacturer |
SICK |
Model Nº |
TIM561 |
Accuracy |
+-20 mm |
Interface |
Ethernet |
Ambient illuminance |
80.000 lux |
Temperature |
-10ºC to +50ºC |
Voltage |
9 – 28 VDC |
Resolution angle |
0,33º |
Range |
270º |
Enclosure class |
IP67 |
Distance |
0,05 – 10 m |
Environment |
Indoors/Outdoors |
Scan frecuency |
15 Hz |
Size |
60 x 60 x 86 mm |
TIM571
Available on backorder
Weight | 0,500000 kg |
---|---|
Dimensions | 10,000000 × 18,000000 × 18,000000 cm |
Manufacturer |
SICK |
Model Nº |
TIM571 |
Accuracy |
+-20 mm |
Interface |
Ethernet |
Ambient illuminance |
80.000 lux |
Temperature |
-25º to +50º |
Voltage |
9 – 28 VDC |
Resolution angle |
0,33º |
Range |
270º |
Enclosure class |
IP67 |
Environment |
Indoors/Outdoors |
Distance |
0,05 – 25 m |
Scan frecuency |
15 Hz |
UST-10LX
Available on backorder
Weight | 0,500000 kg |
---|---|
Dimensions | 10,000000 × 12,000000 × 8,000000 cm |
Manufacturer |
Hokuyo Automatic |
Model Nº |
UST-10LX |
Accuracy |
+-40 mm |
Interface |
Ethernet |
Ambient illuminance |
15.000 Lux |
Temperature |
-10ºC to +50ºC |
Weight |
130 g |
Voltage |
10-30 V |
Resolution angle |
0,25° |
Range |
270º |
Enclosure class |
IP65 |
Environment |
Indoors |
Distance |
0,06 – 10 m |
Scan frecuency |
40 Hz |
UST-20LX
Available on backorder
Weight | 0,500000 kg |
---|---|
Dimensions | 10,000000 × 12,000000 × 8,000000 cm |
Manufacturer |
Hokuyo Automatic |
Model Nº |
UST-20LX |
Accuracy |
+-40 mm |
Interface |
Ethernet |
Ambient illuminance |
15.000 Lux |
Temperature |
-10ºC to +50ºC |
Weight |
130 g |
Voltage |
10-30 V |
Resolution angle |
0,25° |
Range |
270º |
Enclosure class |
IP65 |
Environment |
Indoors |
Distance |
0,06 – 20 m |
Scan frecuency |
40 Hz |
UST-30LX
Available on backorder
Weight | 0,500000 kg |
---|---|
Dimensions | 10,000000 × 13,000000 × 11,000000 cm |
Manufacturer |
Hokuyo Automatic |
Model Nº |
UST-30LX |
Accuracy |
+-40 mm |
Interface |
Ethernet 100BASE-TX |
Ambient illuminance |
100.000 lux |
Temperature |
-30°C to +50°C |
Size |
50×50×70 mm (sensor) |
Weight |
130g (Excluding cable) |
Voltage |
30VDC 50mA MAX |
Resolution angle |
0,25° |
Range |
270º |
Distance |
0,05 – 30 m |
Environment |
Outdoors |
Scan frecuency |
40 Hz |
Enclosure class |
IP67 |
