Showing all 6 results

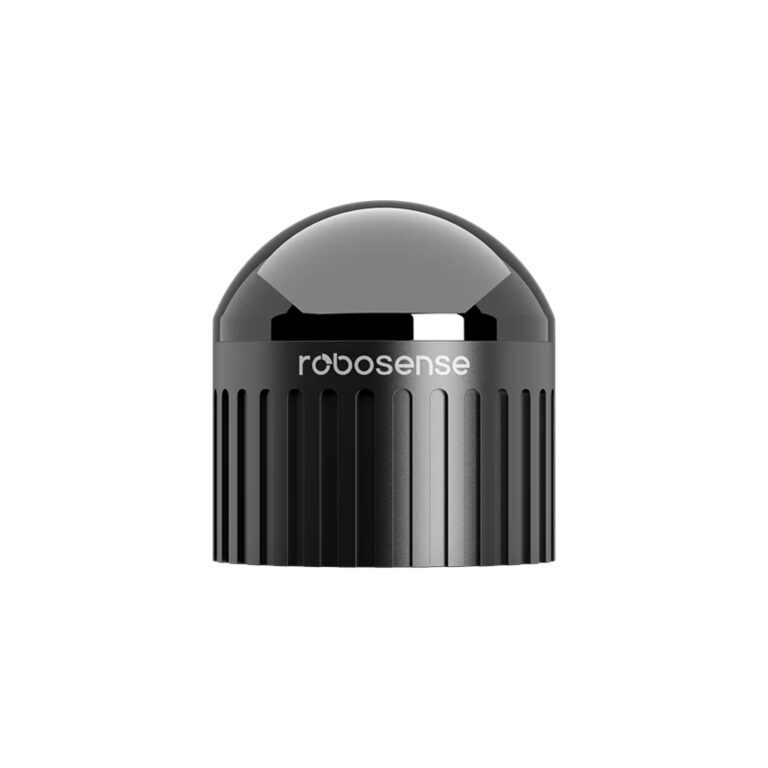

Airy
Available on backorder
| Weight | 1 kg |
|---|---|
| Dimensions | 34,000000 × 39,000000 × 39,000000 cm |
| Manufacturer |
Robosense |
| Model Nº |
Airy |
| Temperature |
-40°C ~ +60°C |
| Size |
Ø 60 mm |
| Weight |
230 ± 20 g |
| Voltage |
9 ~32 V |
| Range |
60m (30m @10% NIST) |
| Resolution angle |
Horizontal: 0.4º | Vertical: 0.947º |
| Enclosure class |
IP67, IP6K9K |
| Power Consumption |
8W (Typical) |
| Ethernet |
100 MBps |
| Field of view (horizontal) |
0~360° |
| Field of view (vertical) |
0~90° |
| Accuracy |
1.5 cm (1σ) |
RS-Bpearl
Available on backorder
| Weight | 8,000000 kg |
|---|---|
| Dimensions | 34,000000 × 39,000000 × 39,000000 cm |
| Manufacturer |
Robosense |
| Model Nº |
RS-Bpearl |
| Temperature |
-30 ° C a + 60 ° C |
| Accuracy |
± 3cm |
| Size |
H: 100mm * φ: 111mm |
| Weight |
0,92 kg (without cabling) |
| Laser beam |
32 beams |
| Wavelength |
905 nm |
| Laser class |
class 1 |
| Data rate |
576.000 pts/s |
| Data type |
spatial coordinates/intensity |
| Field of view (horizontal) |
360º |
| Field of view (vertical) |
90º |
| Input voltage |
9-32VDC |
| RPM |
300 rpm a 1200 rpm (5Hz a 20Hz) |
RS-HELIOS 1610
Available on backorder
| Weight | 8,000000 kg |
|---|---|
| Dimensions | 34,000000 × 39,000000 × 39,000000 cm |
| Manufacturer |
Robosense |
| Model Nº |
RS-HELIOS 1610 |
| Accuracy |
±2cm (1m to 100m), ±3cm (0.1m to 1m), ±3cm (100m to 150m) |
| Temperature |
-30°C to 60°C |
| Data rate |
576.000 pts/s (single return) / 1.152.000 pts/s(dual return) |
| Field of view (horizontal) |
360º |
| Field of view (vertical) |
26° (-16° to +10°) |
| Front camera |
1º |
| Laser beam |
32 beams |
| Laser class |
class1 |
| RPM |
600 / 1200 rpm |
| Voltage |
9 ~32 V |
| Wavelength |
905nm |
| Weight |
~1 kg |
| Size |
φ: 100 mm * H100 mm |
| Enclosure class |
IP67 |
RS-HELIOS 5515
Available on backorder
| Weight | 8,000000 kg |
|---|---|
| Dimensions | 34,000000 × 39,000000 × 39,000000 cm |
| Manufacturer |
Robosense |
| Model Nº |
RS-HELIOS 5515 |
| Temperature |
-30°C to 60°C |
| Accuracy |
±2cm (1m to 100m), ±3cm (0.1m to 1m), ±3cm (100m to 150m) |
| Weight |
~1 kg |
| Voltage |
9 ~32 V |
| Enclosure class |
IP67 |
| Data rate |
576.000 pts/s (single return) / 1.152.000 pts/s(dual return) |
| Field of view (horizontal) |
360º |
| Field of view (vertical) |
70° (-55° to +15°) |
| Front camera |
Up to 1,33º |
| Laser beam |
32 beams |
| Laser class |
class1 |
| RPM |
600 / 1200 rpm |
| Wavelength |
905 nm |
| Size |
φ: 100 mm * H100 mm |
RS-HELIOS-16P
Available on backorder
| Weight | 8,000000 kg |
|---|---|
| Dimensions | 34,000000 × 39,000000 × 39,000000 cm |
| Manufacturer |
Robosense |
| Model Nº |
RS-HELIOS-16P |
| Accuracy |
±2cm(typical) |
| Temperature |
-40°C ~ +60°C |
| Size |
φ97.5mm * H100mm |
| Weight |
1.000 g ± 50 g |
| Voltage |
9 ~32 V |
| Range |
150 m (110 m @10% NIST) |
| Enclosure class |
IP67 |
| Power Consumption |
11W |
| Laser beam |
16 beams |
| Laser class |
class 1 |
| Wavelength |
905 nm |
| Data rate |
~288.000 pts/s (single return) / 576.000 pts/s (dual return) |
| Field of view (horizontal) |
360º |
| Field of view (vertical) |
30° (-15° ~+15°) |
RS-Ruby Plus
Available on backorder
| Weight | 8,000000 kg |
|---|---|
| Dimensions | 34,000000 × 39,000000 × 39,000000 cm |
| Manufacturer |
Robosense |
| Model Nº |
RS-RUBY PLUS |
| Data rate |
2.304.000 pts/s (single return) |
| Data type |
Spatial Coordinates, Intensity, Timestamp |
| Field of view (horizontal) |
360º |
| Field of view (vertical) |
40 ° |
| Input voltage |
9-32V |
| Laser beam |
128 beams |
| Laser class |
class 1 |
| RPM |
600/1200 rpm (10Hz/20Hz) |
| Wavelength |
905 nm |
| Weight |
1,85 kg (without cabling) |
| Size |
φ: 125mm* H128mm |
