RS-HELIOS 1610
Manufacturer: Robosense
3D LiDAR 360º sensor.
Estimated delivery time: 4 – 6 weeks.
2.218,50 €
Available on backorder
Available on backorder
The RS-Helios 1610 is a solid-state LiDAR designed for advanced industrial and research applications.
Its 3D scanning capability and high accuracy make it ideal for demanding environments such as factory automation, mobile robotics and high-resolution mapping.
With a range of up to 300 metres and a wide field of view, it ensures reliable performance in low light or bad weather conditions. Its compact design makes it easy to integrate into mobile platforms and autonomous systems.

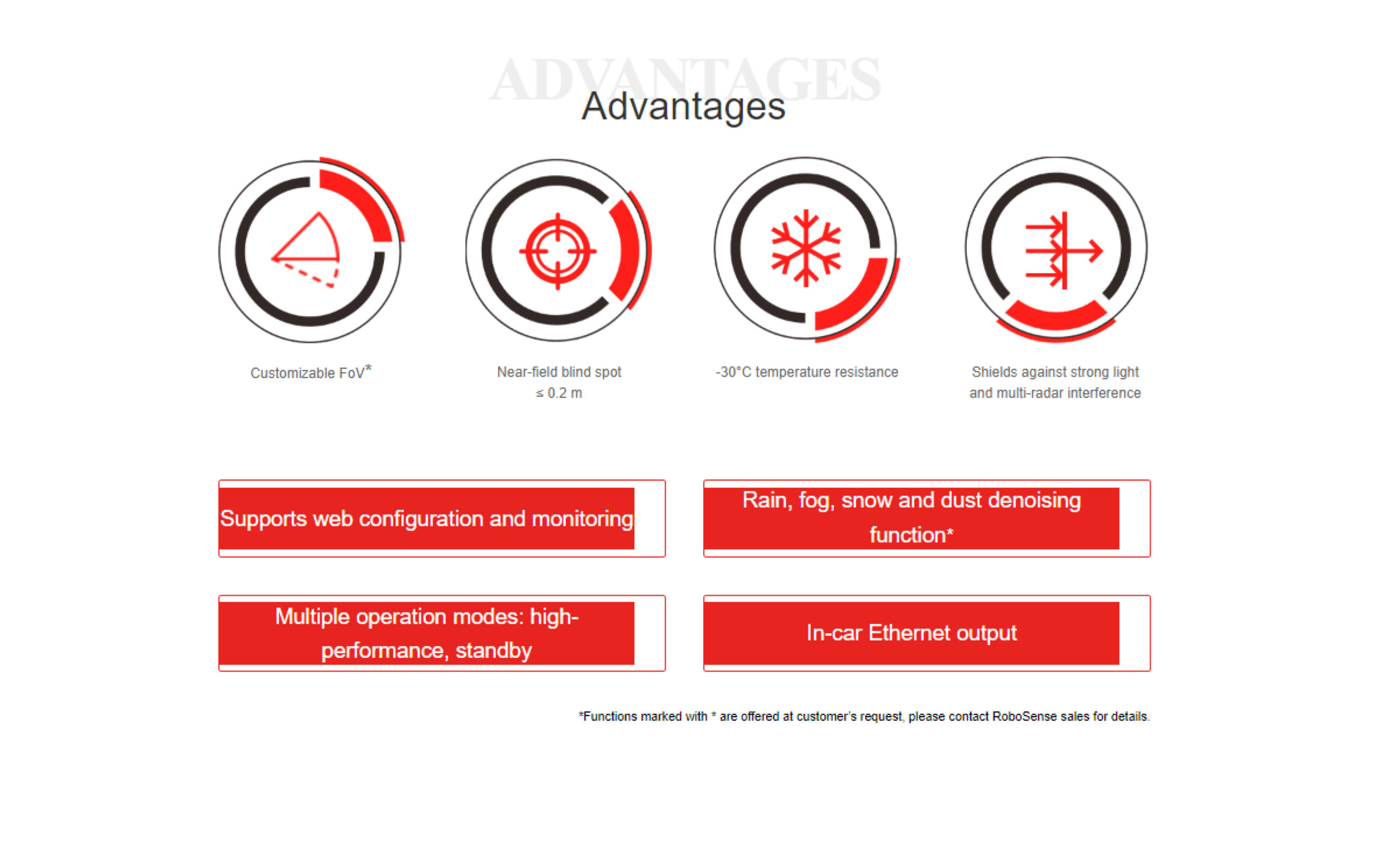

Main features
- High angular resolution.
- Wide operating range.
- Compact design.
- Robust IP protection.
Applications
- Autonomous vehicles.
- 3D mapping and navigation.
- Mobile robotics.
| Manufacturer | Robosense |
| Model Nº | RS-HELIOS 1610 |
| Accuracy | ±2cm (1m to 100m), ±3cm (0.1m to 1m), ±3cm (100m to 150m) |
| Temperature | -30°C to 60°C |
| Data rate | 576.000 pts/s (single return) / 1.152.000 pts/s(dual return) |
| Field of view (horizontal) | 360º |

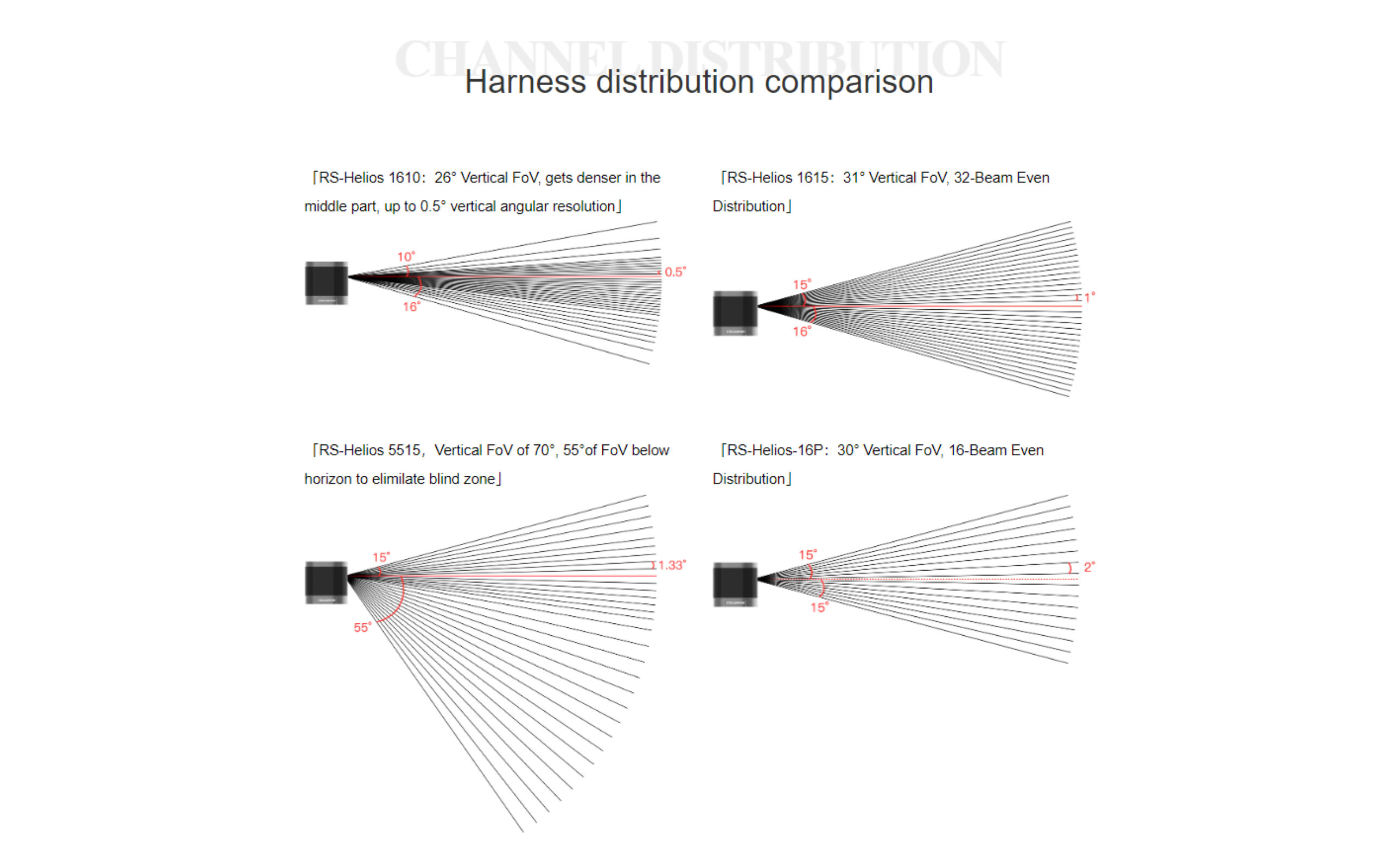

| Field of view (vertical) | 26° (-16° to +10°) |
| Front camera | 1º |
| Laser beam | 32 beams |
| Laser class | class1 |
| RPM | 600 / 1200 rpm |
| Voltage | 9 ~32 V |
| Wavelength | 905nm |
| Weight | ~1 kg |
| Size | φ: 100 mm * H100 mm |
| Enclosure class | IP67 |
Official ROS Packages:
