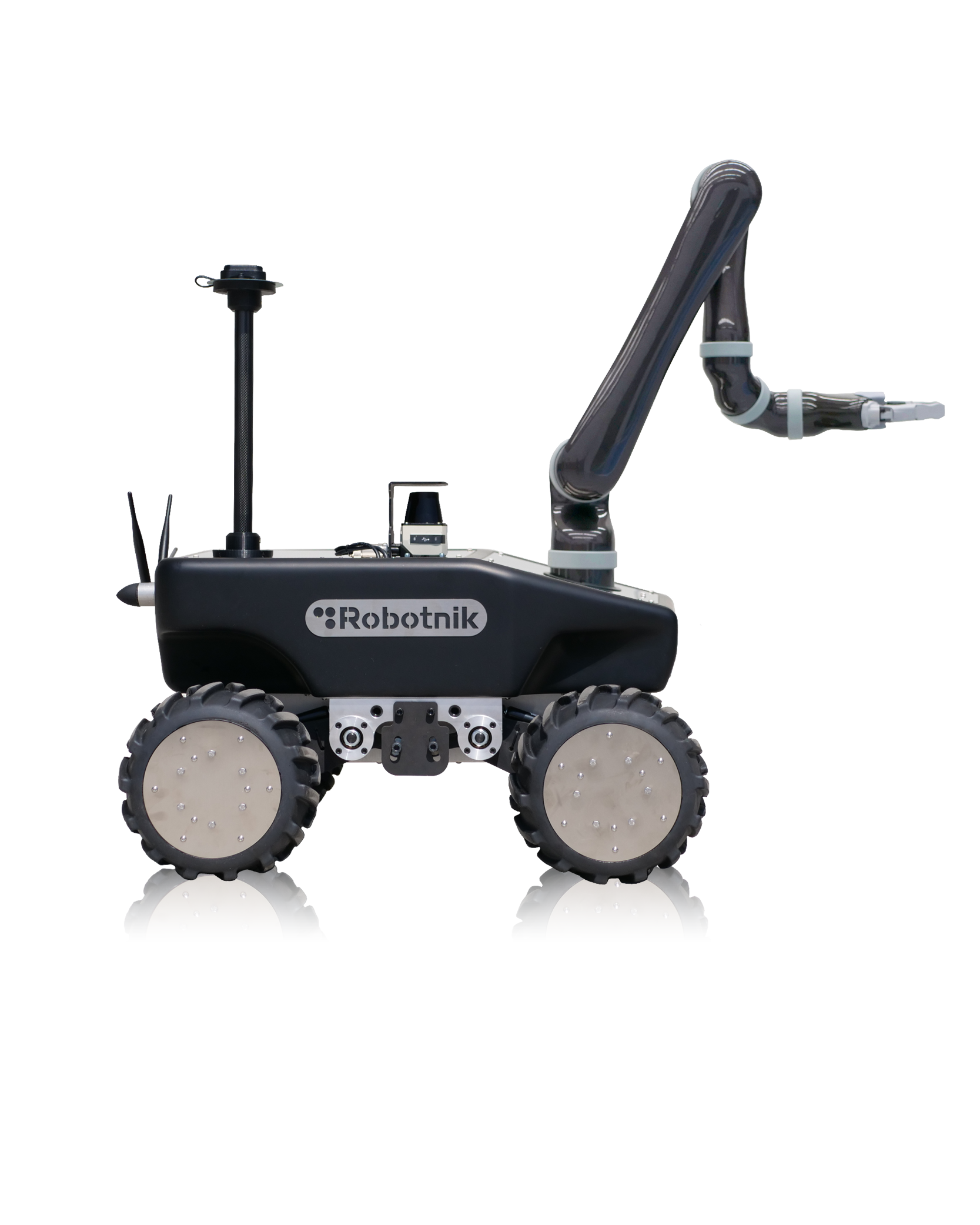

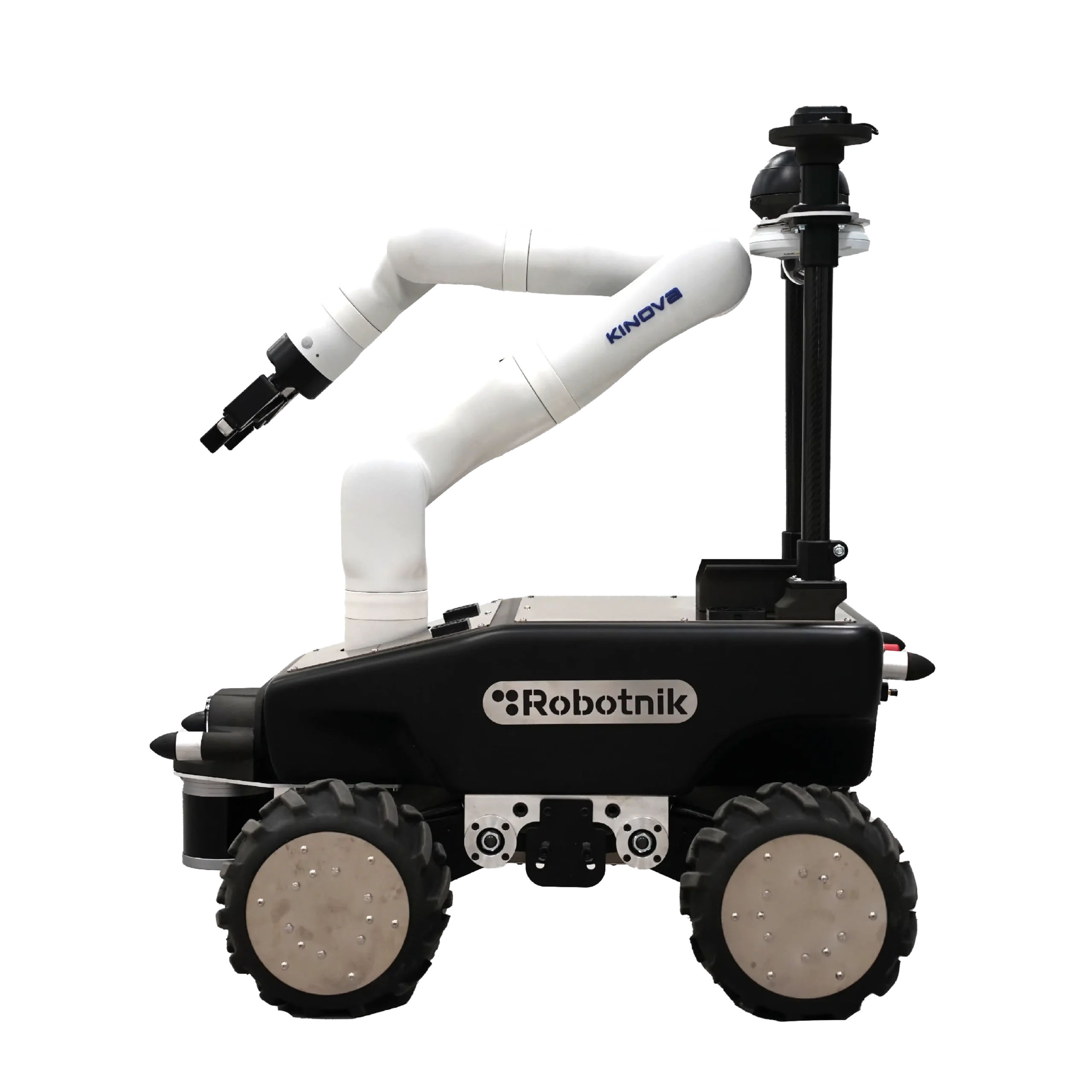

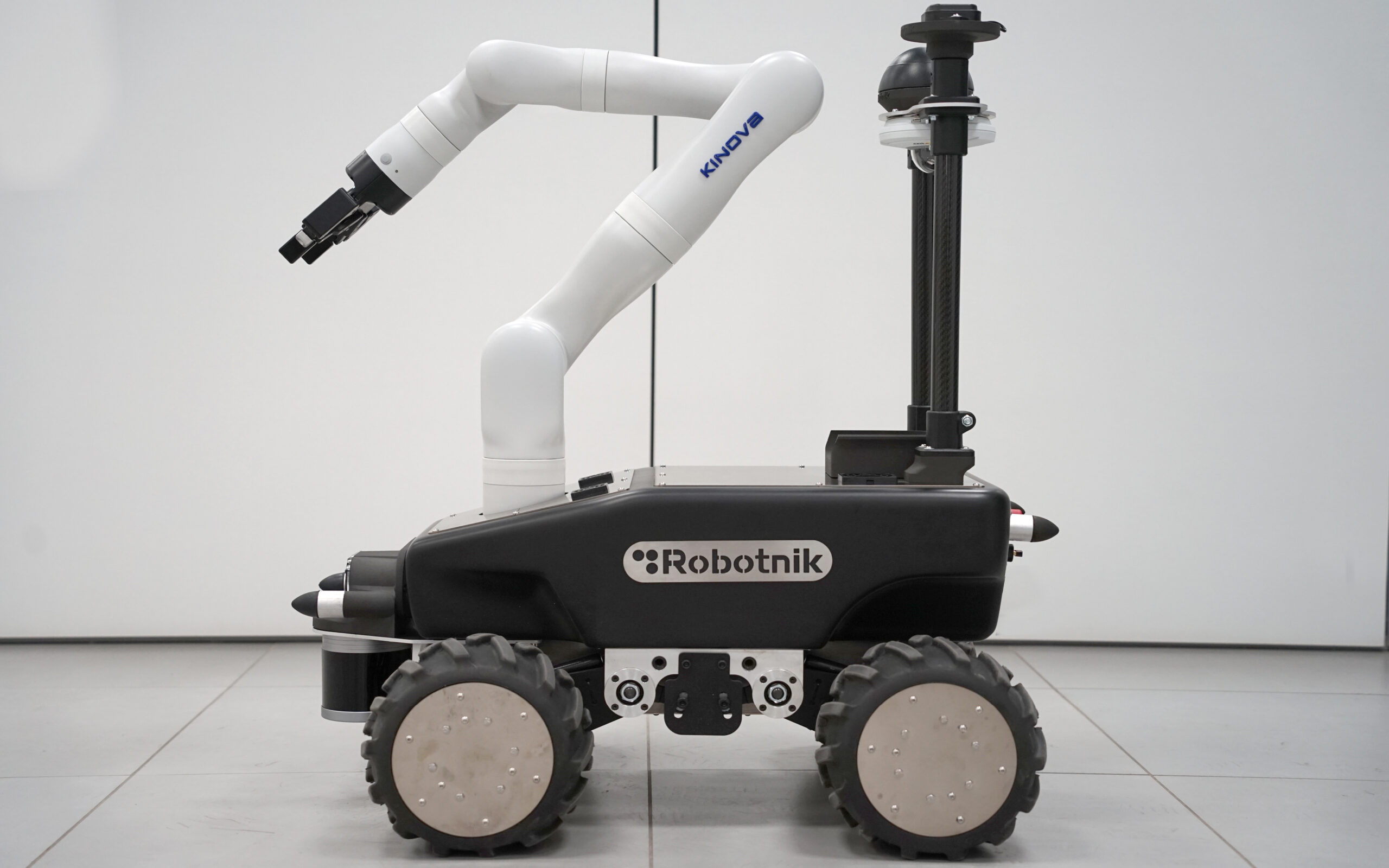

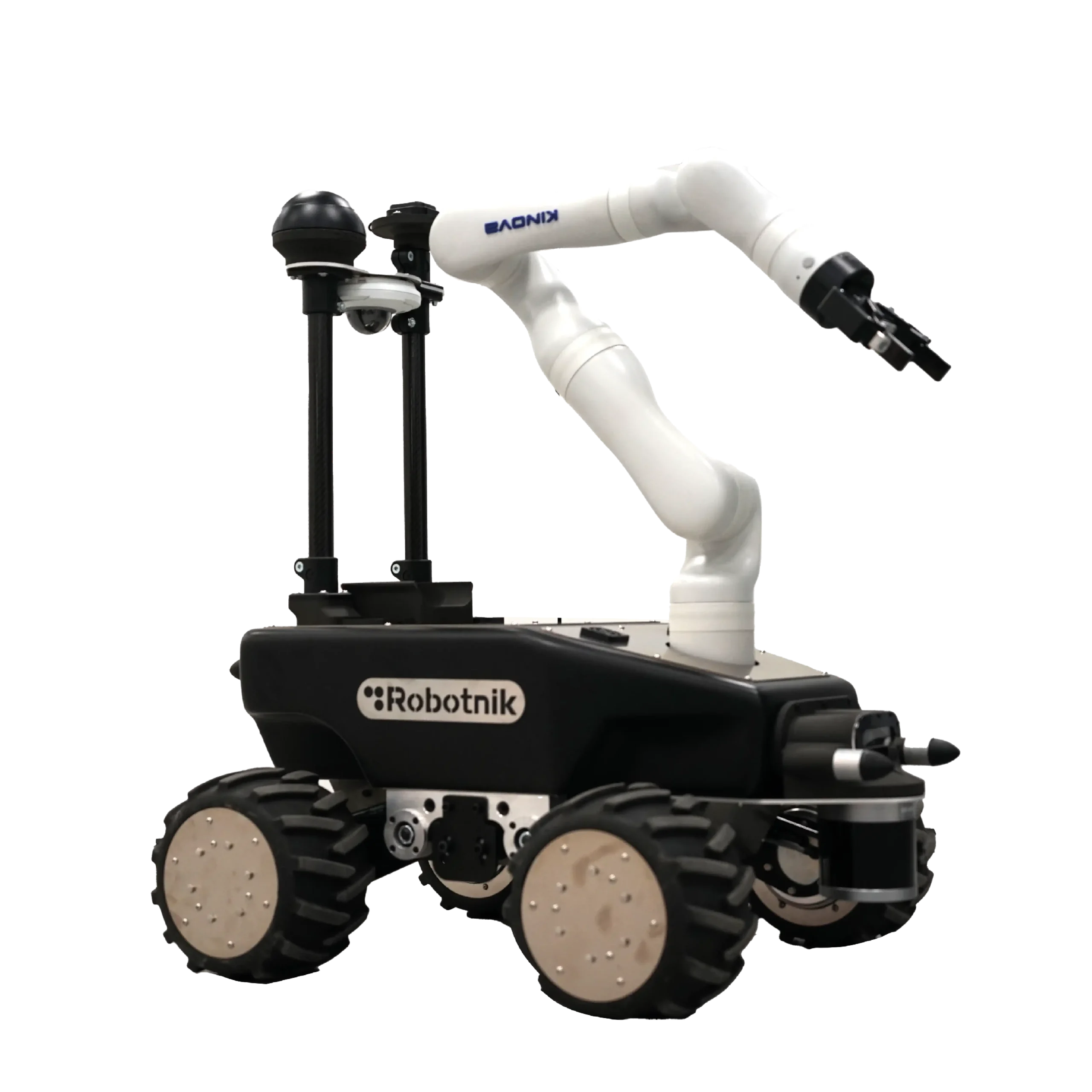

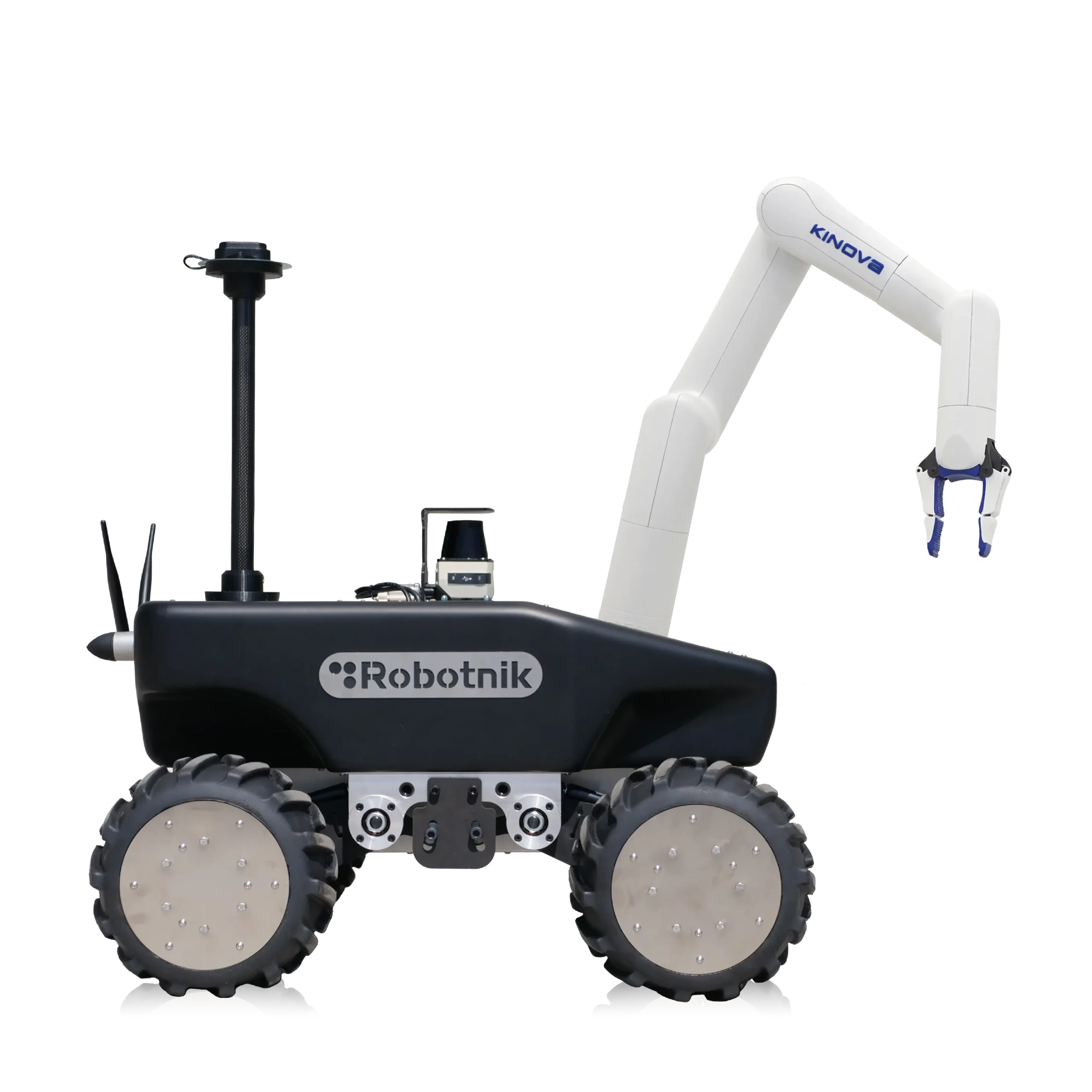

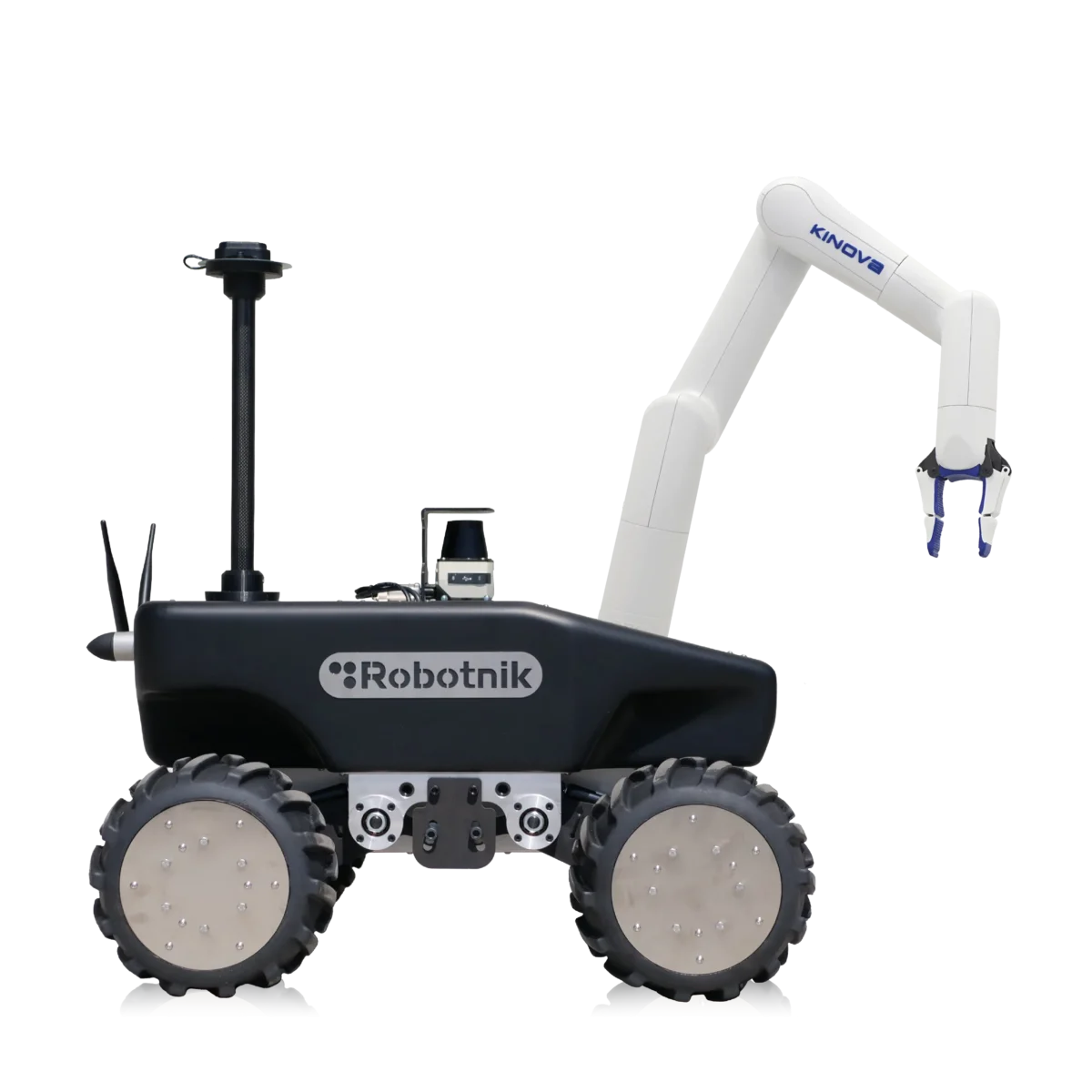

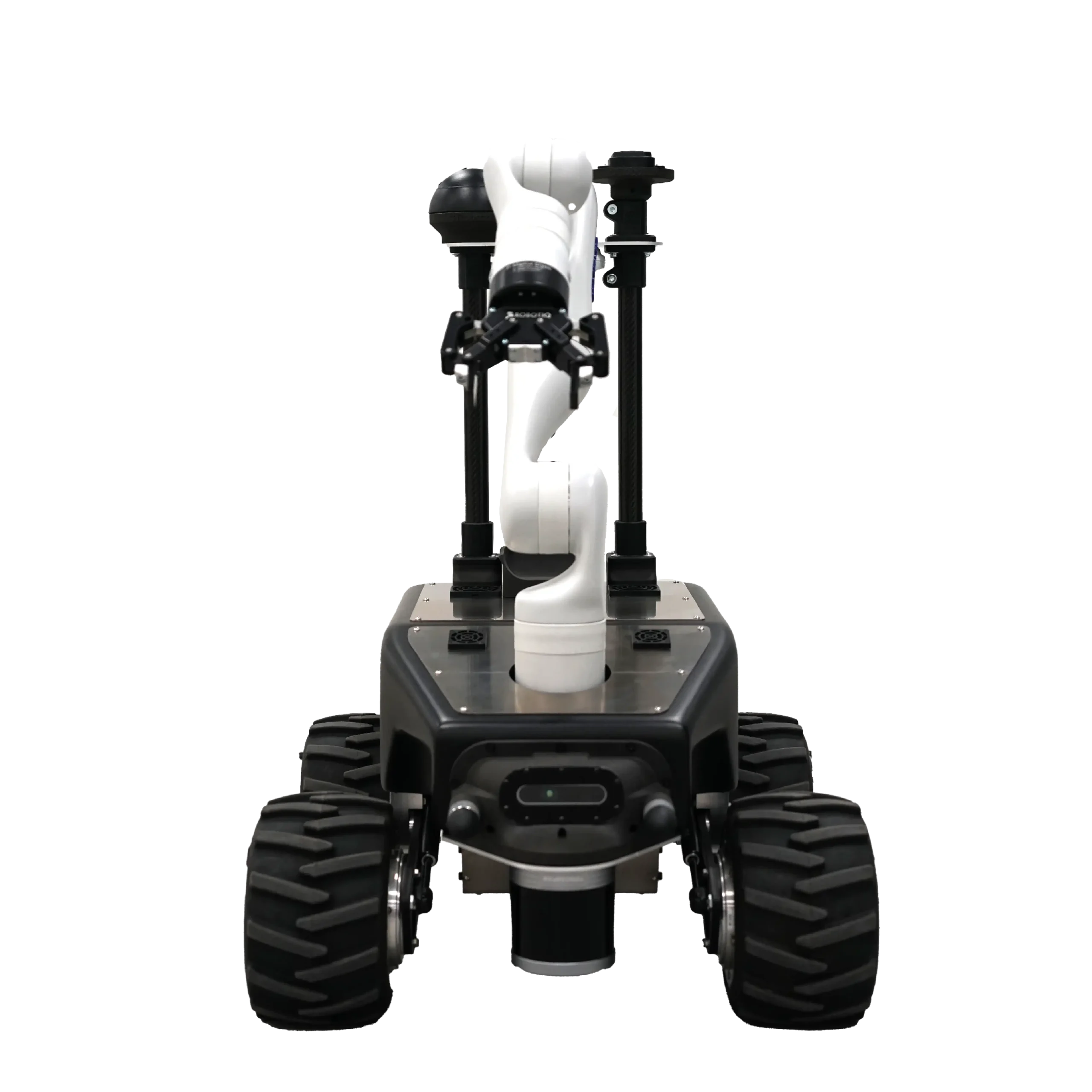

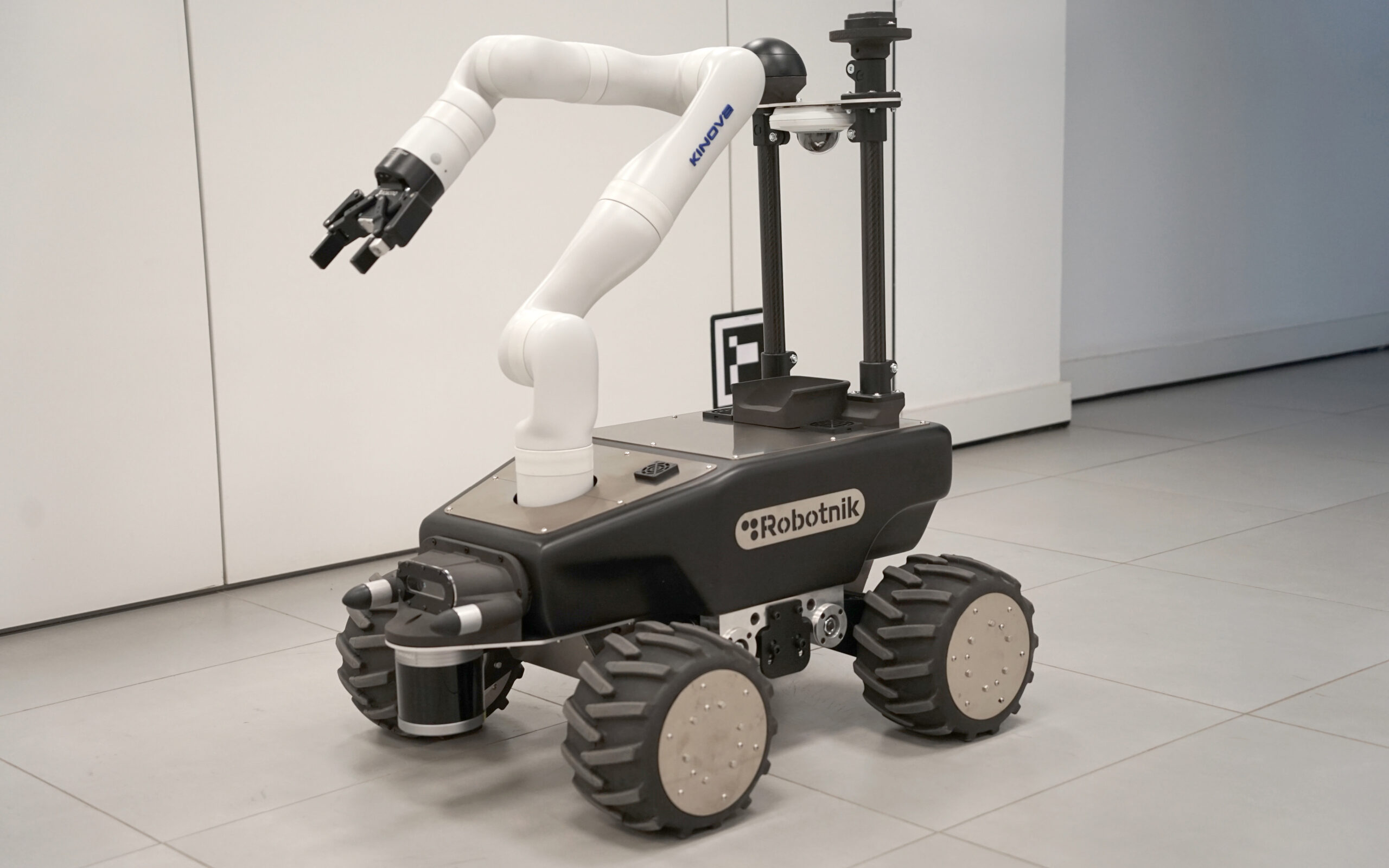

RB-SUMMIT+
Manufacturer: Robotnik Automation
Autonomous Mobile Manipulator.
Recommended configuration mounts the Kinova Gen3 Lite arm and the UST-20LX laser.
Available on backorder
Available on backorder

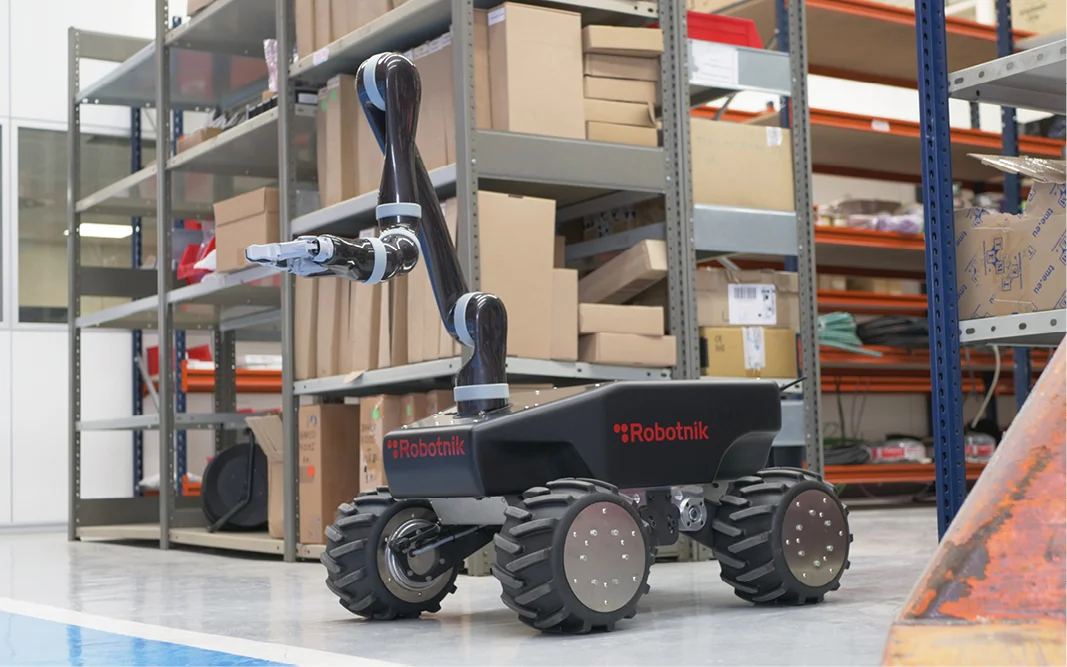

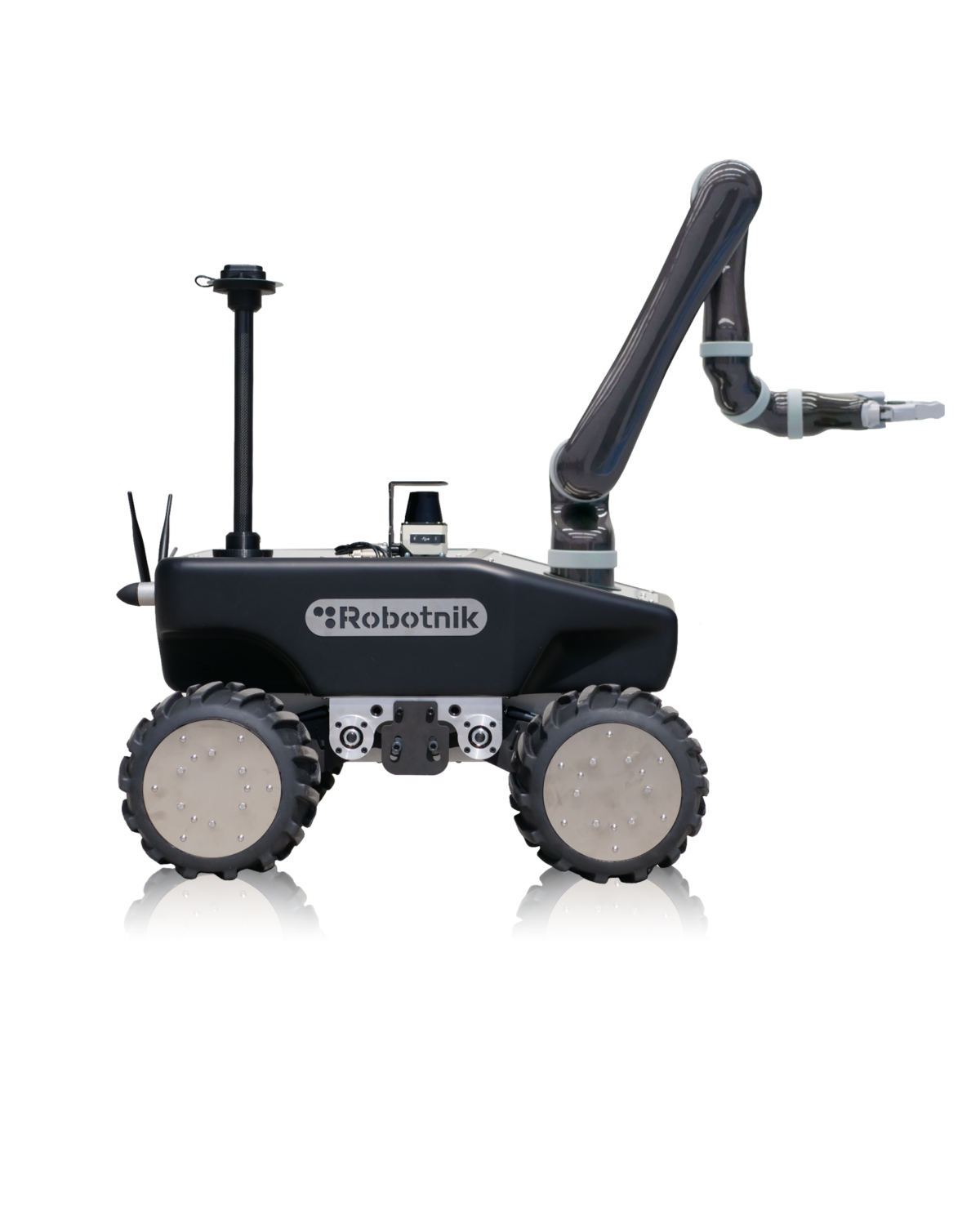

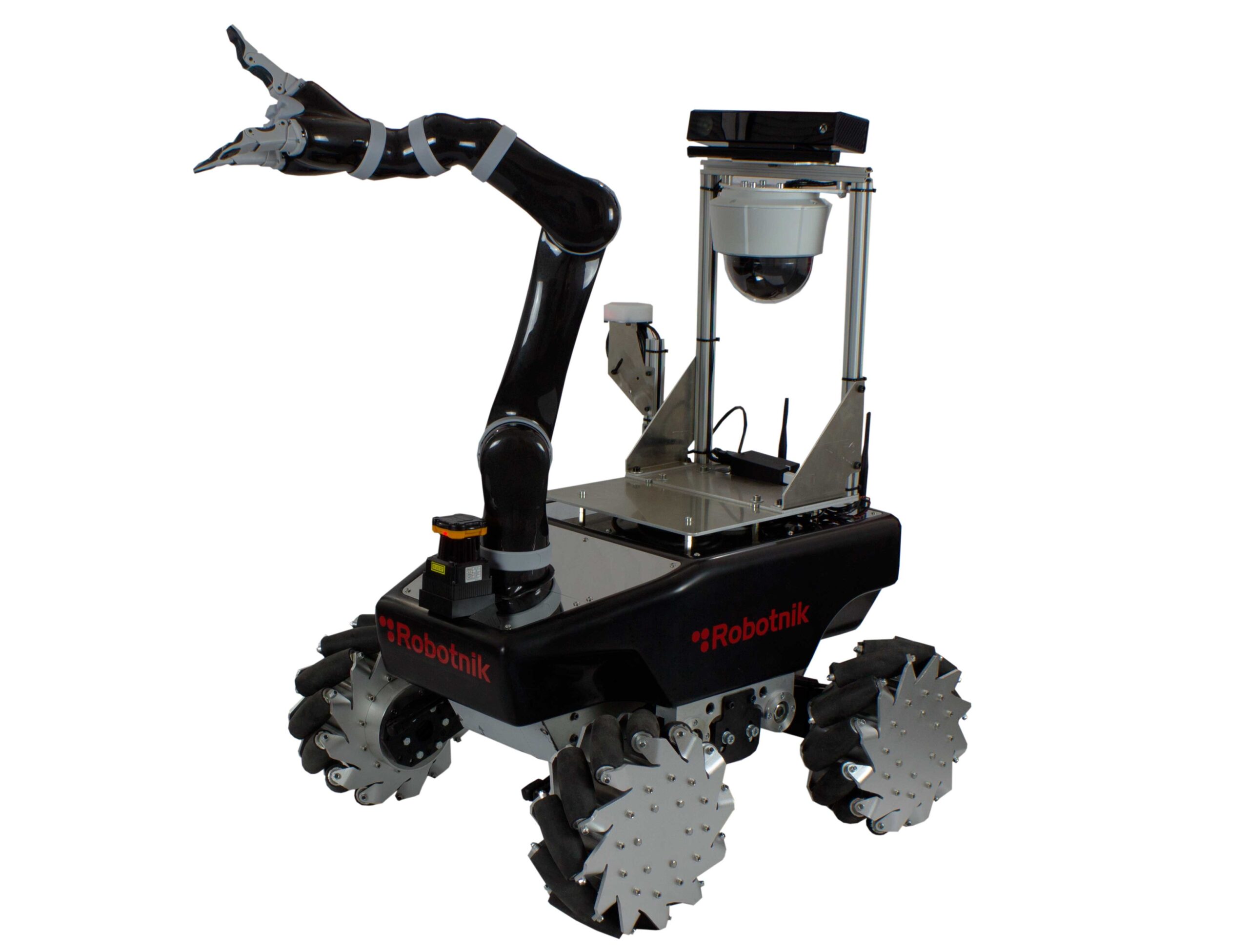

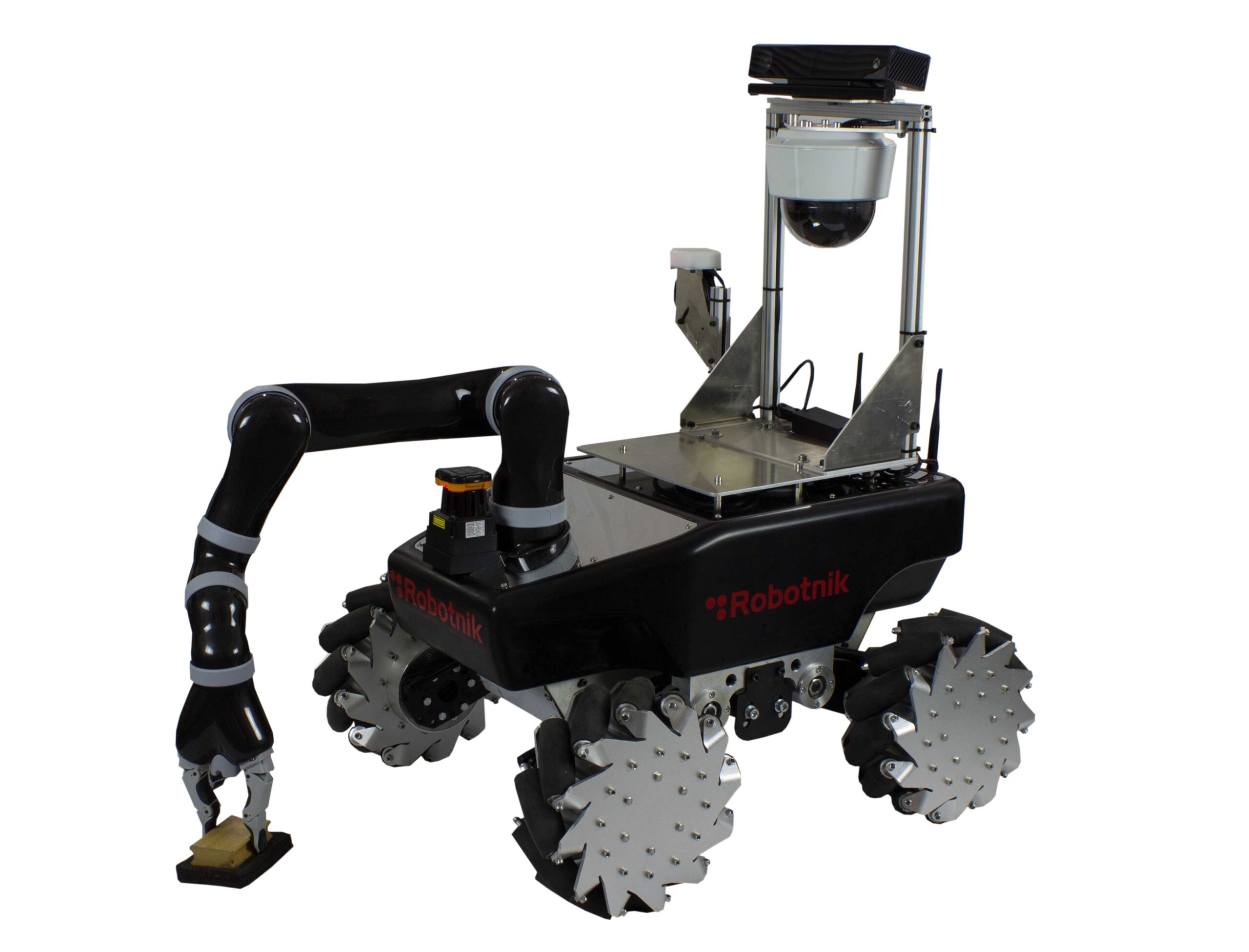

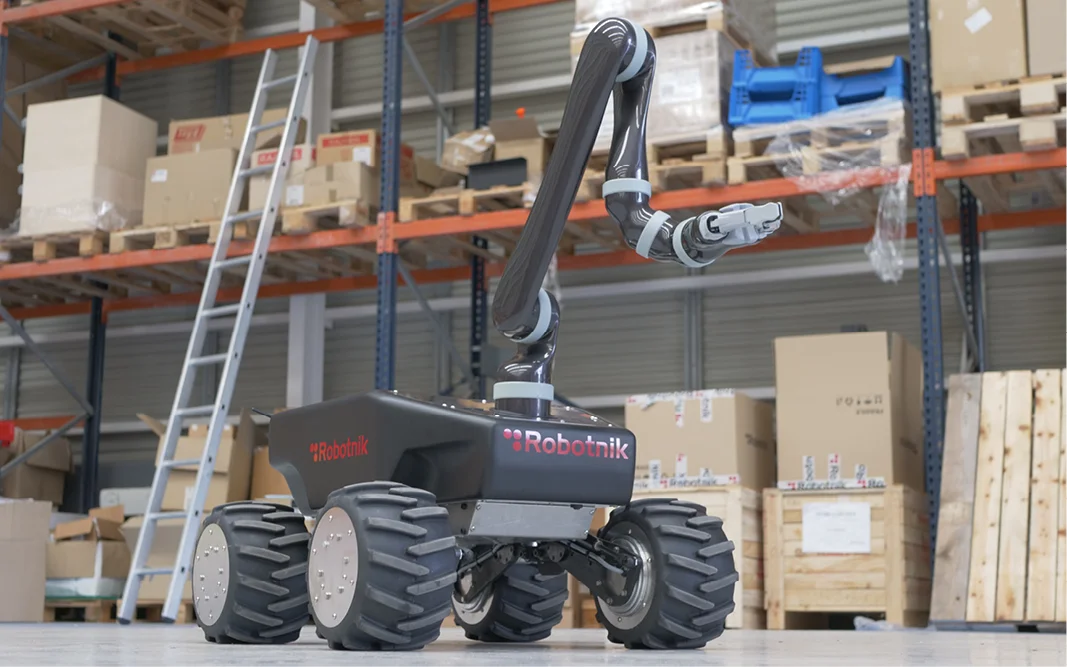

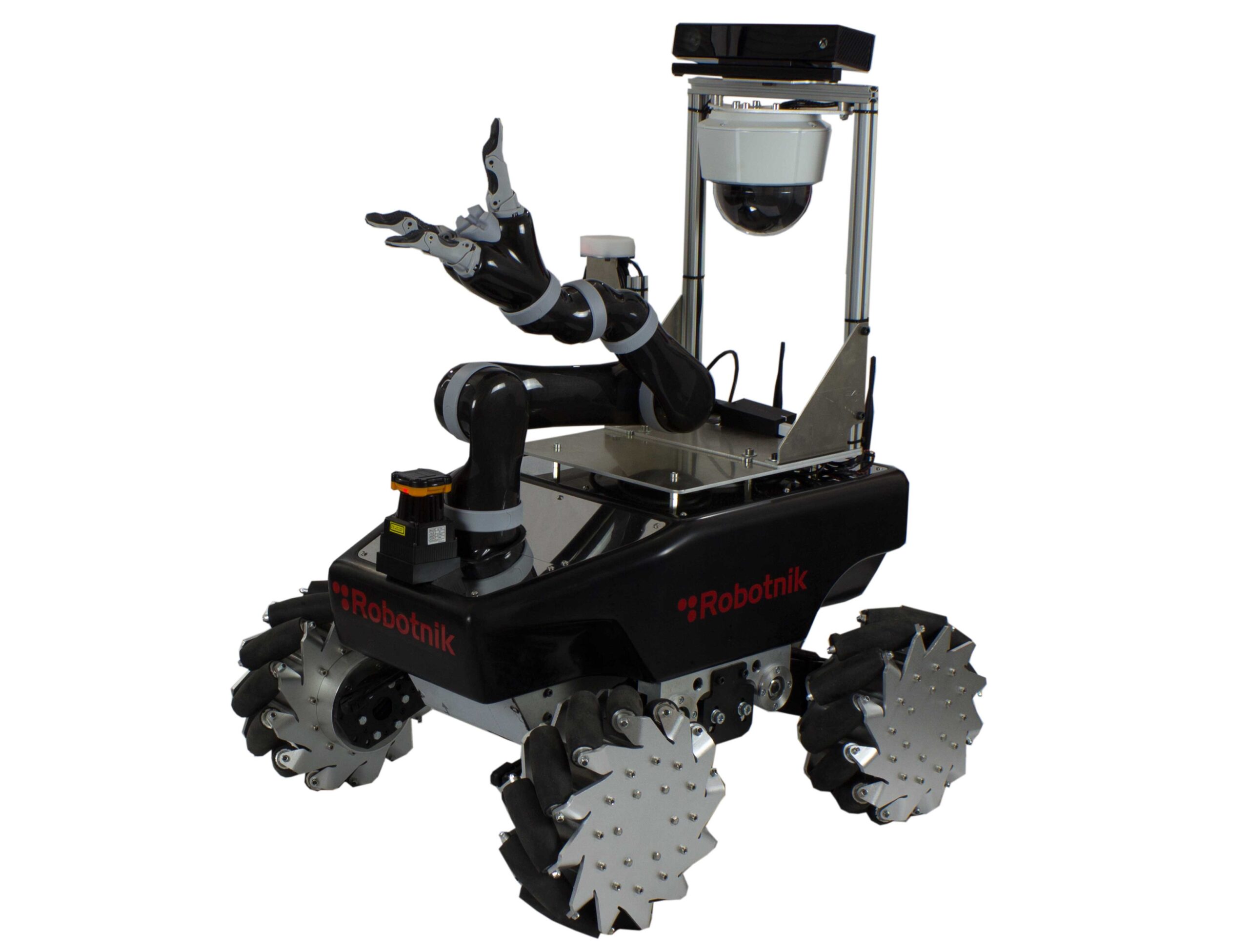

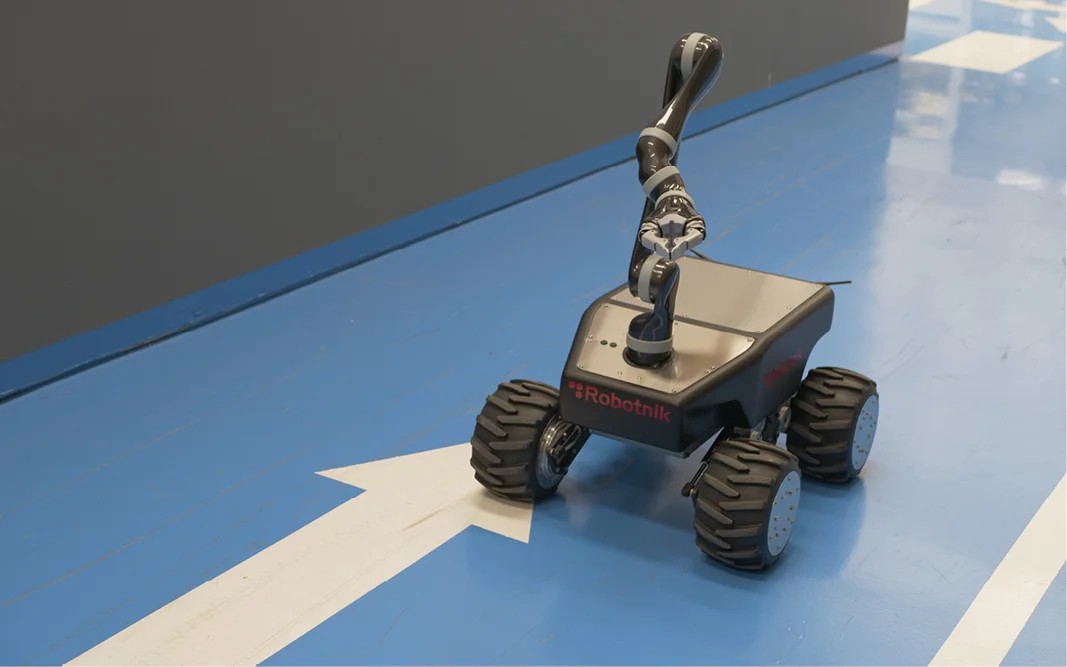

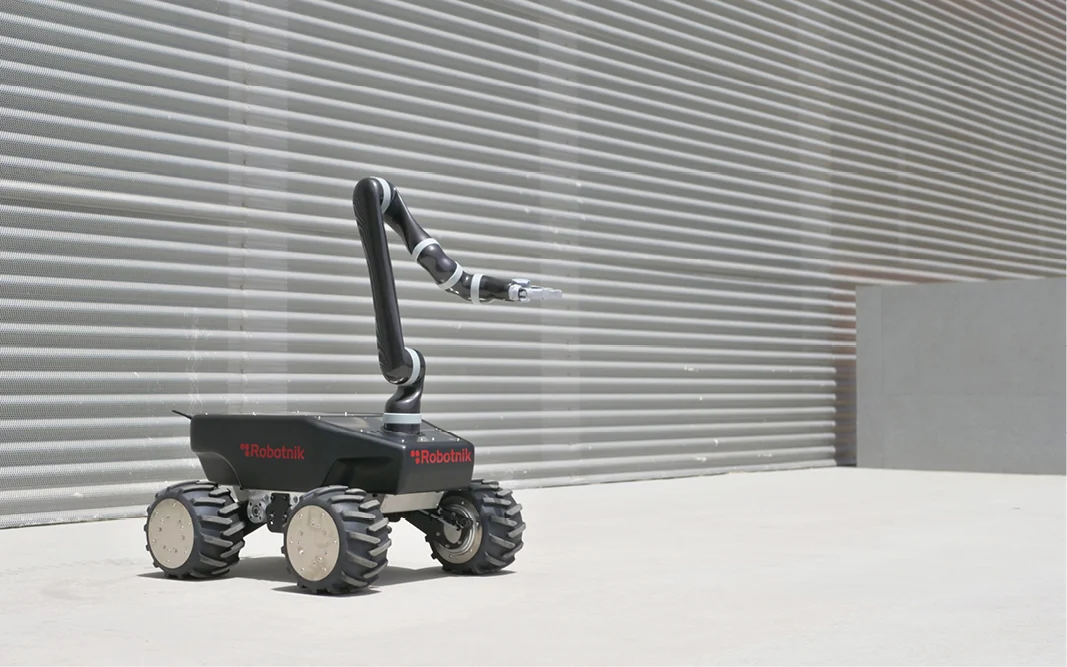

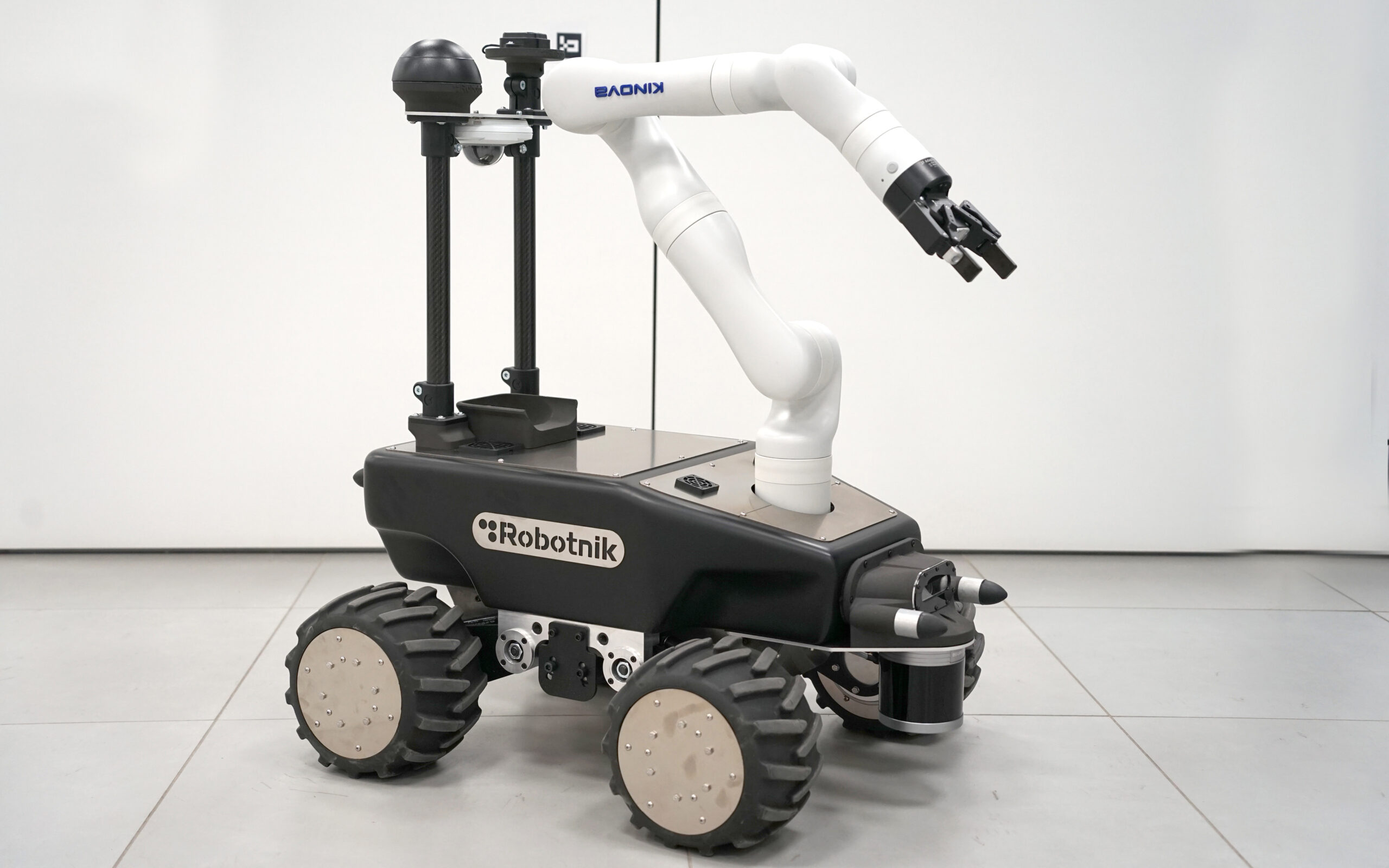

The RB-SUMMIT+ is an autonomous mobile manipulator designed for research and development applications in both indoor and outdoor environments.
It combines Robotnik’s RB-SUMMIT mobile platform with the Kinova’s robotic arms, enabling precise handling of objects up to 4 kg. Its robust and modular design makes it easy to navigate in different terrains, making it useful in end applications related to inspection, medicine or logistics.
The platform can carry loads of up to 42 kg and reach speeds of up to 3 m/s. It uses an open and modular control architecture based on ROS 2.
Main features
-
- Indoor and outdoor environments.
- High mobility.
- Modular.
- Precise handling.
Applications
-
- R&D.
- Inspection.
- Logistics.
Components included
-
- CPU i7
- Battery UN38.3 – 48VDC@15Ah
- 5G Router
- IMU
- RGBD camera
- Pack 2D LiDARS – 276º
- Charging station
| Model Nº | RB-SUMMIT+ |
| Manufacturer | Robotnik Automation |
| Size | 720 x 614 x 767 mm |
| Weight | 70 kg |
| Payload | 45 kg |
| Arm payload | Gen3 6 DOF: 4 kg, Gen3 7 DOF: 4 kg, Gen3 Lite: 0,5 kg |
| Arm reach | Gen3 6 DOF: 891 mm, Gen3 7 DOF: 902 mm, Gen3 Lite: 760 mm |
| Arm weight | Gen3 6 DOF: 7,2 kg, Gen3 7 DOF: 8,2 kg, Gen3 Lite: 5,5 kg |
| Autonomy | Up to 5 h |
| Speed | 2,5 m/s |
| Environment | Indoors/Outdoors |
| Enclosure class | IP22 |
| Traction motors | 4 x 500 W with brake |
| Kinematic | Skid steering |
| Localization system | SLAM |
| Temperature | 0ºC to 45ºC |
| Maximum slope | 80% |
| Communication | Bluetooth 4.0, WiFi 802.11 b/g/n/ac |
| Connectivity | 5 V, 12 V, VBATT, Ethernet, USB |
Official ROS Package:
