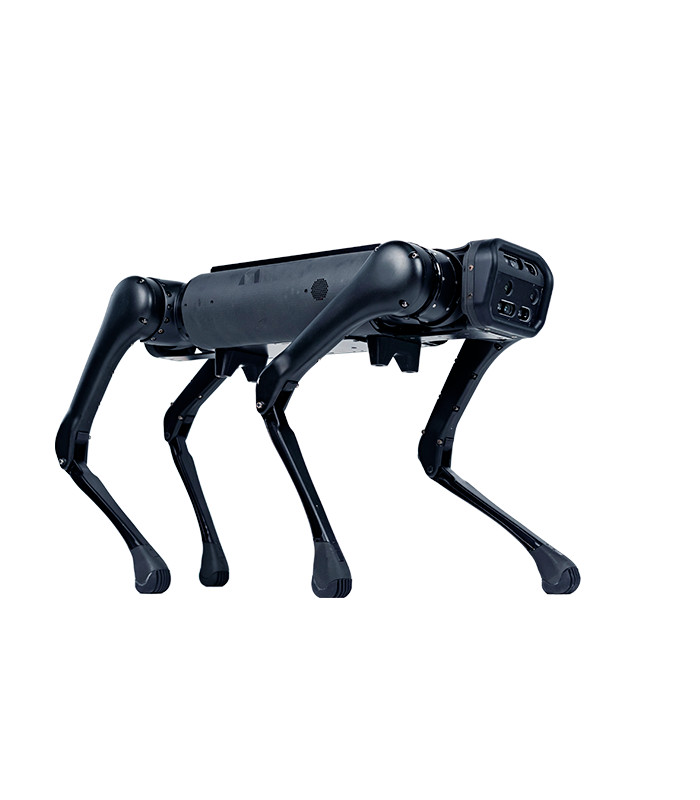

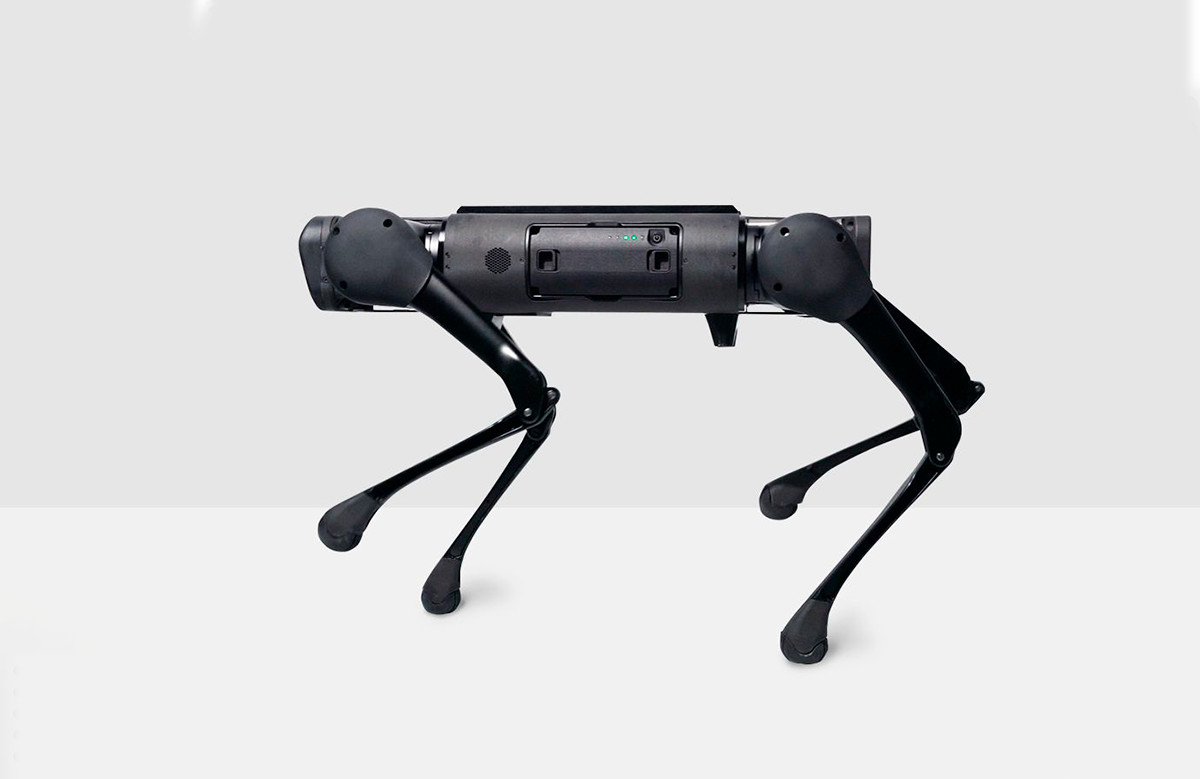

Aliengo is a quadruped robot capable of reconnaissance and inspection tasks, especially on rough terrain as it has a great balance capacity. Thanks to this, he can perform complex maneuvers such as somersaults.
After install Lidar, Aliengo will support 4 perception functions:
- Dynamic obstacle avoidance
- Navigation planning
- Map building
- Selfpositioning

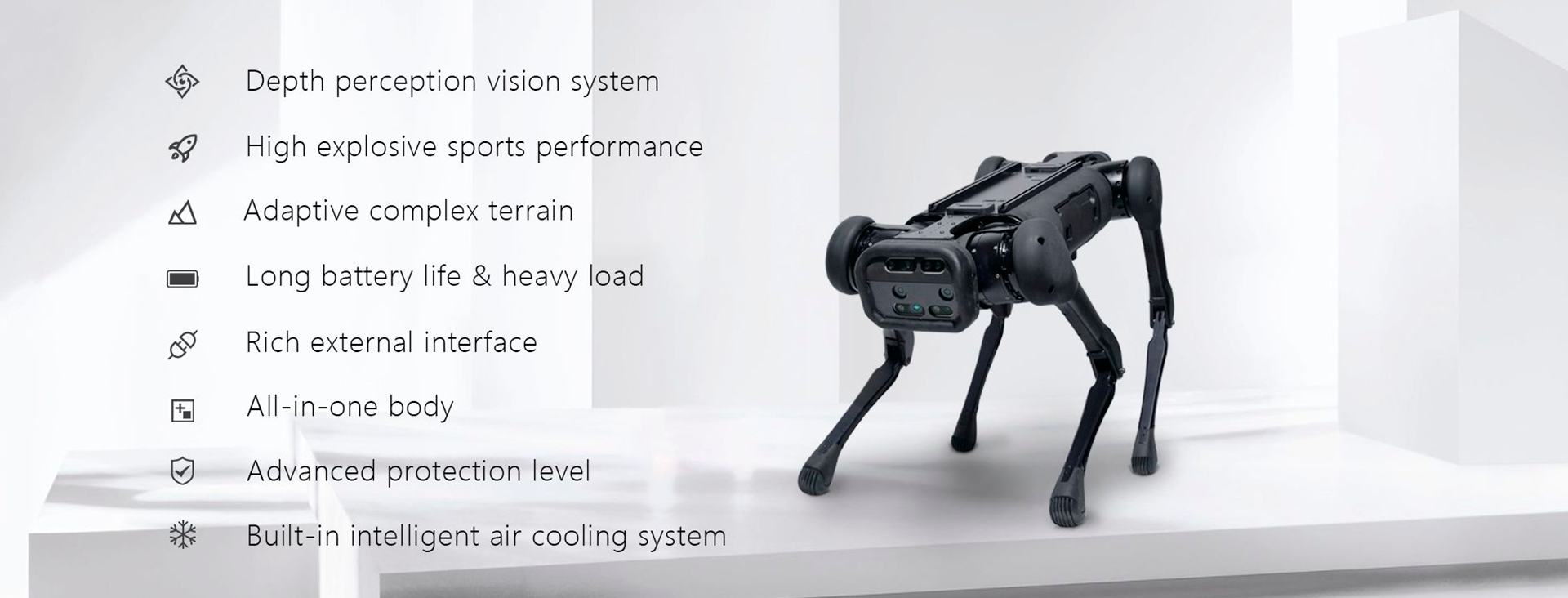

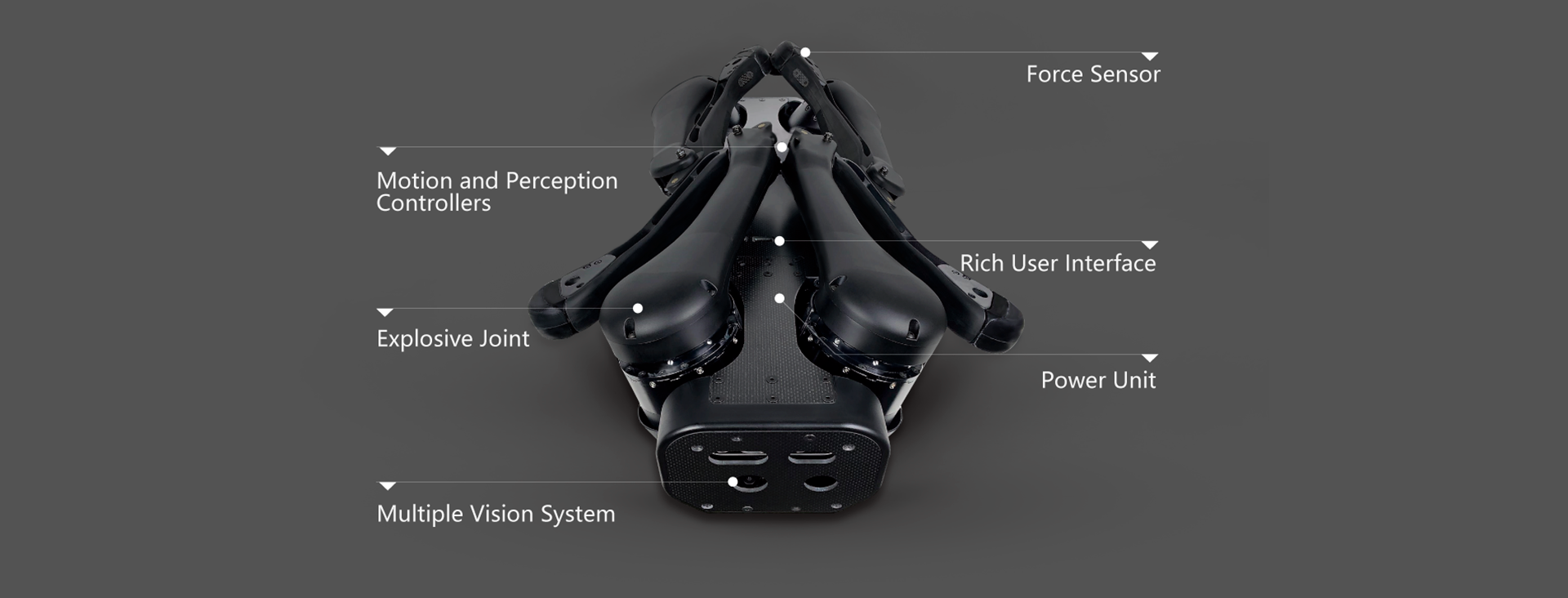

Main features
-
- Long battery life (4.5 hours).
- Force control technology (full control of all 3 posture axes and position).
- Twelve high-performance servomotors.
- Maximum walking speed exceeds 1.5 m/s.
- Open source: control interfaces in C/C++, ROS, etc.
- Deep perception vision.
- Depth camera.
- Silhouette recognition and facial recognition.
Applications
-
- Inspection and monitoring of infrastructures.
- Autonomous patrolling in industrial environments.
- Logistics in uneven or difficult terrain.
Manufacturer | Unitree |
Model Nº | Aliengo |
Size | 650 x 310 x 600 mm |
Weight | ≈ 21 kg |
Voltage | 12 V, 19 V, 5 V |
Speed | 1,5 m/s |
Payload | ≈ 13 Kg |
Autonomy | 2,5 - 4,6 h |
Max. climbing angle | 25º -30º |
Battery | 24 - 30 V |
Resolution | 1080 p |
Official ROS Packages:
