RB-SUMMIT
Autonomous Mobile Robot.
Free course: how to master RB-SUMMIT with ROS.
With the purchase of a RB-SUMMIT we will give you an annual licence in The Construct online academy.
Available on backorder
Available on backorder

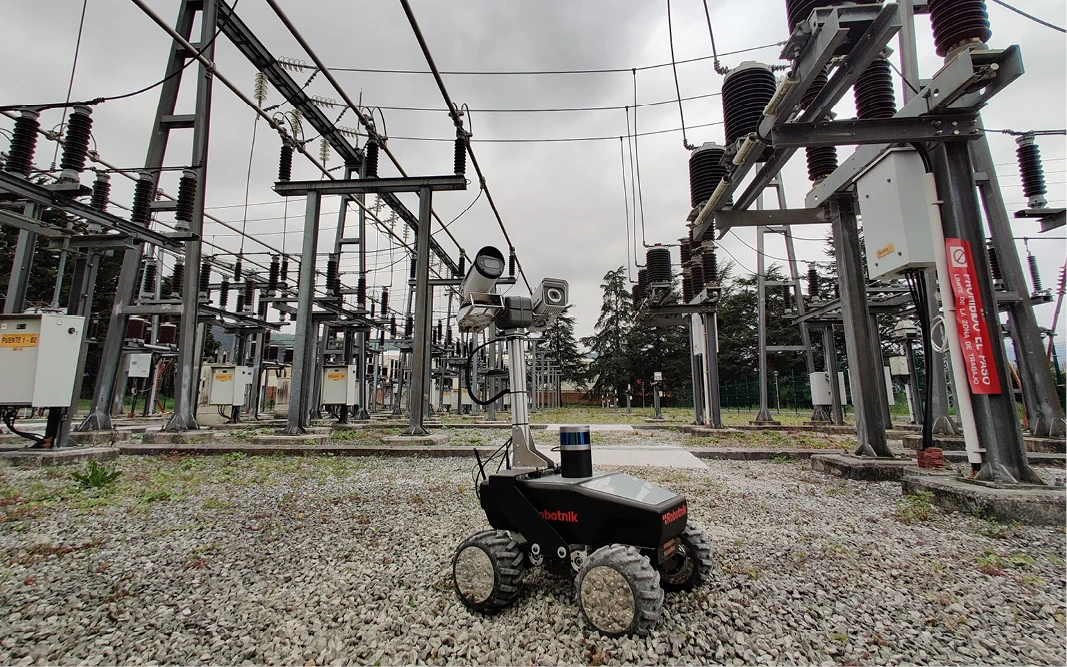

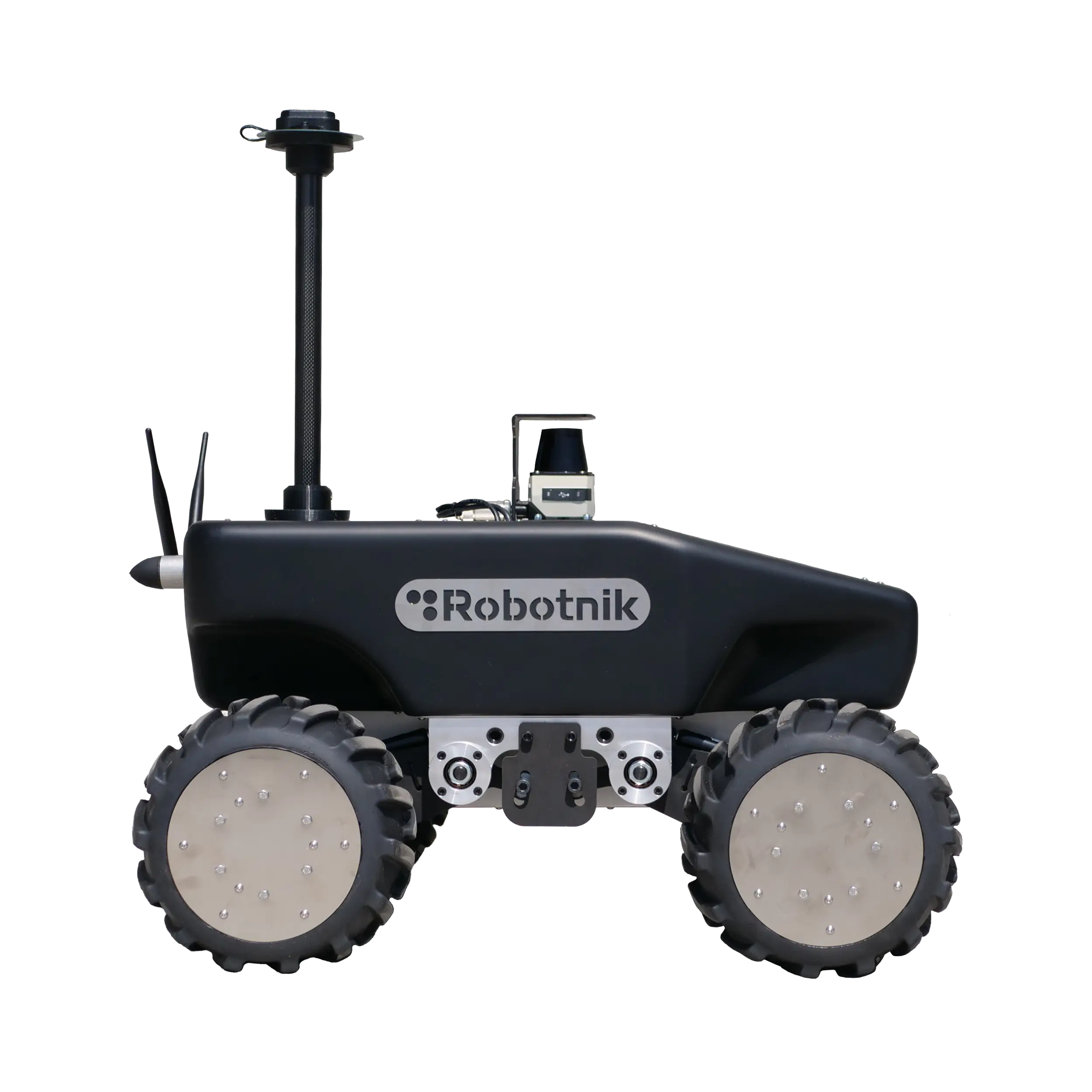

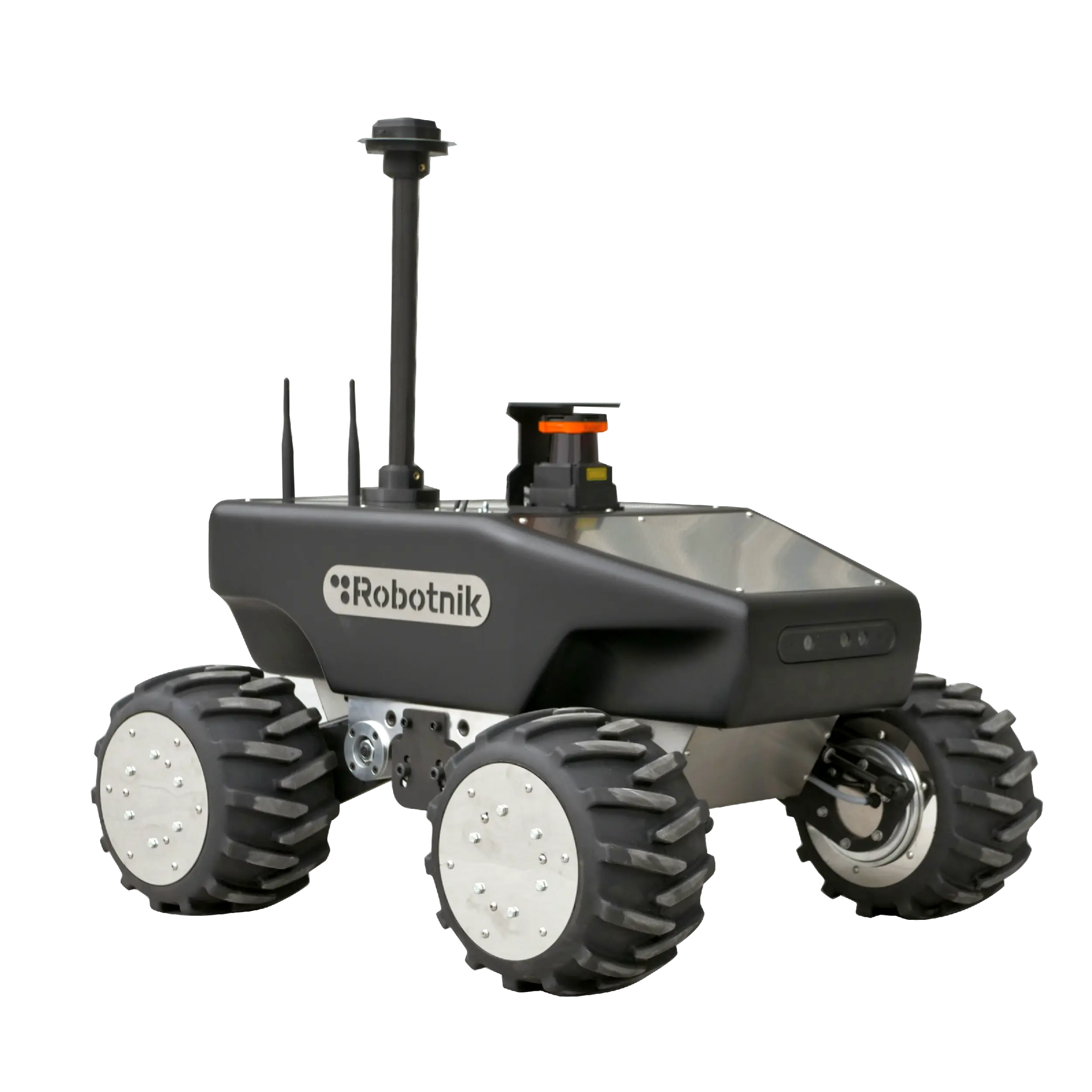

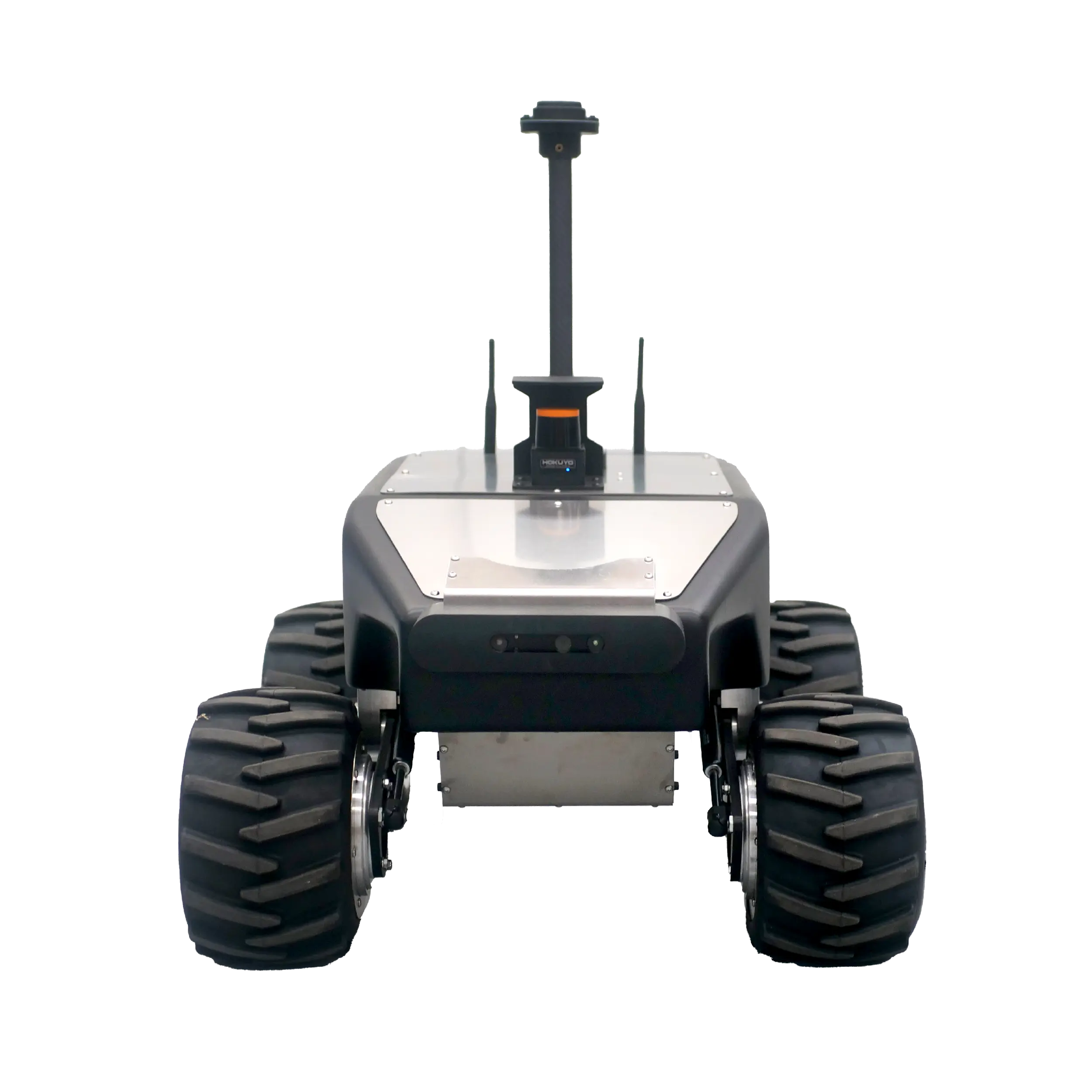

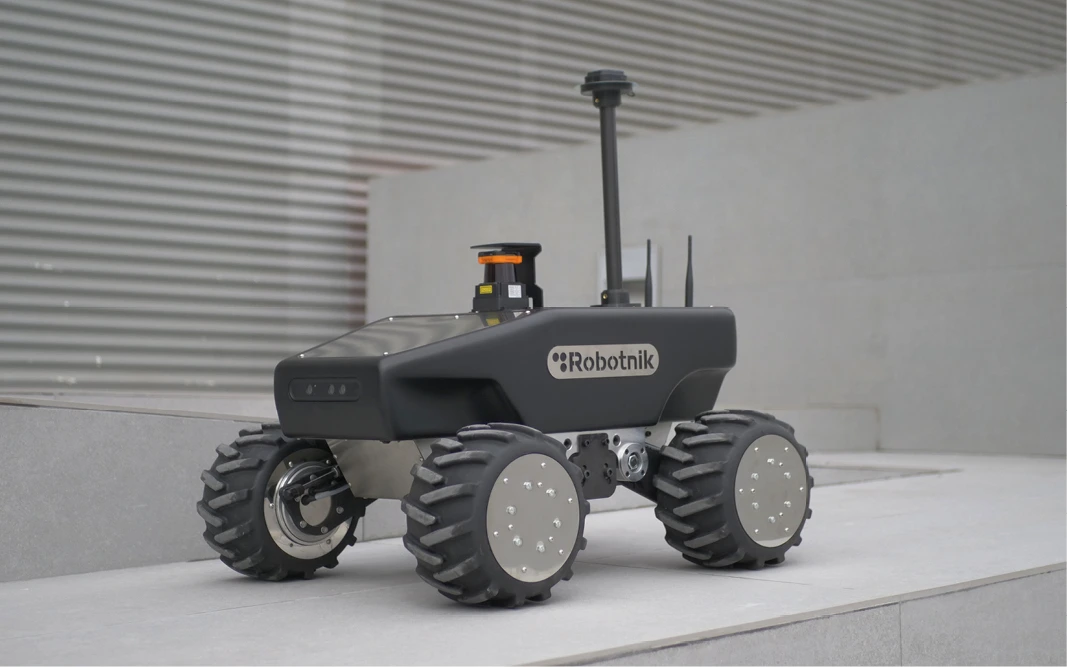

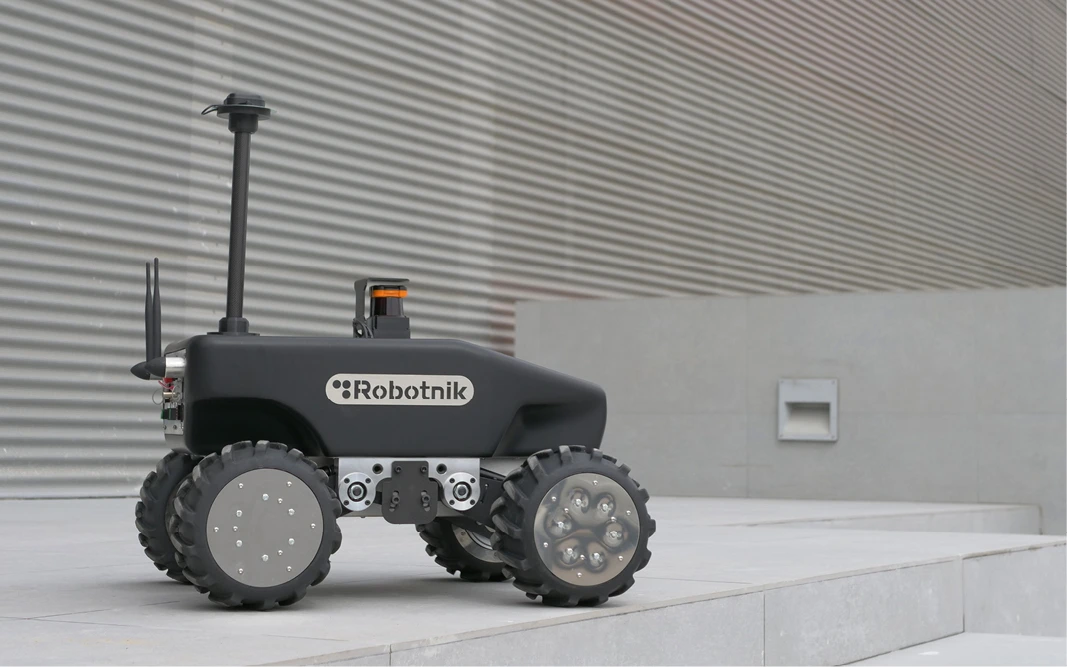

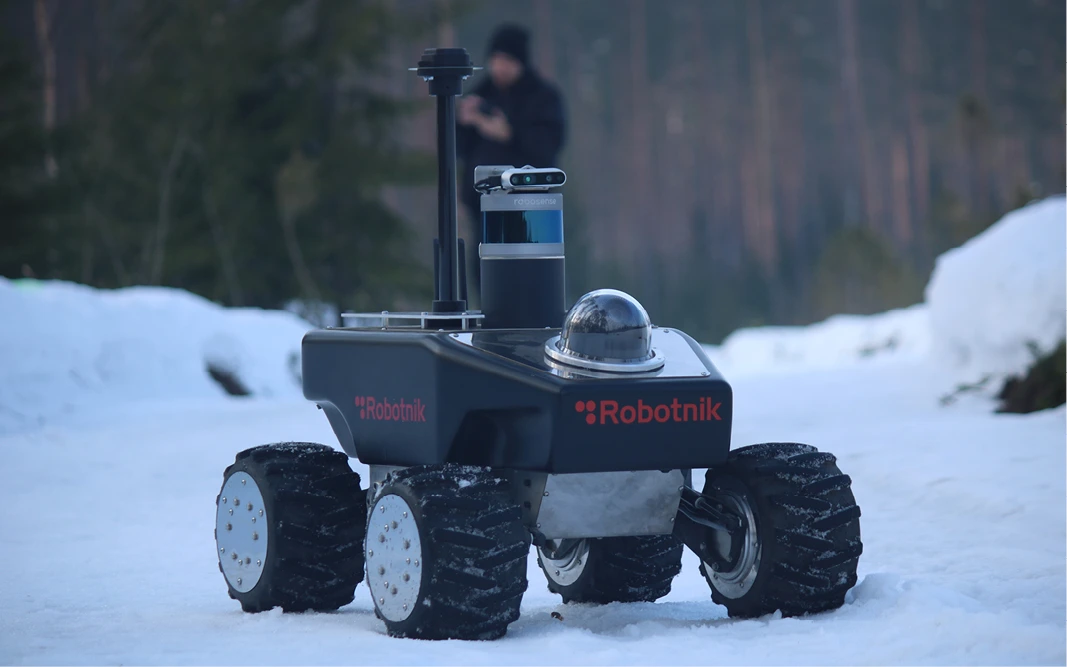

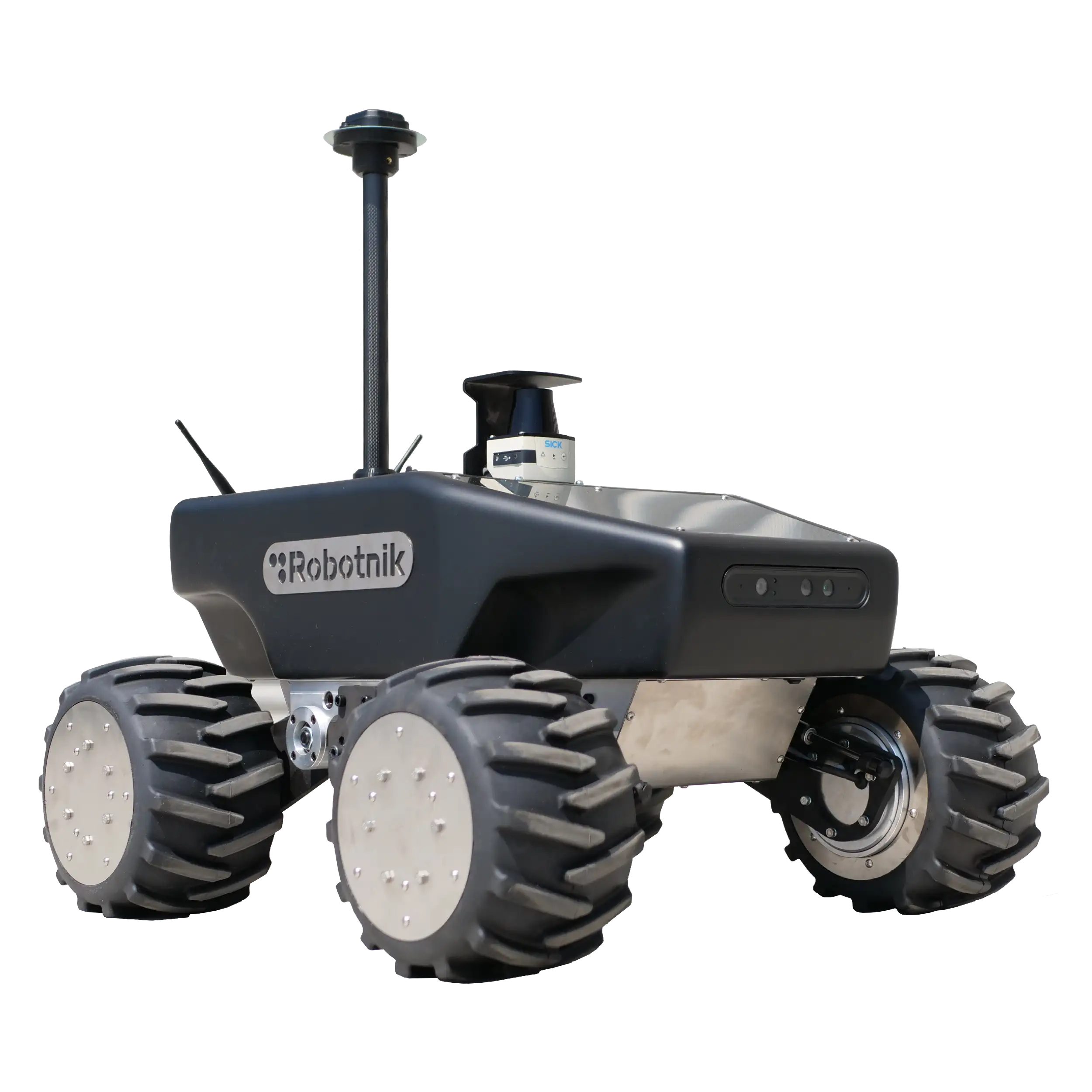

The RB-SUMMIT is a multipurpose autonomous mobile robot designed for indoor and outdoor R&D applications.
It stands out for its versatility, modularity and load capacity of up to 50 kg, being ideal for logistics, transport or agricultural tasks. It navigates autonomously or by teleoperation, with a PTZ camera for real-time video. Its open architecture based on ROS 2 allows flexibility in development.

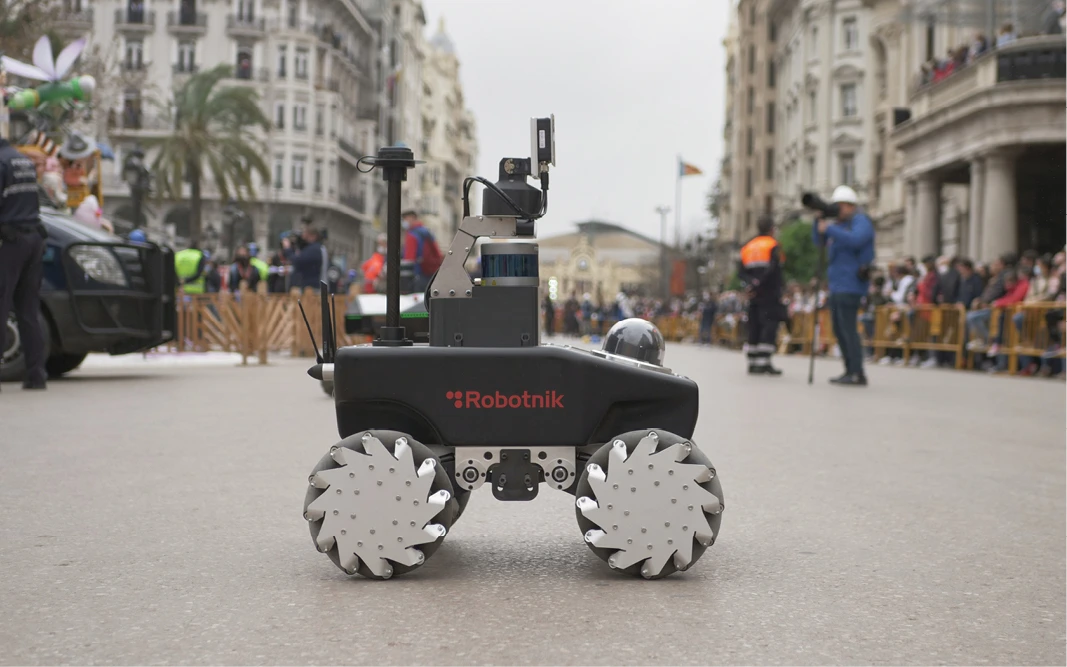

Also available is the RB-SUMMIT+ mobile manipulator, developed from the RB-SUMMIT platform and the Kinova Gen3 and Gen3 Lite arms.
Main features
- Modular and customizable.

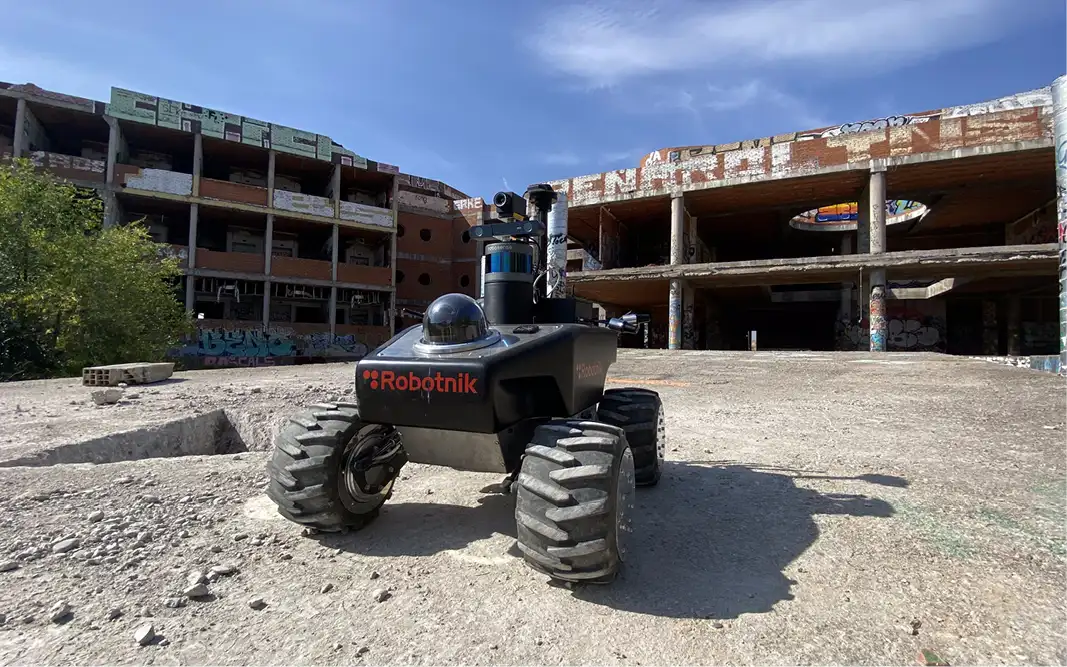

- Outdoor environments.
- Open architecture in ROS 2.
- IP54.
Applications
-
- Agriculture.
- R&D.
- Logistics.
Included components
-
- CPU i7
- Battery UN38.3 – 48VDC@15Ah
- 5G Router
- IMU
- RGBD camera
- Pack 2D LiDARS – 276º
- Chassis IP54
- Charging station
| Model Nº | RB-SUMMIT |
| Size | 731 x 614 x 726 mm |
| Weight | 65 Kg |
| Speed | 2,5 m/s |
| Autonomy | Up to 5 h |
| Payload | Up to 50 kg |
| Environment | Indoors/Outdoors |
| Enclosure class | IP54 |
| Traction motors | 4 x 500 W with brake |
| Localization system | SLAM |
| Temperature | -10ºC - 45ºC |
| Maximum slope | 80% |
| Communication | Bluetooth 4.0, WiFi 802.11 b/g/n/ac |
| Connectivity | 5 V, 12 V, VBATT, Ethernet, USB |
Official ROS Packages:
