EMH-RP 036-B
Manufacturer: Schunk
Electro-permanent magnetic gripper.
The ROS drivers of this product aren’t available yet, but it can be integrated with all major robot brands very easily. Please, consult us.
Available on backorder
Available on backorder

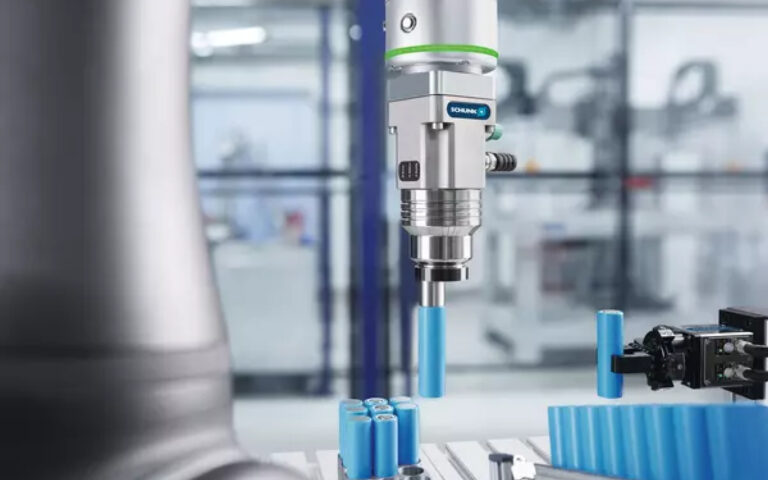

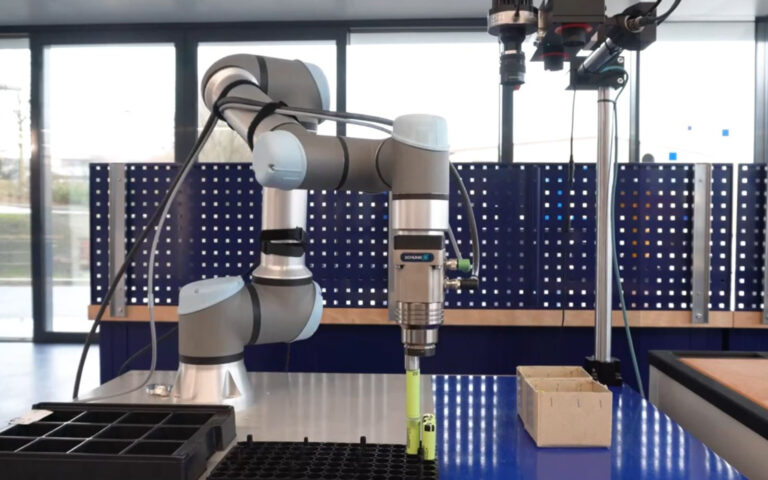

The Schunk EMH-RP 036-B electro-permanent magnetic gripper EMH-RP 036-B has integrated electronics and feedback functions. It is an effective solution for energy-efficient handling of ferromagnetic workpieces.
EMH-RP 036-B features a compact design and low weight but with high handling force. It is universally applicable, useful for handling a wide variety of workpieces in clean, low-contamination environments.
It is a reliable gripper due to its ability to safely maintain the holding force for safe use in the event of an emergency stop.
Main features
-
- High gripping capacity.
- Integrated electronics; no additional controller required.
- Gripping force adjustable in 4 levels.
- Compact design and low weight.
Applications
-
- Machine tool loading
- Electronic assembly
- Handling of small and medium-sized parts
| Manufacturer | Schunk |
| Model Nº | EMH-RP 036-B |
| Temperature | 5°C - 50°C |
| Enclosure class | IP52 |
| Weight | 1 kg |
| Length X | 64 mm |
| Height Z | 128 mm |
| Width Y | 64 mm |
| Magnetic surfaces | 6,08 cm² |
| Response Time | 300 ms |
| Strength | 530 N |
| Voltage | 24 V |
| Current | Max: 3,1 A / Nominal: 0,15 A |
