Showing 13–24 of 29 results
FTN-Omega-191 SI-7200-1400
Available on backorder
| Weight | 50,000000 kg |
|---|---|
| Dimensions | 60,000000 × 60,000000 × 50,000000 cm |
| Manufacturer |
Schunk |
| Model Nº |
FTN-Omega-191 SI-7200-1400 |
| Weight |
9,41 kg |
| Height Z |
64 mm |
| Measuring range Fx, Fy |
± 7200 N |
| Measuring range Fz |
± 18000 N |
| Measuring range Mx, My |
± 1400 Nm |
| Measuring range Mz |
± 1400 Nm |
| Resolution Fx, Fy |
1,5 N |
| Resolution Fz |
3,0 N |
| Resolution Mx, My |
0,21 Nm |
| Resolution Mz |
0,14 Nm |
| Diameter |
190 mm |
| DAQ version |
Yes |

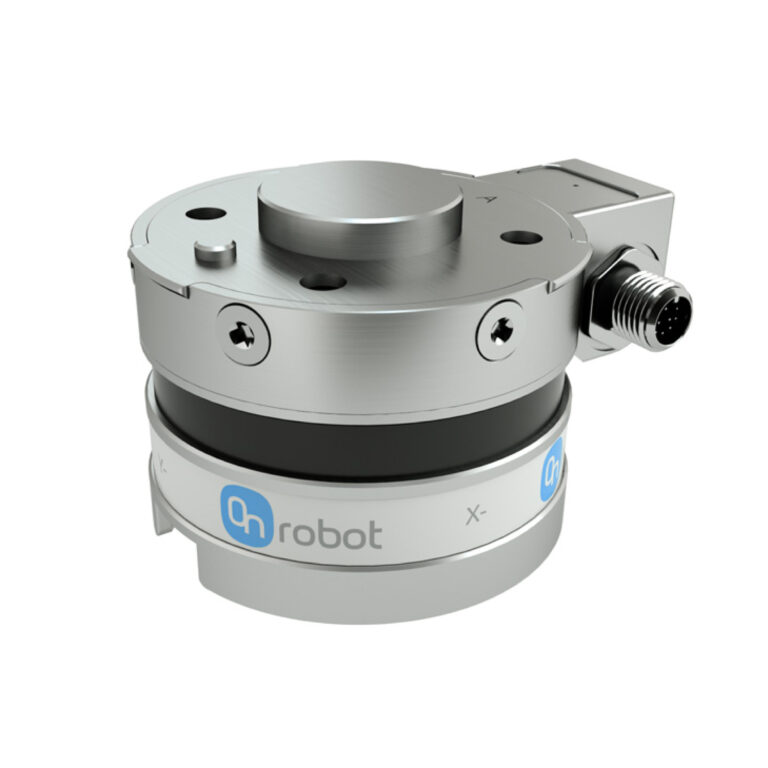

HEX Force Sensor
Available on backorder
| Weight | 1,500000 kg |
|---|---|
| Dimensions | 17,000000 × 12,000000 × 8,000000 cm |
| Manufacturer |
OnRobot |
| Model Nº |
HEX-H and HEX-E SENSOR |
| Size |
37,5 x 70 mm |
| Storage Temperature |
0 ºC – 55 °C |
| Weight |
245 g |
| Nominal Capacity (N.C.) |
HEX-E (Fxy: 200 N ; Fz: 200 N -Txy: 10 N·m ; Tz: 6.5 N·m) ,HEX-H (Fxy: 200 N ; Fz: 200 N ; Txy: 20 N·m ; Tz: 13 N·m) |
| Single axis deformation at N.C (typical) |
HEX-E (Fxy: ± 1,7 mm ; Fz: ± 0,3 mm ; Txy: ± 2,5 ° ; Tz: ± 5 °) ,HEX-H (Fxy: ± 0,6 mm ; Fz: ± 0,25 mm ; Txy: ± 2 ° ; Tz: ± 3,5 °) |
| Single axis overload |
HEX-E (Fxy: 500 % ; Fz: 500 % ; Txy: 500 % ; Tz: 500 %) ,HEX-H (Fxy: 500 % ; Fz: 400 % ; Txy: 300 % ; Tz: 300 %) |
| Signal noise2 (typical) |
HEX-E (Fxy: 0,035 N ; Fz: 0,15 N ; Txy: 0,002 N·m ; Tz: 0,001 N·m) ,HEX-H (Fxy: 0,1 N ; Fz: 0,2 N ; Txy: 0,006 N·m ; Tz: 0,002 N·m) |
| Noise-free resolution (typical) |
HEX-E (Fxy: 0,2 N ; Fz: 0,8 N ; Txy: 0,010 N·m ; Tz: 0,002 N·m) ,HEX-H (Fxy: 0,5 N ; Fz: 1 N ; Txy: 0,036 N·m ; Tz: 0,008 N·m) |
RB-SUMMIT
Available on backorder
| Weight | 110 kg |
|---|---|
| Dimensions | 85 × 90 × 100 cm |
| Model Nº |
RB-SUMMIT |
| Size |
731 x 614 x 726 mm |
| Weight |
65 Kg |
| Speed |
2,5 m/s |
| Autonomy |
Up to 5 h |
| Payload |
Up to 50 kg |
| Environment |
Indoors/Outdoors |
| Enclosure class |
IP54 |
| Traction motors |
4 x 500 W with brake |
| Localization system | |
| Temperature |
-10ºC – 45ºC |
| Maximum slope |
80% |
| Communication |
Bluetooth 4.0 ,WiFi 802.11 b/g/n/ac |
| Connectivity |
5 V, 12 V, VBATT ,Ethernet ,USB |
RB-WATCHER
Available on backorder
| Weight | 110 kg |
|---|---|
| Dimensions | 85 × 90 × 100 cm |
| Model Nº |
RB-WATCHER |
| Manufacturer |
Robotnik Automation |
| Size |
736 x 614 x 894 mm |
| Weight |
73 kg |
| Speed |
2,5 m/s |
| Autonomy |
Up to 5 h |
| Payload |
Up to 50 kg |
| Enclosure class |
IP54 |
| Environment |
Indoors/Outdoors |
| Traction motors |
4 x 500 W with brake |
| Kinematic |
Skid steering |
| Localization system | |
| Temperature |
-10ºC – 45ºC |
| Maximum slope |
65% |
| Communication |
Bluetooth 4.0 ,WiFi 802.11 b/g/n/ac |
| Connectivity |
12 V, 24 V, VBATT ,Ethernet ,USB |

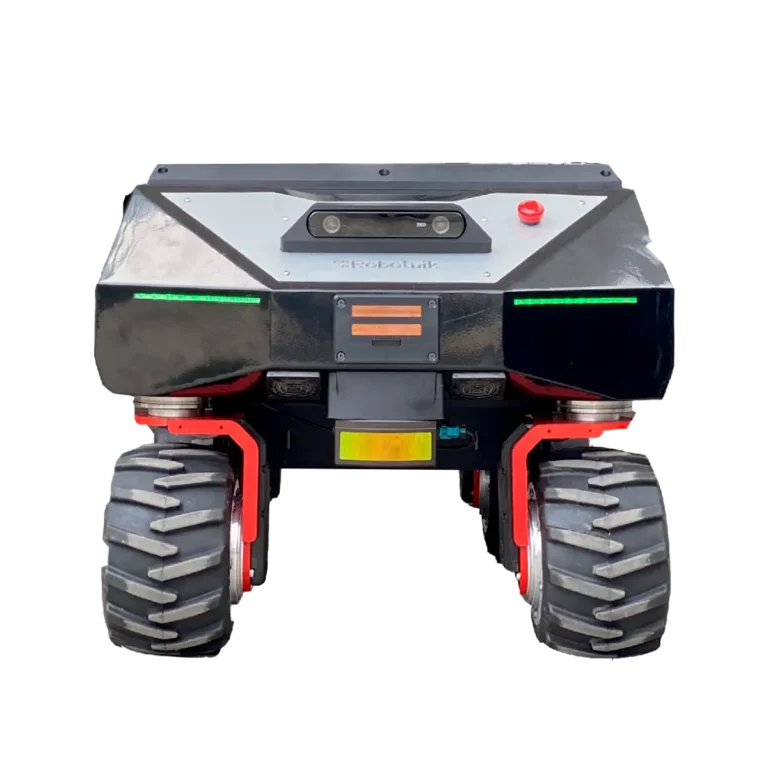

RB- VOGUI
Available on backorder
| Weight | 178 kg |
|---|---|
| Dimensions | 70 × 116 × 80 cm |
| Model Nº |
RB-VOGUI |
| Manufacturer |
Robotnik Automation |
| Size |
1.044 x 776 x 742 mm |
| Weight |
165 kg |
| Speed |
2,5 m/s |
| Autonomy |
Up to 6 h |
| Payload |
Up to 150 kg |
| Environment |
Indoors/Outdoors |
| Enclosure class |
IP53 Weatherproof |
| Traction motors |
4 x 500 W with brake |
| Kinematic |
Omnidirectional / Dual Ackerman |
| Localization system | |
| Temperature |
-10ºC – 45ºC |
| Maximum slope |
47% |
| Communication |
Bluetooth 4.0 ,WiFi 802.11 b/g/n/ac |
| Connectivity |
12 V, 24 V, VBATT ,Ethernet ,HDMI ,USB |
RB-KAIROS+
Available on backorder
| Weight | 190 kg |
|---|---|
| Dimensions | 90 × 70 × 130 cm |
| Model Nº |
RB-KAIROS+ |
| Manufacturer |
Robotnik Automation |
| Size |
UR12e: 978 x 776 x 1.542 mm ,UR16e: 978 x 776 x 1.410 mm ,UR7e: 978 x 776 x 1.010 mm |
| Weight |
135 kg |
| Arm weight |
UR12e: 35 kg ,UR16e: 35 kg ,UR7e: 20 kg |
| Autonomy |
Up to 12 h. |
| Payload |
Up to 230 kg |
| Arm payload |
UR12e: 12,5 kg ,UR16e: 16 kg ,UR7e: 7,5 kg |
| Arm reach |
UR12e: 1.300 mm ,UR16e: 900 mm ,UR7e: 850 mm |
| Speed |
1,5 m/s |
| Environment |
Indoors |
| Enclosure class |
IP52 |
| Traction motors |
4 x 500 W with brake |
| Kinematic |
Omnidirectional |
| Localization system | |
| Temperature |
0ºC to 45ºC |
| Maximum slope |
15% |
| Communication |
Bluetooth 4.0 ,WiFi 802.11 b/g/n/ac |
| Connectivity |
12 V, 24 V, VBATT ,Ethernet ,HDMI ,USB |
RB-VOGUI+
Available on backorder
| Weight | 178 kg |
|---|---|
| Dimensions | 70 × 116 × 80 cm |
| Model Nº |
RB-VOGUI+ |
| Manufacturer |
Robotnik Automation |
| Size |
1.044 x 776 x 742 mm |
| Weight |
165 kg |
| Payload |
130 kg |
| Arm payload |
UR12e: 12,5 kg ,UR7e: 7,5 kg ,UR8 Long: 10 kg |
| Arm reach |
UR12e: 1.300 mm ,UR7e: 850 mm ,UR8 Long: 1.750 mm |
| Arm weight |
UR12e: 35 kg ,UR7e: 20 kg ,UR8 Long: 45 kg |
| Speed |
2,5 m/s |
| Autonomy |
Up to 6 h |
| Environment |
Indoors/Outdoors |
| Enclosure class |
IP53 Weatherproof |
| Traction motors |
4 x 500 W with brake |
| Kinematic |
Omnidirectional / Dual Ackerman |
| Localization system | |
| Temperature |
-10ºC – 45ºC |
| Maximum slope |
47% |
| Communication |
Bluetooth 4.0 ,WiFi 802.11 b/g/n/ac |
| Connectivity |
12 V, 24 V, VBATT ,Ethernet ,HDMI ,USB |
RB-FIQUS
Available on backorder
| Weight | 450 kg |
|---|---|
| Dimensions | 1085 × 1610 × 743 cm |
| Model Nº |
RB-FIQUS |
| Manufacturer |
Robotnik Automation |
| Size |
1.805 x 1.610 x 743 mm |
| Weight |
450 kg |
| Speed |
1 m/s |
| Autonomy |
Up to 10 h |
| Payload |
Up to 1.000 kg |
| Enclosure class |
IP42 |
| Environment |
Outdoors |
| Traction motors |
4 x 750 W with brake |
| Kinematic |
Omnidirectional |
| Localization system | , |
| Temperature |
-10ºC – 45ºC |
| Maximum slope |
Up to 20% |
| Communication |
Bluetooth 5.1 ,WiFi 802.11 b/g/n/ac |
| Connectivity |
12 V, 24 V, VBATT ,Ethernet ,HDMI ,USB |
RB-KAIROS
Available on backorder
| Weight | 190 kg |
|---|---|
| Dimensions | 90 × 70 × 130 cm |
| Model Nº |
RB-KAIROS |
| Manufacturer |
Robotnik Automation |
| Size |
978 x 776 x 690 mm |
| Weight |
115 kg |
| Speed |
1,5 m/s |
| Payload |
Up to 250 kg |
| Environment |
Indoors |
| Enclosure class |
IP52 |
| Autonomy |
Up to 12 h. |
| Traction motors |
4 x 500 W with brake |
| Kinematic |
Omnidirectional |
| Localization system | |
| Temperature |
0ºC to 45ºC |
| Maximum slope |
15% |
| Communication |
Bluetooth 4.0 ,WiFi 802.11 b/g/n/ac |
| Connectivity |
12 V, 24 V, VBATT ,Ethernet ,HDMI ,USB |
RB-ROBOUT
Available on backorder
| Weight | 50 kg |
|---|---|
| Dimensions | 55 × 55 × 27 cm |
| Model Nº |
RB-ROBOUT |
| Manufacturer |
Robotnik Automation |
| Size |
1.758 x 891 x 372 mm |
| Weight |
360 kg |
| Speed |
1,1 m/s |
| Autonomy |
Up to 10 h |
| Payload |
Up to 2.000 kg |
| Environment |
Indoors |
| Enclosure class |
IP42 |
| Traction motors |
4 x 750 W with brake |
| Kinematic |
Omnidirectional |
| Localization system | , |
| Temperature |
0ºC to 45ºC |
| Maximum slope |
11% |
| Anchor points |
6 on the top |
| Communication |
Bluetooth 4.0 ,WiFi 802.11 b/g/n/ac |
| Connectivity |
12 V, 24 V, VBATT ,Ethernet ,HDMI ,USB |
RB-ROBOUT+
Available on backorder
| Weight | 125 kg |
|---|---|
| Dimensions | 65 × 78 × 65 cm |
| Model Nº |
RB-ROBOUT+ |
| Manufacturer |
Robotnik Automation |
| Size |
1.789 x 927 x 1.863 mm |
| Payload |
765 kg |
| Arm payload |
UR12e: 12,5 kg ,UR15: 17,5 kg ,UR20: 25 kg ,UR30: 35 kg ,UR8 Long: 10 kg |
| Arm reach |
UR12e: 1.300 mm ,UR15: 1.300 mm ,UR20: 1.750 mm ,UR30: 1.300 mm ,UR8 Long: 1.750 mm |
| Arm weight |
UR12e: 35 kg ,UR15: 40 kg ,UR20: 65 kg ,UR30: 65 kg ,UR8 Long: 45 kg |
| Speed |
1,1 m/s |
| Autonomy |
Up to 8 h (depending on arm configuration) |
| Environment |
Indoors |
| Enclosure class |
IP41 |
| Traction motors |
4 x 600 W with brake |
| Kinematic |
Omnidirectional |
| Localization system | , , |
| Temperature |
0ºC to 45ºC |
| Maximum slope |
11% |
| Communication |
Bluetooth 5.1 ,WiFi 802.11 b/g/n/ac |
| Connectivity |
12 V, 24 V, VBATT ,Ethernet ,HDMI ,USB |
RB-SUMMIT+
Available on backorder
| Weight | 125 kg |
|---|---|
| Dimensions | 65 × 78 × 65 cm |
| Model Nº |
RB-SUMMIT+ |
| Manufacturer |
Robotnik Automation |
| Size |
720 x 614 x 767 mm |
| Weight |
70 kg |
| Payload |
45 kg |
| Arm payload |
Gen3 6 DOF: 4 kg ,Gen3 7 DOF: 4 kg ,Gen3 Lite: 0,5 kg |
| Arm reach |
Gen3 6 DOF: 891 mm ,Gen3 7 DOF: 902 mm ,Gen3 Lite: 760 mm |
| Arm weight |
Gen3 6 DOF: 7,2 kg ,Gen3 7 DOF: 8,2 kg ,Gen3 Lite: 5,5 kg |
| Autonomy |
Up to 5 h |
| Speed |
2,5 m/s |
| Environment |
Indoors/Outdoors |
| Enclosure class |
IP22 |
| Traction motors |
4 x 500 W with brake |
| Kinematic |
Skid steering |
| Localization system | |
| Temperature |
0ºC to 45ºC |
| Maximum slope |
80% |
| Communication |
Bluetooth 4.0 ,WiFi 802.11 b/g/n/ac |
| Connectivity |
5 V, 12 V, VBATT ,Ethernet ,USB |
