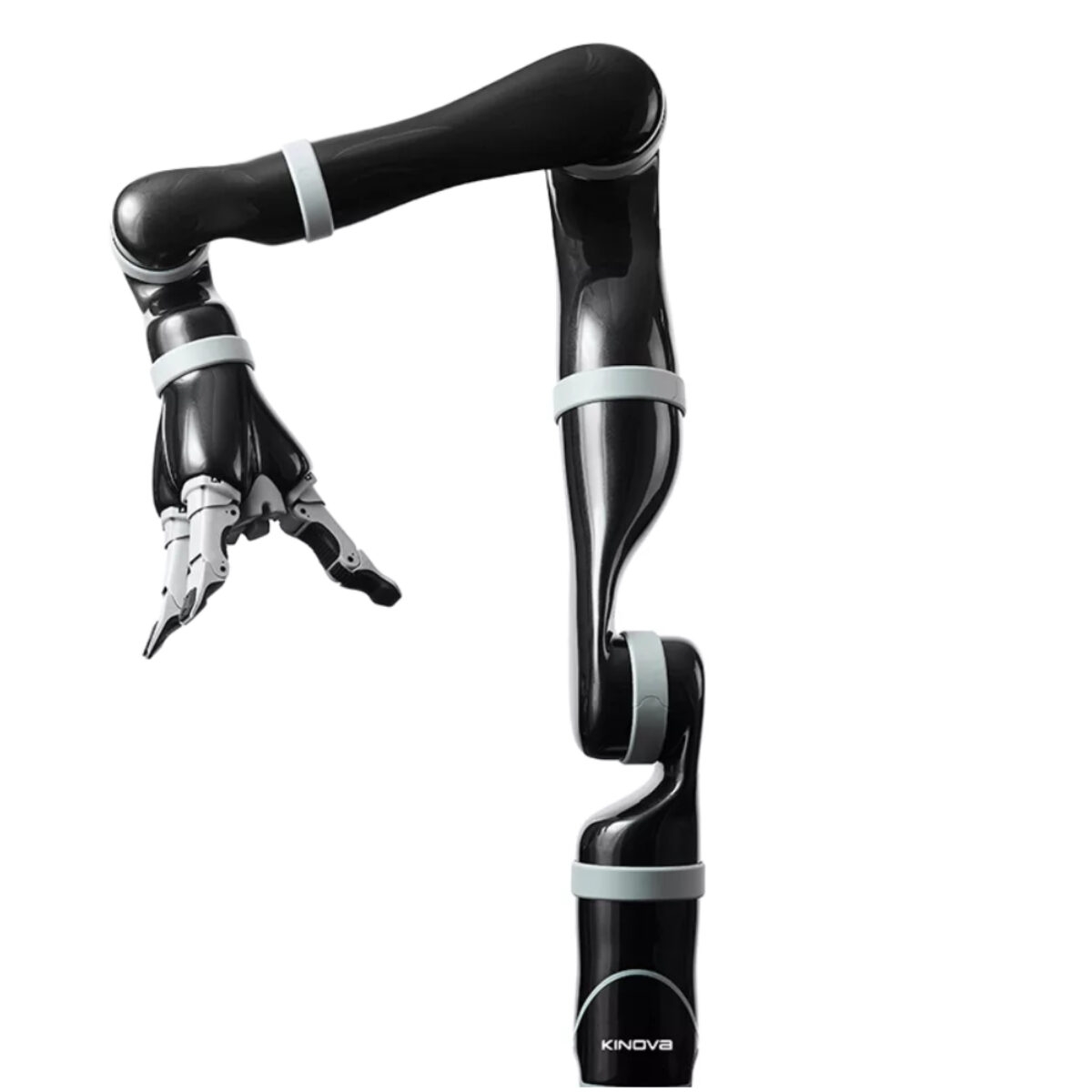

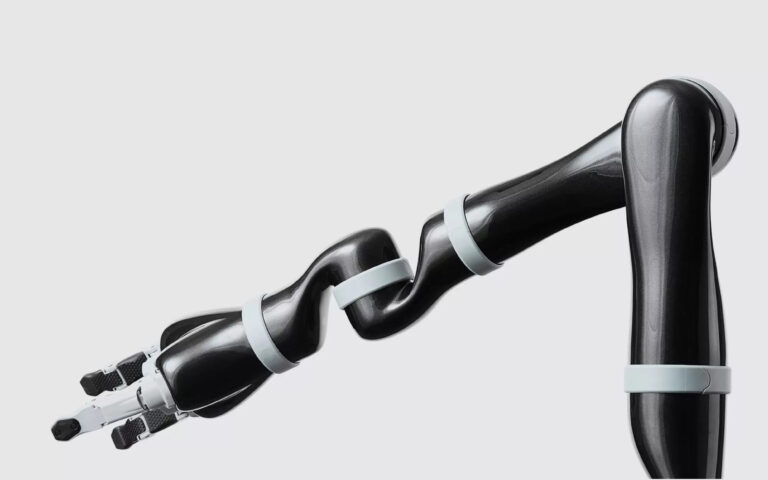

GEN2 is portable, safe to work near people and can handle objects in any three-dimensional workspace with very low power consumption. It is also very lightweight and flexible.
GEN 2 has an intuitive control system and allows users to navigate using three different modes: translate, rotate and grip. Thanks to its intelligent singularity prevention system, the arm can avoid unwanted locations.
Main features
-
- Ultra-lightweight
- Low power consumption
- Excellent payload-to-weight ratio
- Compatible with both ROS and Kinova’s software
- Collaborative
Applications
-
- Service Robotics
- Research and education
- Mobile manipulation
Manufacturer | Kinova Robotics |

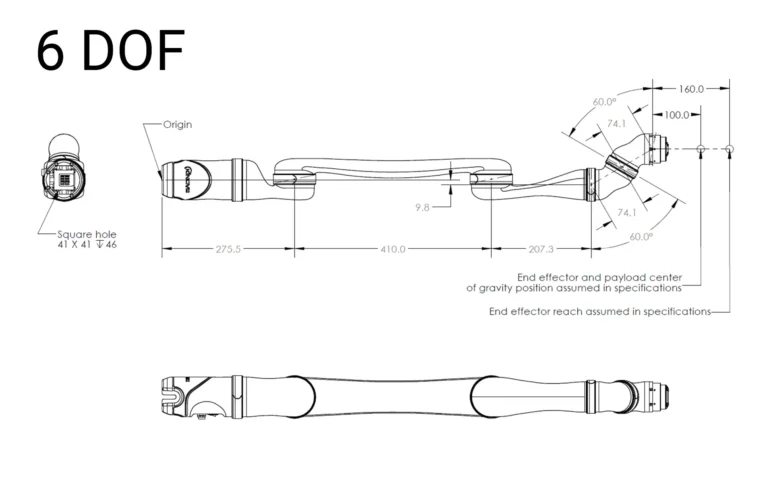

Model Nº | Gen2 6 DoF |
Interface | RS-485 |
Weight | 4,4 kg |
Voltage | 18 - 29 VDC |

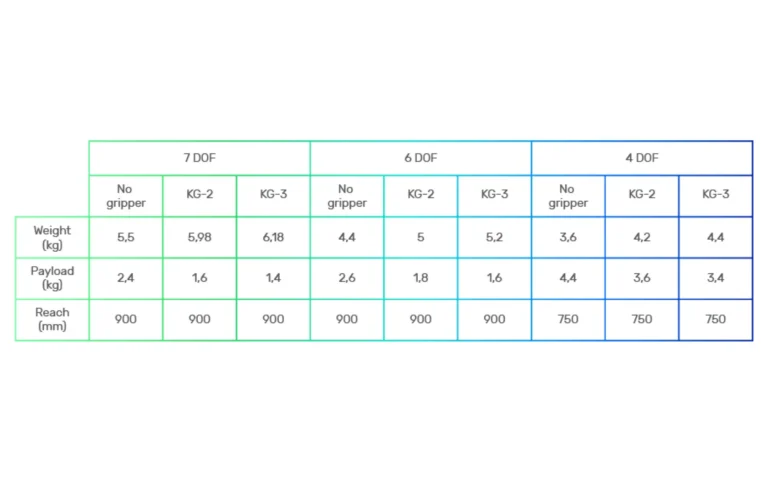

Payload | 2.6 Kg (mid-range continuous payload capabilities) / 2.2 Kg (full-reach peak/temporary payload capabilities) |
Materials | Carbon fiber (links), aluminum (actuators) |
Joint range after start-up (Software limitation) | +- 27,7 turns |
Maximun linear arm speed | 20 cm/s |
Average power | 25 W (5W in Standby) |
Water resistance | IPX2 |
Official ROS Packages:
