VG10
Manufacturer: OnRobot
Vacuum Gripper.
Estimated delivery time: 1 week.
Recommended product for UR arms. For another arm model, please consult us.
The ROS drivers of this product aren’t available yet, but it can be integrated with all major robot brands very easily.
If this is not available, the components must be added: Quick Changer and Tool Flange for the correct operation of the gripper.
3.995,00 €
Available on backorder
Available on backorder

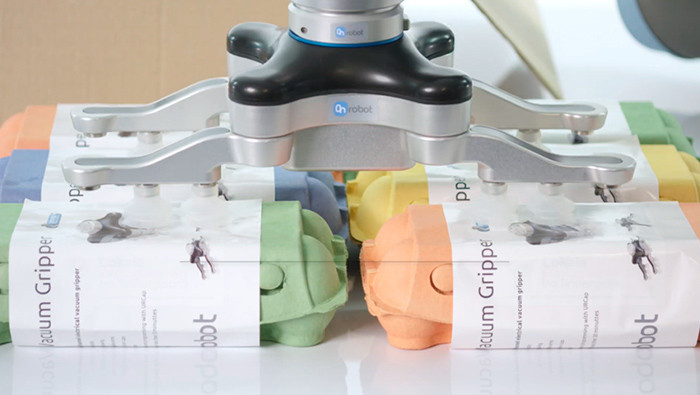

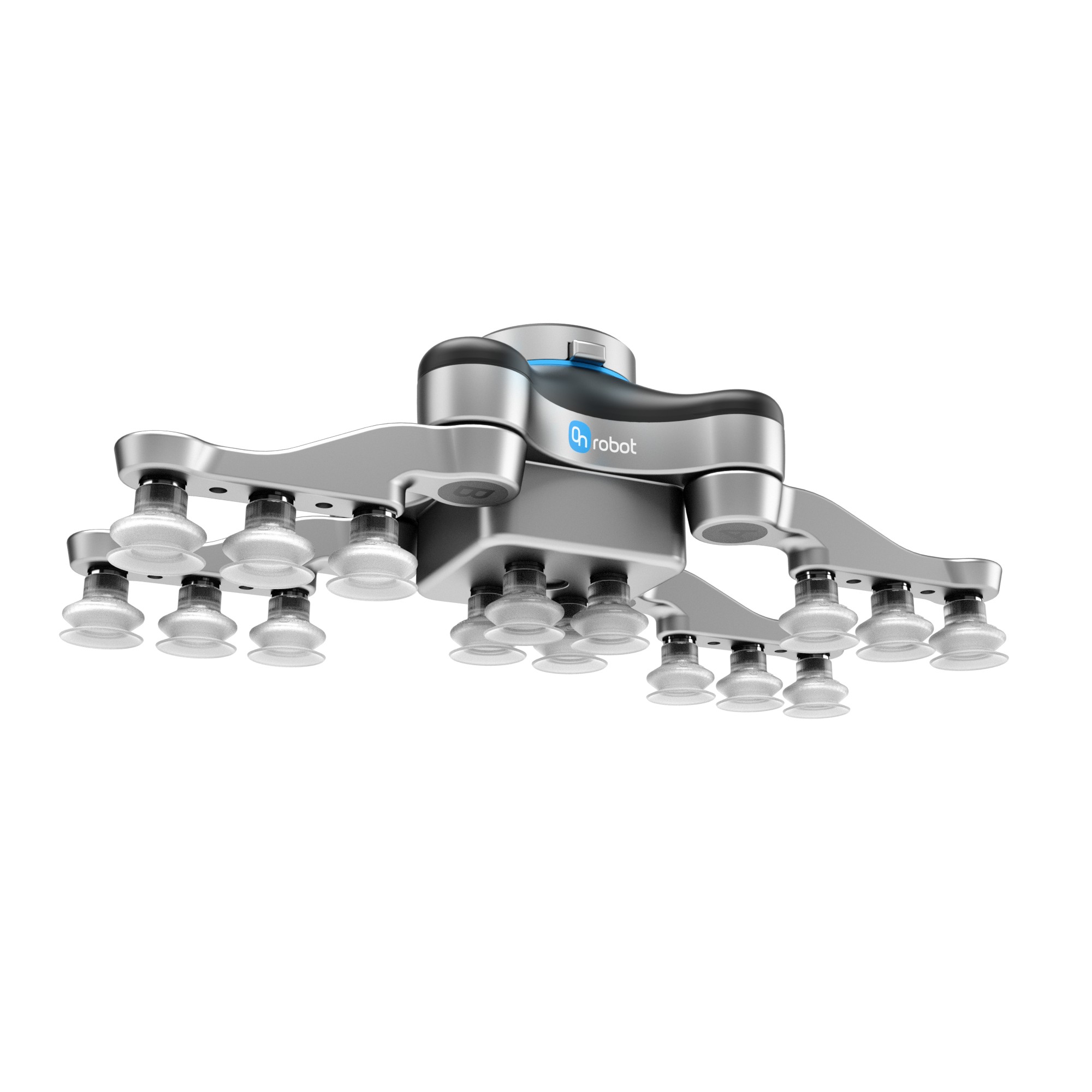

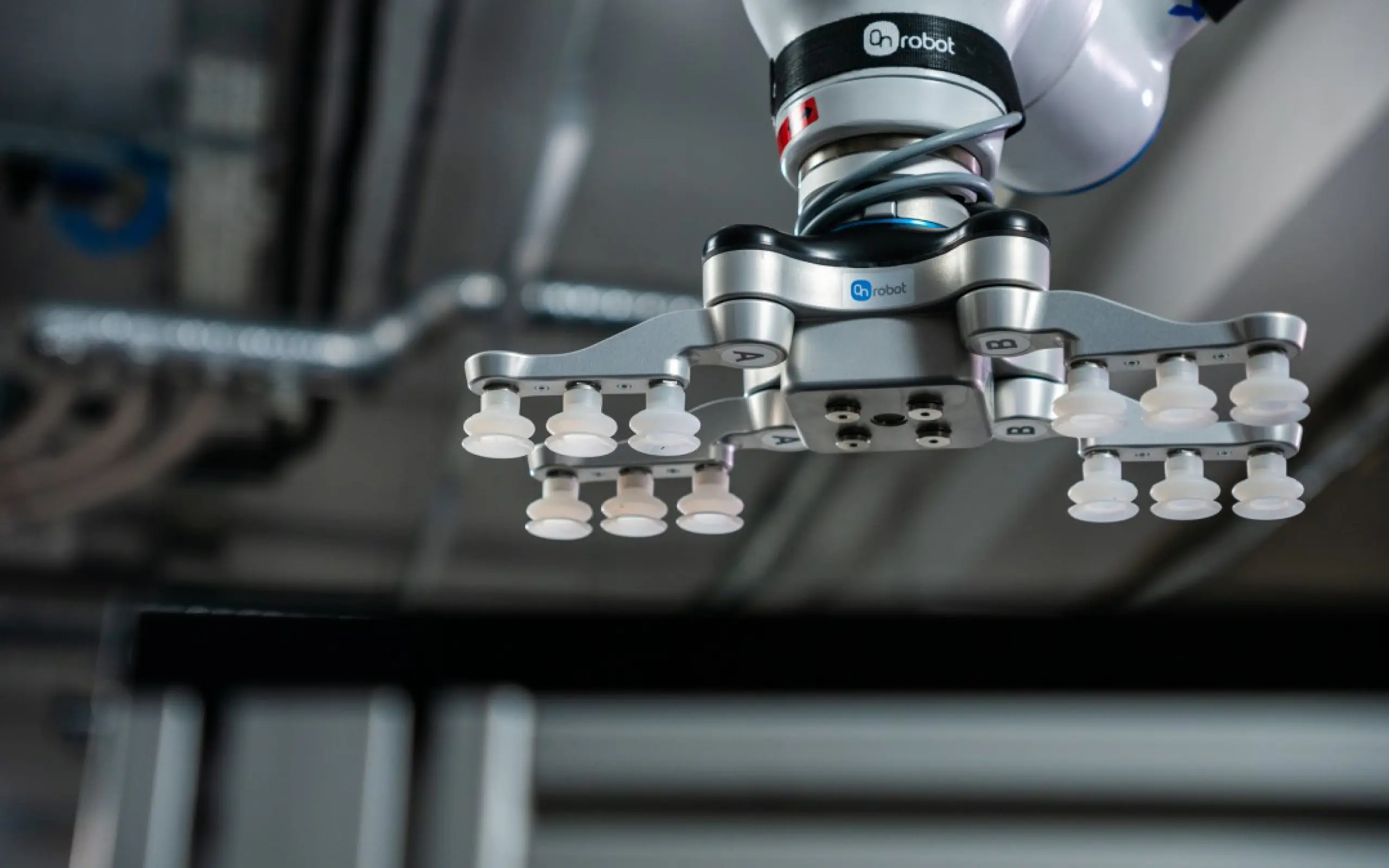

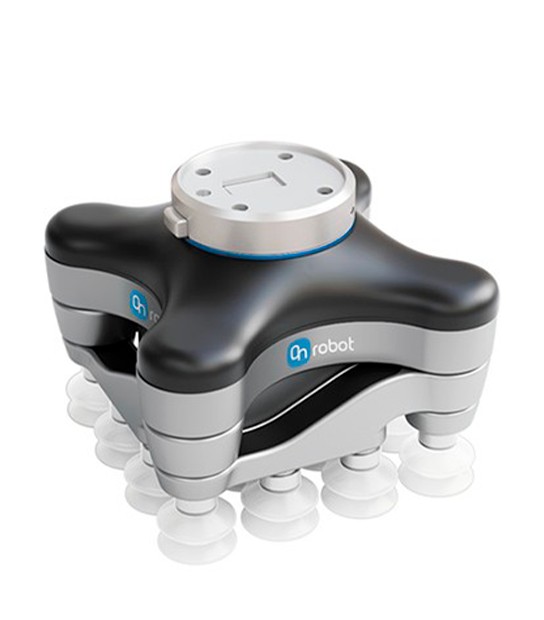

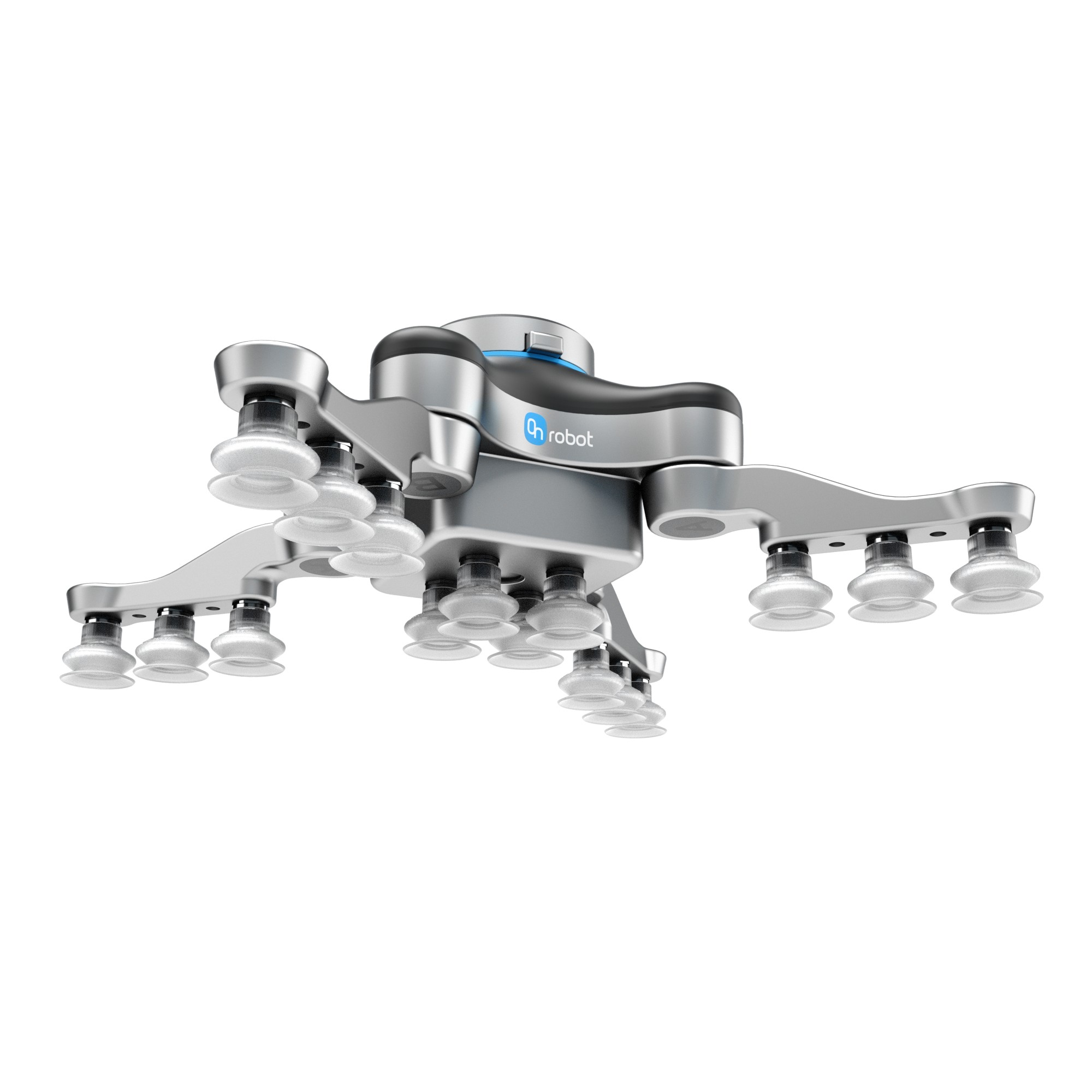

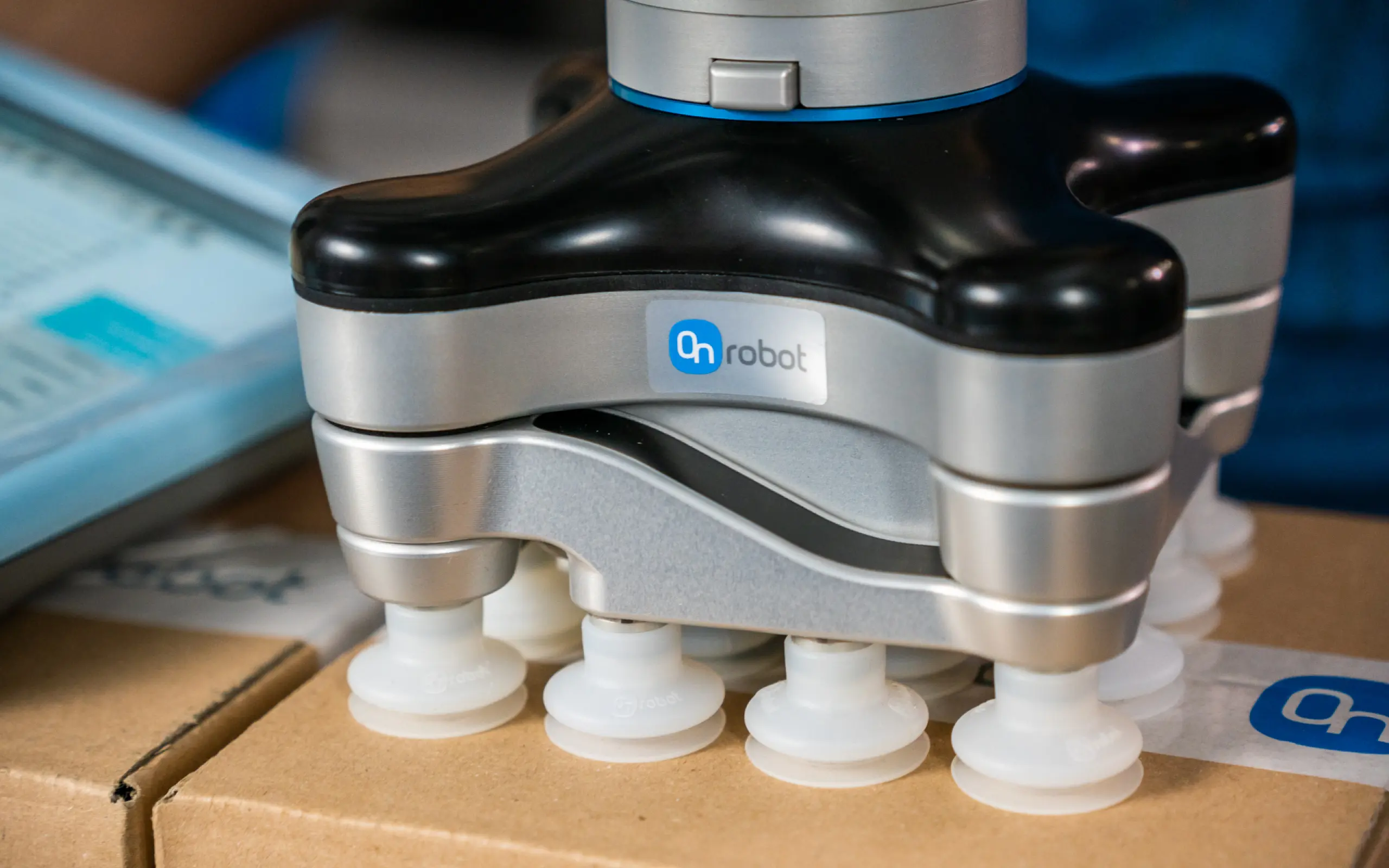

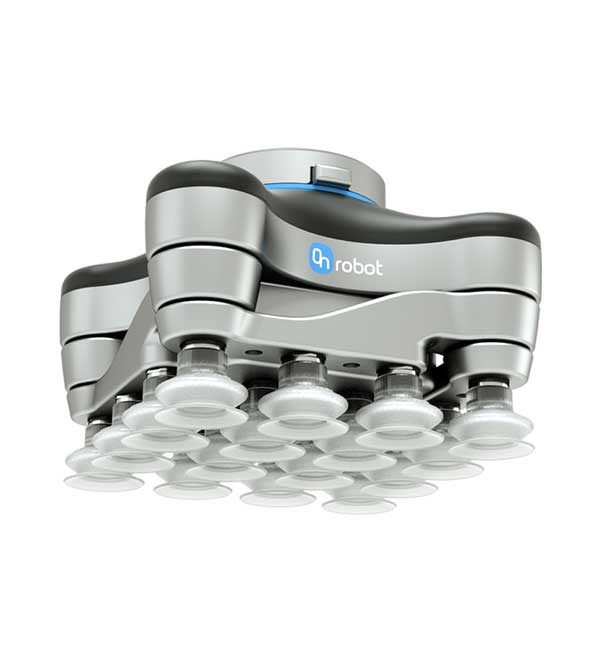

The VG10 Vacuum Gripper is a vacuum gripping system developed by OnRobot to handle a wide range of parts in various applications. Its modular design allows it to be configured according to the needs of each task and its suction power is suitable for parts of different sizes and materials.

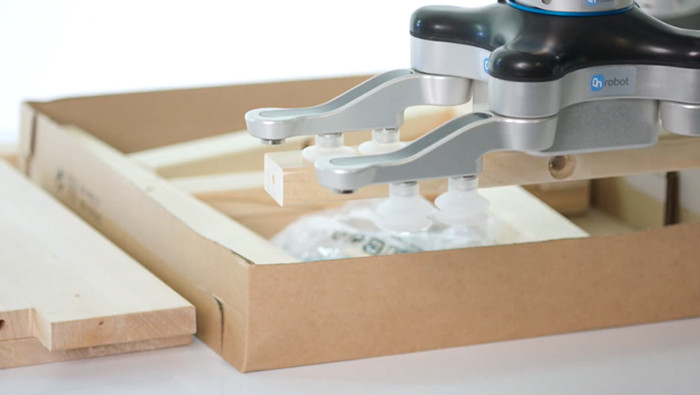

This system is ideal for handling delicate and large products. It is compatible with robots from leading manufacturers, making it an excellent solution for industrial process automation.

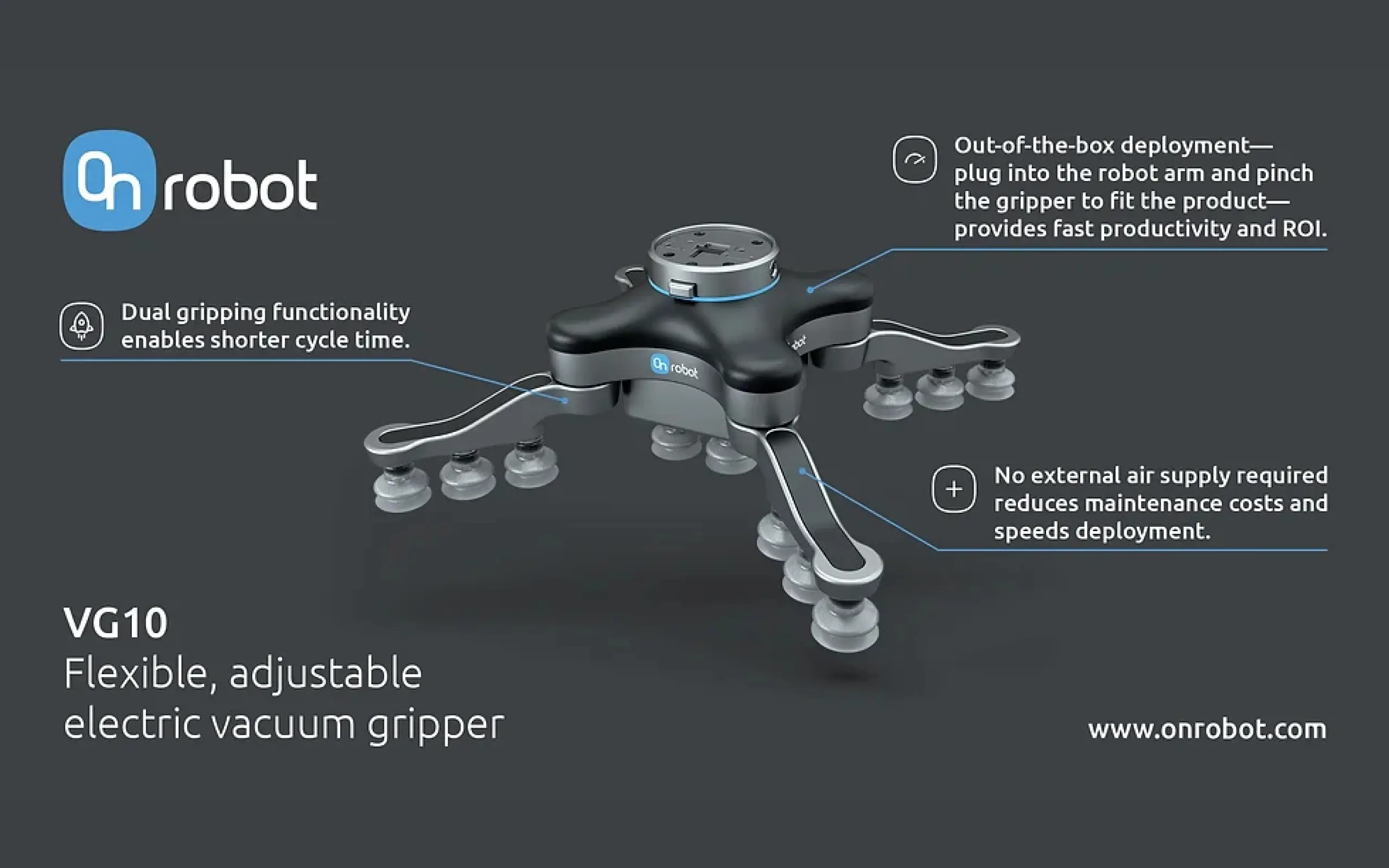

The gripper integrates dual gripper functionality, tool changer and a variety of suction cups available for the user to use to best suit the application needs.
Main features
-
- Built-in electric suction.
- Modular and configurable.
- High suction capacity.
- Easy to integrate
Applications
-
- Material handling.
- Machine tending.

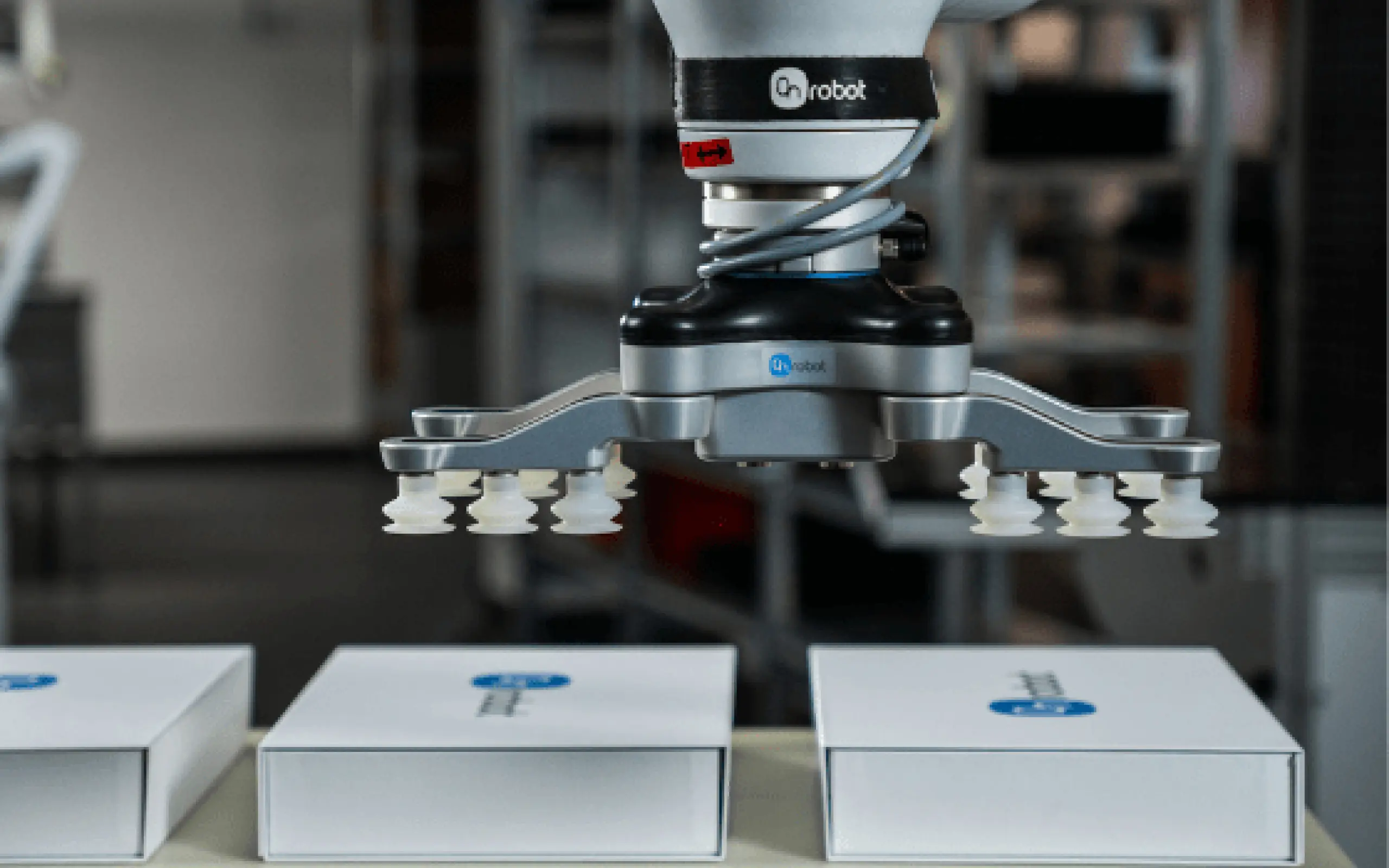

- Pick & Place.
| Manufacturer | OnRobot |
| Model Nº | VG10 |
| Payload | 10 kg |
| Reach | 32 mm - 358 mm |
| Operating Temperature | 0 °C - 50 °C |
| Vacuum | 5 % - 80 % Vacuum -0.05 - -0.810 Bar 1.5 - 24 inHg |
| Air flow | 12 Nl/min |
| Power supply | Min 20.4 V / Typical 24 V / Max 28.8 V |
| Current consumption | Min. 50 mA / Typical 600 mA / Max. 1500 mA |
| Adjustable arms | 270 |
| Holding torque arms | 6 Nm |
| Vacuum cups | 1 - 16 pcs. |
| Gripping time | 0,35 s |
| Releasing time | 0,20 s |
| Vacuum pump | Integrated, electric BLDC |
| Arms | 4, adjustable by hand |
| Tool changer | Integrated, click-on |
| Mechanical interface | ISO 9409-1, 50-4-M6 |
| Pneumatic interface | 16x G1/8 internal threads |
| Electrical interface | 8-pole M8 |
