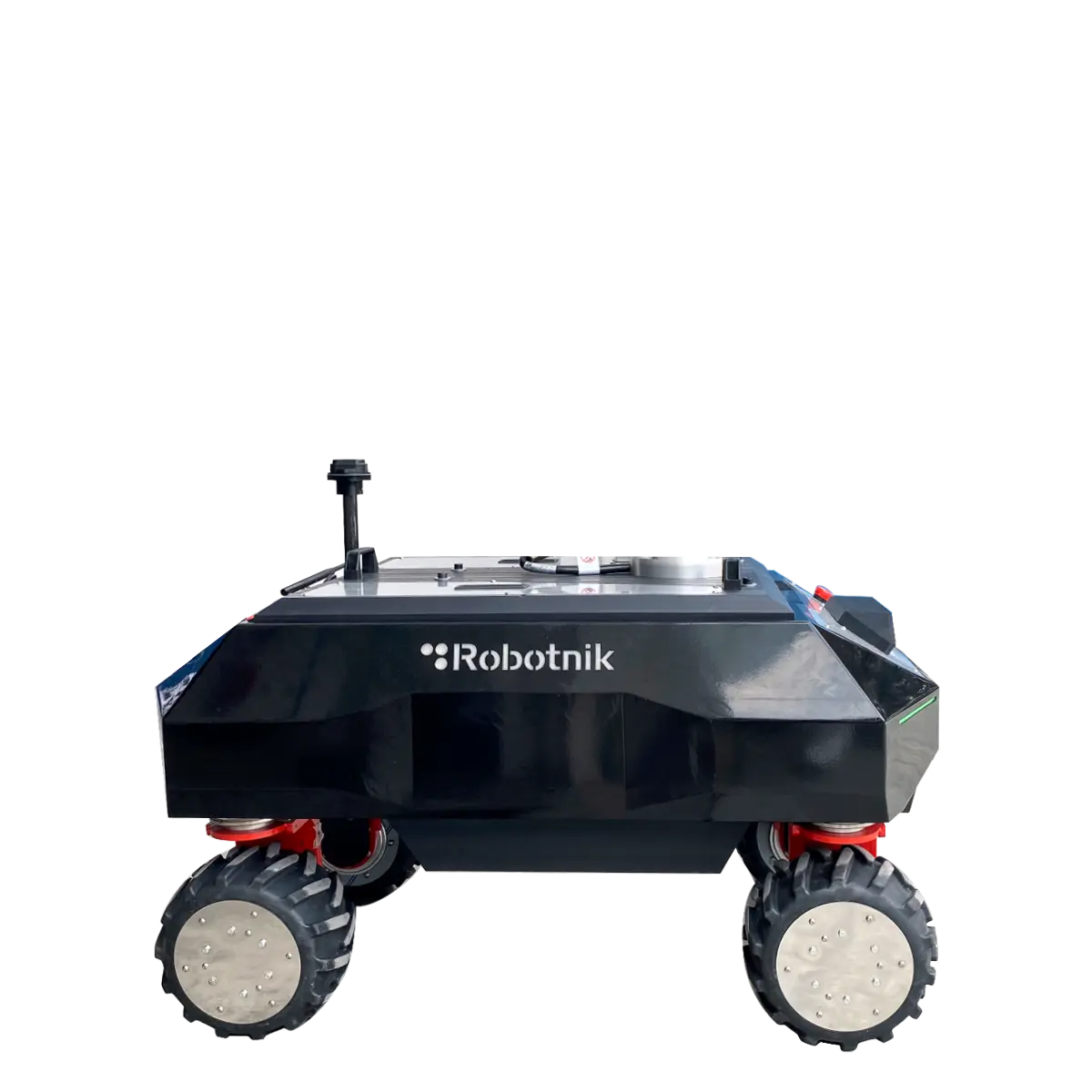

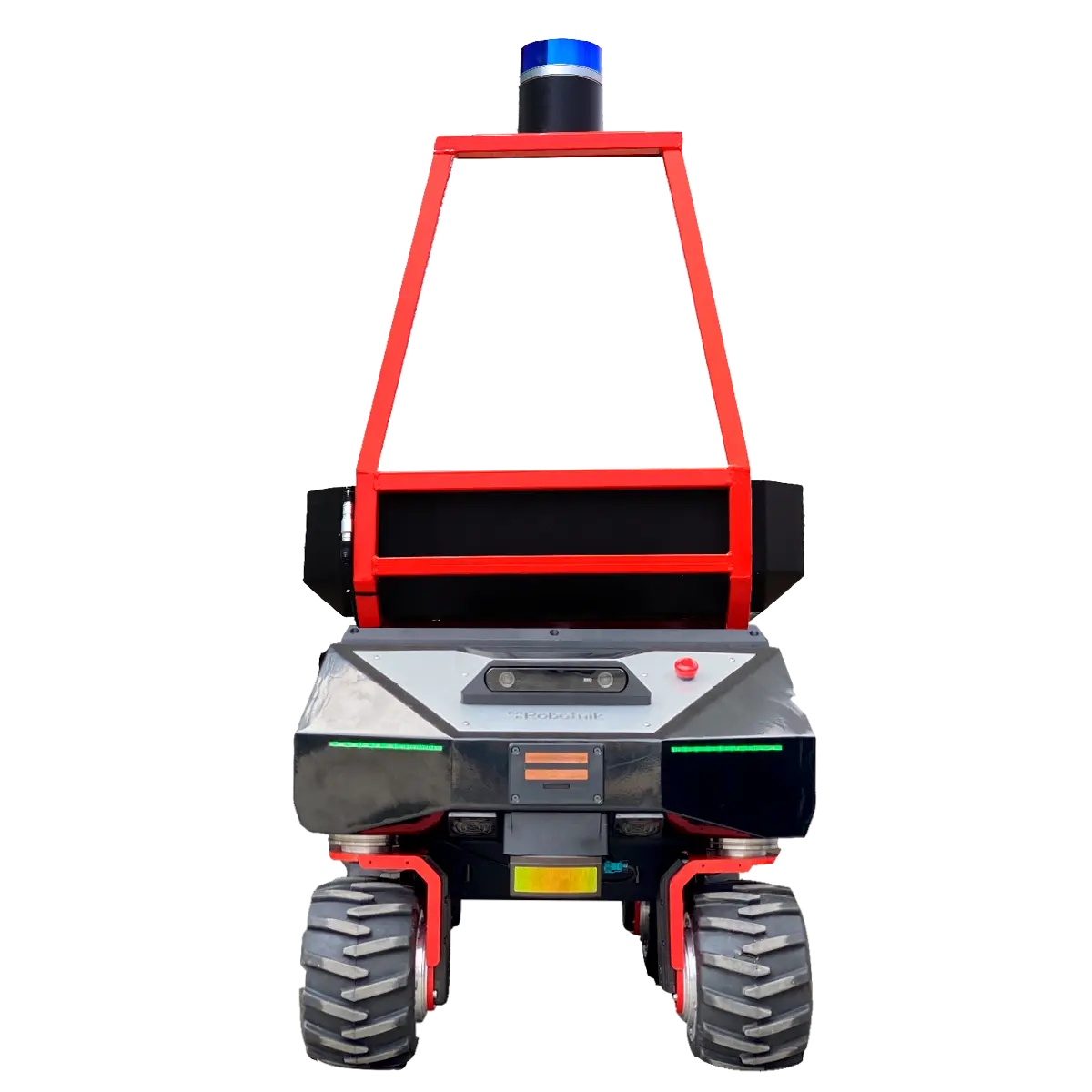

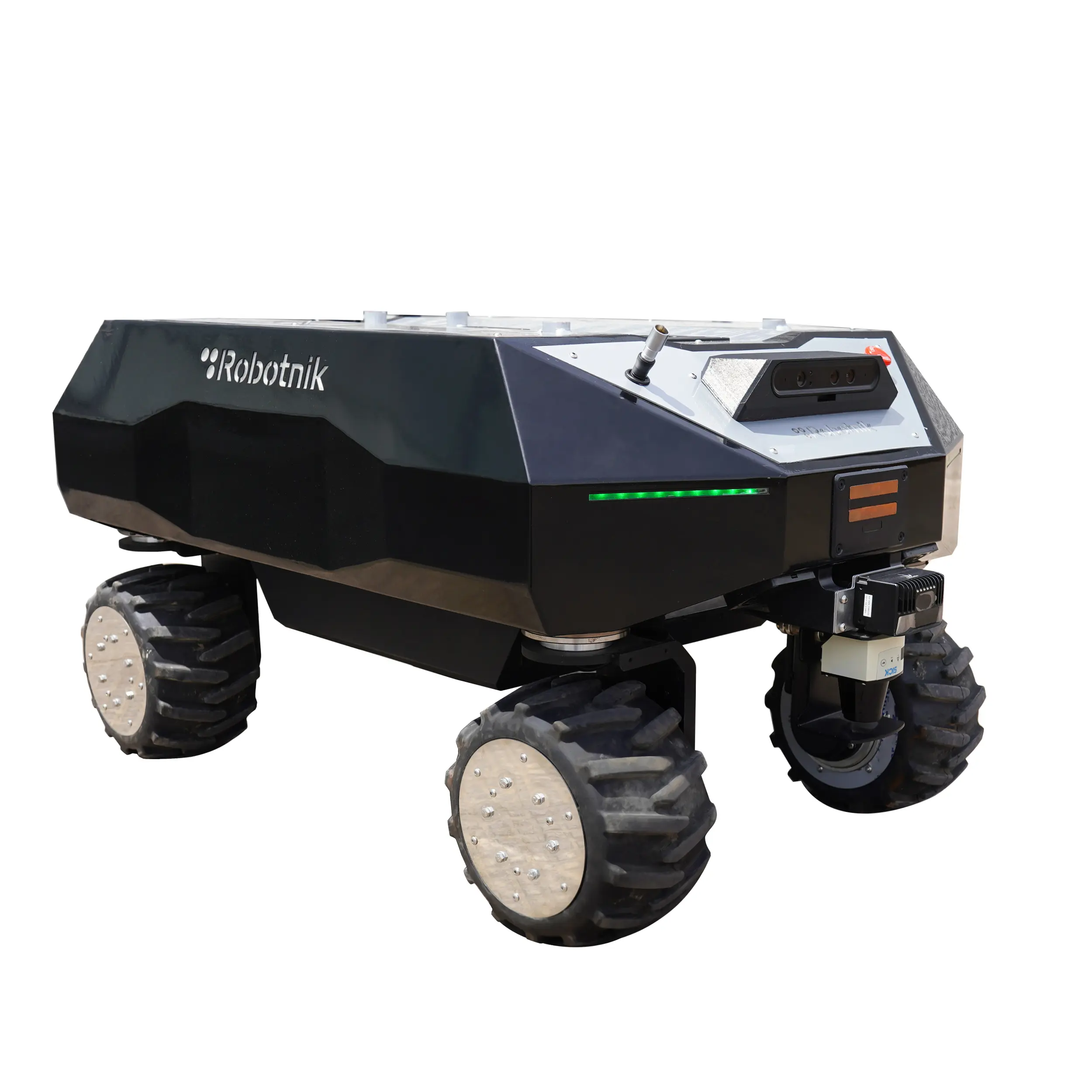

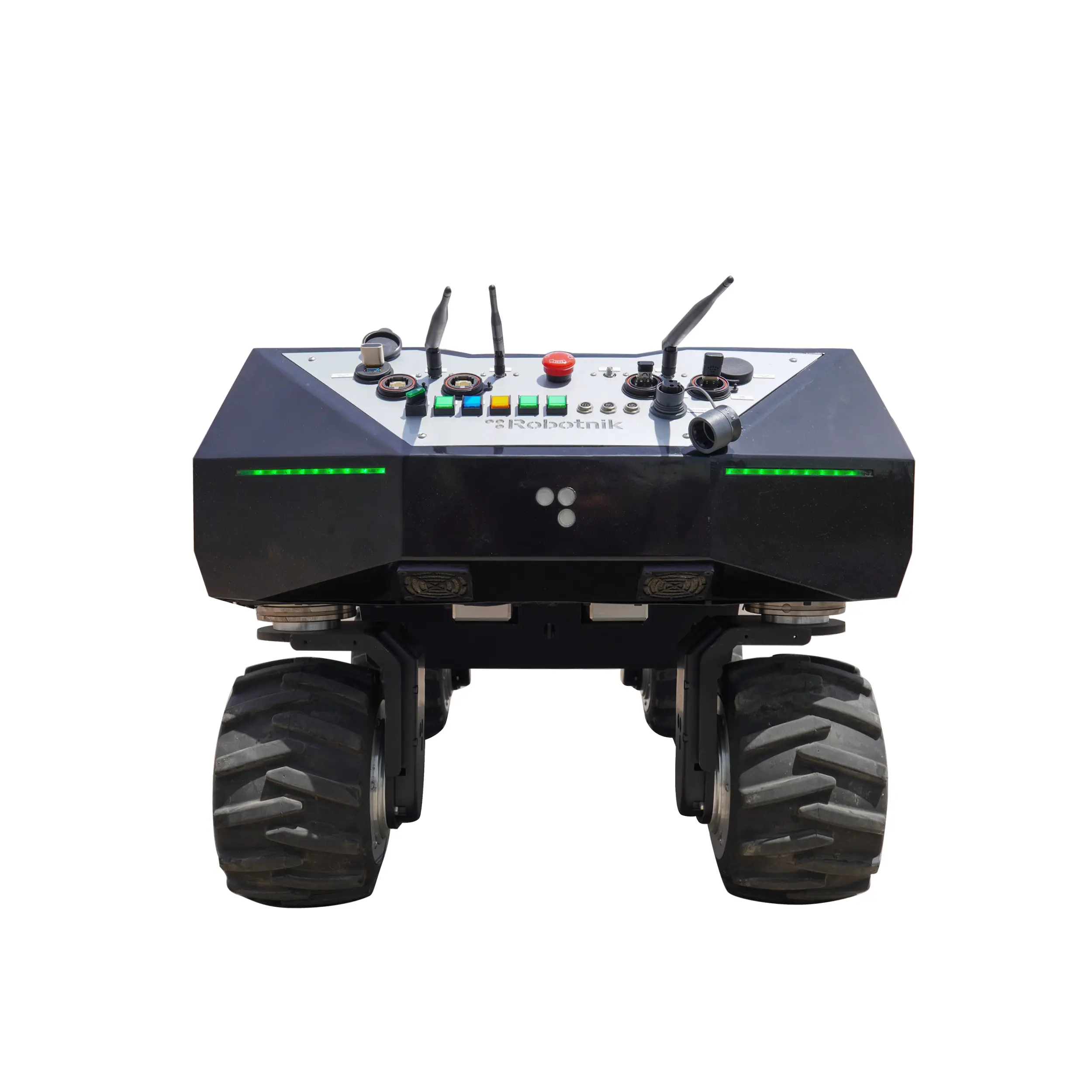

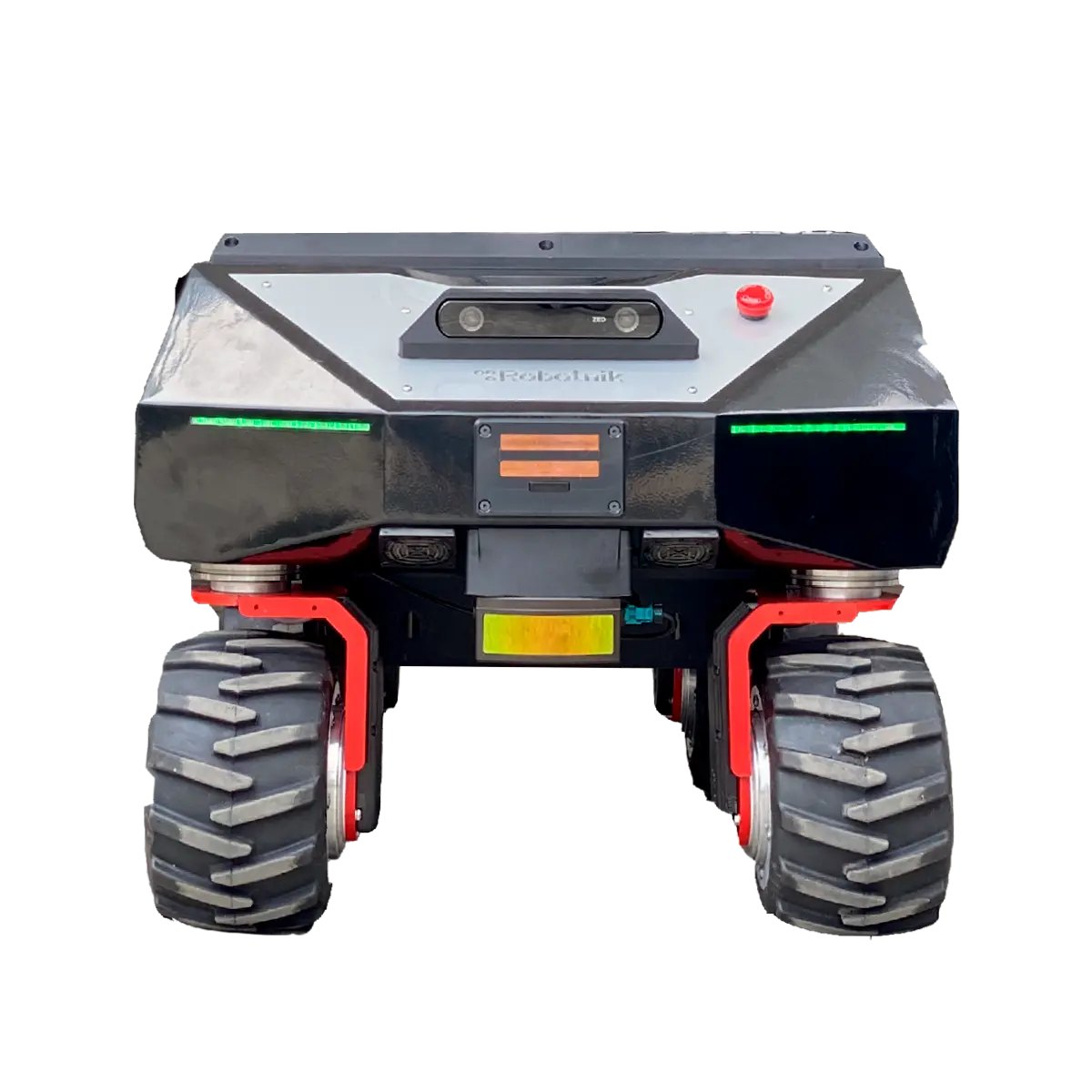

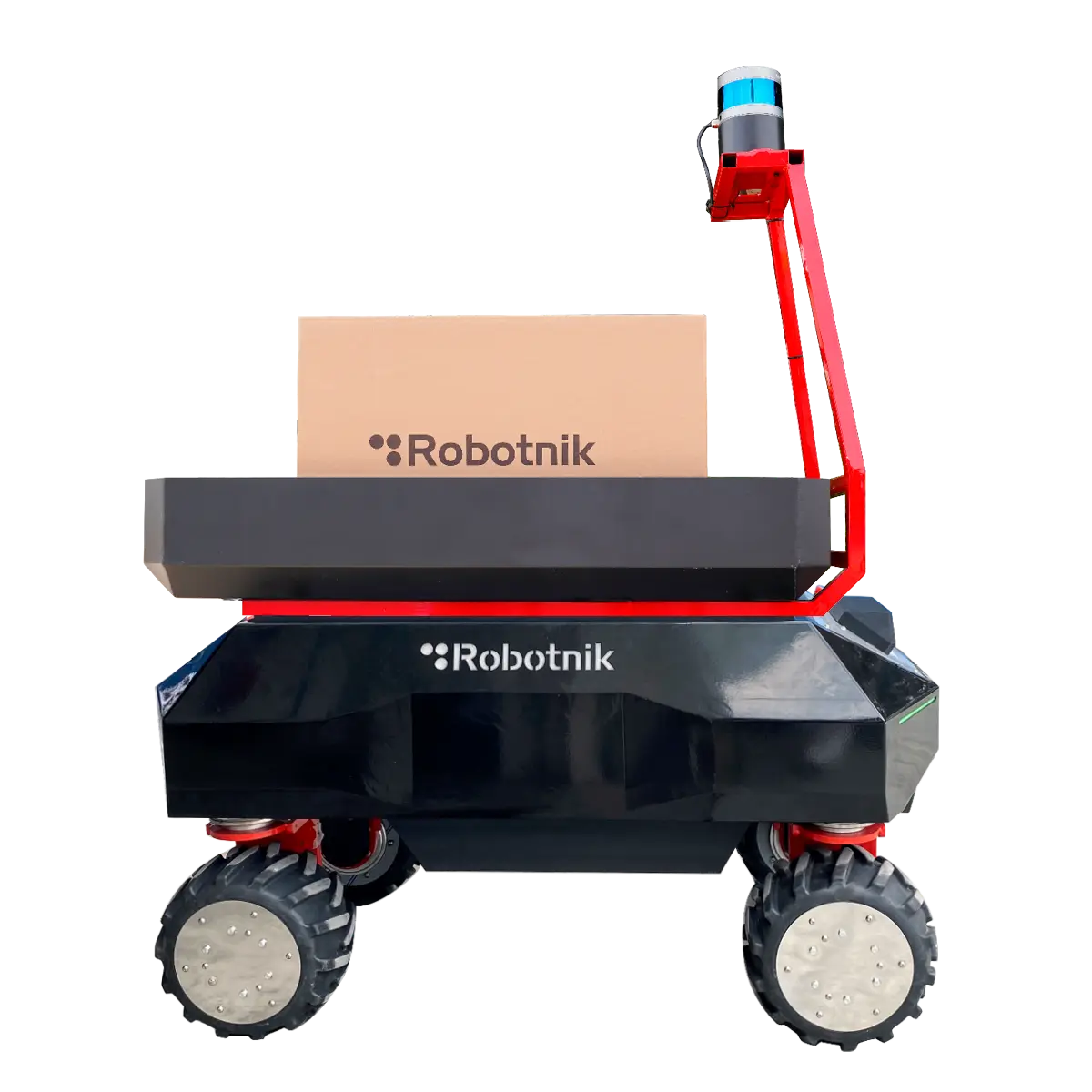

RB- VOGUI
Manufacturer: Robotnik Automation
Autonomous Mobile Robot.
Available on backorder
Available on backorder

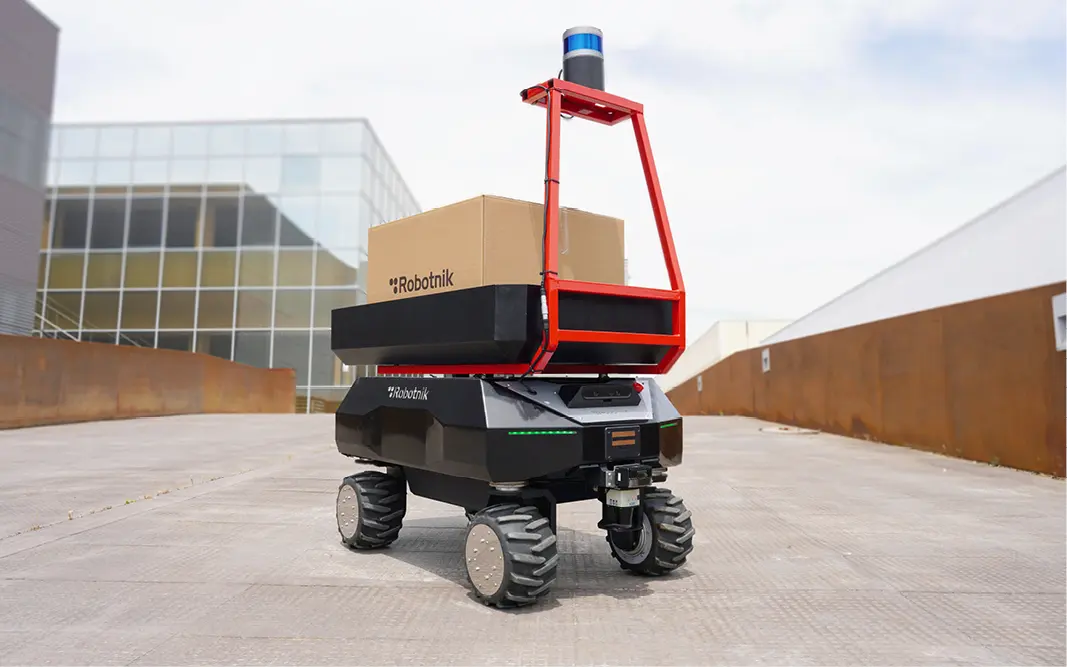

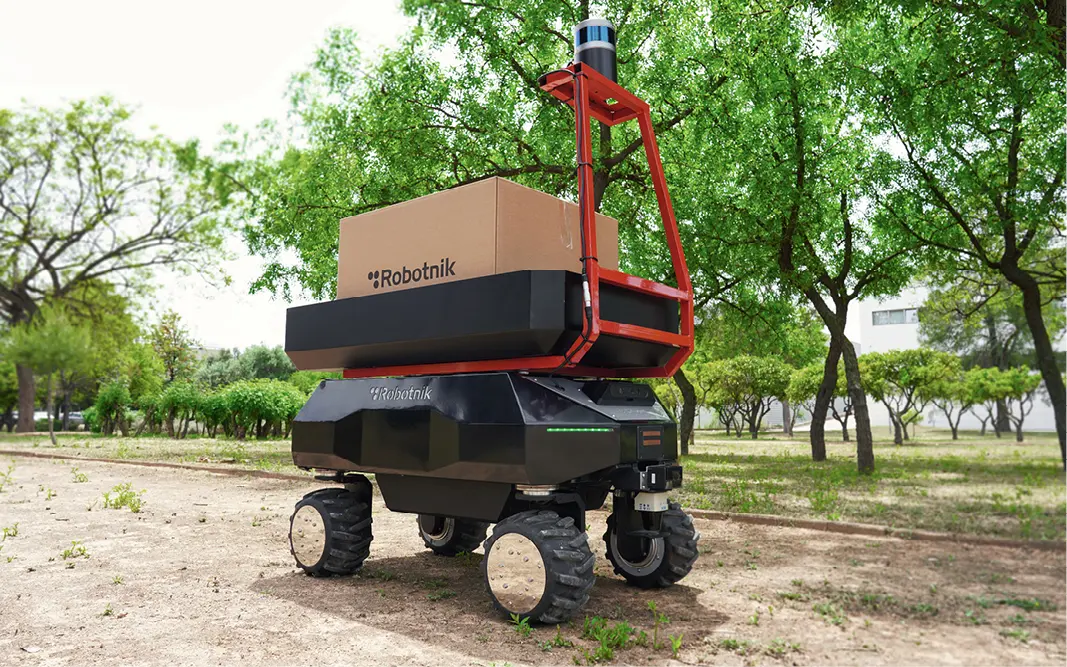

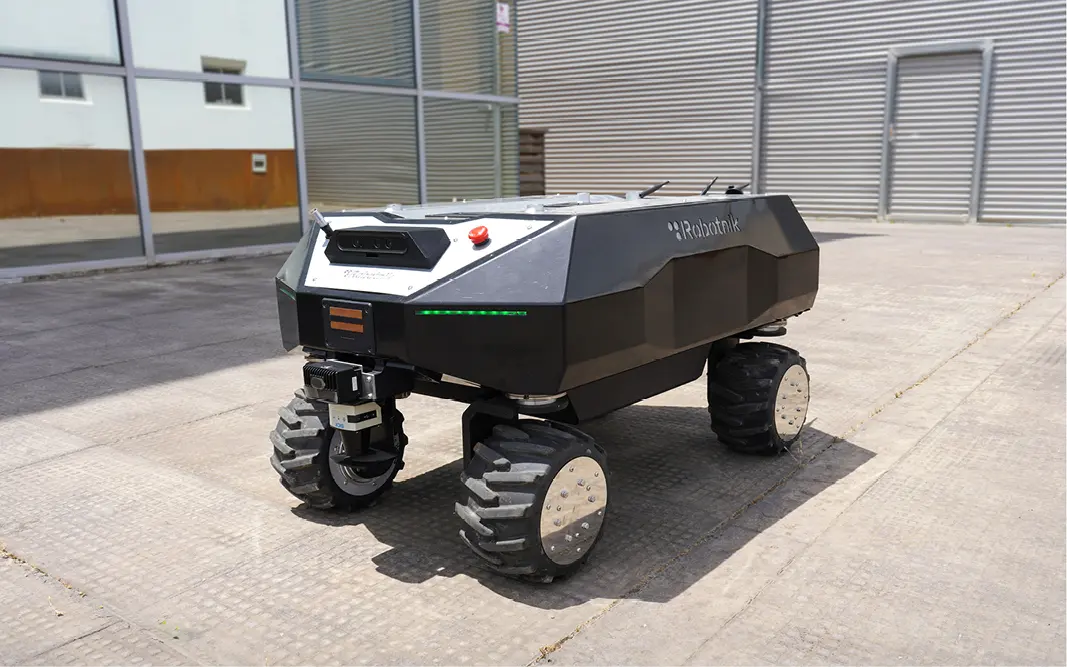

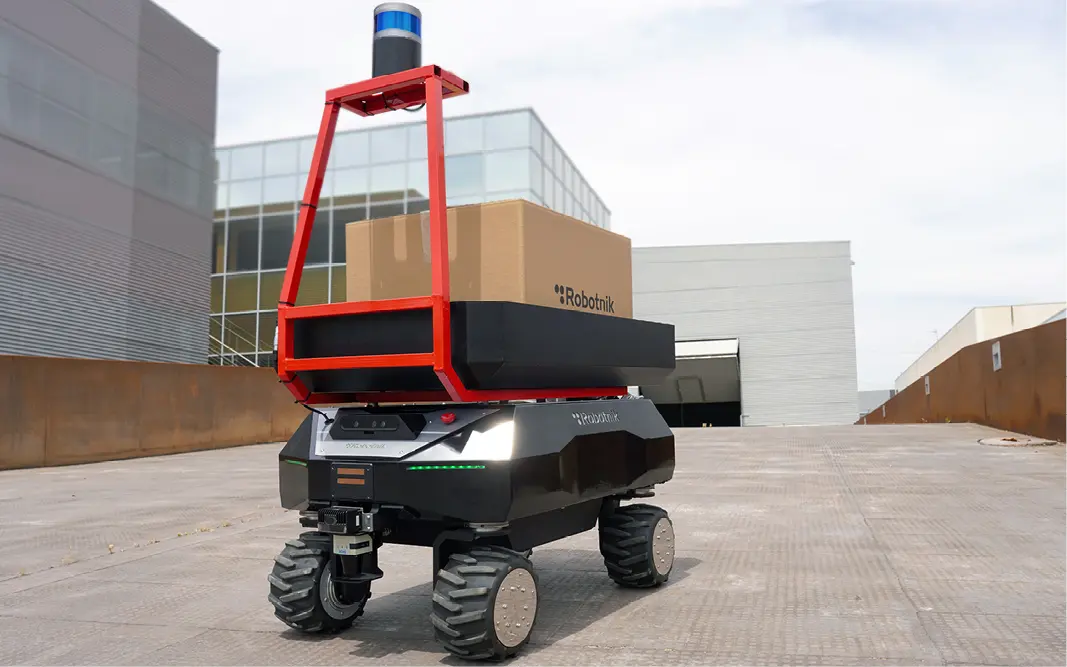

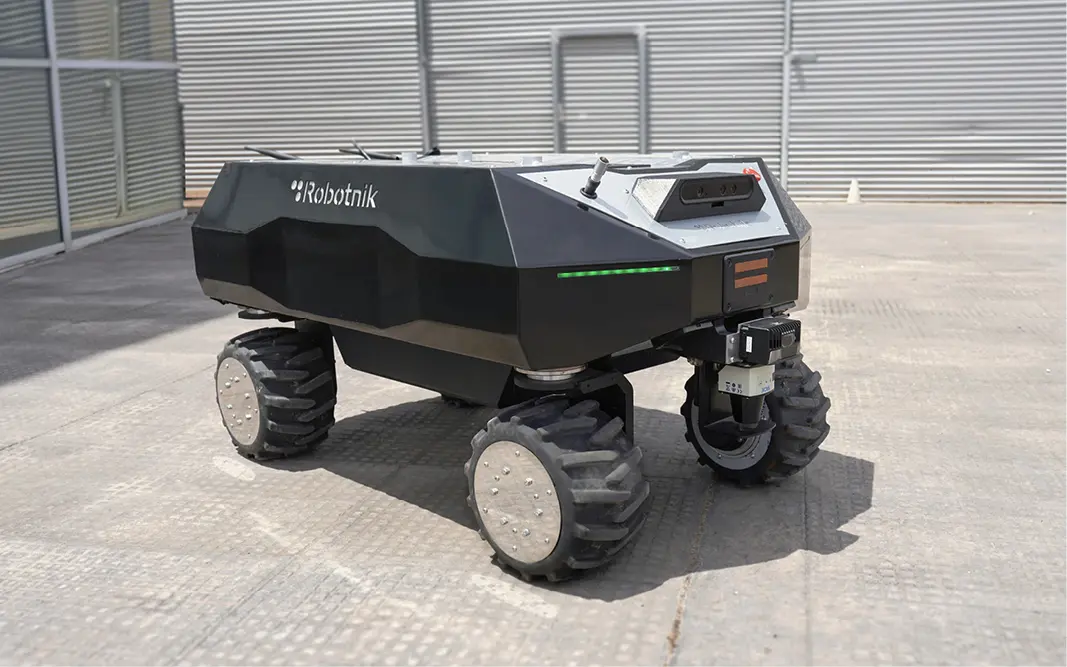

RB-VOGUI is a general-purpose robotic platform designed specifically for R&D tasks in outdoor environments.
Its open architecture based on ROS 2 facilitates the development of customized applications in sectors such as agriculture and construction.
It stands out as the only outdoor omnidirectional platform available on the market.
It stands out as the only outdoor omnidirectional platform available on the market.
Its modular all-terrain base, equipped with omnidrive kinematics, ensures efficient travel even on uneven terrain.
In addition, the base allows the option of integrating a Universal Robots robotic arm, becoming the RB-VOGUI+ mobile manipulator to perform tasks such as crop inspection and monitoring.
Main features
-
- Outdoor environments.
- Multipurpose Platform.
- Open architecture in ROS 2.
- Modular and configurable.
Applications
-
- Agriculture.
- Construction.
- Logistics & transport
- R&D.
Components included
-
- CPU i7
- Battery 48VDC@45Ah
- 5G Router
- IMU
- RGBD camera
- Safety Pack 360º
- 2D Safety LiDARs + Safety PLC
- Charging station
| Model Nº | RB-VOGUI |
| Manufacturer | Robotnik Automation |
| Size | 1.044 x 776 x 742 mm |
| Weight | 165 kg |
| Speed | 2,5 m/s |
| Autonomy | Up to 6 h |
| Payload | Up to 150 kg |
| Environment | Indoors/Outdoors |
| Enclosure class | IP53 Weatherproof |
| Traction motors | 4 x 500 W with brake |
| Kinematic | Omnidirectional / Dual Ackerman |
| Localization system | SLAM |
| Temperature | -10ºC - 45ºC |
| Maximum slope | 47% |
| Communication | Bluetooth 4.0, WiFi 802.11 b/g/n/ac |
| Connectivity | 12 V, 24 V, VBATT, Ethernet, HDMI, USB |
Official ROS package:
- Sources:
- Suported versions:
- Noetic.
