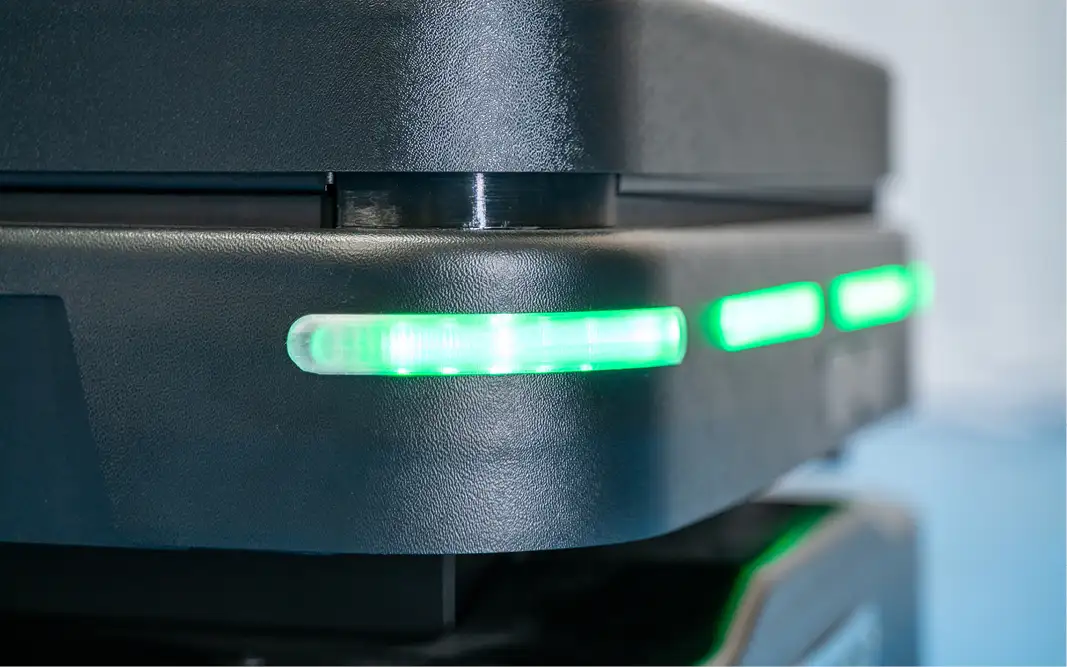

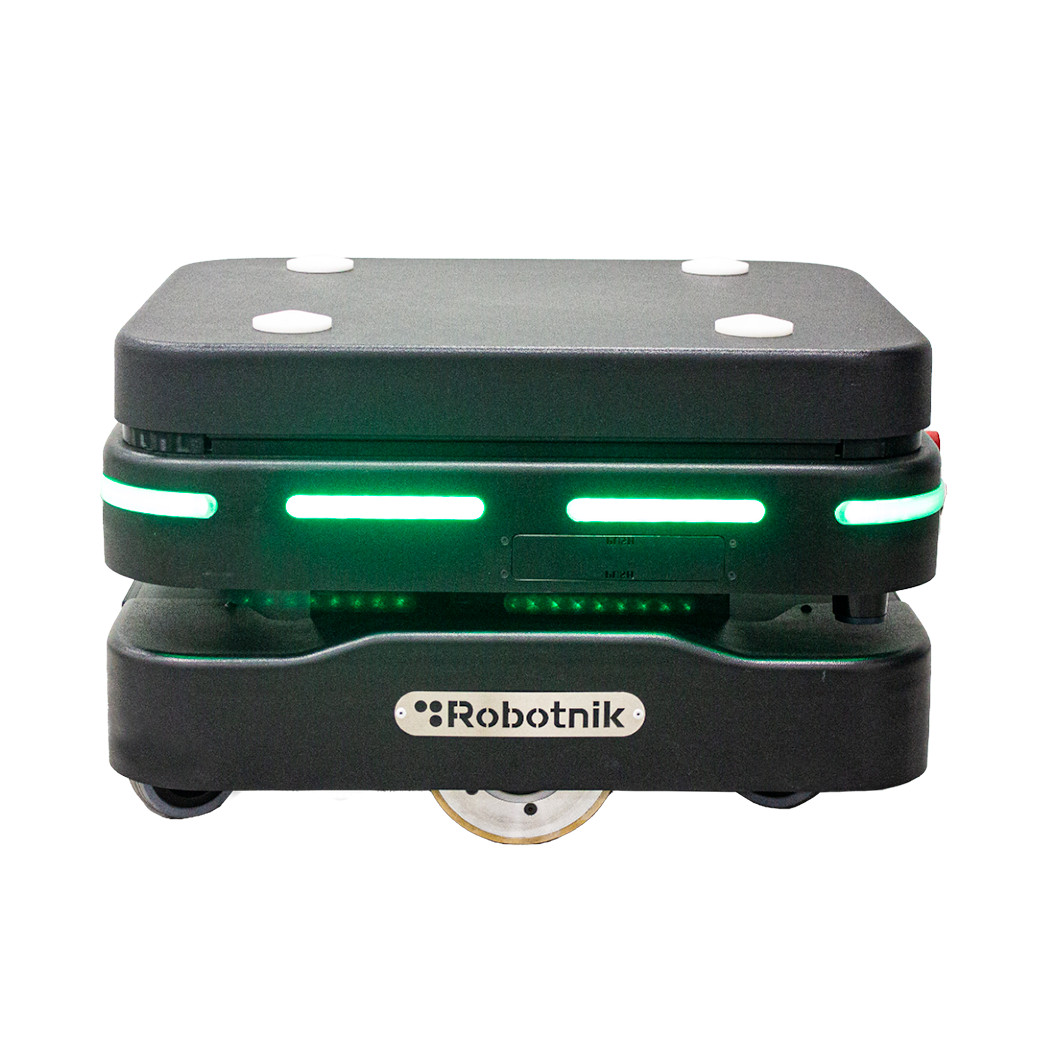

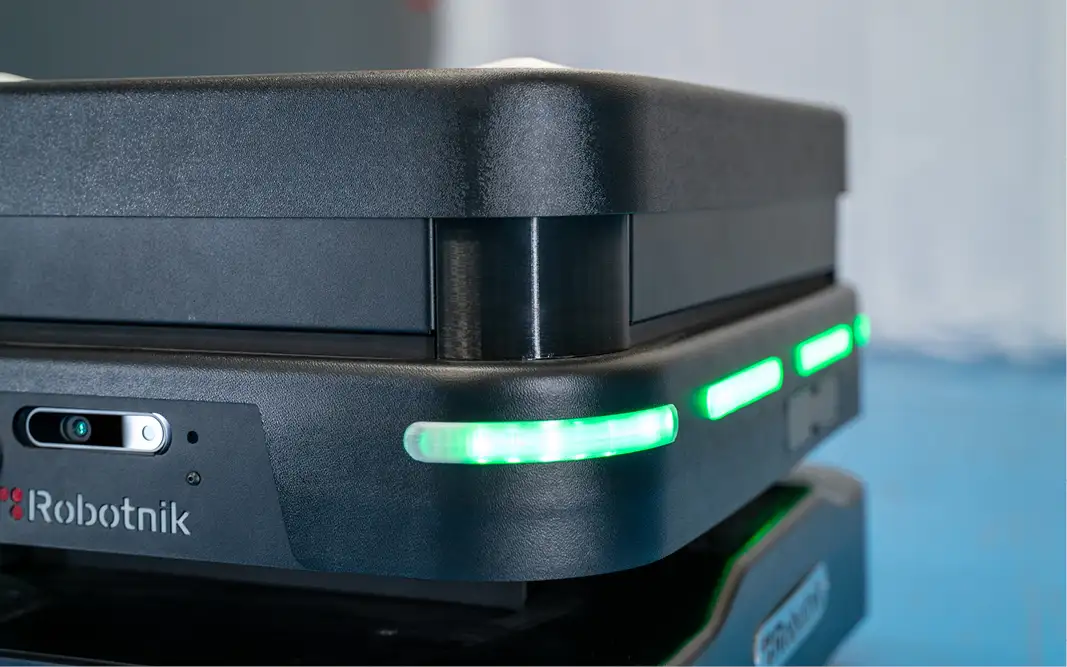

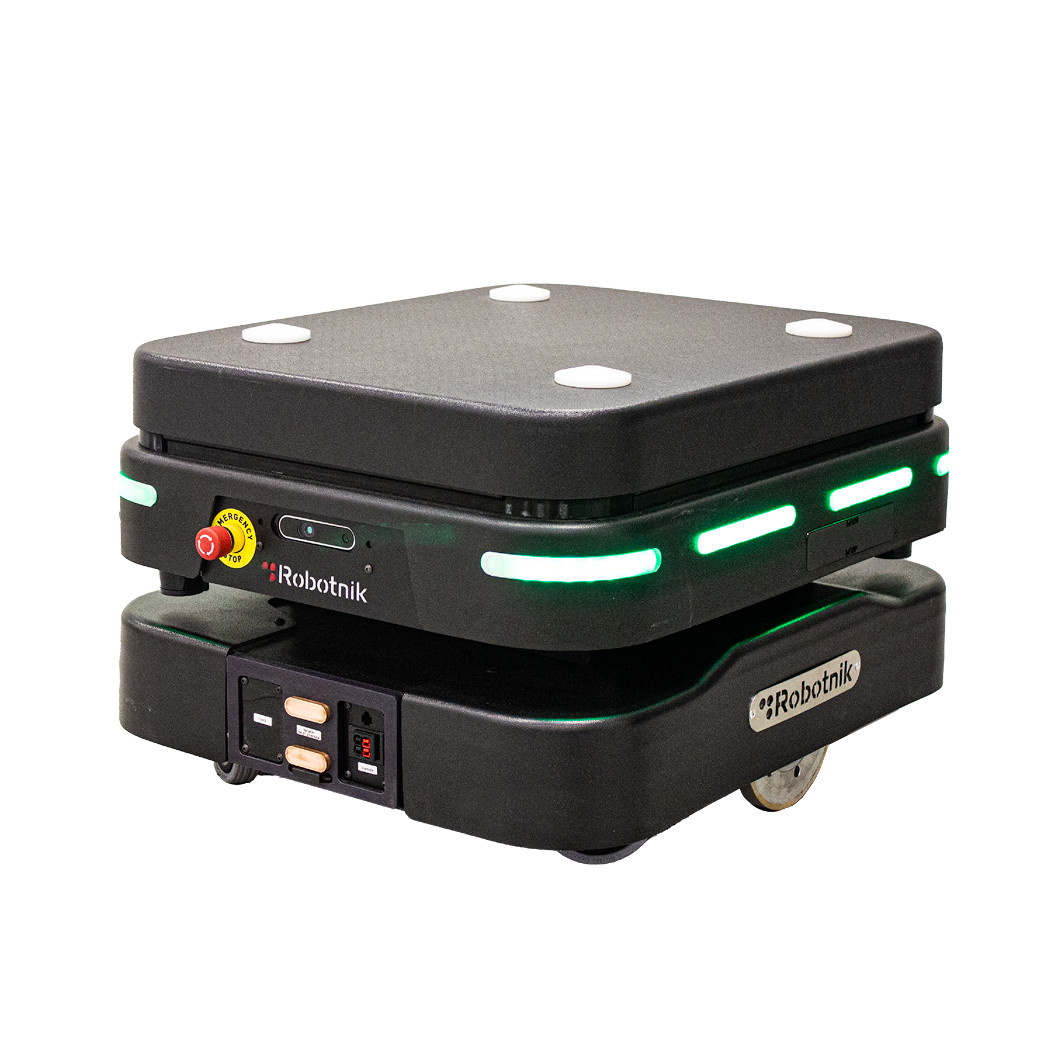

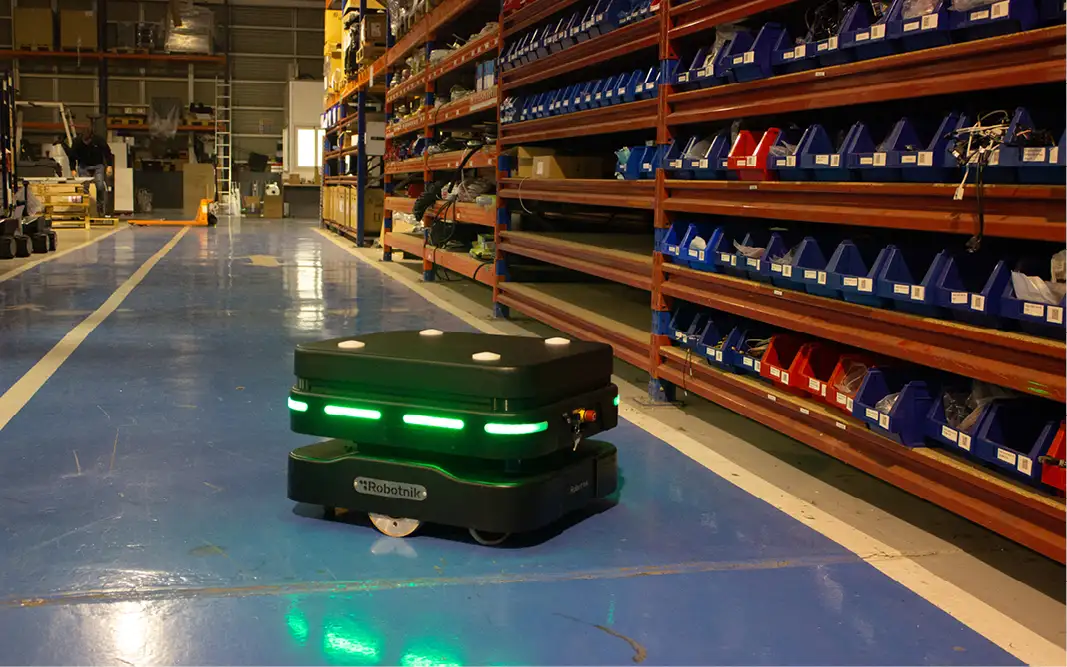

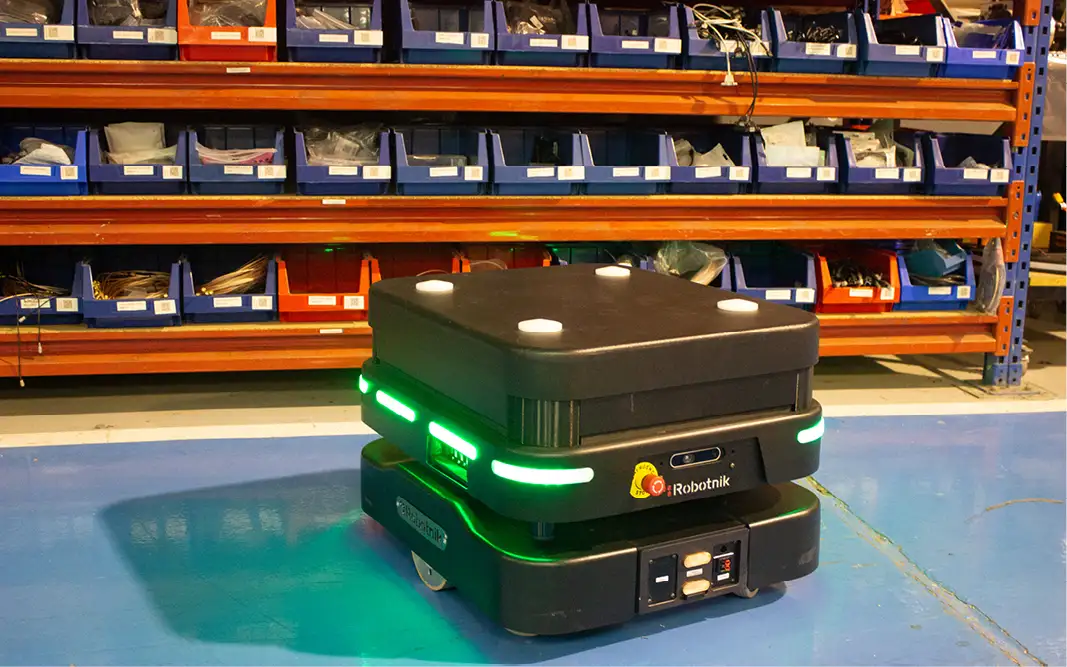

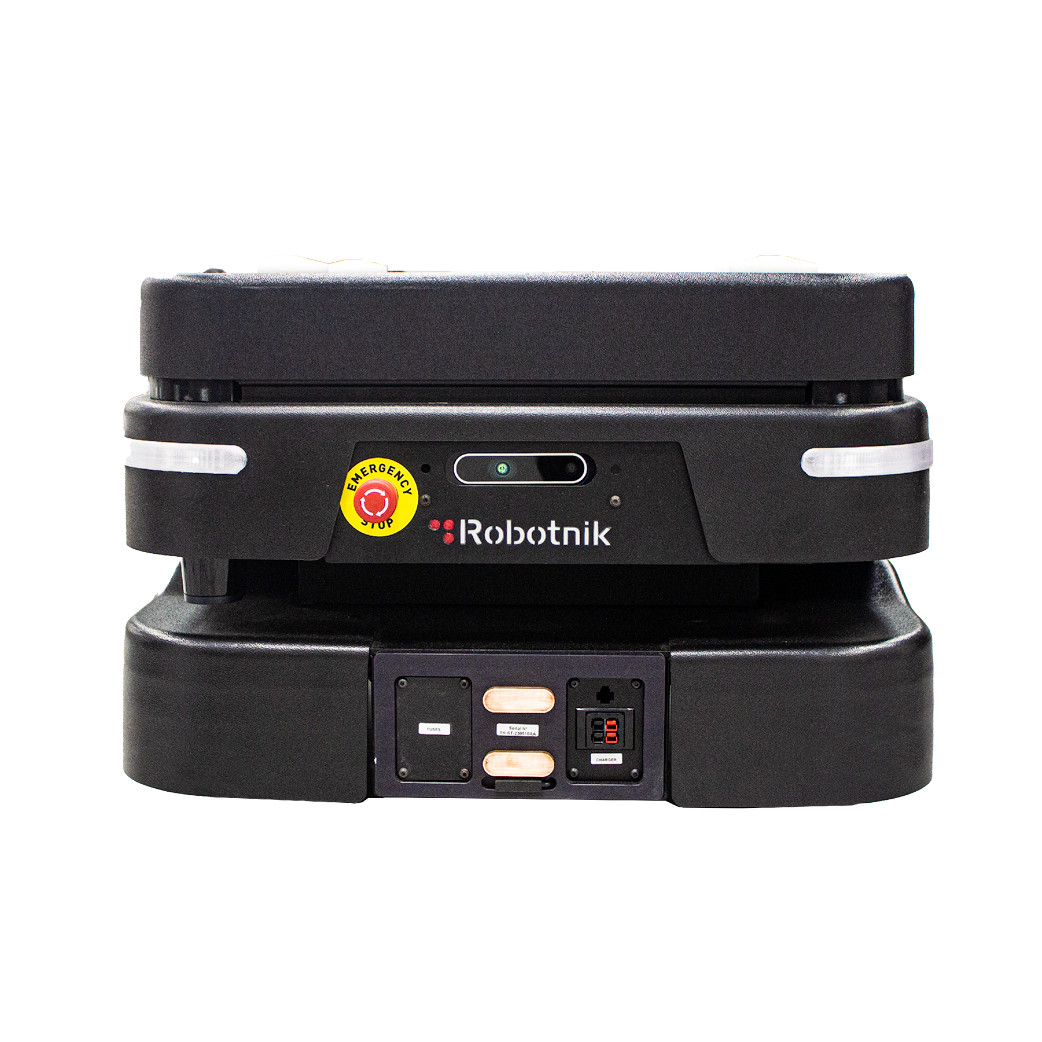

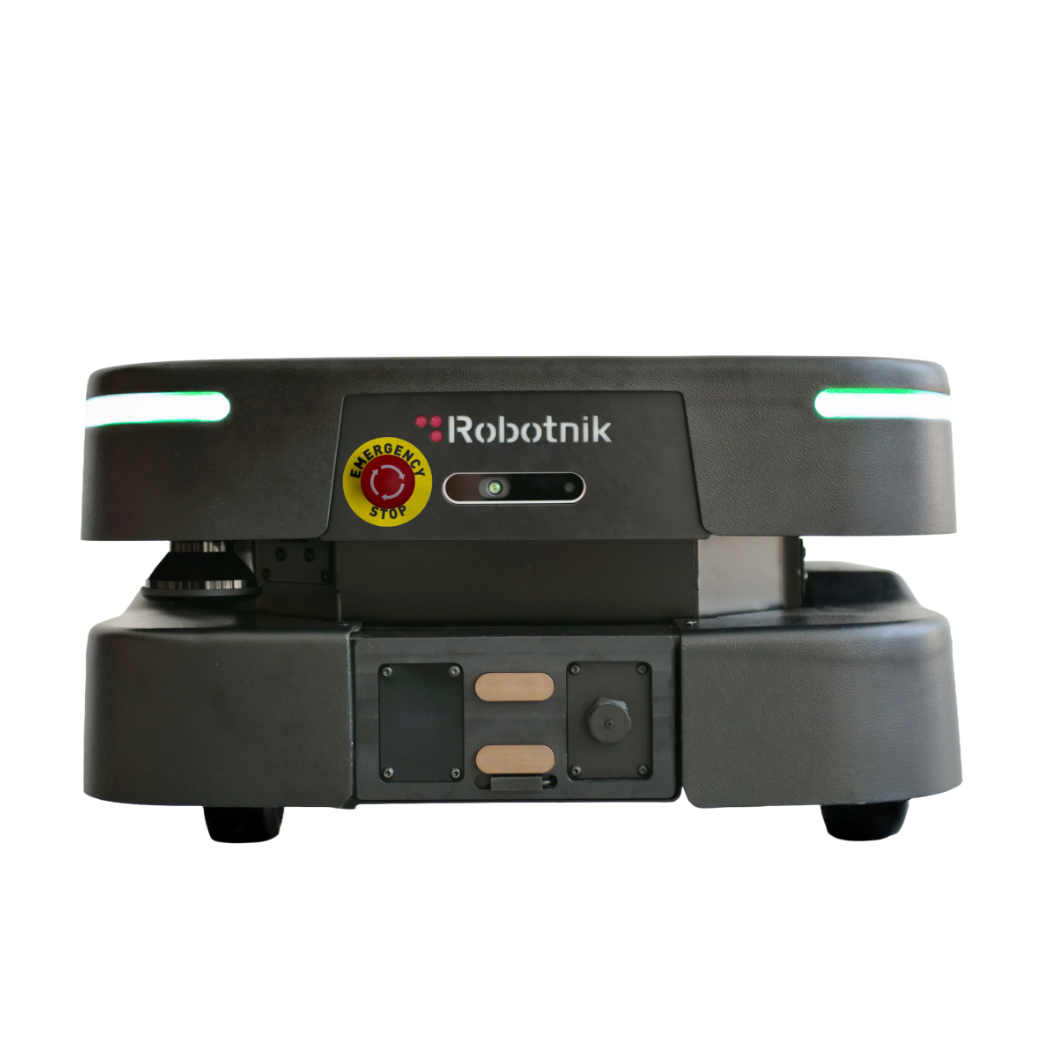

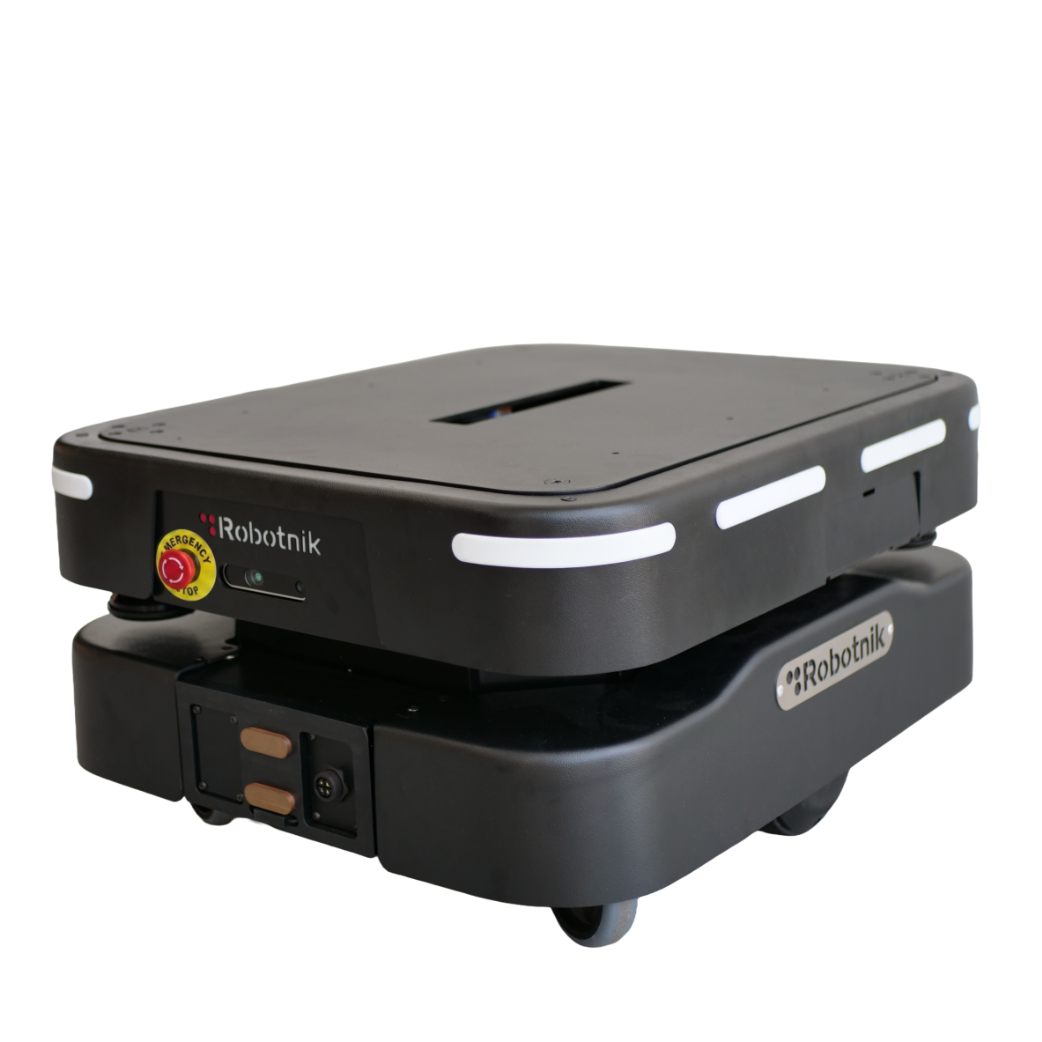

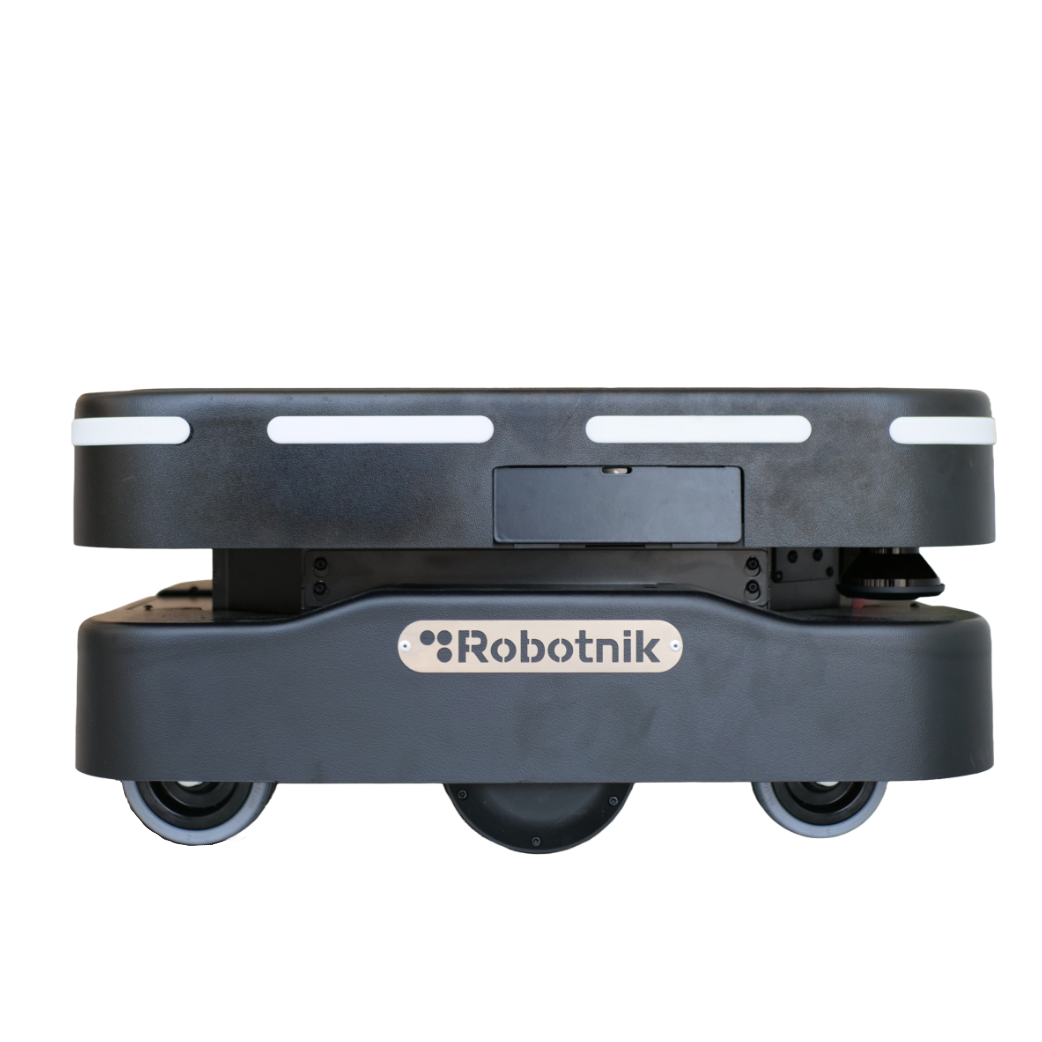

The RB-THERON is designed for indoor applications that require modularity and flexibility such as retail and quality control. This platform allows the development of customized solutions for tasks such as inventory management, RFID tracking or real-time stock control by easily integrating modules or sensors.
In addition, it has communication and power interfaces for the integration of additional cameras or other types of sensors, expanding its customization and adaptability capabilities. It includes software with control, localization, navigation and HMI interface.
RB-THERON is a robot with open architecture based on ROS 2.
Main features
-
- Modular and customizable.
- Open architecture in ROS 2.
- Load capacity 200 Kg.
- Compact design.
Applications
-
- Retail.
- Quality control.
- R&D.
Included components
-
- CPU Intel i7.
- Safety pack:
- 2x 2D safety scanner.
- Safety PLC.
- RGBD Camera.
- 5G Router.
- IMU.
- Battery:
- 48VDC@21Ah.
- Charging station.
Model Nº | RB-THERON |
Manufacturer | Robotnik Automation |
Size | 717 x 550 x 320 mm |
Weight | 70 kg |
Speed | 1,25 m/s |
Autonomy | Up to 8 h |
Payload | 200 kg |
Environment | Indoors |
Enclosure class | IP30 |
Traction motors | 2 x 250 W with brake |
Kinematic | Differential drive |
Localization system | SLAM |
Temperature | 0ºC - 40ºC |
Maximum slope | 6% |
Communication | Bluetooth 4.0, WiFi 802.11 b/g/n/ac |
Connectivity | DC Power Output, Ethernet x2, HDMI x1, USB x3 |
Official ROS Packages:
- Sources:
- Supported versions:
- Noetic.
