RB-ROBOUT+
Manufacturer: Robotnik Automation
Autonomous Mobile Manipulator.
Available on backorder
Available on backorder

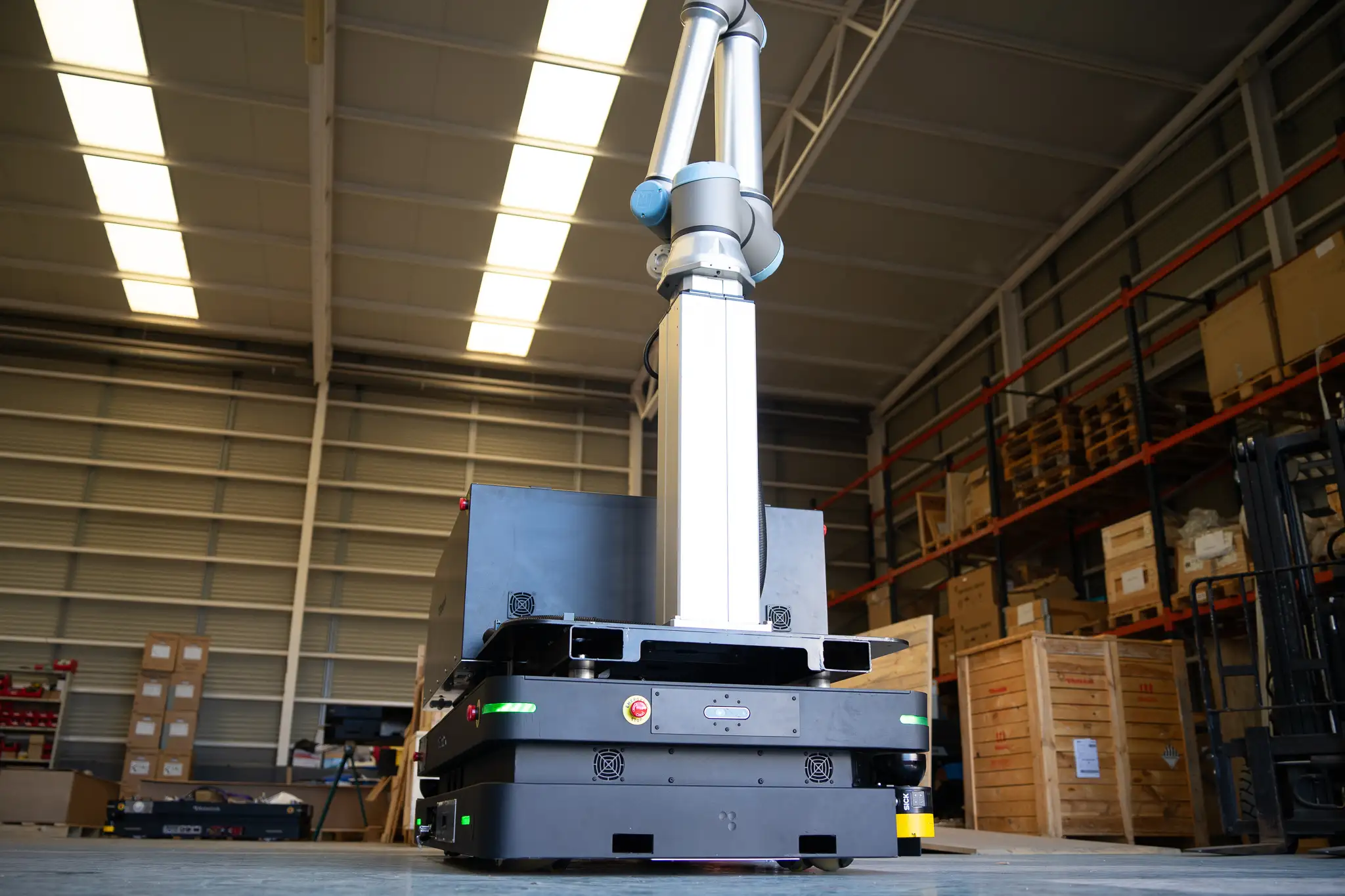

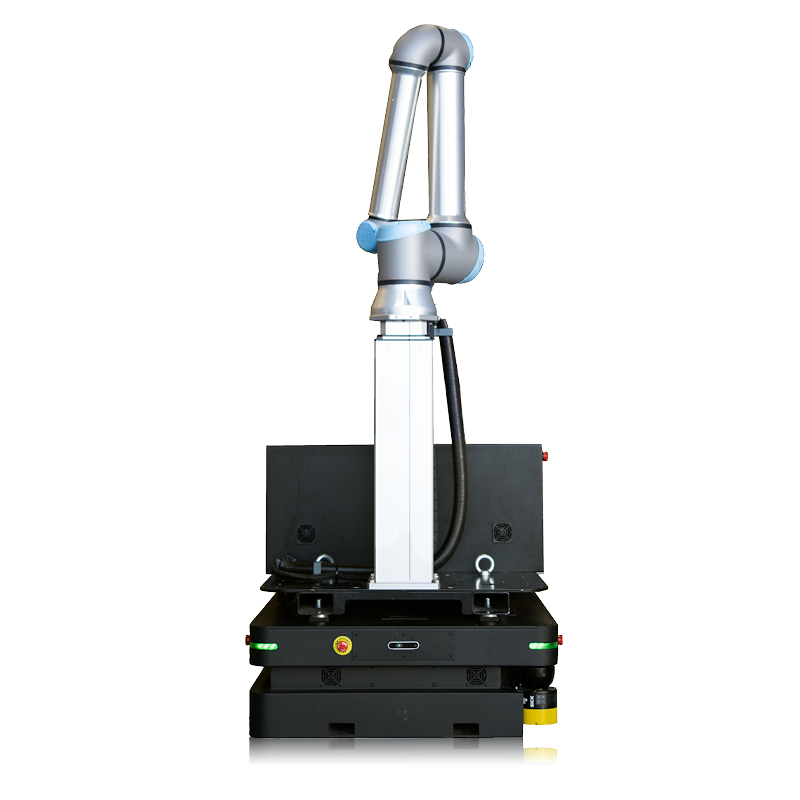

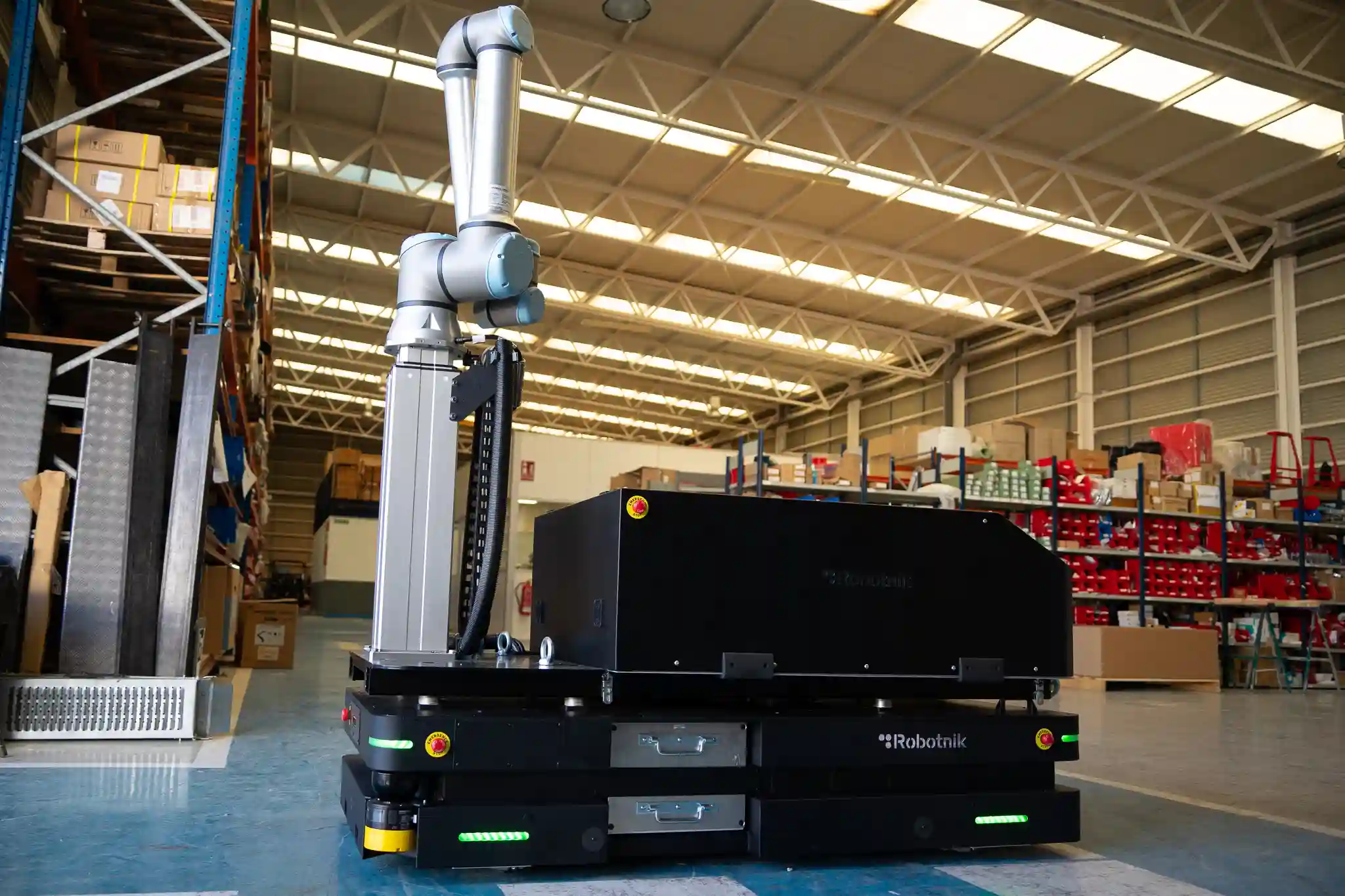

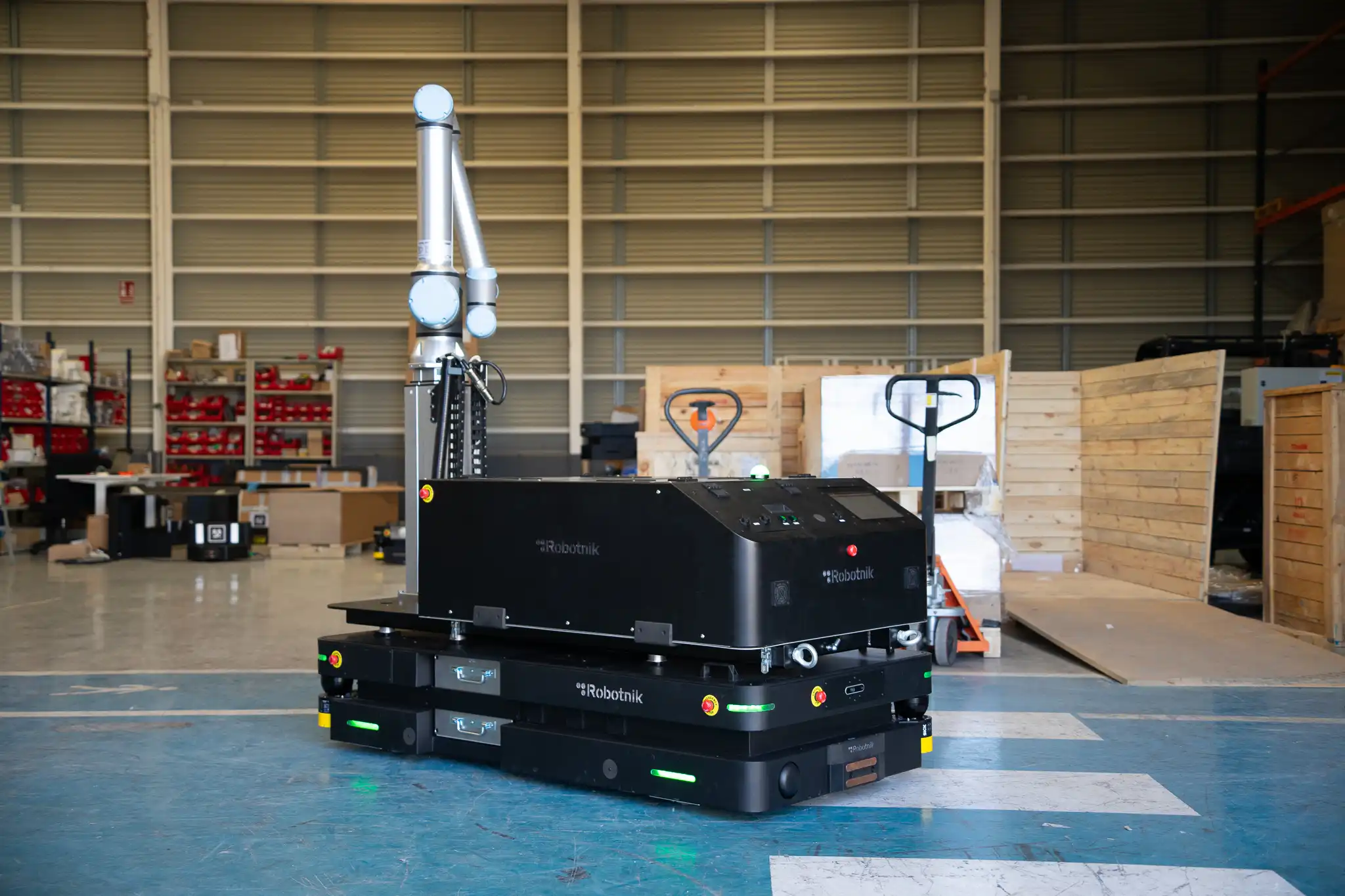

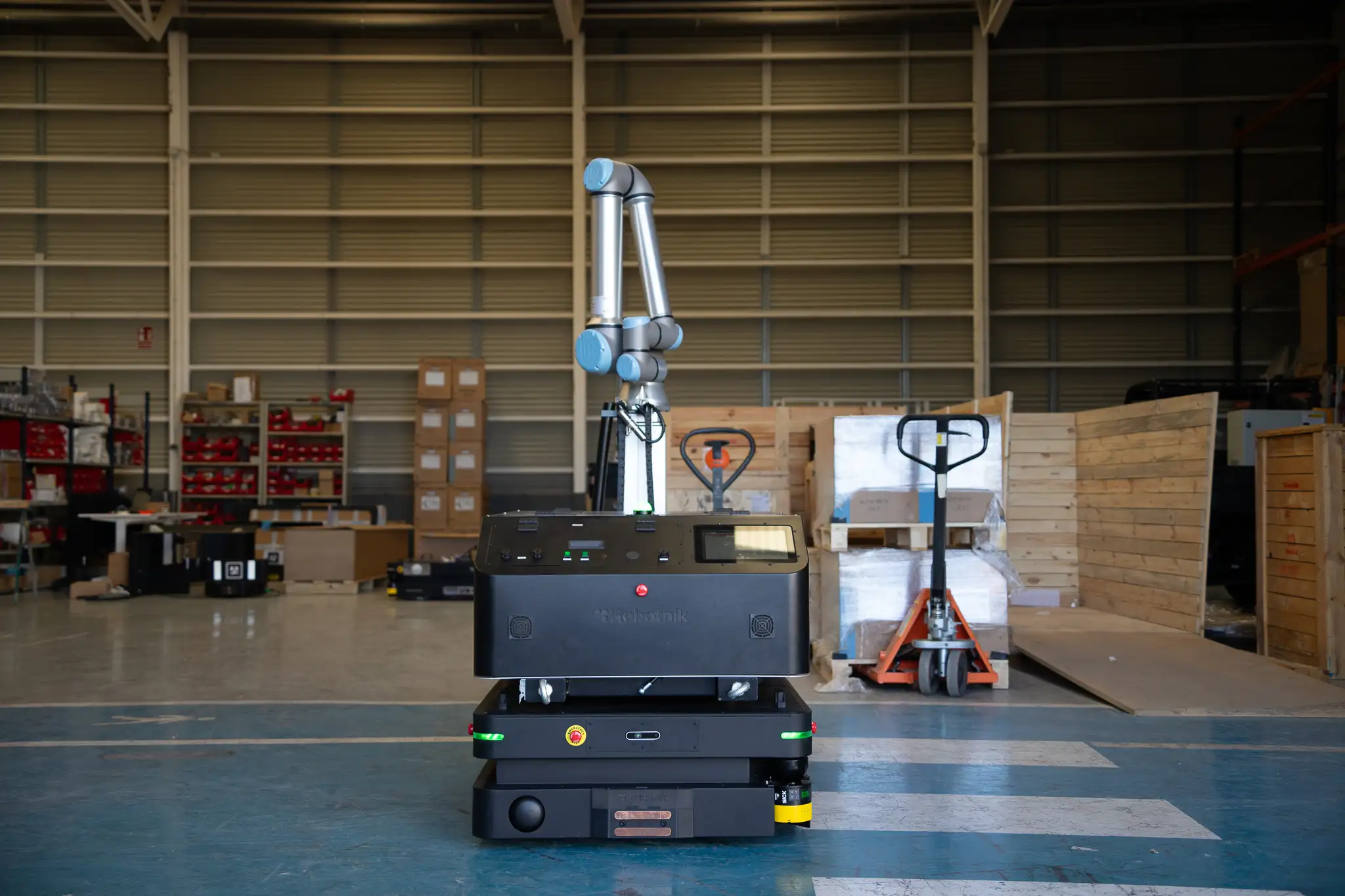

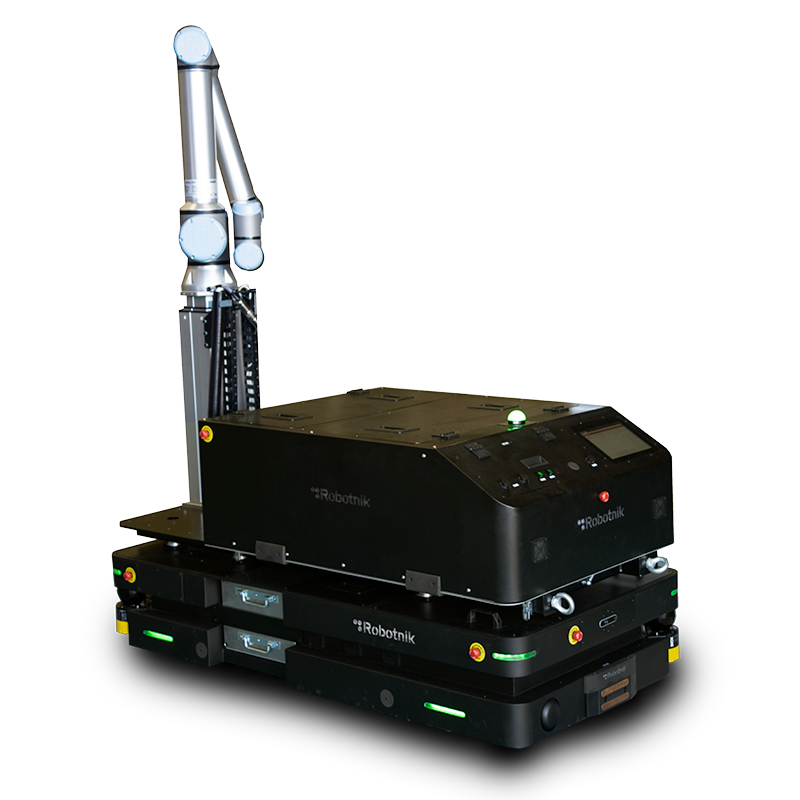

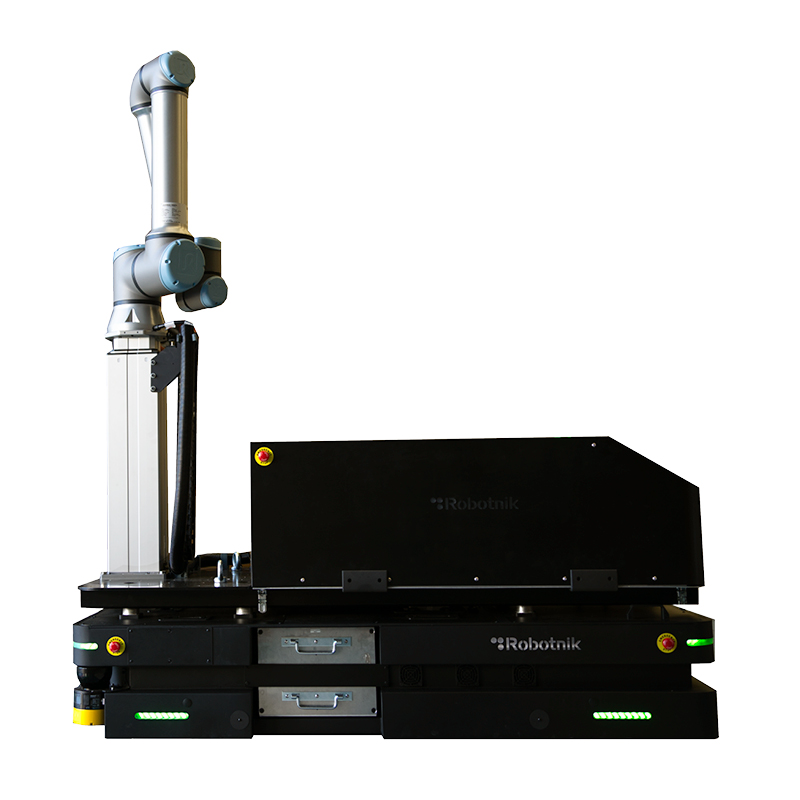

The RB-ROBOUT+ is an autonomous mobile manipulator designed to operate with large parts in industrial environments as it can mount a UR8 Long, UR12e, UR15, UR20 or UR30 robotic arm.

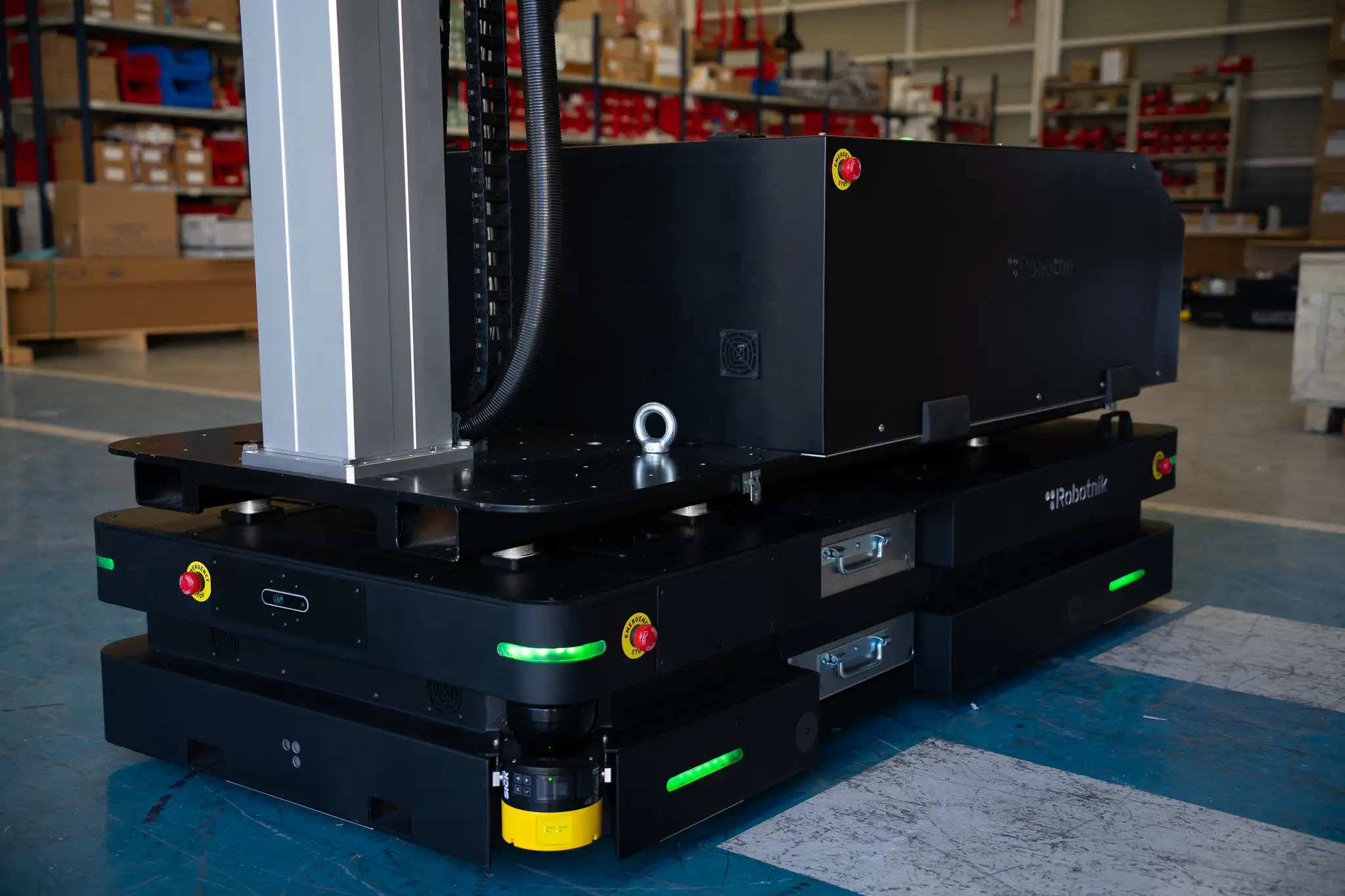

The mobile platform has omnidirectional kinematics that allow it to move in any direction and rotate about its Z-axis, enabling precise manoeuvring in confined spaces or congested areas, optimising trajectories and facilitating its adaptation to various operational applications.
RB-ROBOUT+ is CE certified with integrated PLC and safety lidar and SICK safety architecture to ensure safe interactions with people and other equipment.
Main features
-
- Omni-directional mobility.
- Modular.
- High load capacity.
- Advanced security.
Applications
-
- Material handling.
- Welding.
- Sanding and polishing.
Components included
-
- CPU i7
- Battery 48VDC@100Ah
- 5G Router
- IMU
- Front & Back RGBD camera
- Safety Pack 360º
- 2D Safety LiDARs + Safety PLC
- Mecanum omnidirectional wheels
- Payload: 1.000 kg
- Charging station
| Model Nº | RB-ROBOUT+ |
| Manufacturer | Robotnik Automation |
| Size | 1.789 x 927 x 1.863 mm |
| Payload | 765 kg |
| Arm payload | UR12e: 12,5 kg, UR15: 17,5 kg, UR20: 25 kg, UR30: 35 kg, UR8 Long: 10 kg |
| Arm reach | UR12e: 1.300 mm, UR15: 1.300 mm, UR20: 1.750 mm, UR30: 1.300 mm, UR8 Long: 1.750 mm |
| Arm weight | UR12e: 35 kg, UR15: 40 kg, UR20: 65 kg, UR30: 65 kg, UR8 Long: 45 kg |
| Speed | 1,1 m/s |
| Autonomy | Up to 8 h (depending on arm configuration) |
| Environment | Indoors |
| Enclosure class | IP41 |
| Traction motors | 4 x 600 W with brake |
| Kinematic | Omnidirectional |
| Localization system | GPS, Magnetic guide, SLAM |
| Temperature | 0ºC to 45ºC |
| Maximum slope | 11% |
| Communication | Bluetooth 5.1, WiFi 802.11 b/g/n/ac |
| Connectivity | 12 V, 24 V, VBATT, Ethernet, HDMI, USB |
Supported versions:
-
- Noetic.
