Magician E6
Manufacturer: Dobot
Robotic arm.
Estimated delivery time: 4 – 6 weeks
10.200,00 €
Available on backorder
Available on backorder

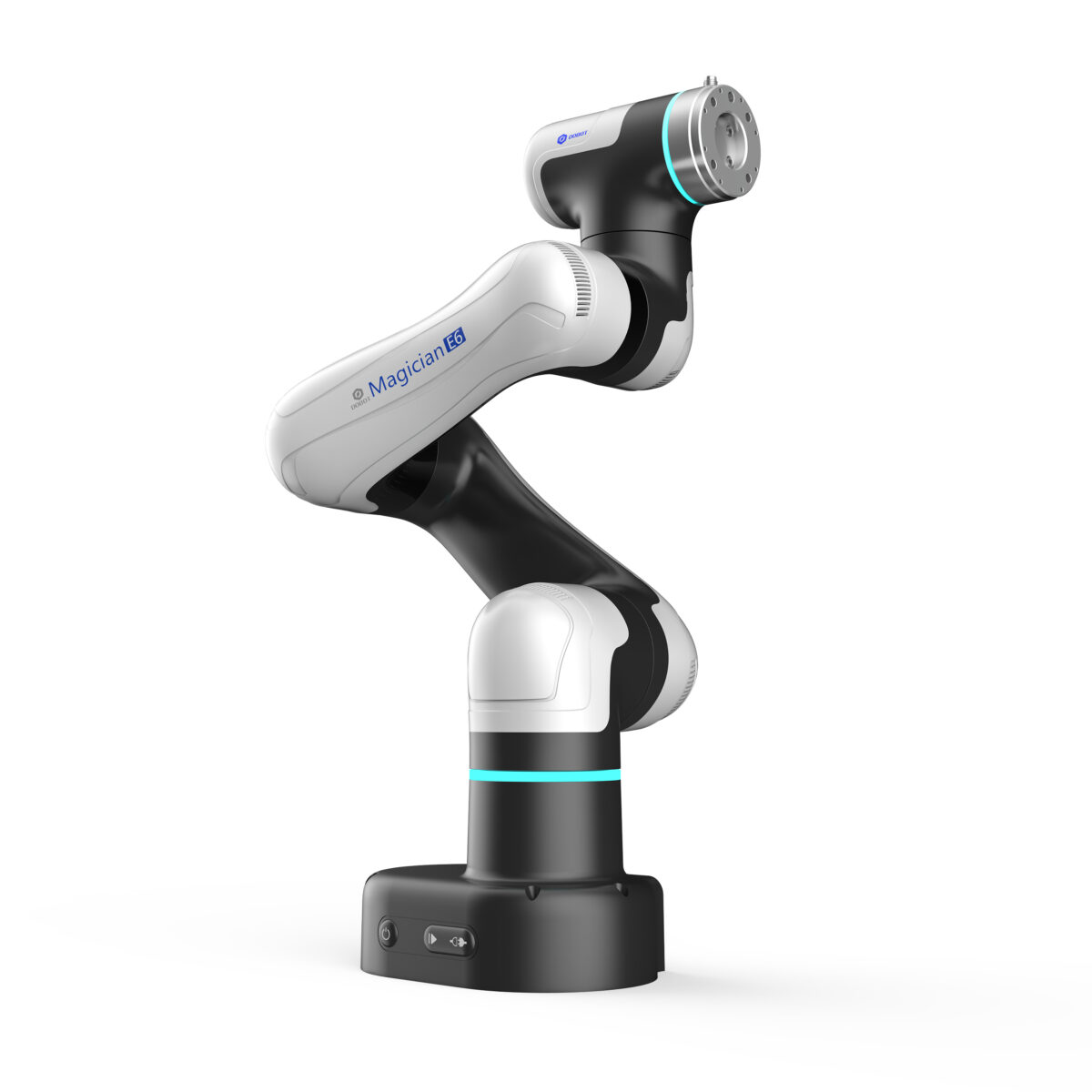

The DOBOT Magician E6 is a 6-axis desktop collaborative robot designed for technical education, scientific research, and robotics development.
Its compact design enables accurate simulation of real automation scenarios with high precision and repeatability. It features drag-to-teach no-code programming, multiple communication interfaces, and an open platform for advanced development.
With plug-and-play deployment, integrated control, and collision detection, it supports safe hands-on learning and experimentation in robotics, artificial intelligence, and smart manufacturing across academic and innovation environments.
Main features
-
- 6-axis desktop collaborative robot with high positioning accuracy.
- Drag-to-teach no-code programming and graphical programming support.
- Compact design with integrated controller and plug-and-play deployment.
- Multiple communication interfaces for system integration and advanced development.
Applications
-
- Robotics, automation, and STEM education.
- Scientific research and artificial intelligence experimentation.
- Industrial process simulation and prototyping.
- Robotic control and automation algorithm development.
| Manufacturer | Dobot |
| Model Nº | Magician E6 |
| Weight | 7,2 kg |
| Size | 162 x 120 x 103 mm |
| Number of axes | 6 |
| Payload | 0,75 kg |
| Reach | 450 mm |
| Repeatability | ± 0,1 mm |
| Power supply | 100 - 240 V, 50/60 Hz |
| Power input | 48V DC, 5A |
| Power Consumption | 130W |
| Temperature | 0 °C - 40 °C |
