BH8-282
Manufacturer: Barrett Technology, Llc
Robotic hand.
Estimated delivery time: 10 weeks.
38.000,00 €
Available on backorder
Available on backorder

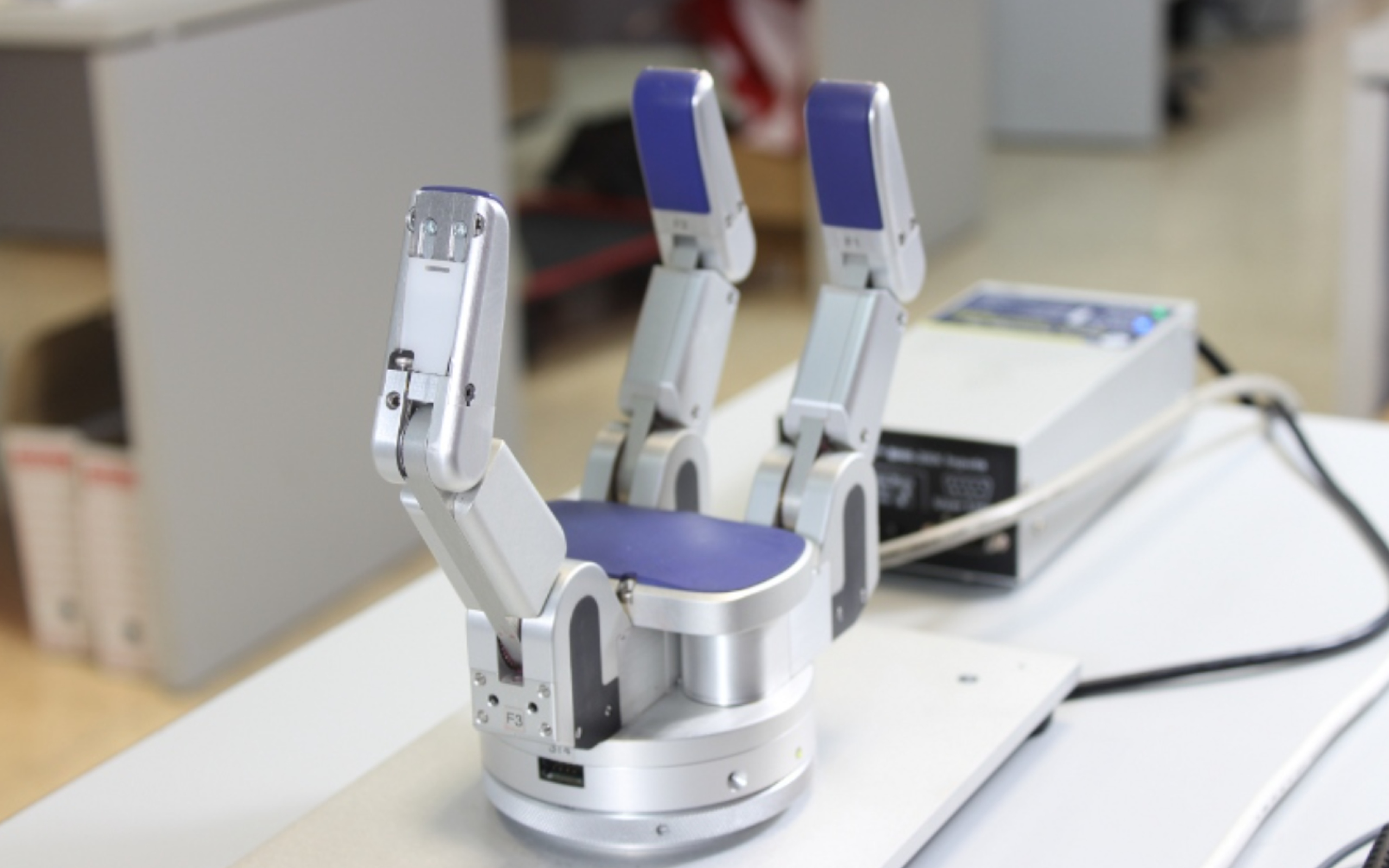

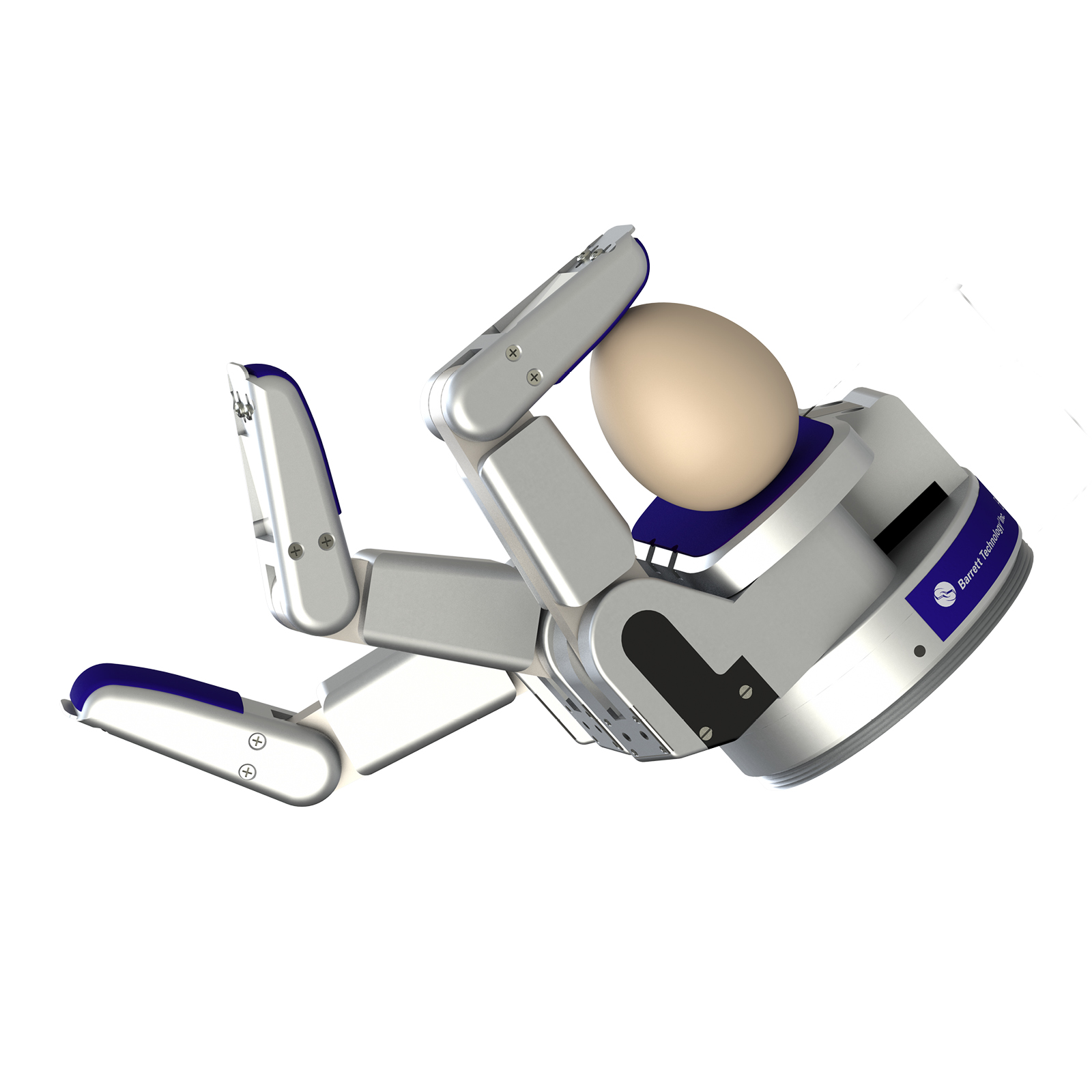

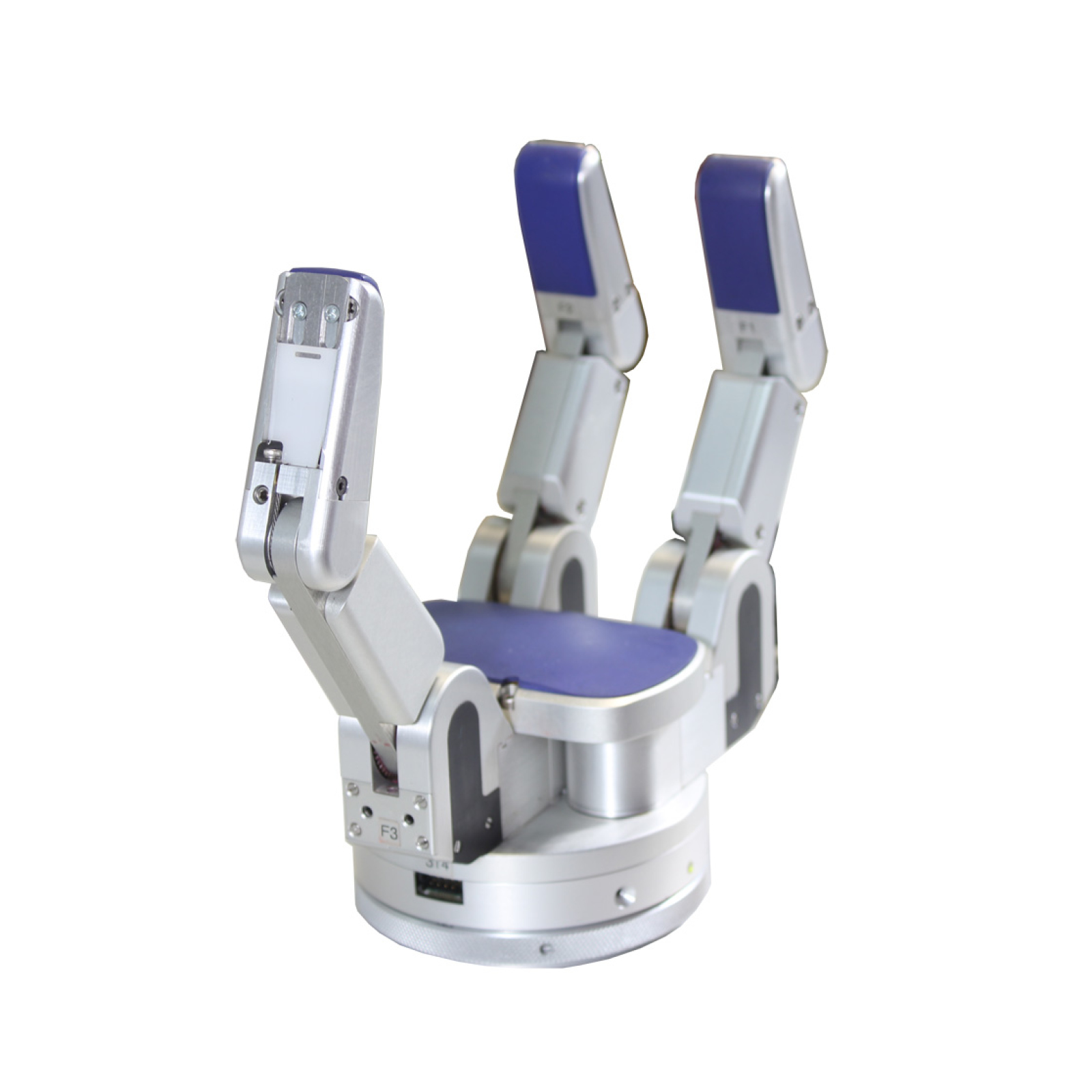

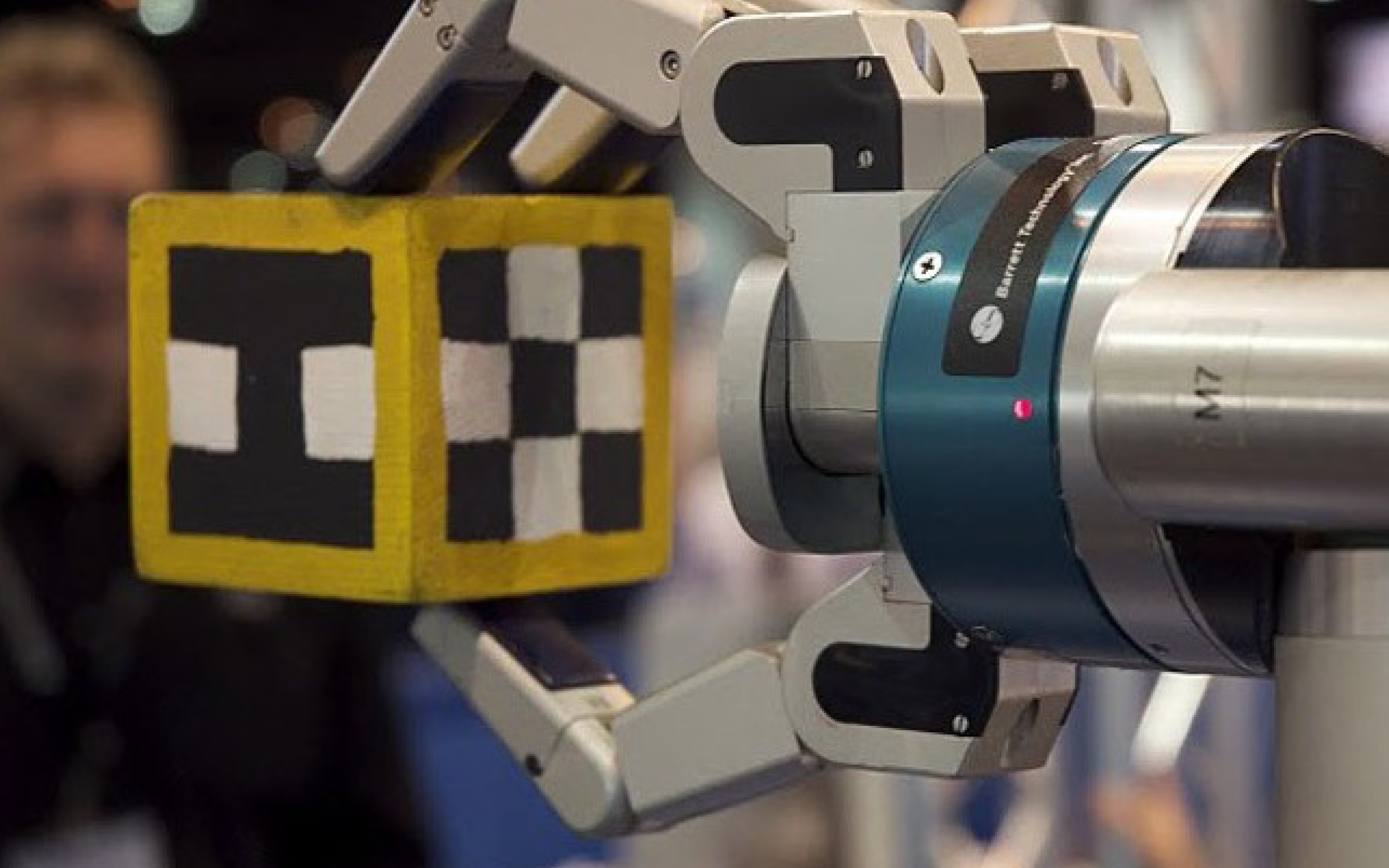

The BH8-282 is an anthropomorphic robotic hand designed to replicate the movements and dexterity of a human hand. Equipped with multiple degrees of freedom, it allows a wide range of manipulations and grips.
Its design is lightweight and compact but has the dexterity to grasp objects of different sizes, shapes and orientations. It uses industry-standard serial communications or high-speed CANbus (including USB adapters), allowing quick and easy integration with any robotic arm, adding value to flexible automation tasks.
Main features
-
- Improved dexterity for complex movements.
- Versatility and compatibility with various control systems.
- Modular design for ease of maintenance and customisation.
- Easy integration.
Applications
- Research and Development.
- Industrial automation.
- Handling of parts and components.
| Manufacturer | Barrett Technology, Llc |
| Model Nº | BH8-282 |
| Weight | 0,98 kg |
| Payload | 6 kg |
| Motor encoder resolution | 4096 counts |
| Motor type | Brushless electric |
| Communication | CAN / RS-232 / USB Adapters provided |
| Finger speed | Finger full open to close: 1 s / Full 180 degree: 0,5 s |

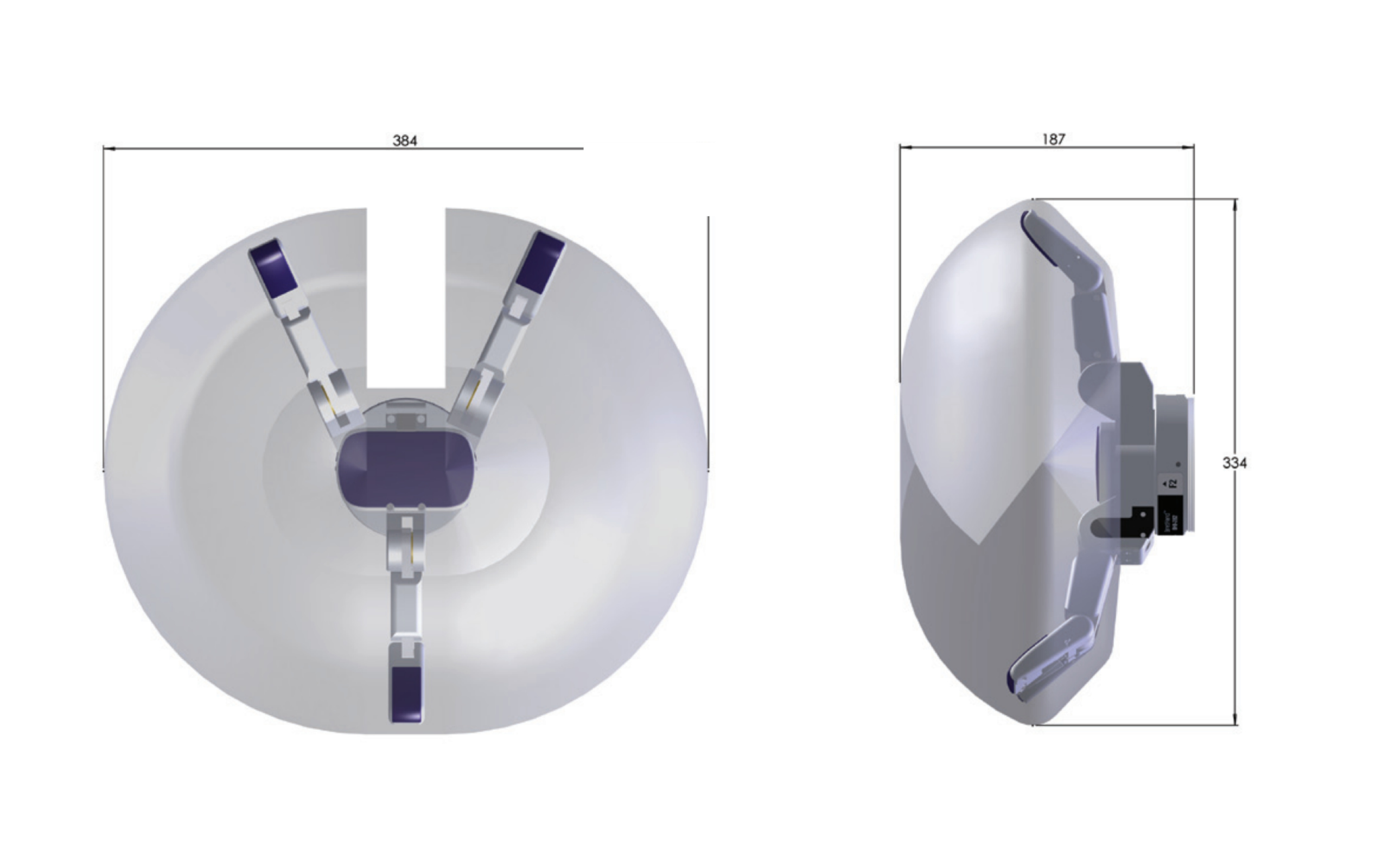

| Size | 204 x 90 x 54 mm |
| Communication Protocol | CAN, RS-232 |
| Interface | Graphical User Interface (GUI) |
| Voltage | 20 - 80 VDC |
| Gripping time | 0,5 - 1,0 s |
| Nº of fingers | 3 (1 fix, 2 rotable) |
| Hand axis | 8 |
Official ROS Packages:
