RB-ROBOUT
Manufacturer: Robotnik Automation
Autonomous Mobile Robot.
Available on backorder
Available on backorder

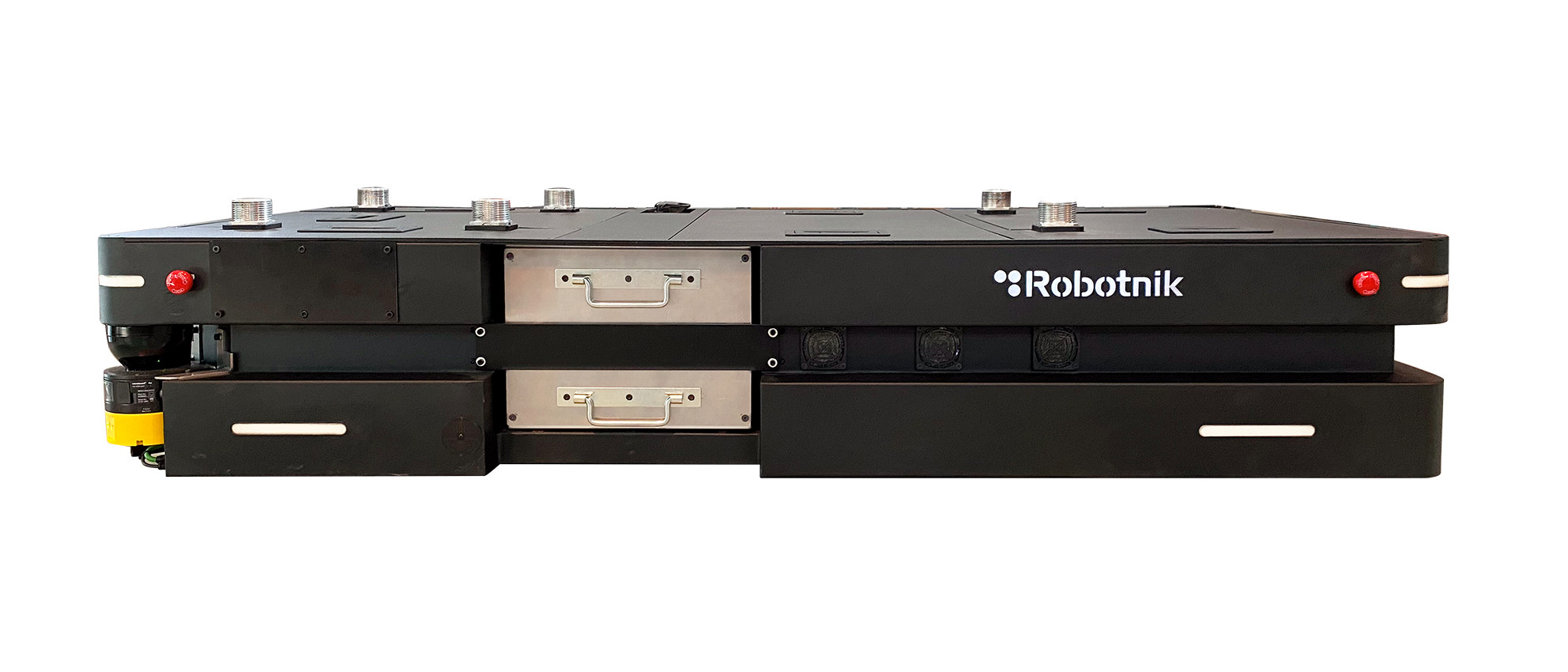

The RB-ROBOUT is an autonomous mobile robot designed to transport loads up to 2 tonnes in indoor industrial environments.
Its steel structure, low height and compact dimensions make it ideal for moving carts or loads directly on its platform.
Equipped with omnidirectional drive wheels, it guarantees maneuverability and power. Integrates lasers and safety certifications to share workspace with operators.

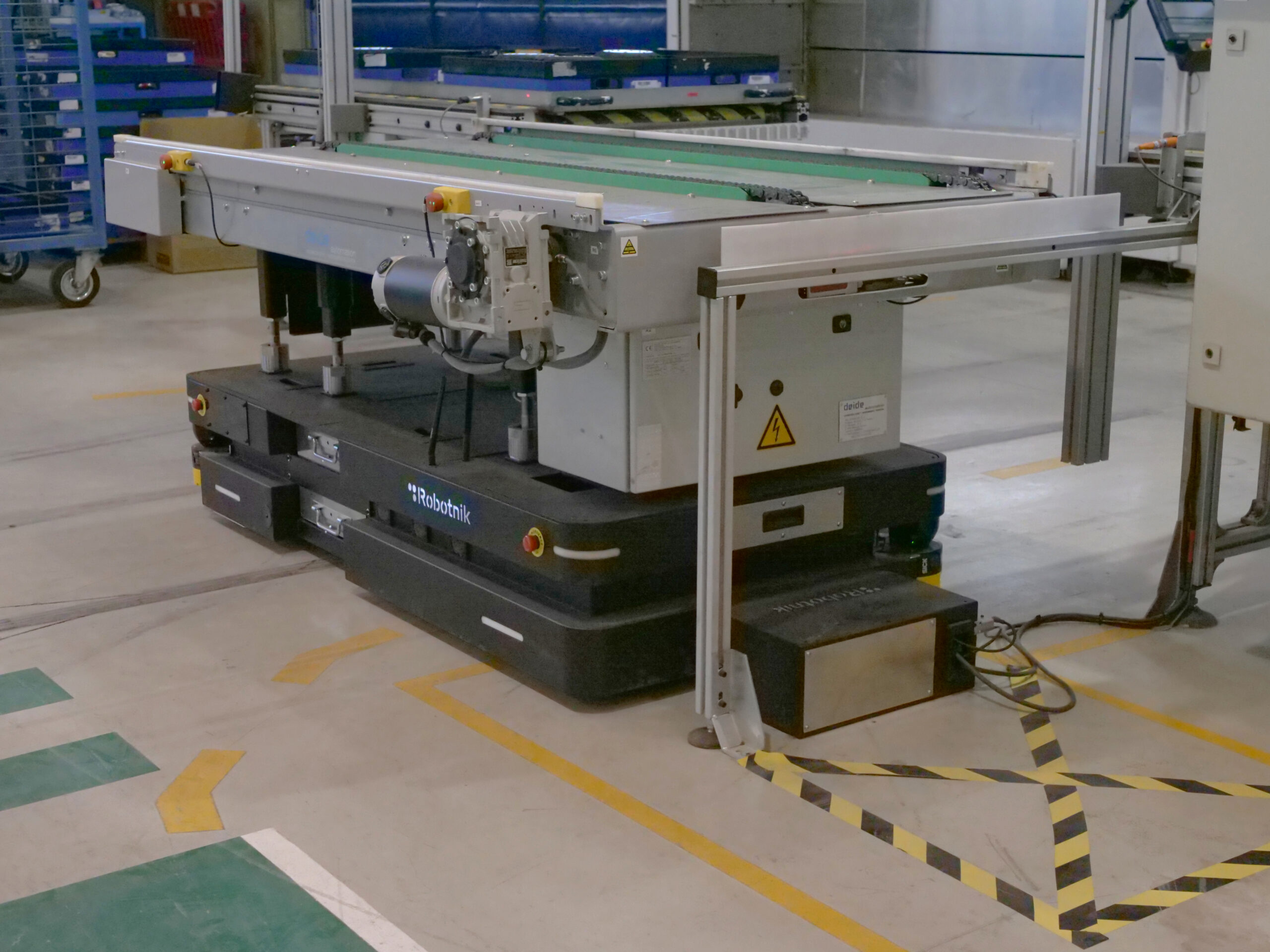

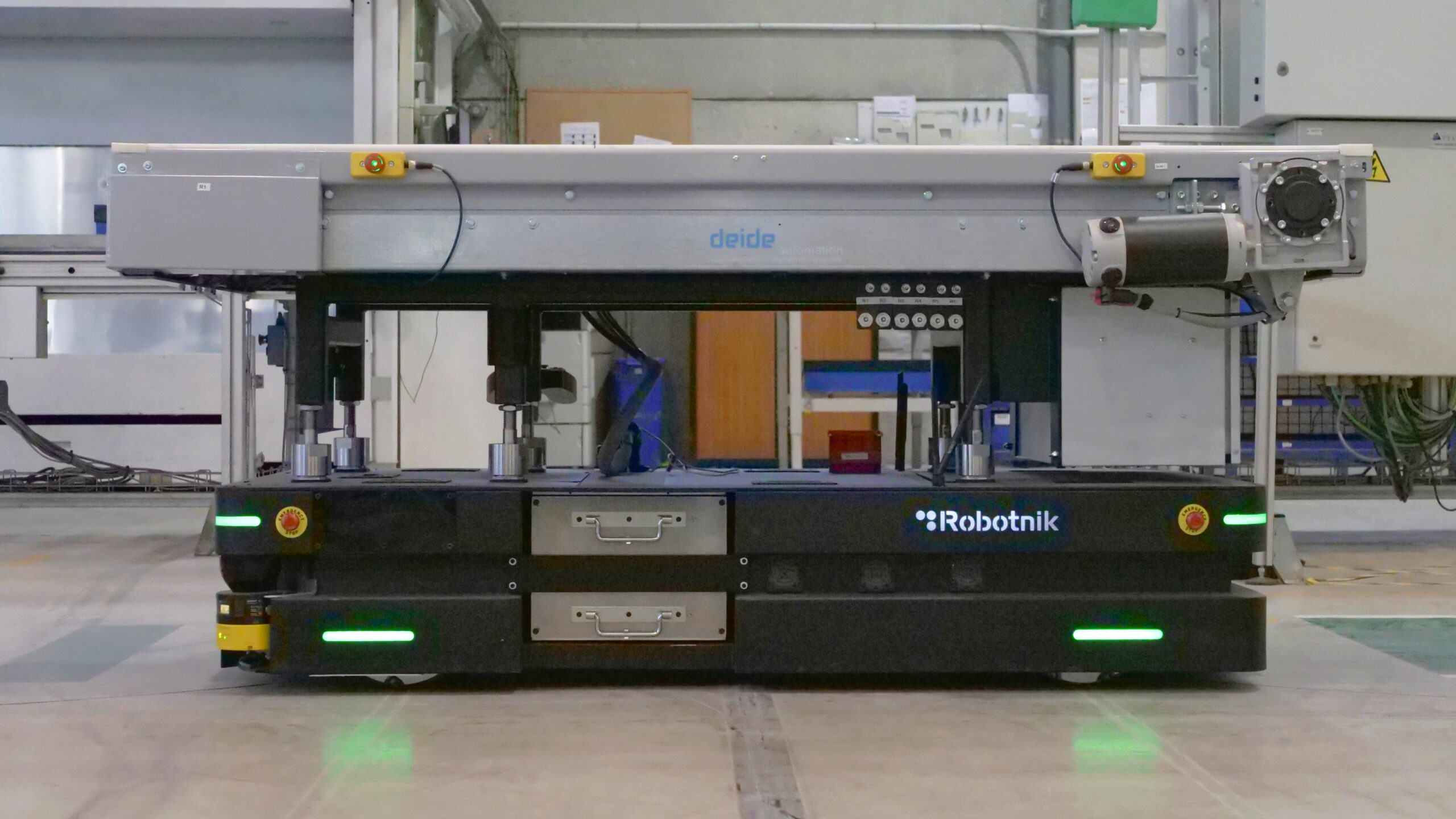

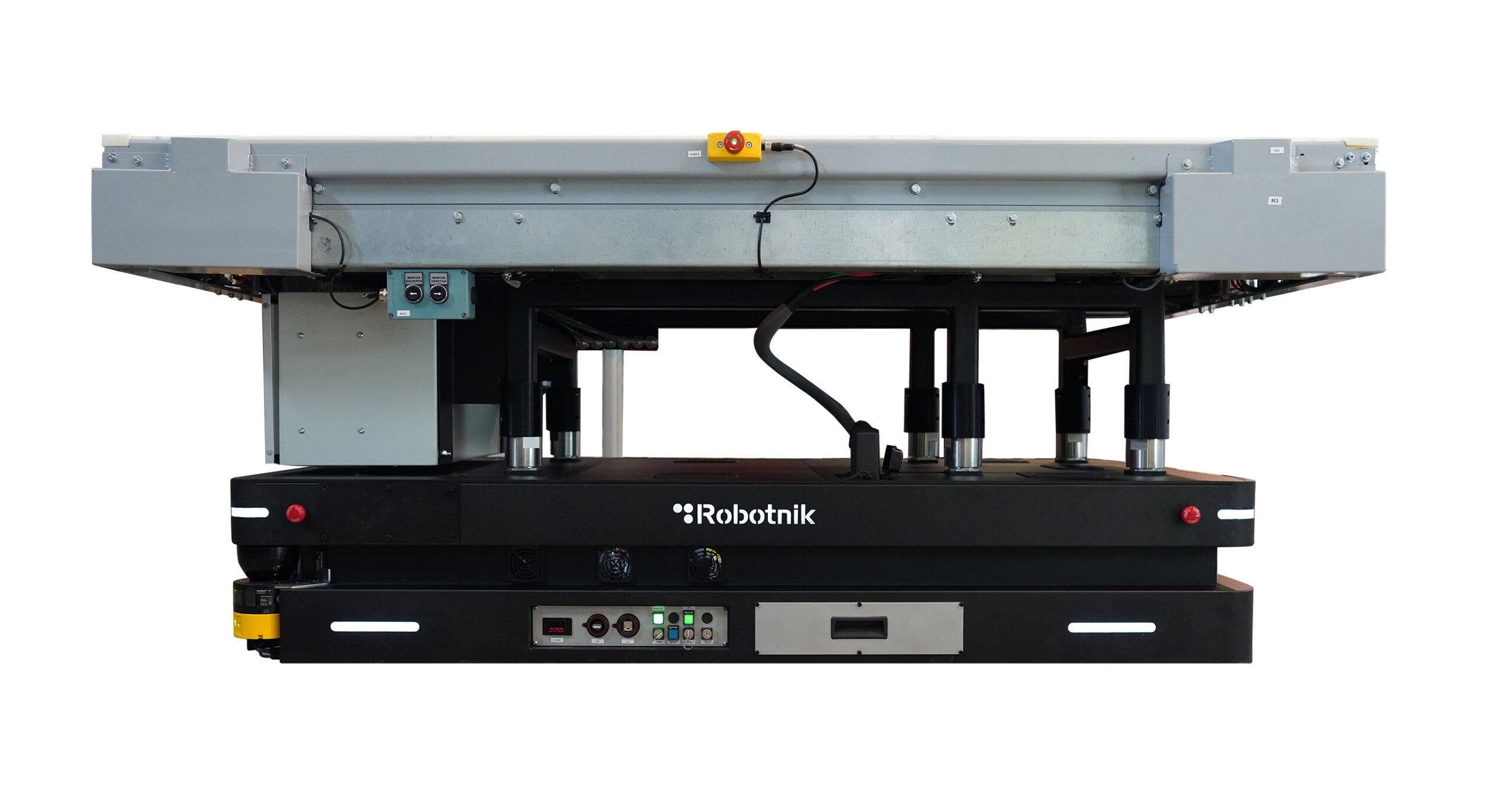

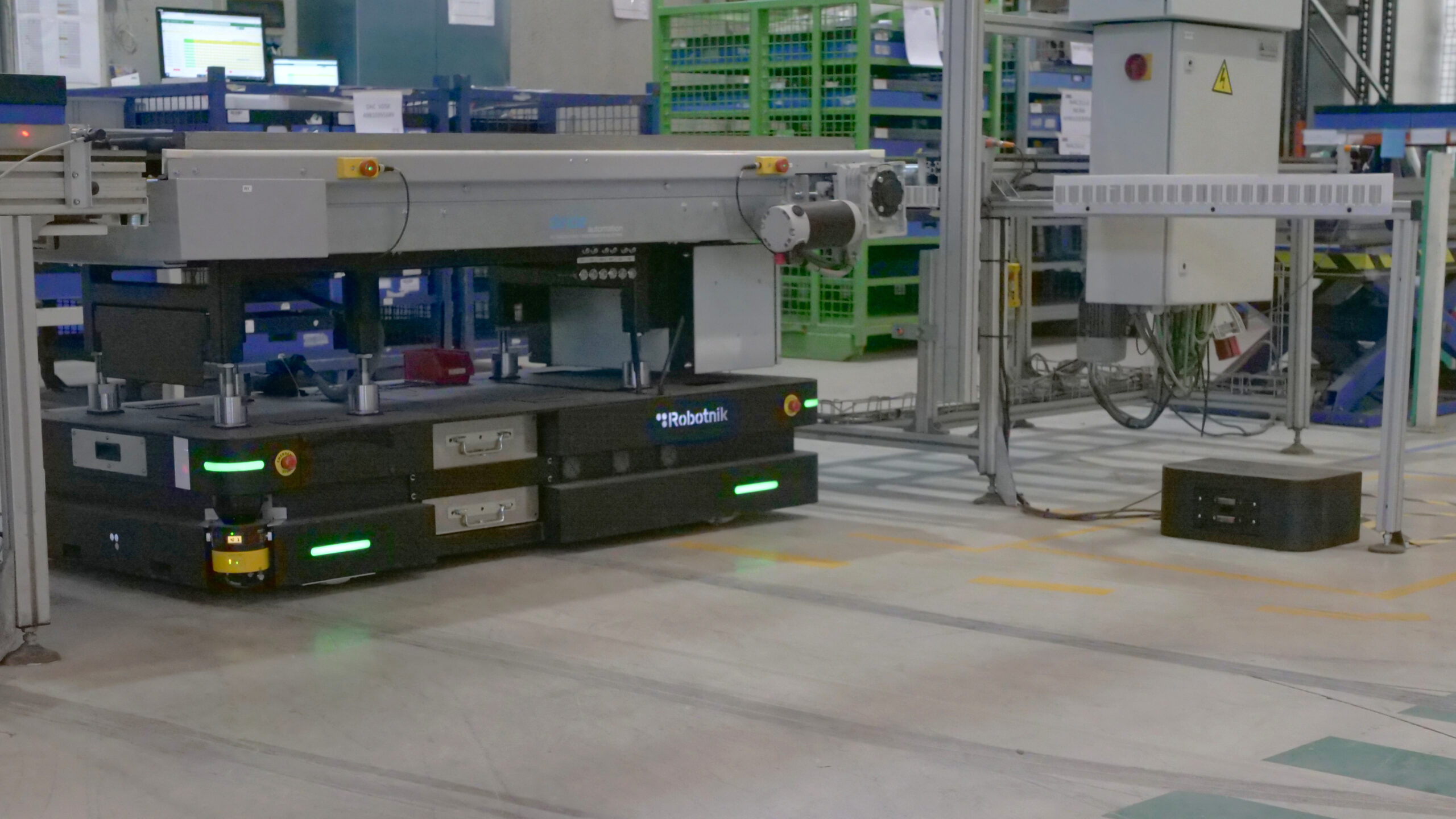

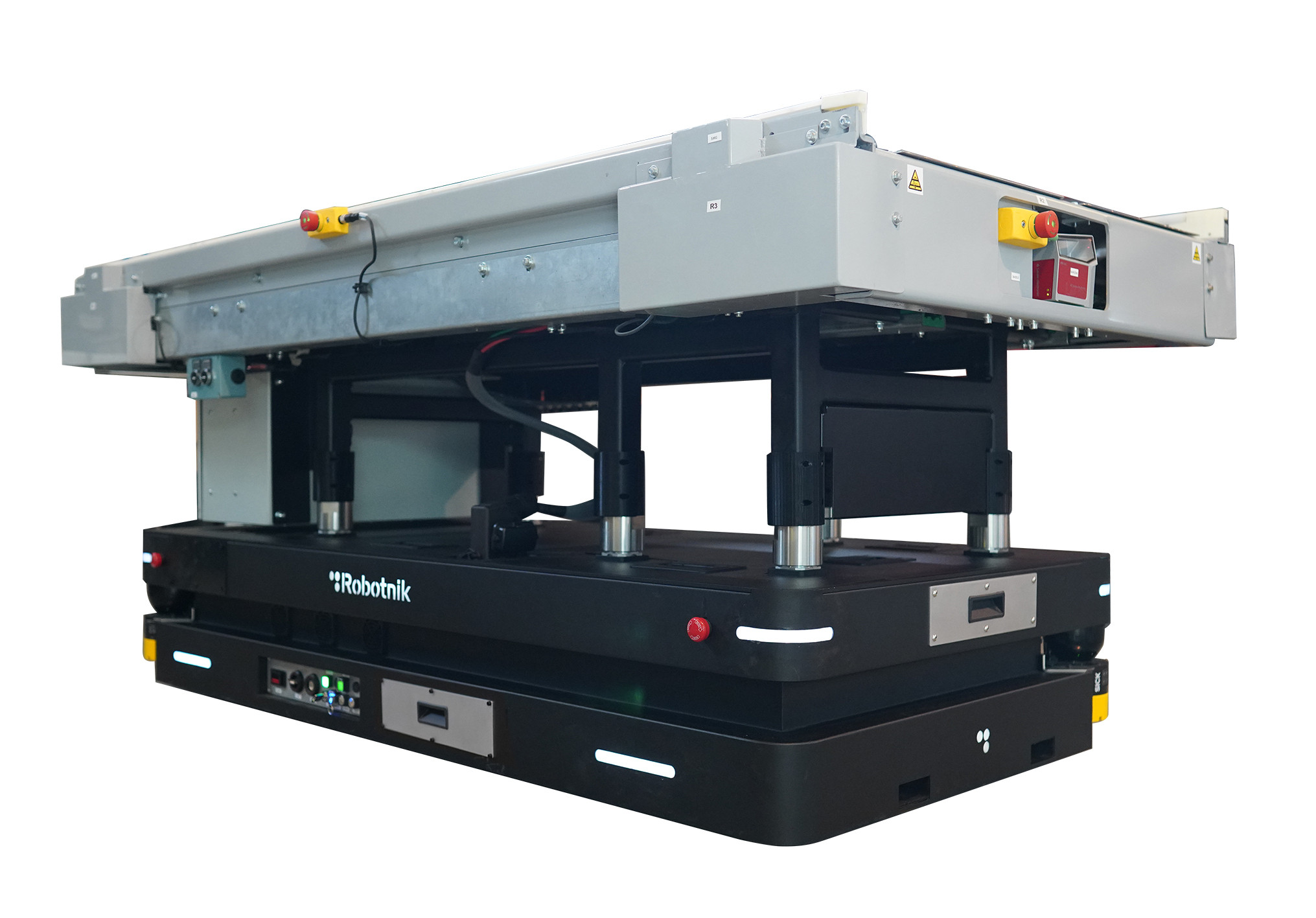

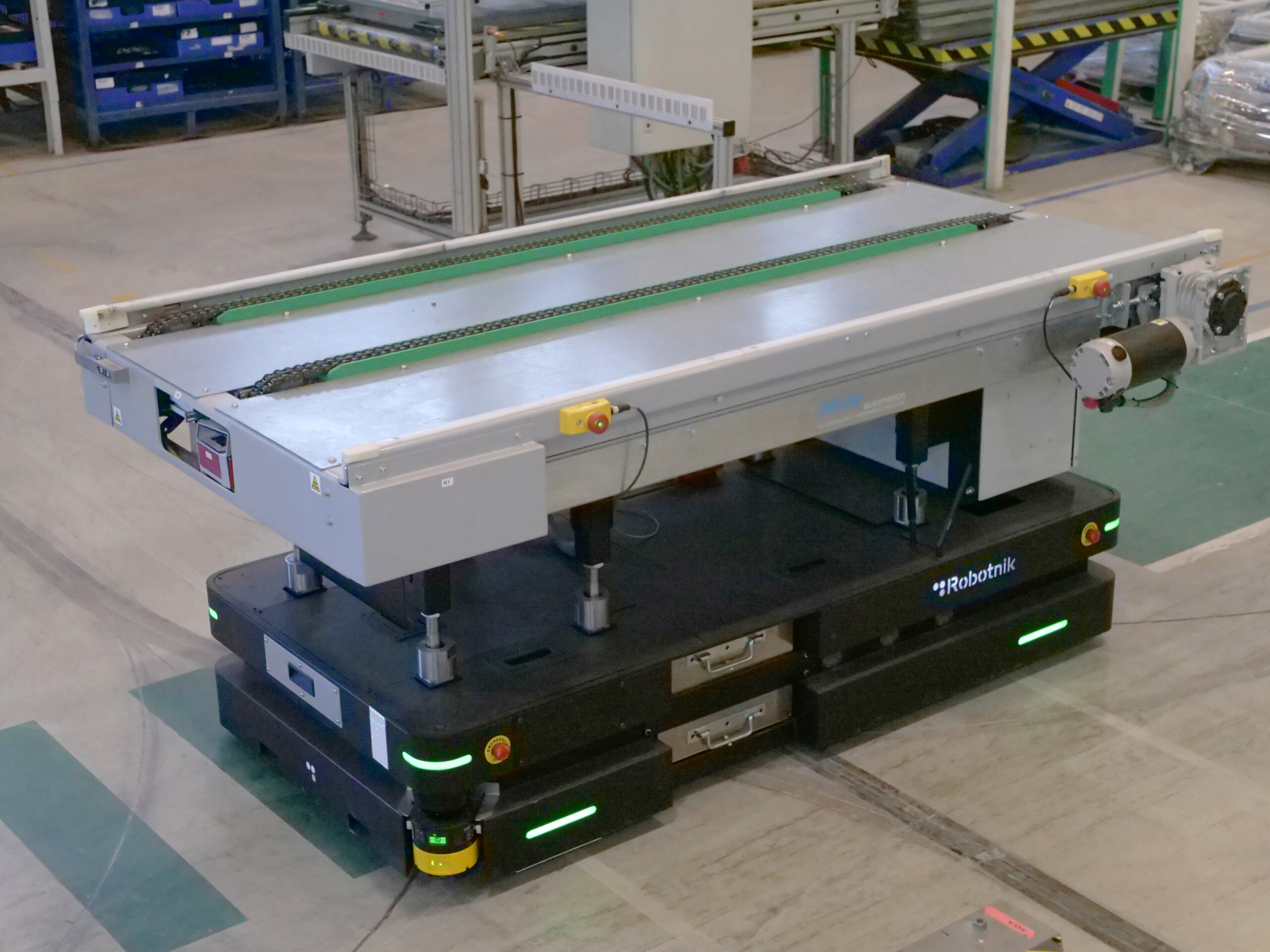

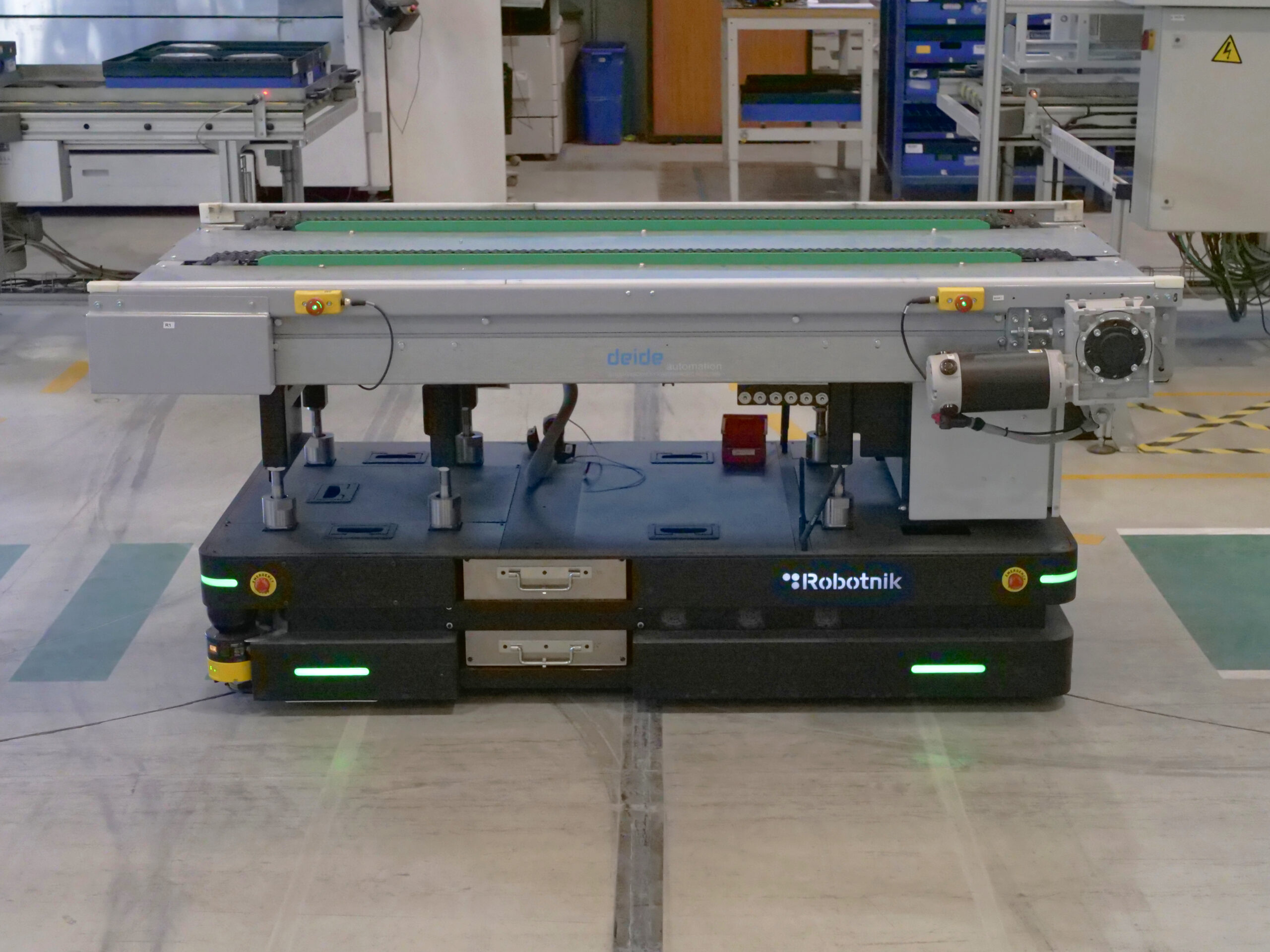

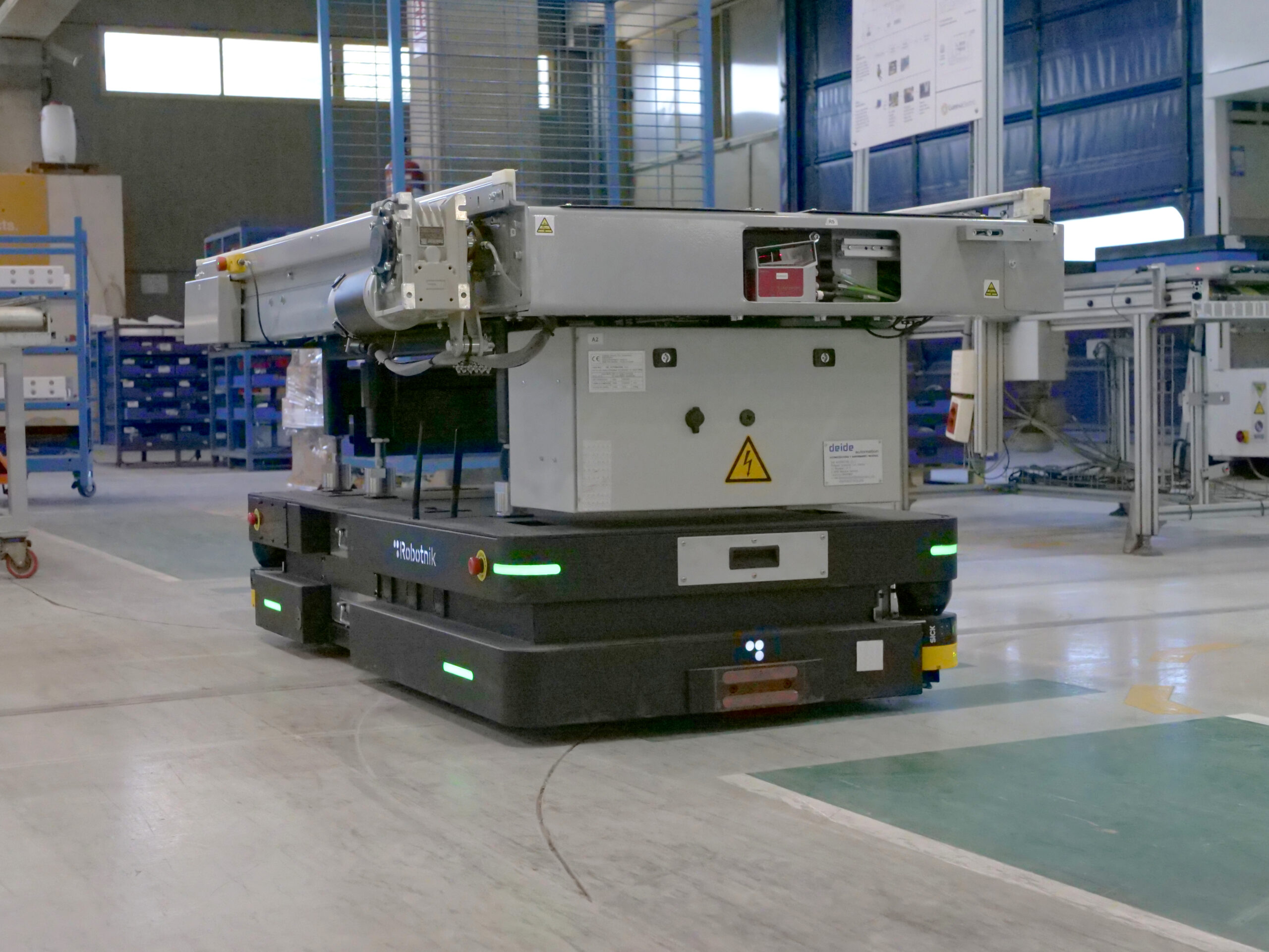

It works with SLAM or filoguided navigation for high precision, adapting to different needs. In addition, it offers accessories such as rollers, conveyors and elevators, expanding its functionality and efficiency in various industrial tasks.
Main features
-
- Omnidirectional Kinematics.
- Modular.
- Load capacity up to 2 tonnes.
- Open architecture in ROS / ROS2.
Applications
-
- Logistics.
- Transportation of goods.
- Loading and unloading.
Included components
-
- CPU i7
- Battery 48VDC@100Ah
- 5G Router
- IMU
- Front & back RGBD camera
- Safety Pack 360º

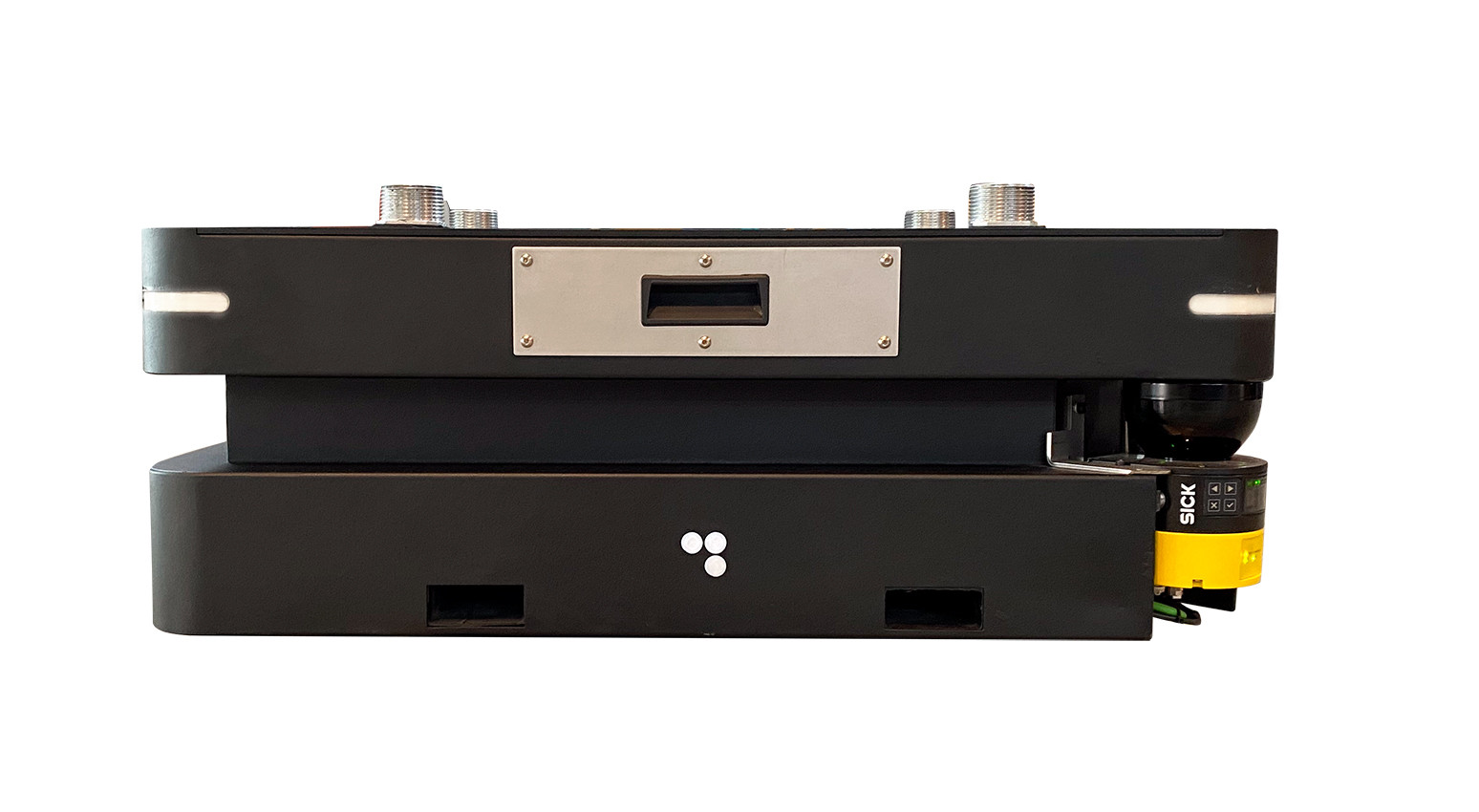

- 2D Safety LiDARs + Safety PLC
- Mecanum omnidirectional wheels
- Payload: 1.000 kg

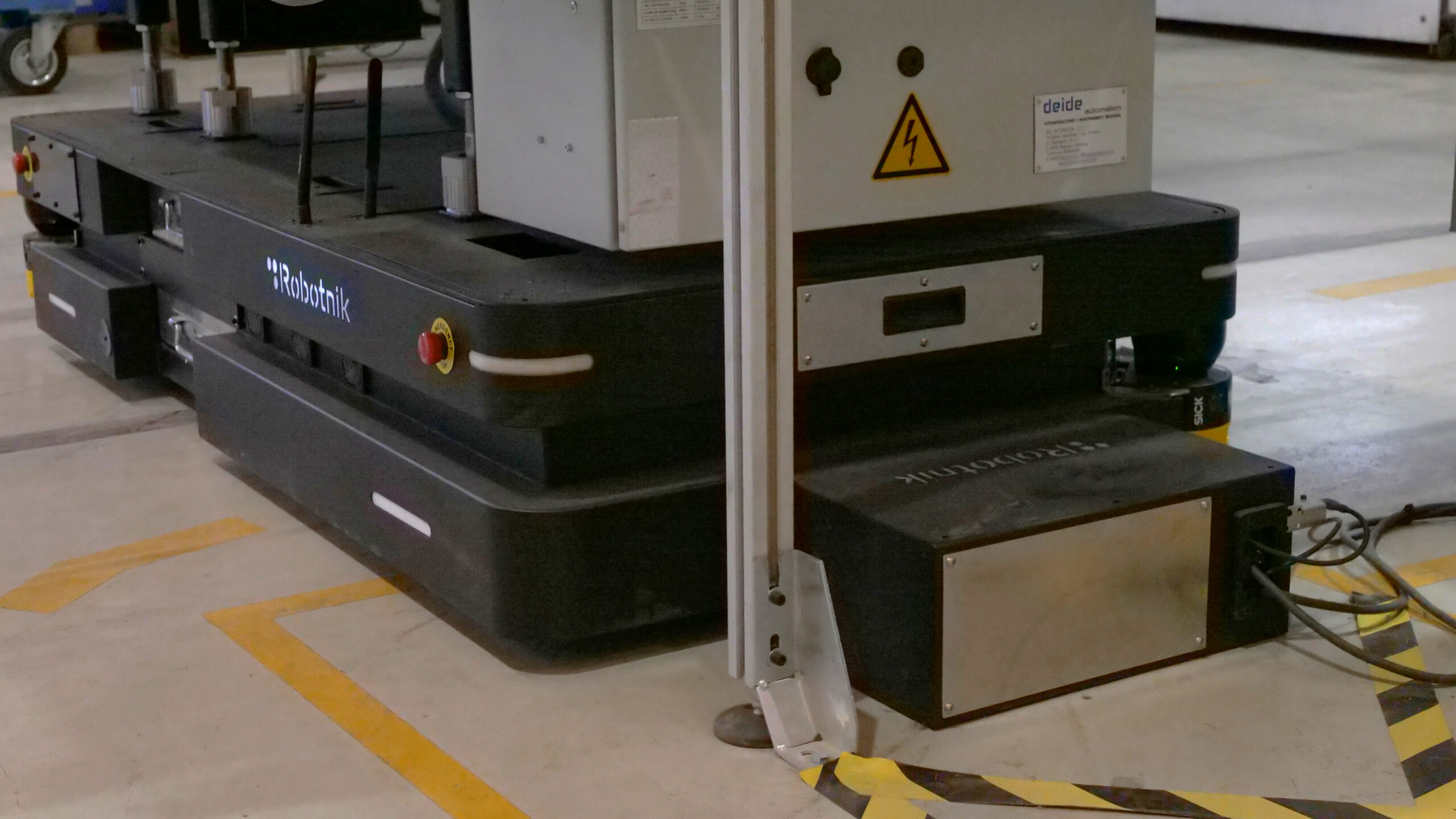

- Charging station
| Model Nº | RB-ROBOUT |
| Manufacturer | Robotnik Automation |
| Size | 1.758 x 891 x 372 mm |
| Weight | 360 kg |
| Speed | 1,1 m/s |
| Autonomy | Up to 10 h |
| Payload | Up to 2.000 kg |
| Environment | Indoors |
| Enclosure class | IP42 |
| Traction motors | 4 x 750 W with brake |
| Kinematic | Omnidirectional |
| Localization system | Magnetic guide, SLAM |
| Temperature | 0ºC to 45ºC |
| Maximum slope | 11% |
| Anchor points | 6 on the top |
| Communication | Bluetooth 4.0, WiFi 802.11 b/g/n/ac |
| Connectivity | 12 V, 24 V, VBATT, Ethernet, HDMI, USB |
Supported versions:
-
- Noetic.
