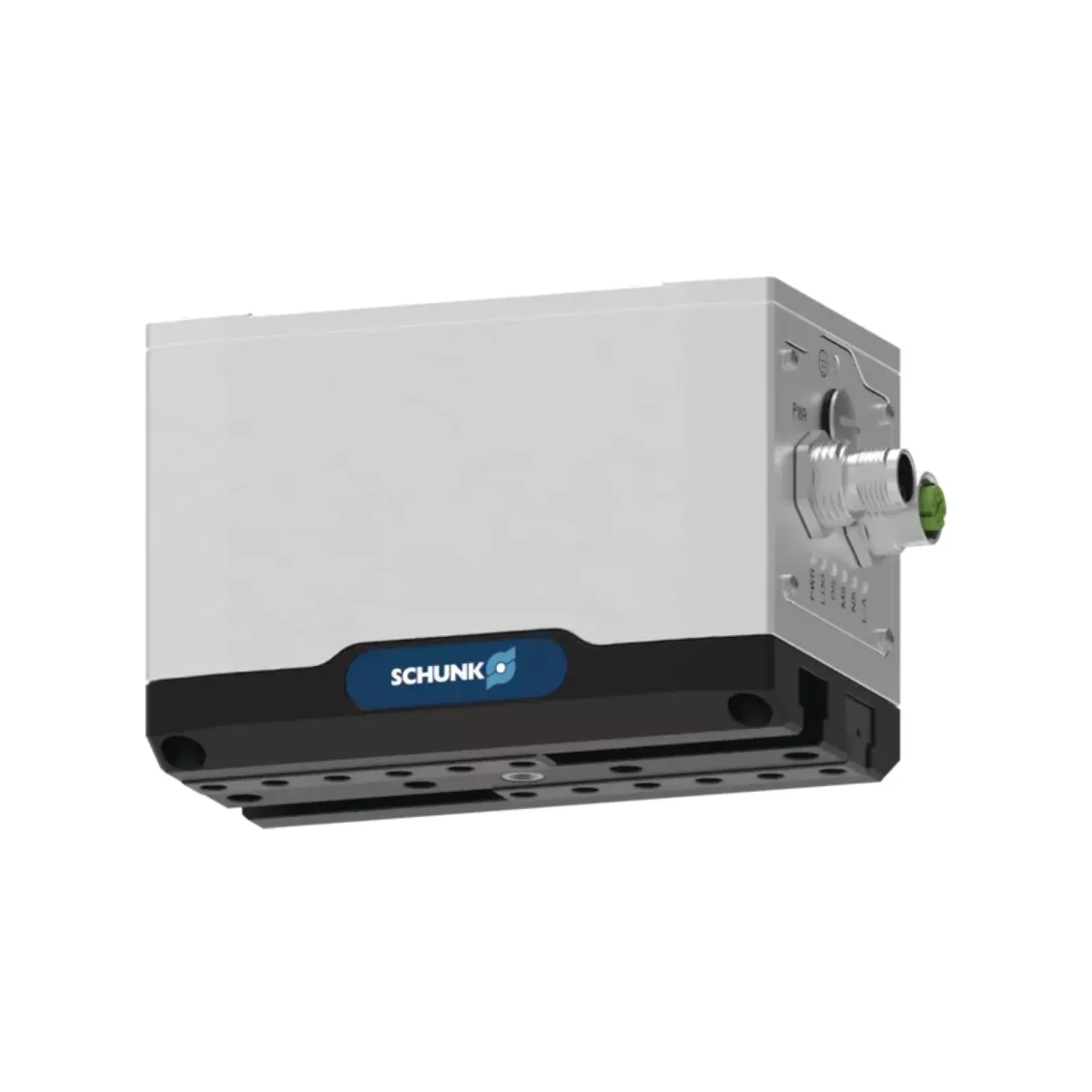

EGU 50-PN-N-B
Manufacturer: Schunk
Robotic gripper. Fingers not included.
The ROS drivers of this product aren’t available yet, but it can be integrated with all major robot brands very easily. Please, consult us.
Available on backorder
Available on backorder
Schunk’s EGU 50-PN-N-B universal gripper is a versatile solution for handling tasks in multiple applications such as machine tool loading and unloading, assembly and joining tasks or parts handling.
It features a high level of precision and gripping force and can be easily and intuitively integrated into most robot arms from leading manufacturers thanks to a wide range of available communication interfaces, software modules and plug-ins.
Main features
-
- Versatile and flexible.
- Easily programmable.
- Robust and accurate, even in sensitive environmental conditions.
- Leak detection and emergency stop in case of possible failures
Applications
-

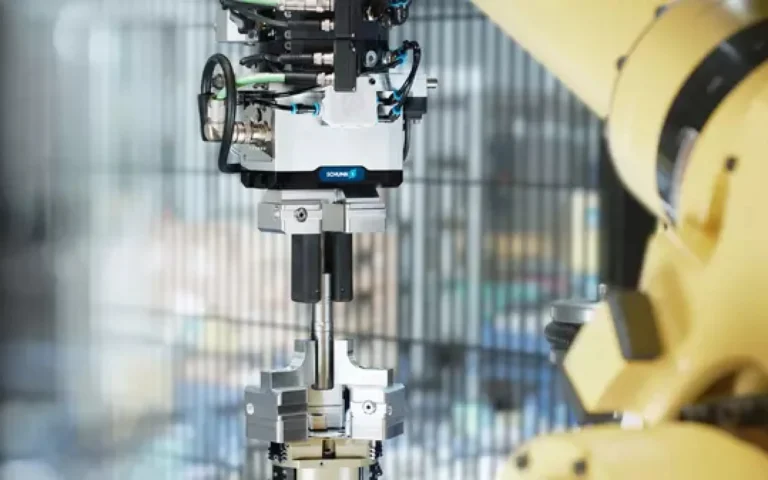

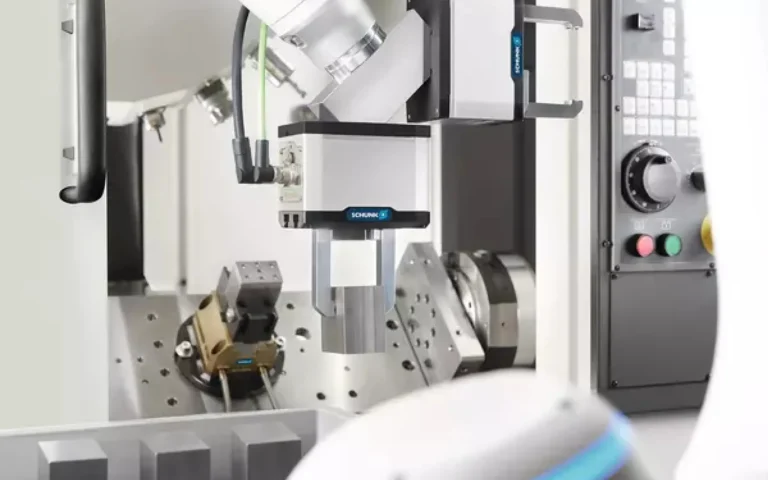

- Machinery loading and unloading.
- Assembly and joining of parts or components.

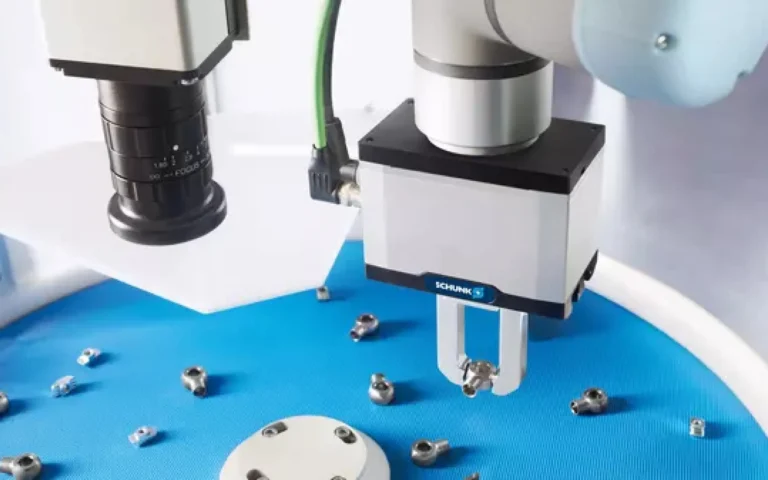

- Parts handling.
| Manufacturer | Schunk |
| Model Nº | EGU 50-PN-N-B |
| Temperature | 5°C - 55°C |
| Weight | 1,44 kg |
| Length X | 122 mm |
| Height Z | 88 mm |
| Width Y | 72 mm |
| Enclosure class | Electronics: IP67 Guide/base jaws: IP40 |
| Repeatability | Repeat accuracy (gripping): 0.02 mm Repeat accuracy (positioning, unidirectional): 0.05 mm Repeat accuracy (positioning, bi-directional): 0.15 mm |
| Interface | PROFINET |
| Stroke per jaw | 51 mm |
| Min. gripping force | 150 N |
| Max. gripping force | 300 N |
| Max. permissible finger length | 80 mm |
| Recommended workpiece weight | 0,4 kg |
| Opening time | 0,8 s |
| Closing time | 0.8 s |
