EGM-M-Q-30-1-FX
Manufacturer: Schunk
Magnetic gripper.
The ROS drivers of this product aren’t available yet, but it can be integrated with all major robot brands very easily. Please, consult us.
Available on backorder
Available on backorder

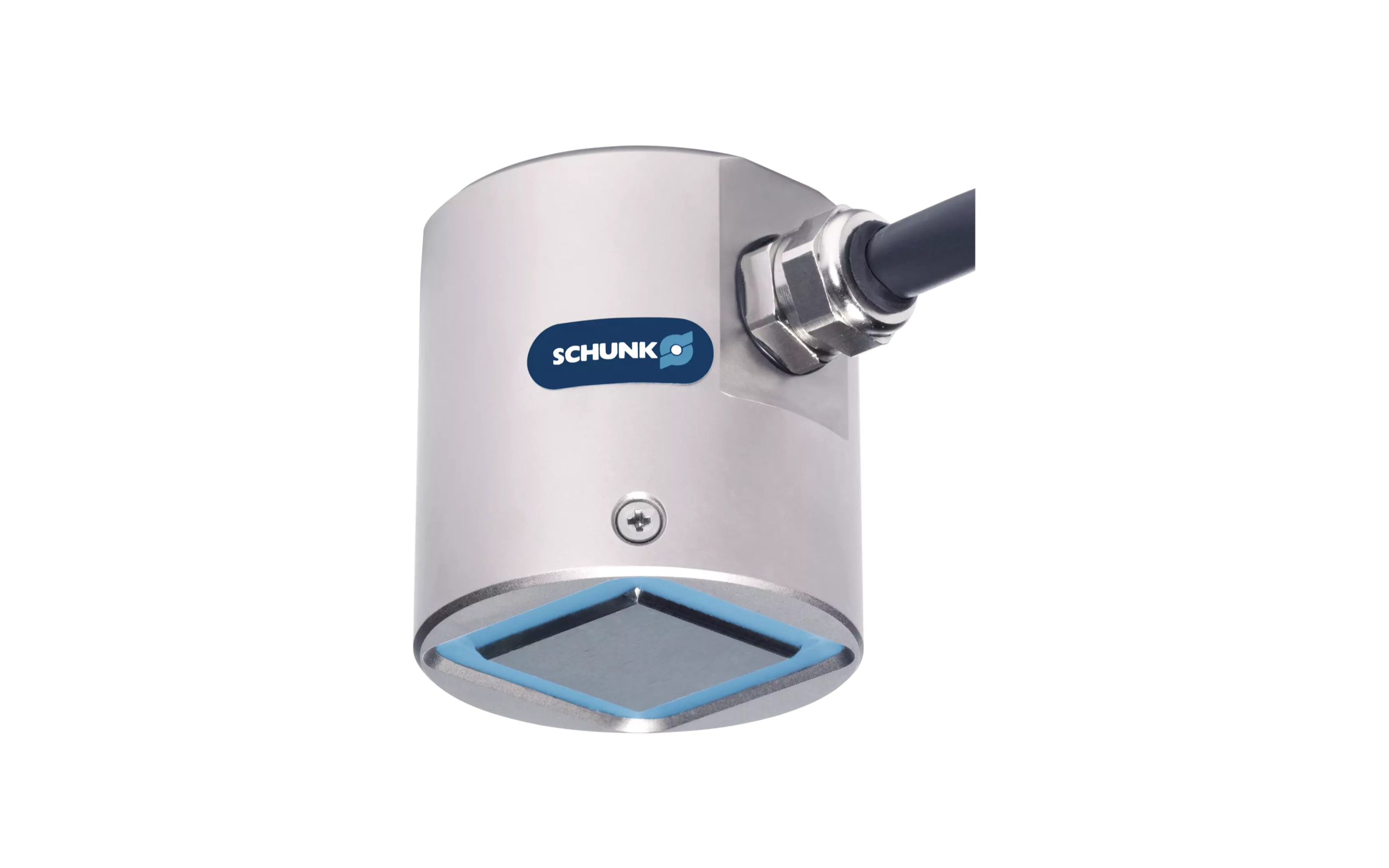

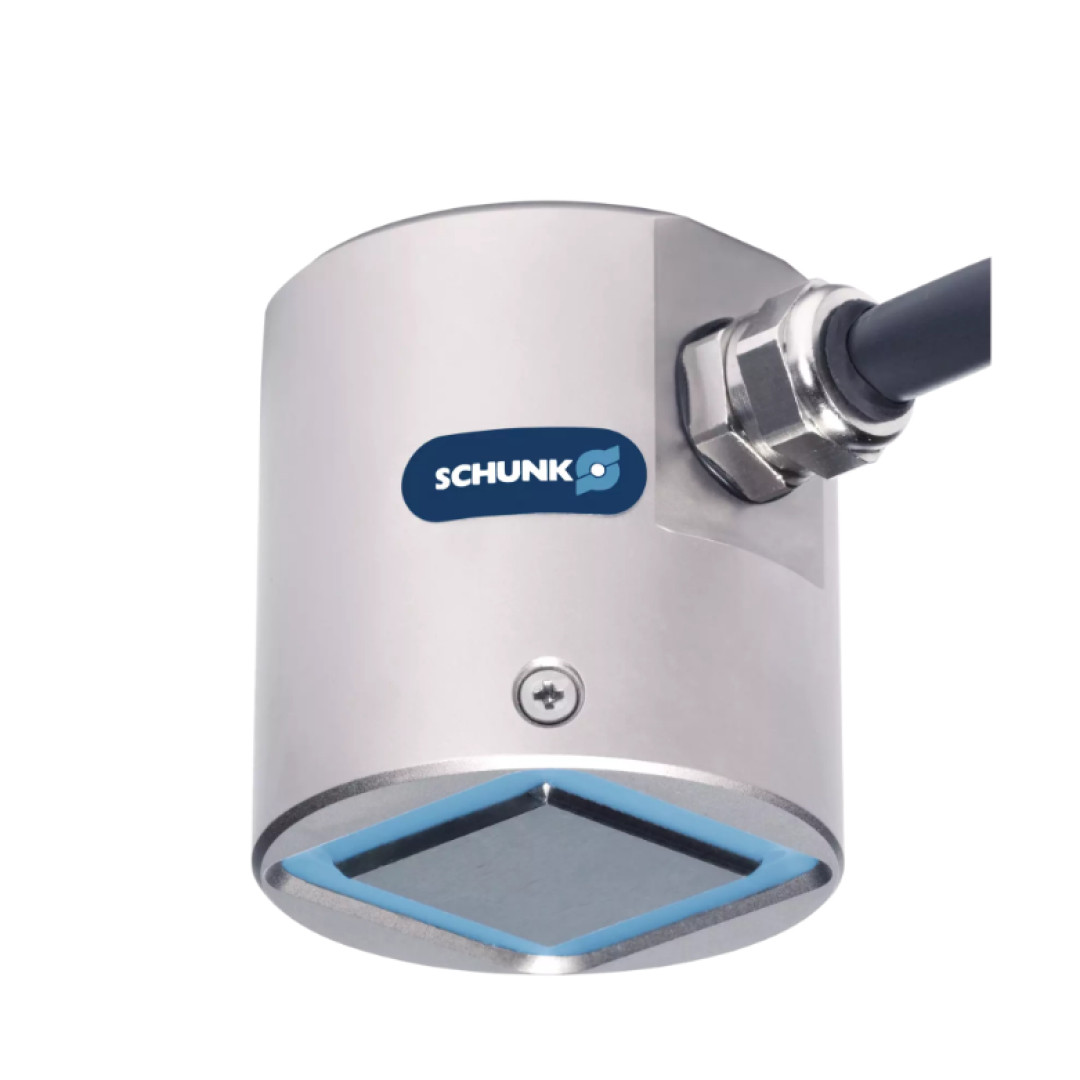

Schunk’s EGM-M-Q-30-1-FX magnetic gripper enables efficient handling of ferromagnetic workpieces of different sizes.
It can be easily and intuitively integrated into most robotic arms from leading manufacturers.
Featuring a lightweight steel design for dynamic applications, it has a high gripping capacity and stable force maintenance to ensure reliable process operation even in the event of an emergency stop.
EGM-M-Q-30-1-FX helps energy efficiency as only electricity is needed for magnetisation and demagnetisation.
Main features
-
- High holding forces at lowest space.
- Energy efficiency.
- Unnecessary gripper fingers.
- Easy set-up and quick integration.
Applications
-
- Electronic waste management.
- Manufacturing processes.
- Handling of metal parts.
| Manufacturer | Schunk |
| Model Nº | EGM-M-Q-30-1-FX |

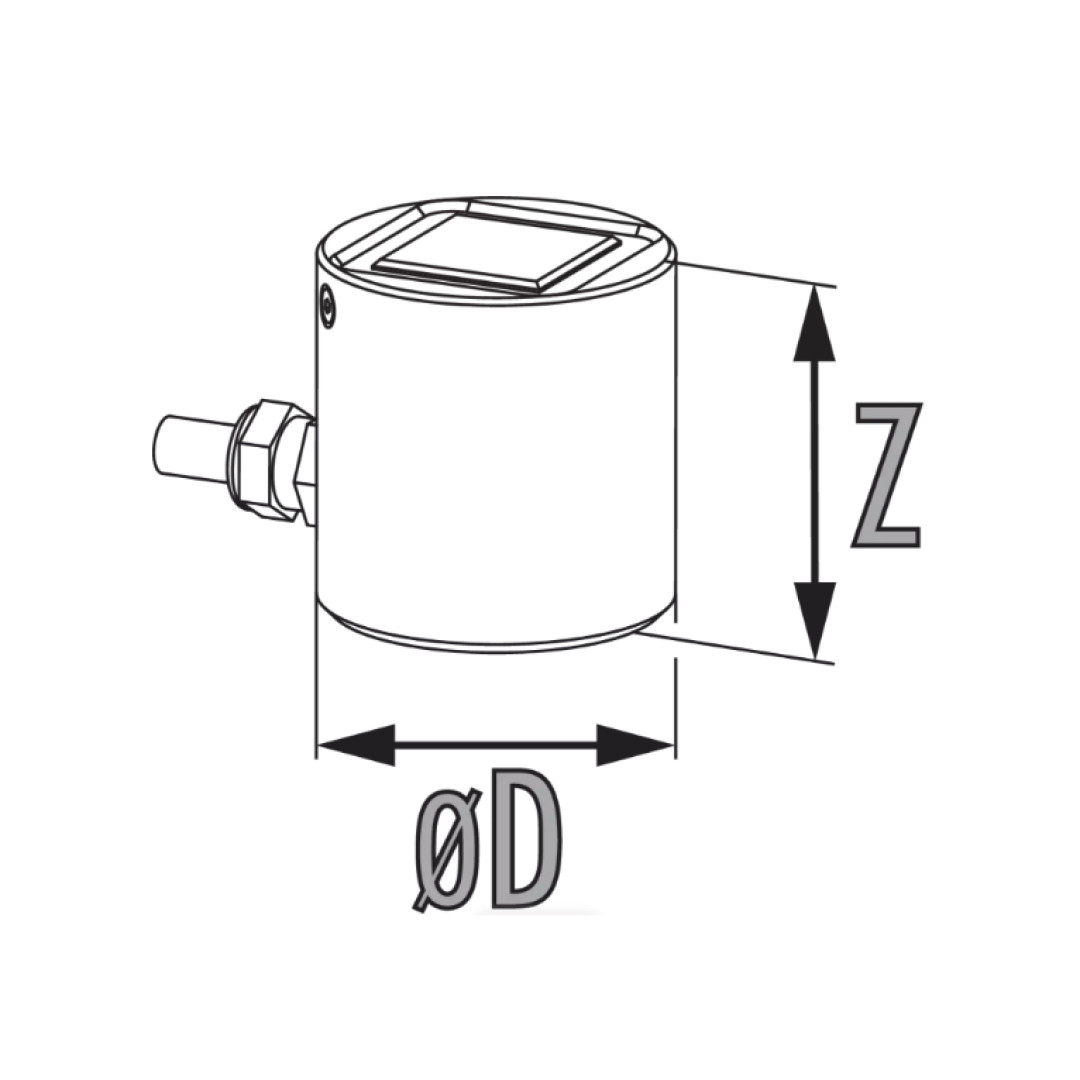

| Height Z | 60 mm |
| Weight | 1,3 kg |
| Temperature | 5°C - 50°C |
| Enclosure class | IP54 |
| Base diameter | 58 mm |
| Controller | Magnetic controller ECG 01 |
| Current | 32 A |
| Magnetic surfaces | 18,4 cm² |
| Voltage | 400 V AC |
