Showing 13–17 of 17 results

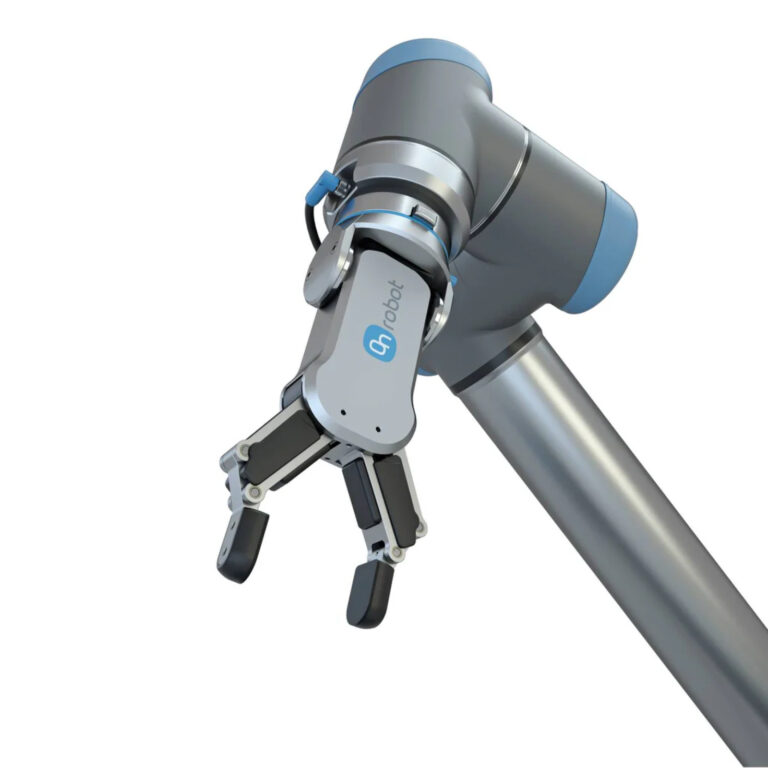

RG2 FT
Available on backorder
| Weight | 1,5 kg |
|---|---|
| Dimensions | 17 × 12 × 8 cm |
| Manufacturer |
OnRobot |
| Model Nº |
RG2-FT |
| Temperature |
5ºC – 50ºC |
| Weight |
0,77 kg |
| Current consumption |
6,5 W – 22 W |
| Full scale nonlinearity |
12 |
| Max. gripping force |
40 N |
| Max. stroke per jaw |
100 mm |
| Measuring area |
2 mm |
| Nominal Capacity (N.C.) |
Fxy: 20 N / Fz: 40 N / Txy: 0,7 Nm / Tz: 0,5 Nm |
| Noise-free resolution (typical) |
Fxy: 0,1 N / Fz: 0,4 N / Txy: 0,008 Nm / Tz: 0,005 Nm |
VG10
Available on backorder
| Weight | 2,5 kg |
|---|---|
| Dimensions | 17 × 22 × 12 cm |
| Manufacturer |
OnRobot |
| Model Nº |
VG10 |
| Payload |
10 kg |
| Reach |
32 mm – 358 mm |
| Operating Temperature |
0 °C – 50 °C |
| Vacuum |
5 % – 80 % Vacuum -0.05 – -0.810 Bar 1.5 – 24 inHg |
| Air flow |
12 Nl/min |
| Power supply |
Min 20.4 V / Typical 24 V / Max 28.8 V |
| Current consumption |
Min. 50 mA / Typical 600 mA / Max. 1500 mA |
| Adjustable arms |
270 |
| Holding torque arms |
6 Nm |
| Vacuum cups |
1 – 16 pcs. |
| Gripping time |
0,35 s |
| Releasing time |
0,20 s |
| Vacuum pump |
Integrated, electric BLDC |
| Arms |
4, adjustable by hand |
| Tool changer |
Integrated, click-on |
| Mechanical interface |
ISO 9409-1, 50-4-M6 |
| Pneumatic interface |
16x G1/8 internal threads |
| Electrical interface |
8-pole M8 |
VGC10
Available on backorder
| Weight | 8 kg |
|---|---|
| Dimensions | 27 × 35 × 17 cm |
| Manufacturer |
OnRobot |
| Model Nº |
VGC10 |
| Size |
101 x 100 x 100 mm |
| Weight |
0,814 kg |
| Payload |
15 kg |
| Enclosure class |
IP54 |
| Operating Temperature |
0 °C – 50 °C |
| Vacuum |
5 % – 80 % Vacuum -0.05 – -0.810 Bar 1.5 – 24 inHg |
| Power supply |
Min 20.4 V / Typical 24 V / Max 28.8 V |
| Current consumption |
Min. 50 mA / Typical 600 mA / Max. 1500 mA |
| Vacuum cups |
1 – 7 pcs. |
| Gripping time |
0,35 s |
| Releasing time |
0,20 s |
| Vacuum pump |
Integrated, electric BLDC |
| Tool changer |
Integrated, click-on |
