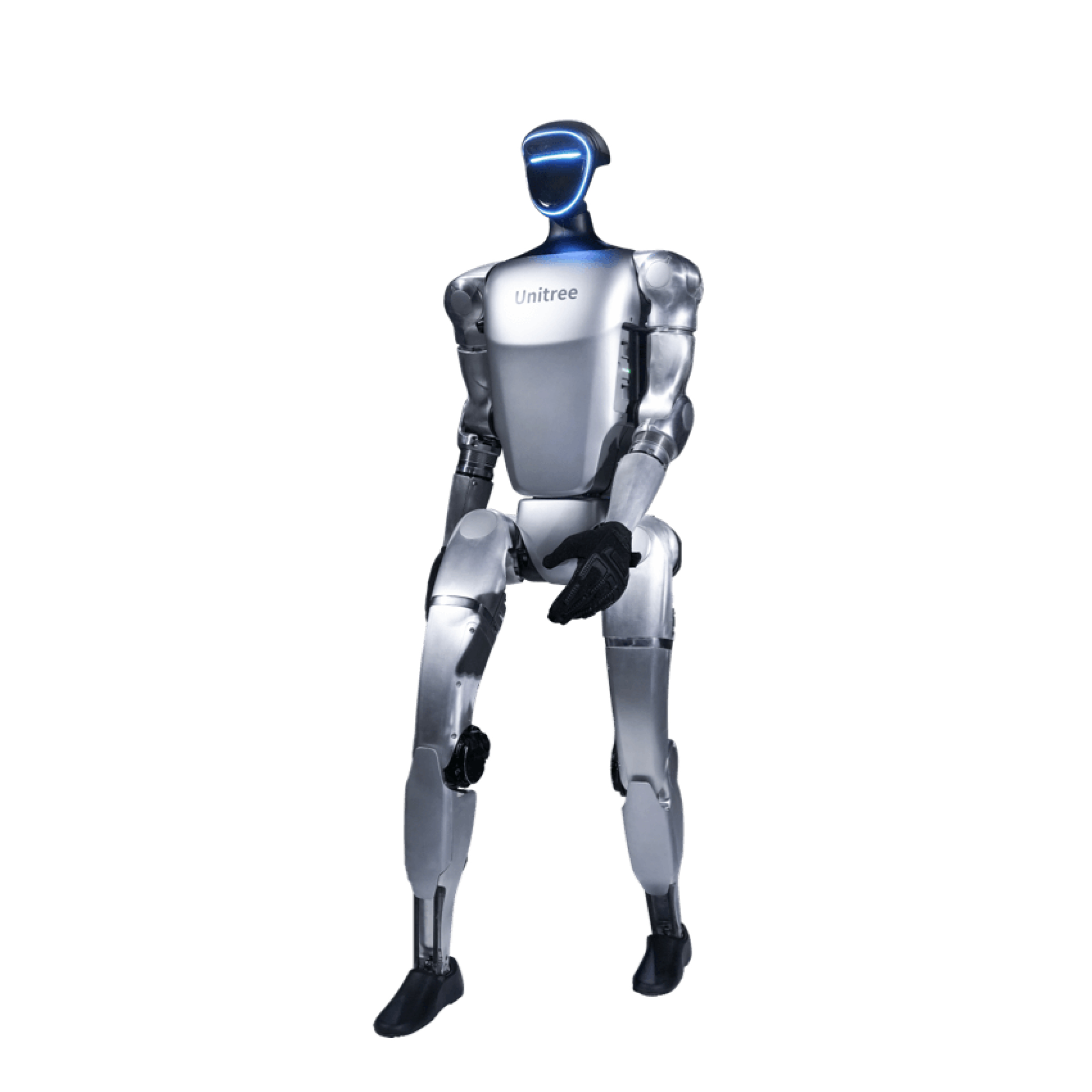

G1
Manufacturer: Unitree
Humanoid robot.
Estimated delivery time: 6 – 8 Weeks.
43.540,00 €
Available on backorder
Available on backorder

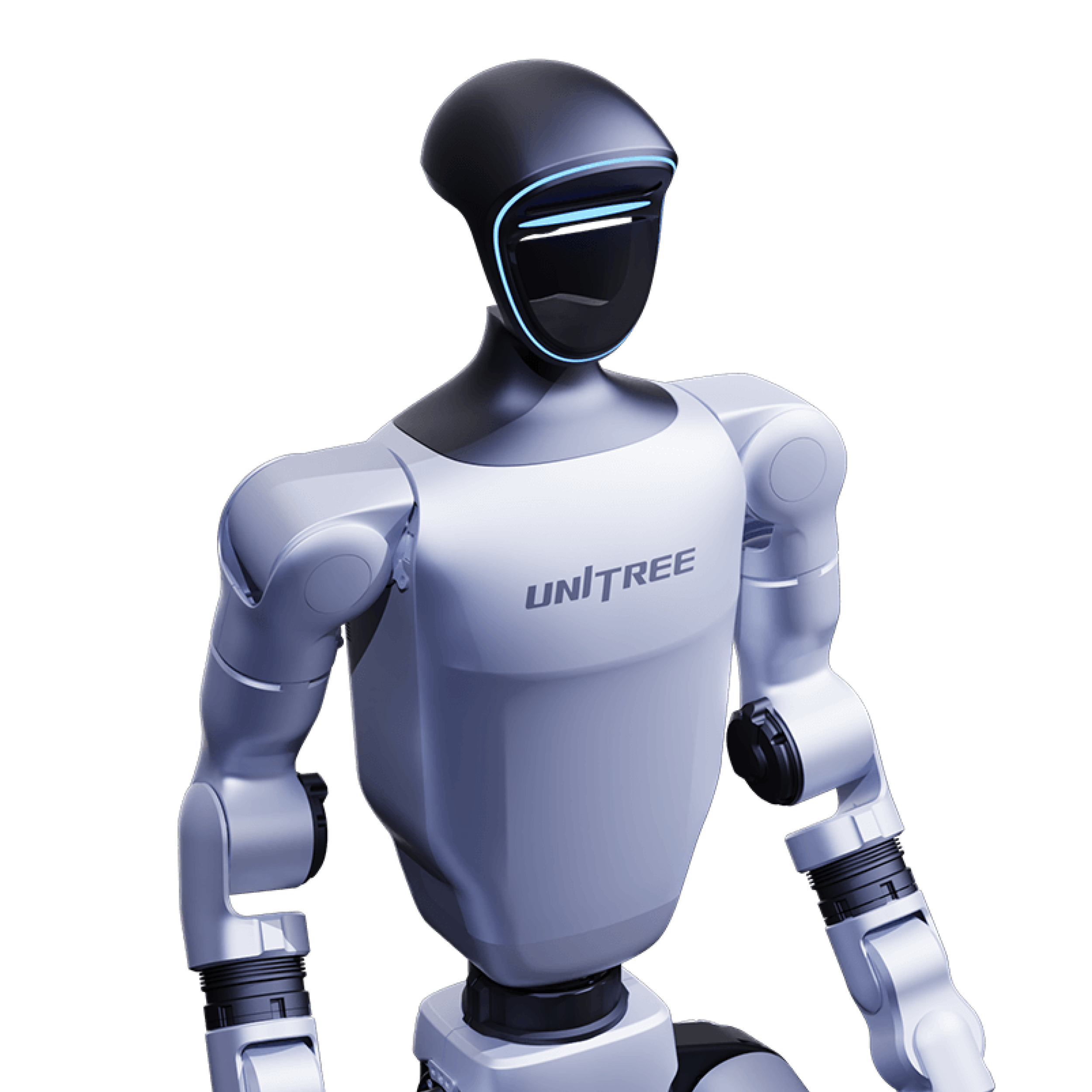

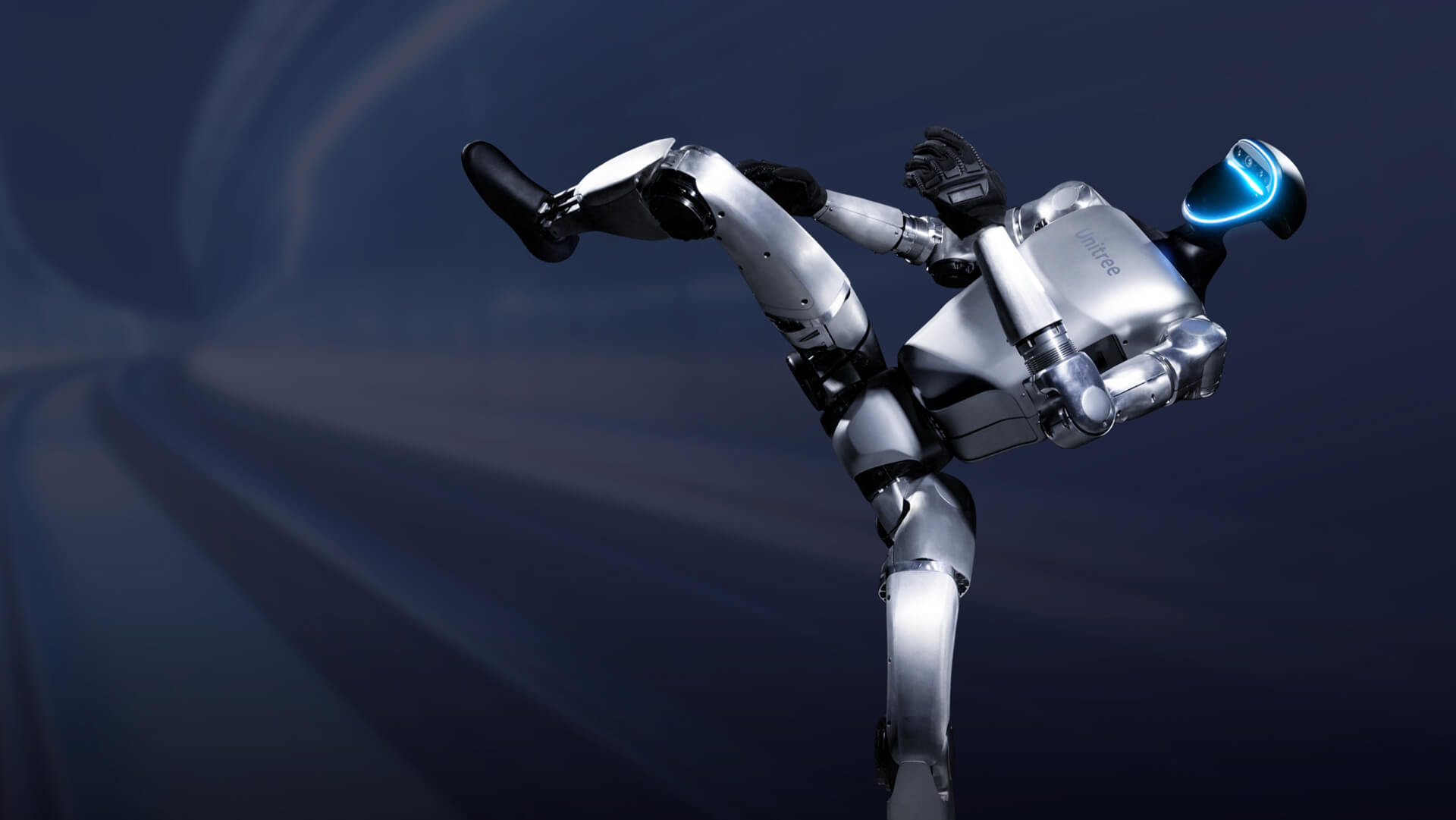

Unitree’s G1 is a humanoid with Artificial Intelligence, designed to perform a wide range of movements and tasks thanks to its learning driven by imitation and reinforcement.

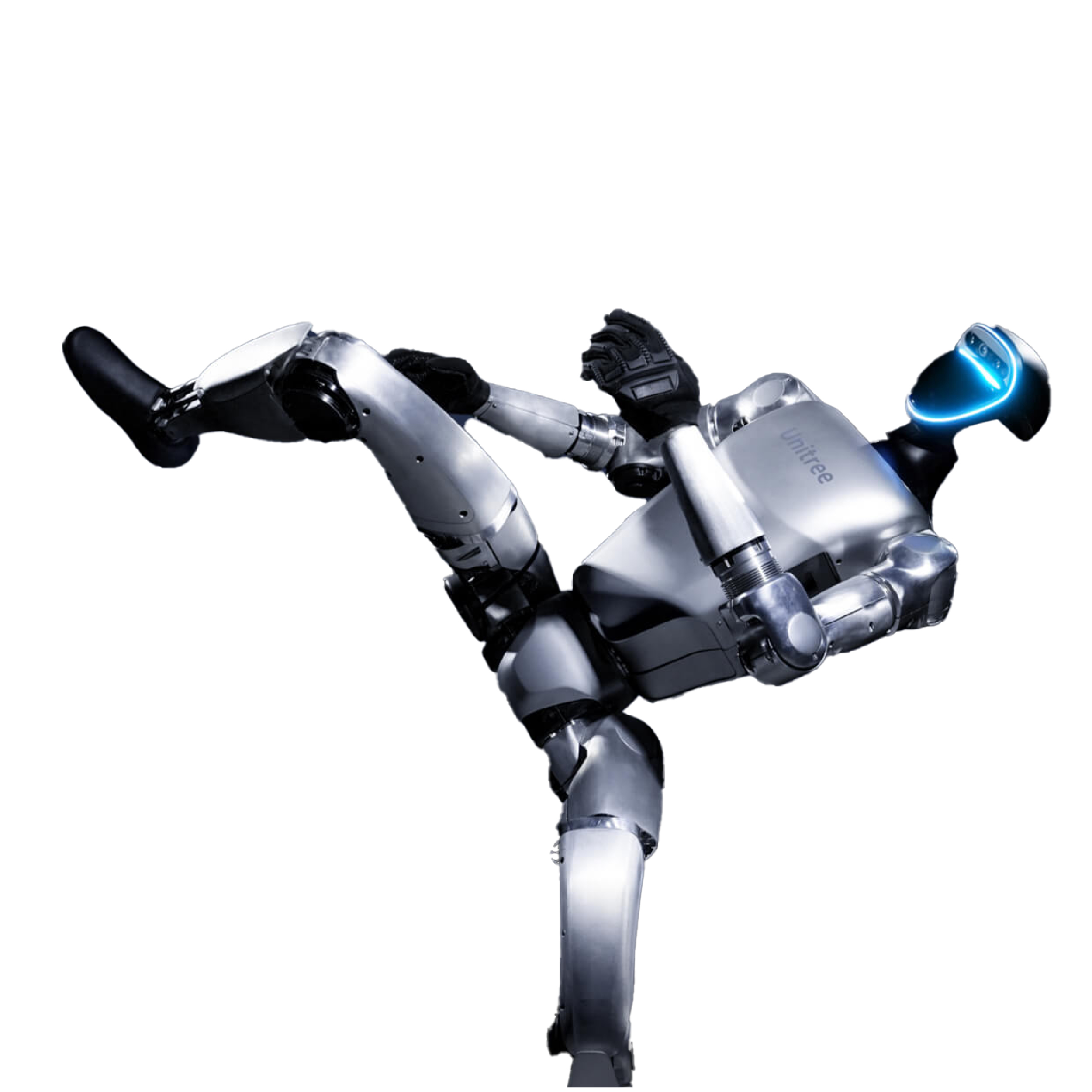

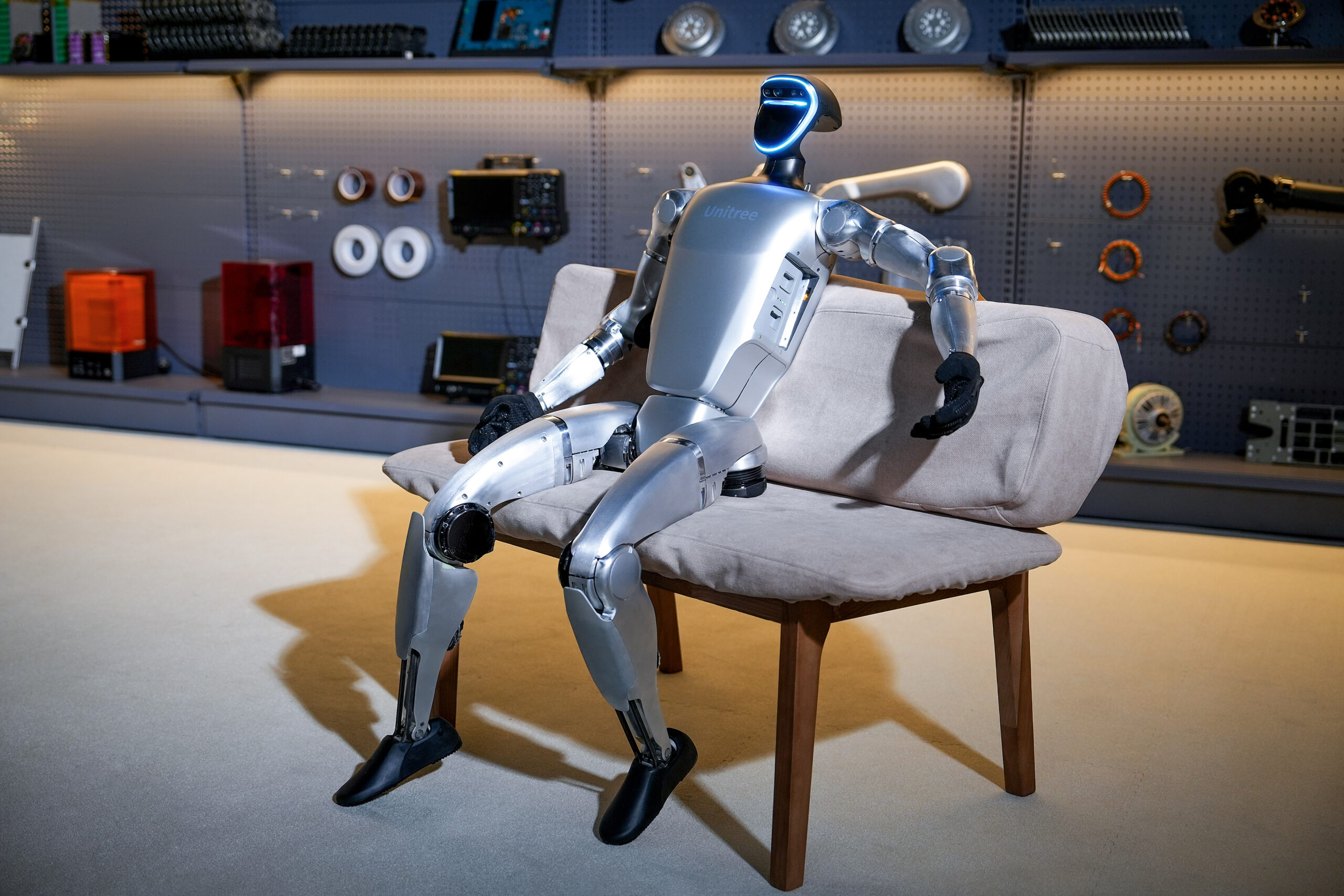

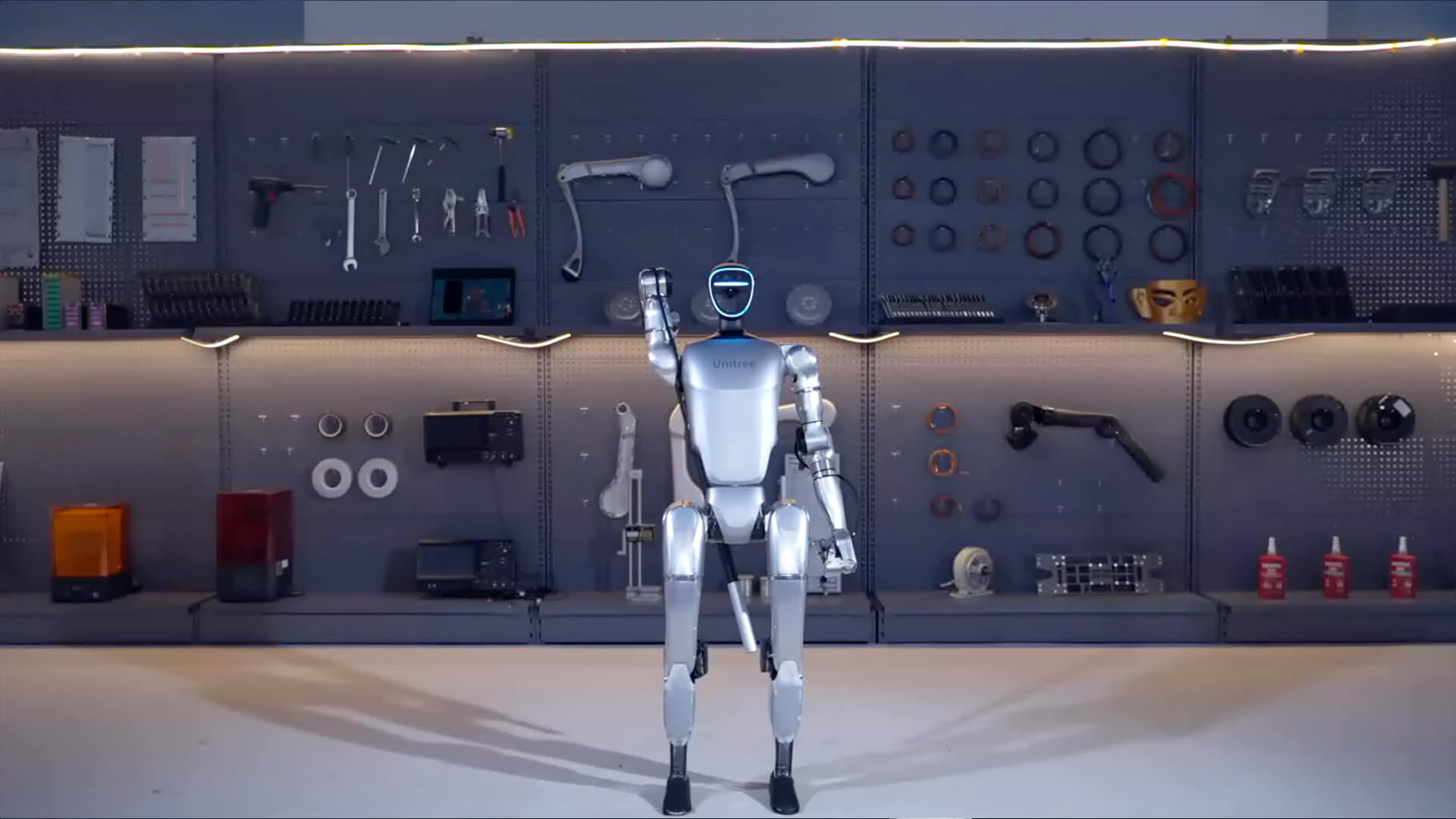

This compact robot, standing at 1.2 metres tall, can move at speeds of up to 7 km/h. In addition to walking and running, it stands out for its strength, flexibility and speed.

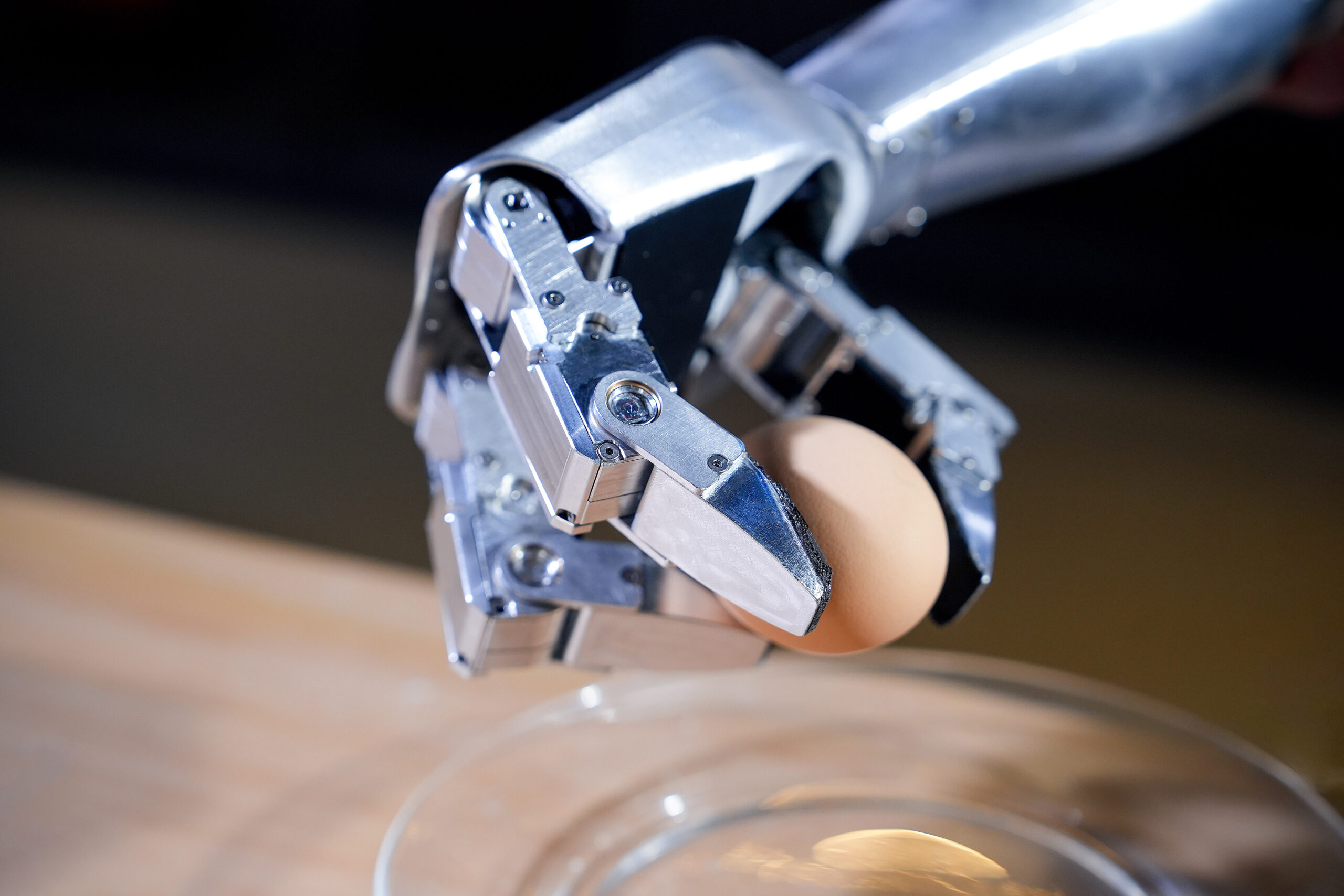

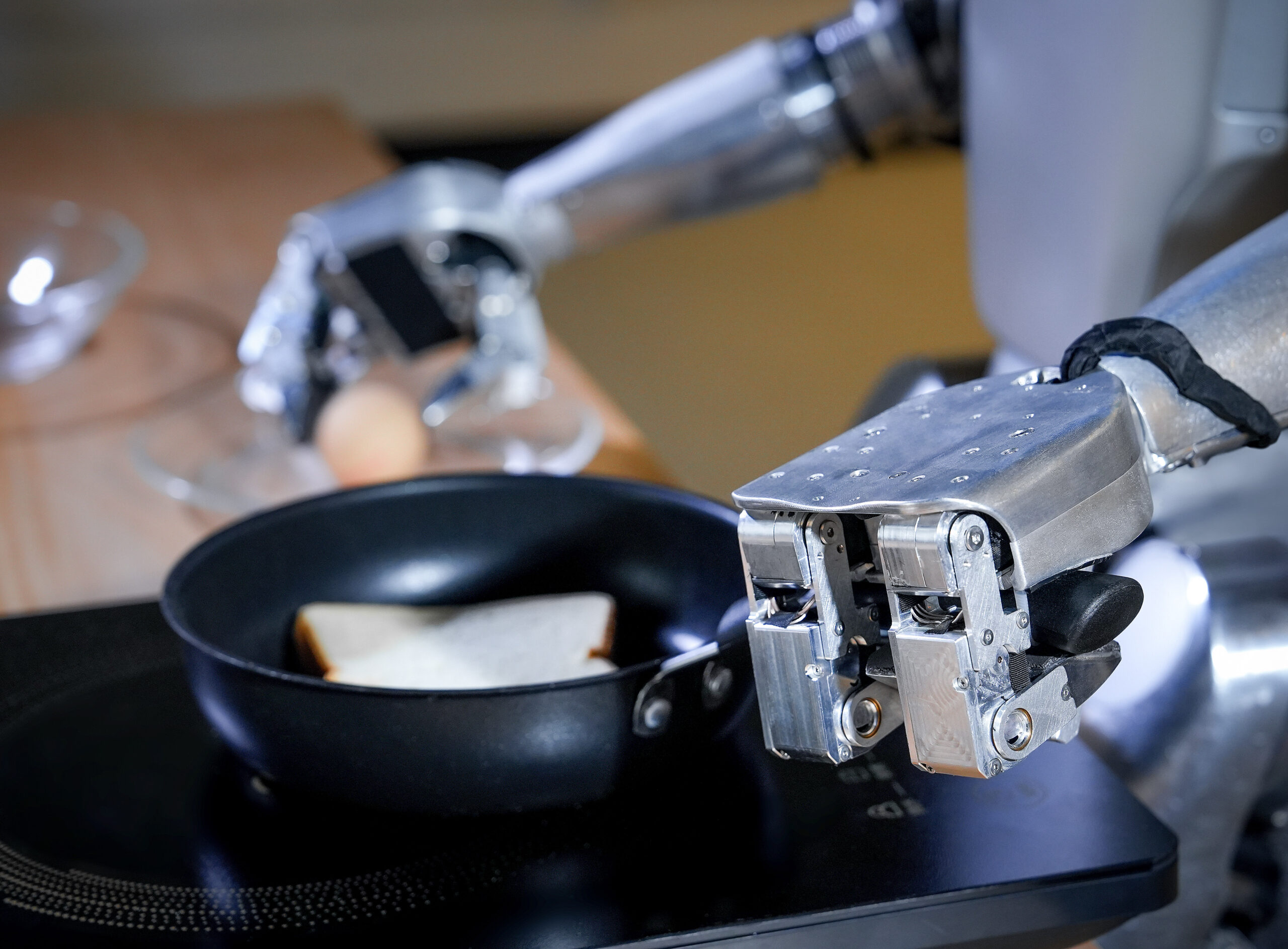

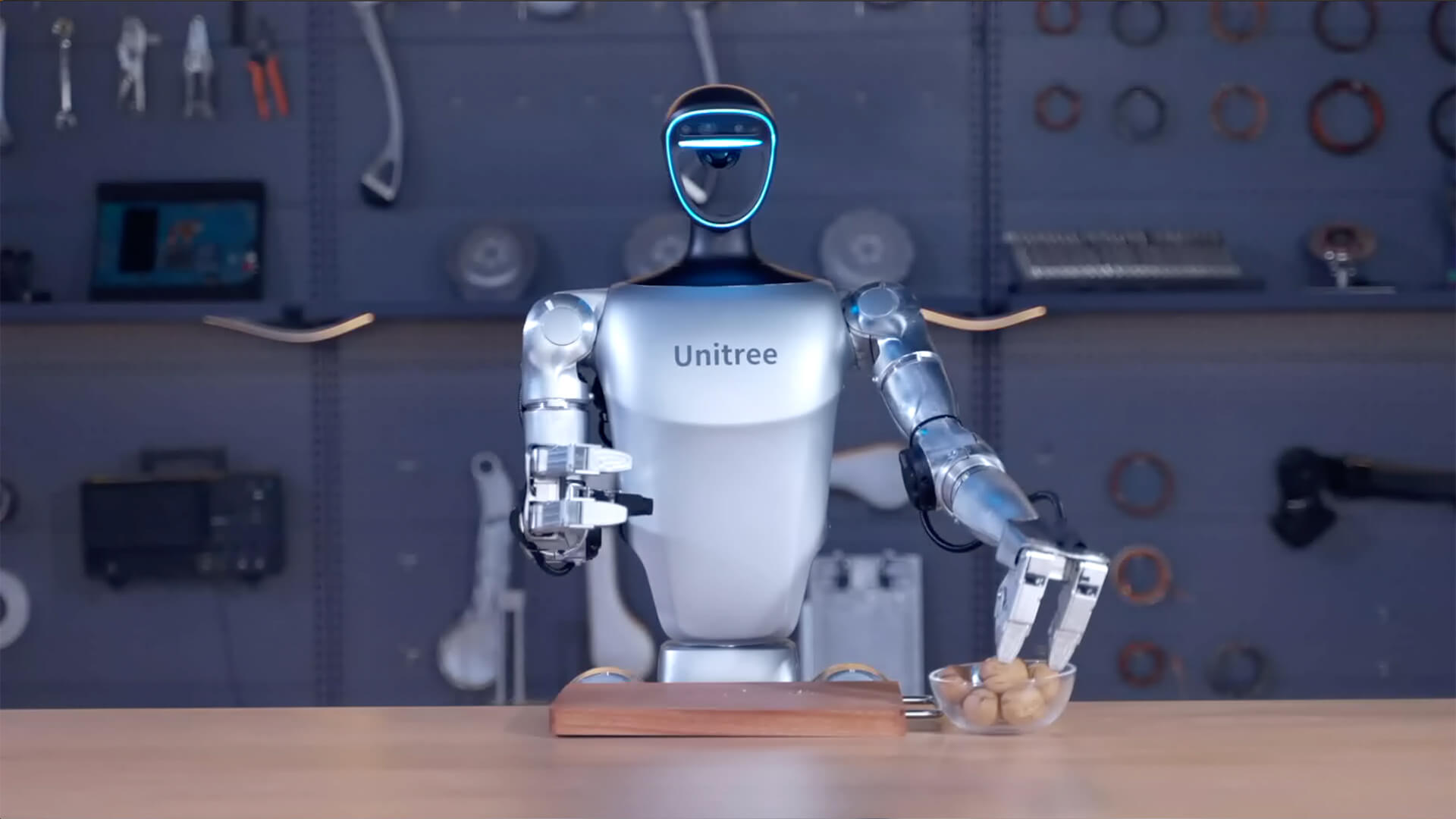

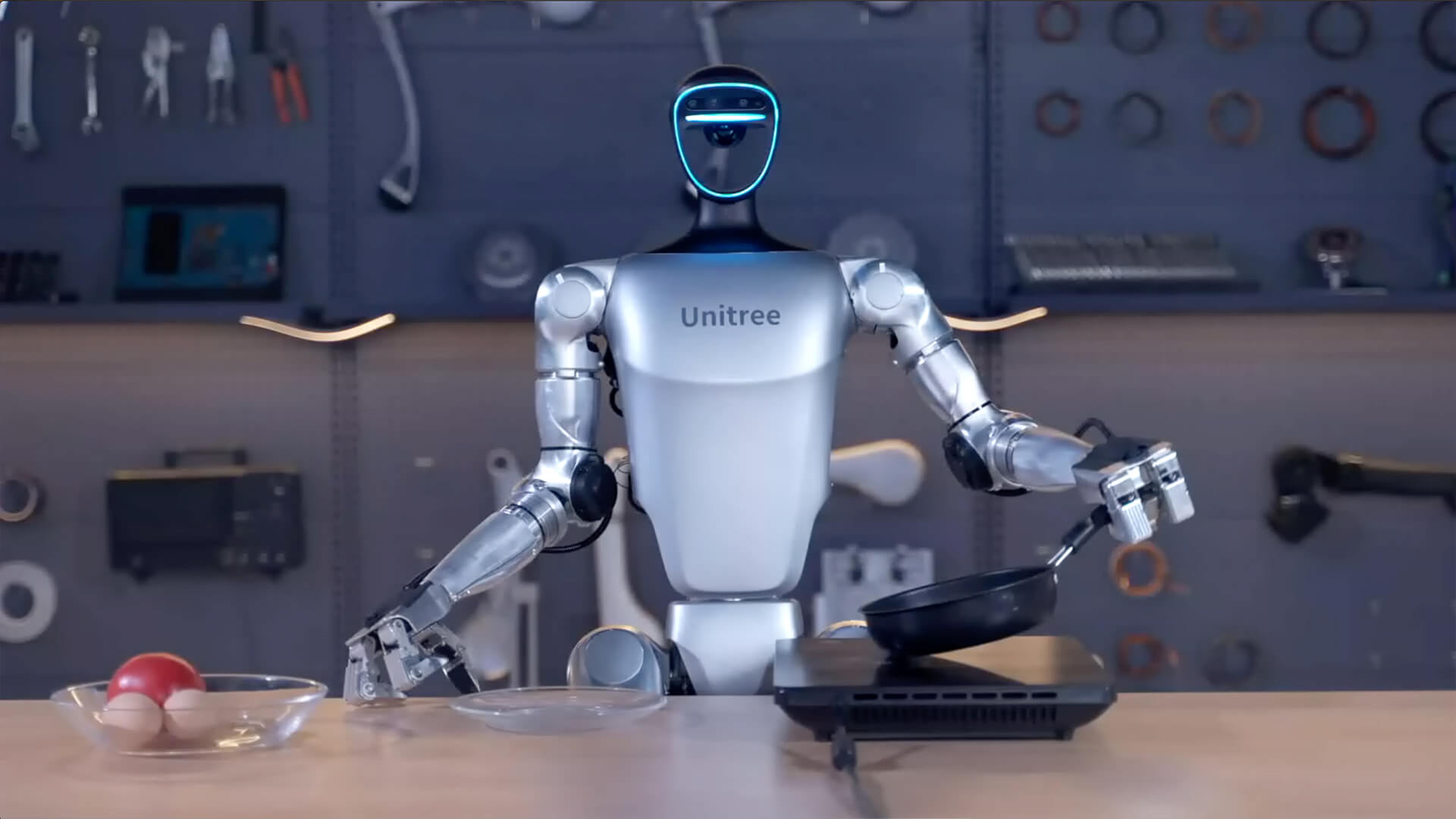

The humanoid G1 also features advanced force-position control in the hands for more precise, sensitive and reliable object manipulation.
G1 has a version for the academic sector: G1 Edu (see downloadable datasheet).

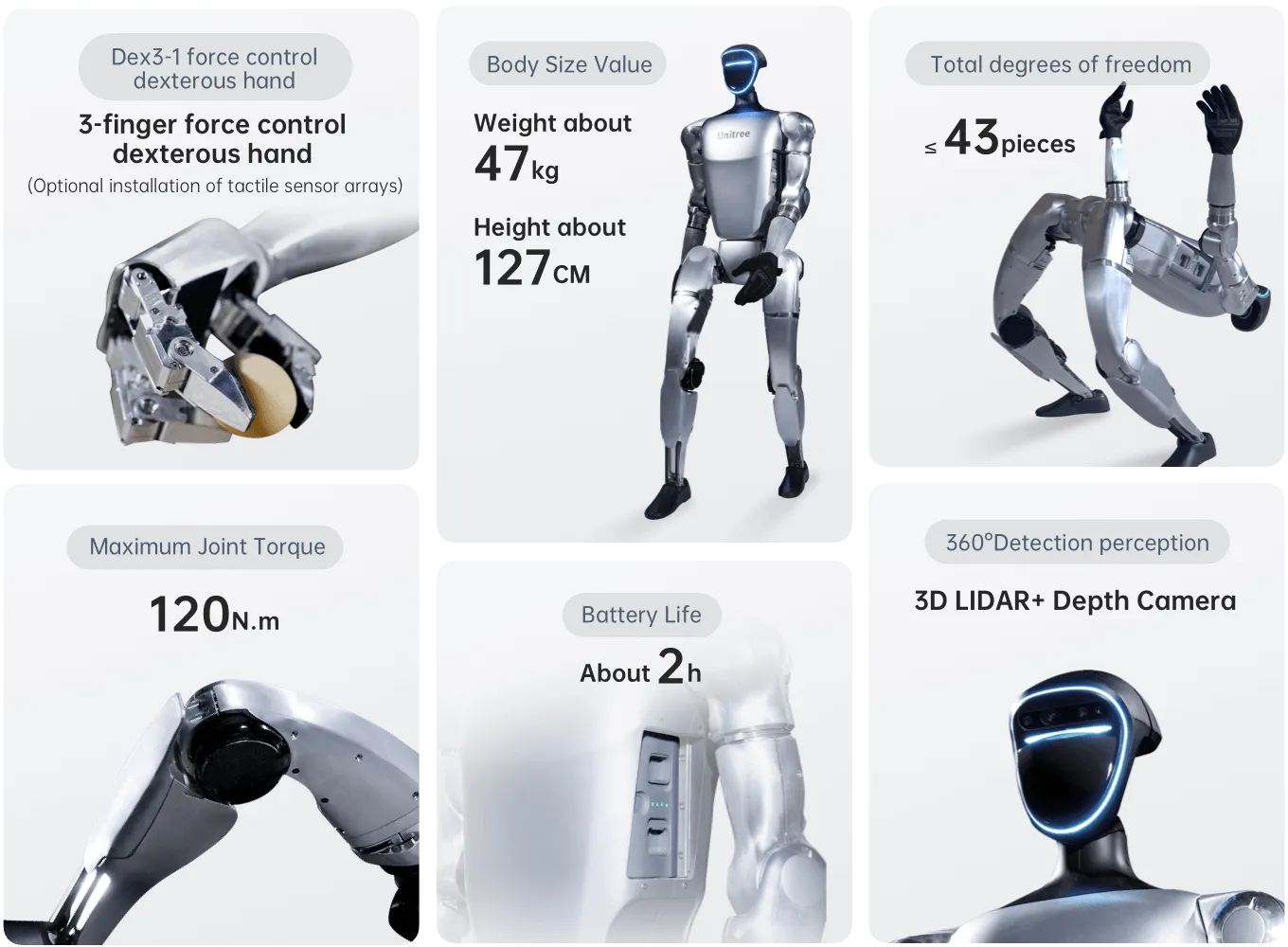

Main features
-
- Force-position hybrid control
- Imitation & Reinforcement learning driven
- Flexibility, 23~43 joint motors
Applications
-
- R&D
- Palletisation

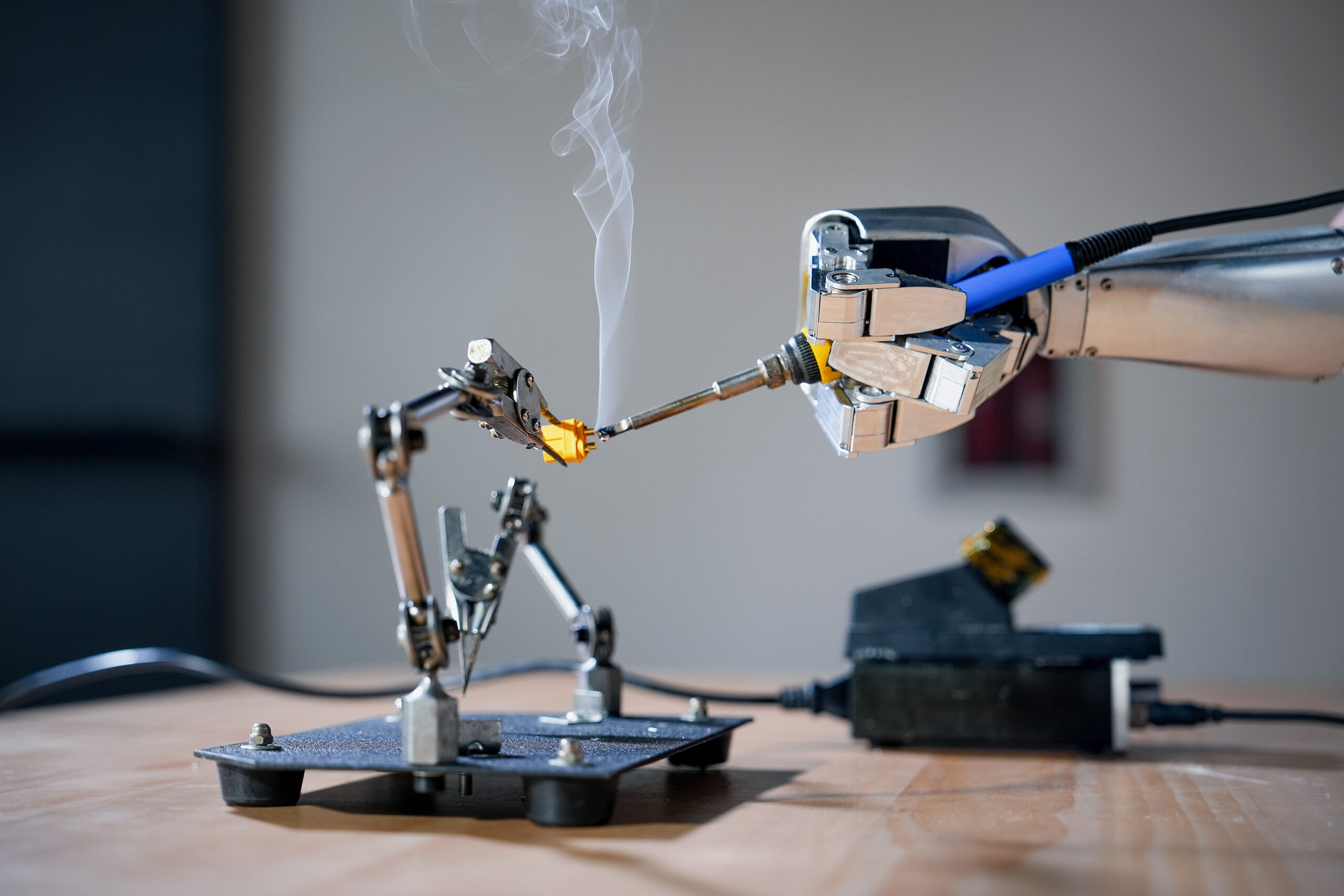

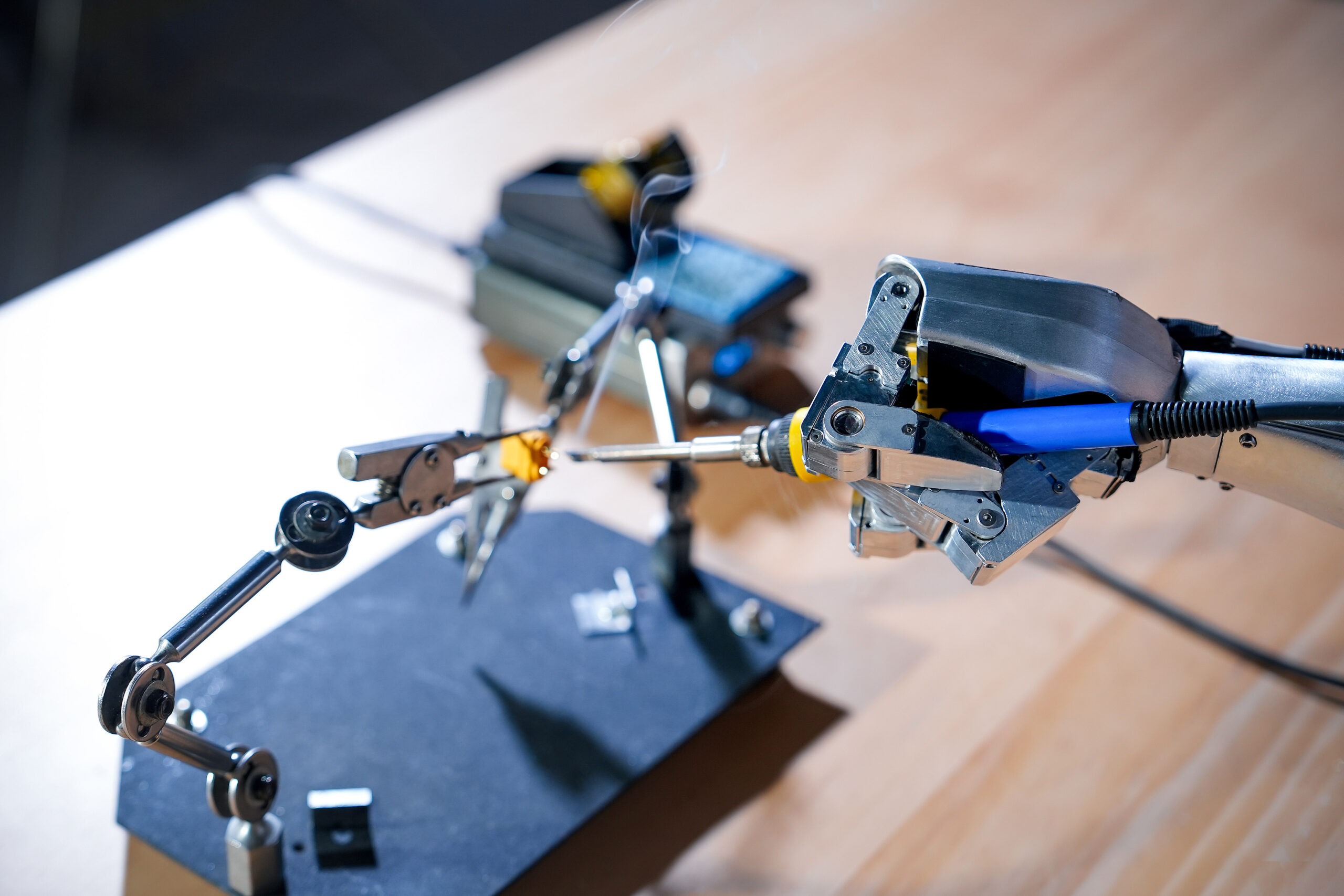

- Handling, assembly, welding

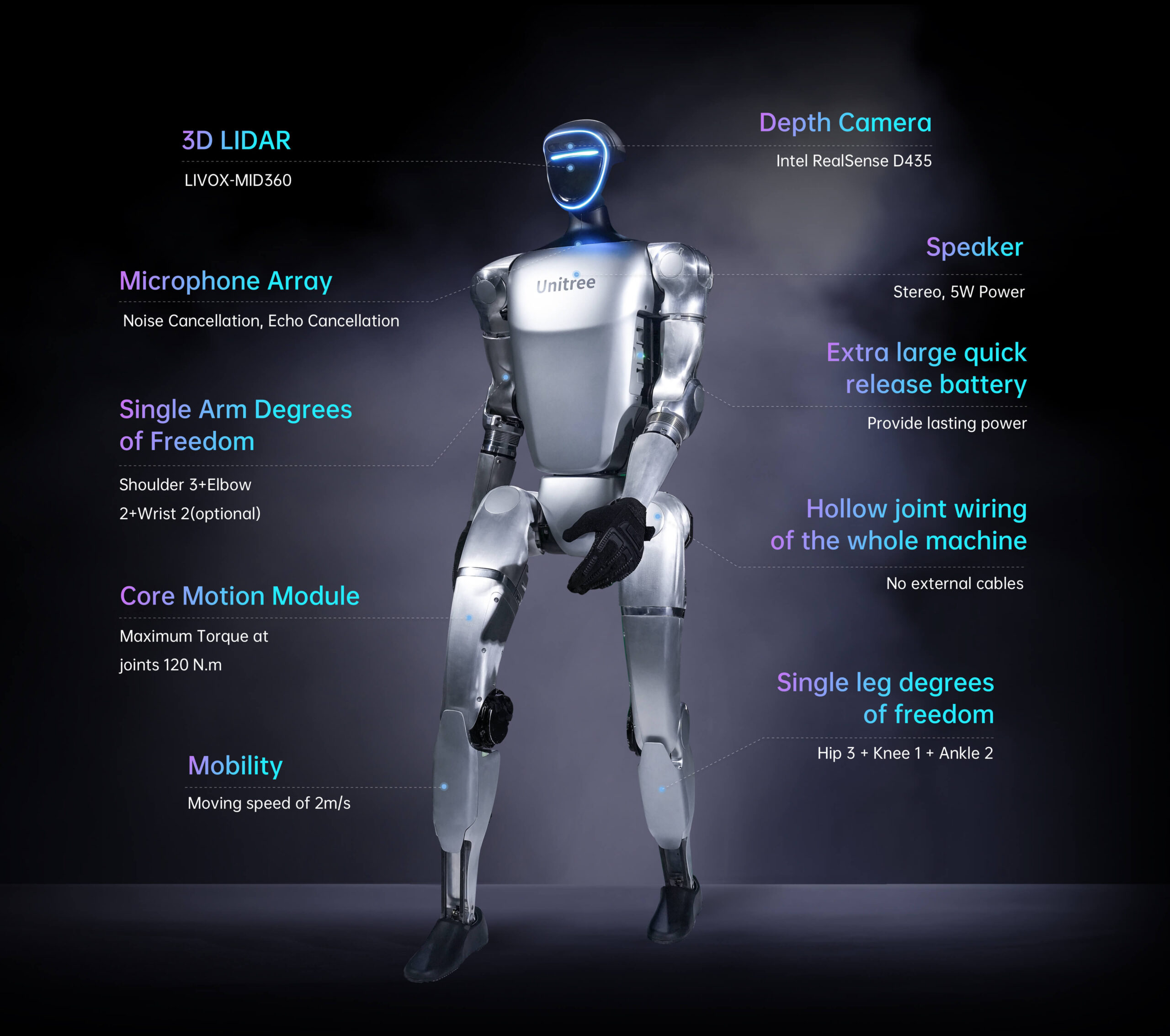

| Model Nº | G1 |
| Manufacturer | Unitree |

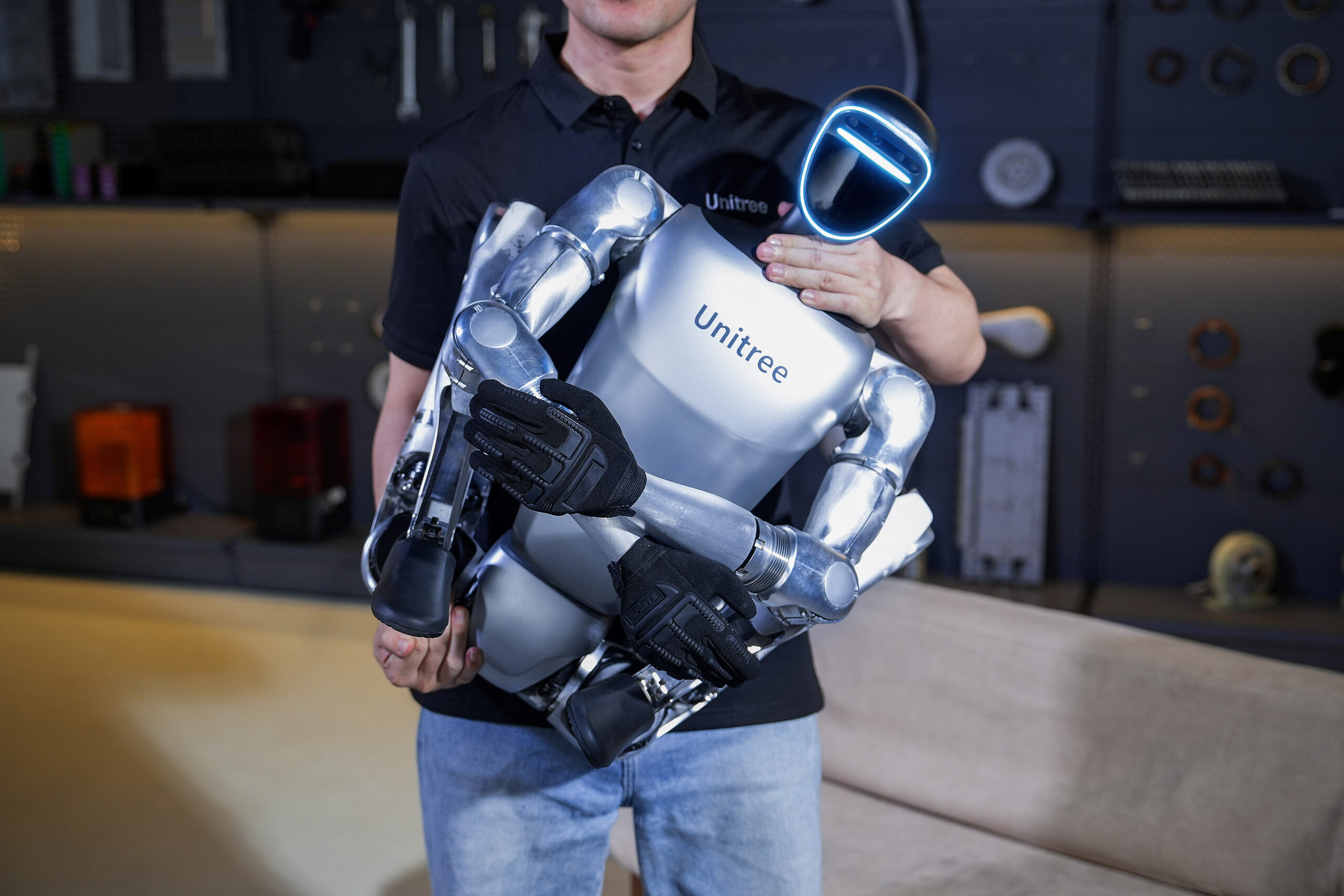

| Dimensions (folded) | 690 x 450 x 300 mm |
| Dimensions (unfolded) | 1.270 x 450 x 200 mm |
| Height | 1.320 mm |
| Weight | ~35 kg |
| Speed | 2 m/s |
| Processor | 8-core high-performance CPU |
| Autonomy | 2 h |
| Battery | 9000mAh |

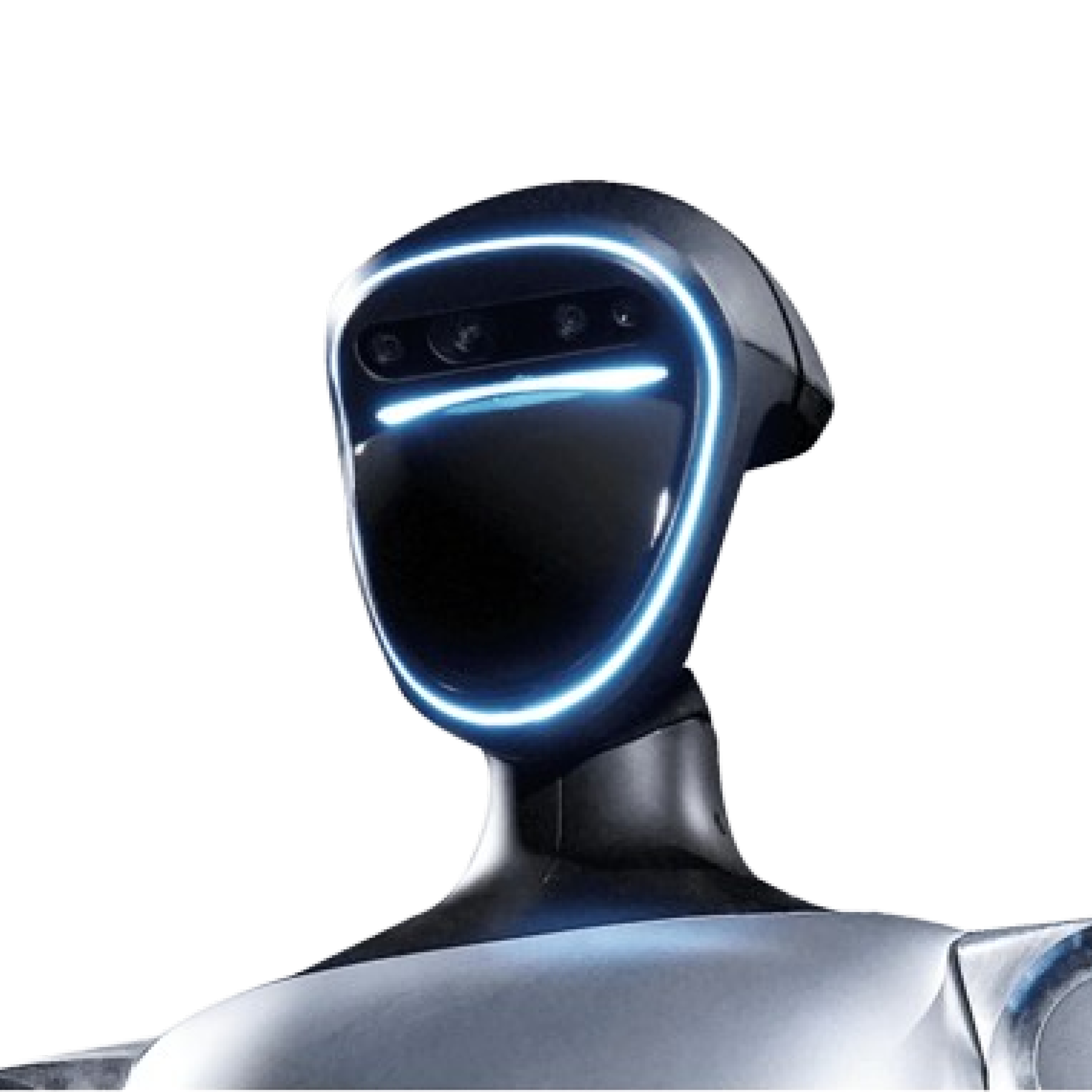

| Front camera | Intel RealSense D435 |
| LIDAR | LIVOX-MID360 |
| Load capacity | 2 kg |
| Microphones | Yes |
| DOF | G1: 23 DOF |
Source:
- https://github.com/unitreerobotics
- Open source data collection: https://github.com/unitreerobotics/av…
- Open source learning algorithms: https://github.com/unitreerobotics/un…
- Open source datasets and models: https://huggingface.co/UnitreeRobotics
